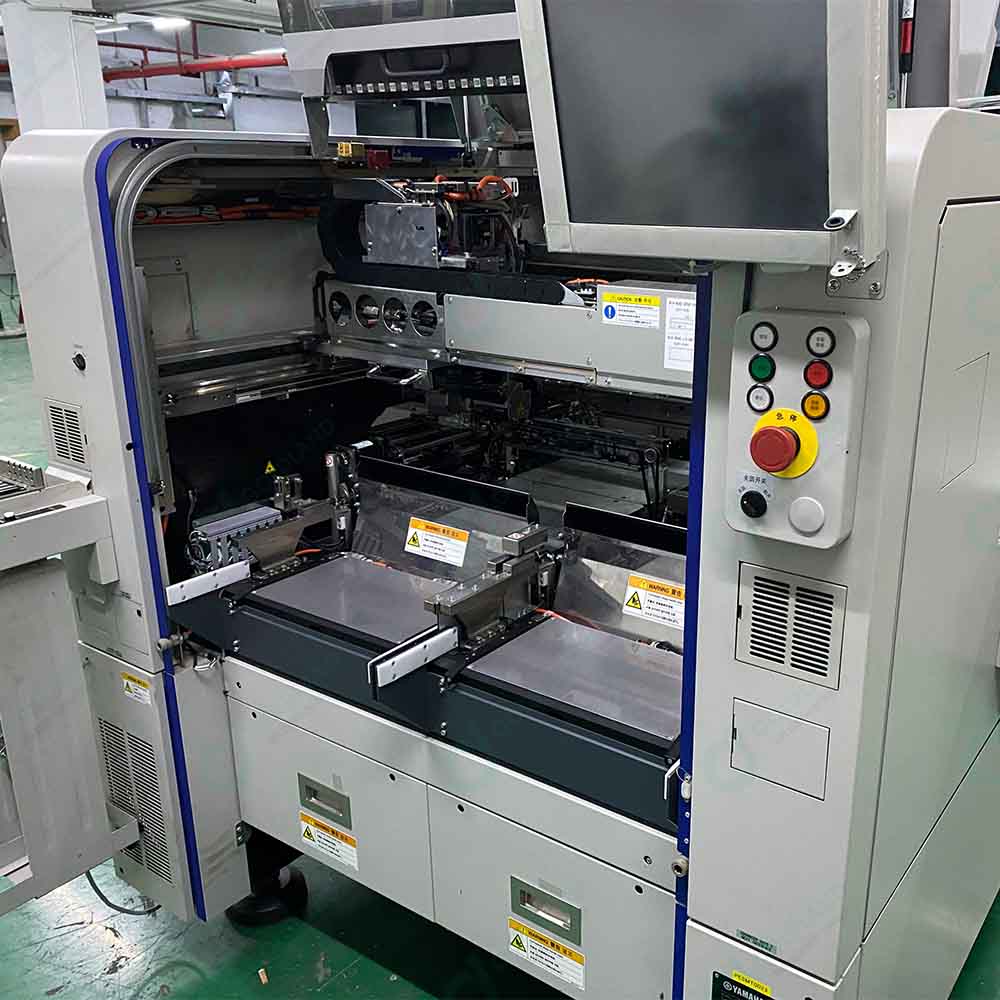

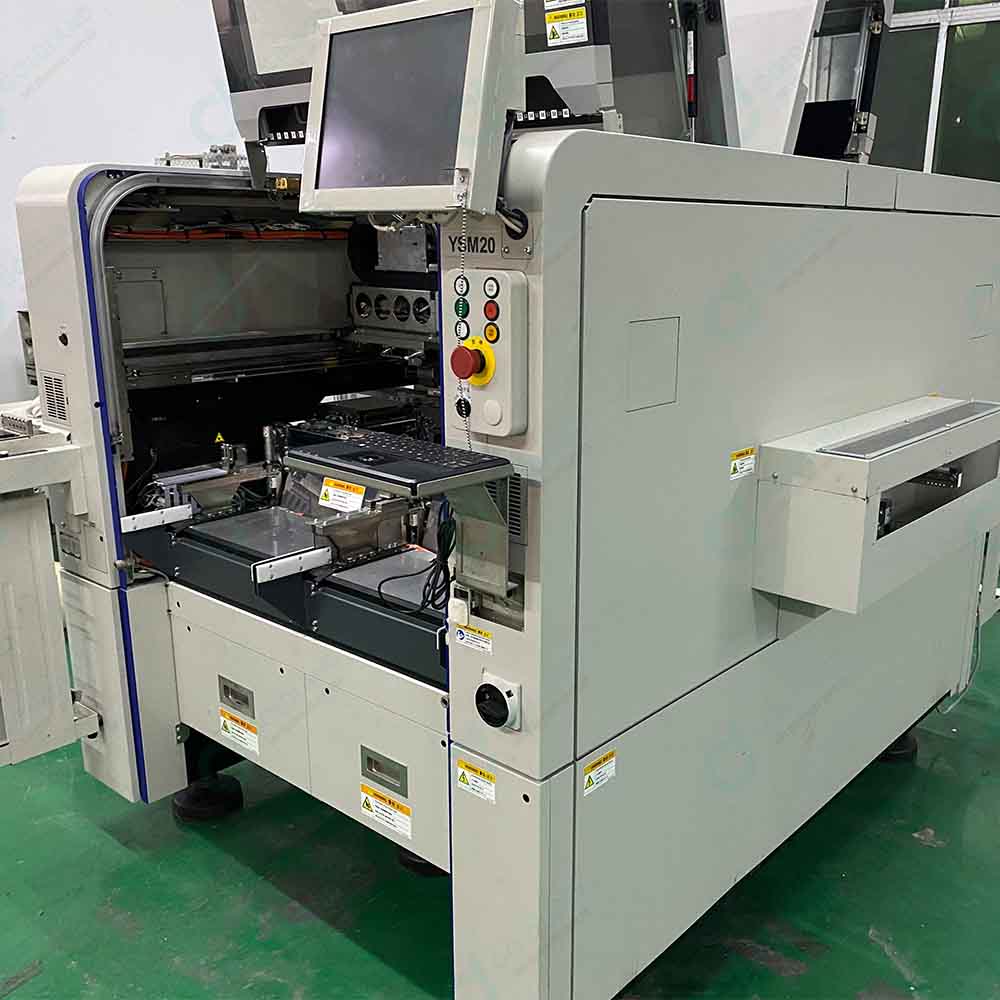

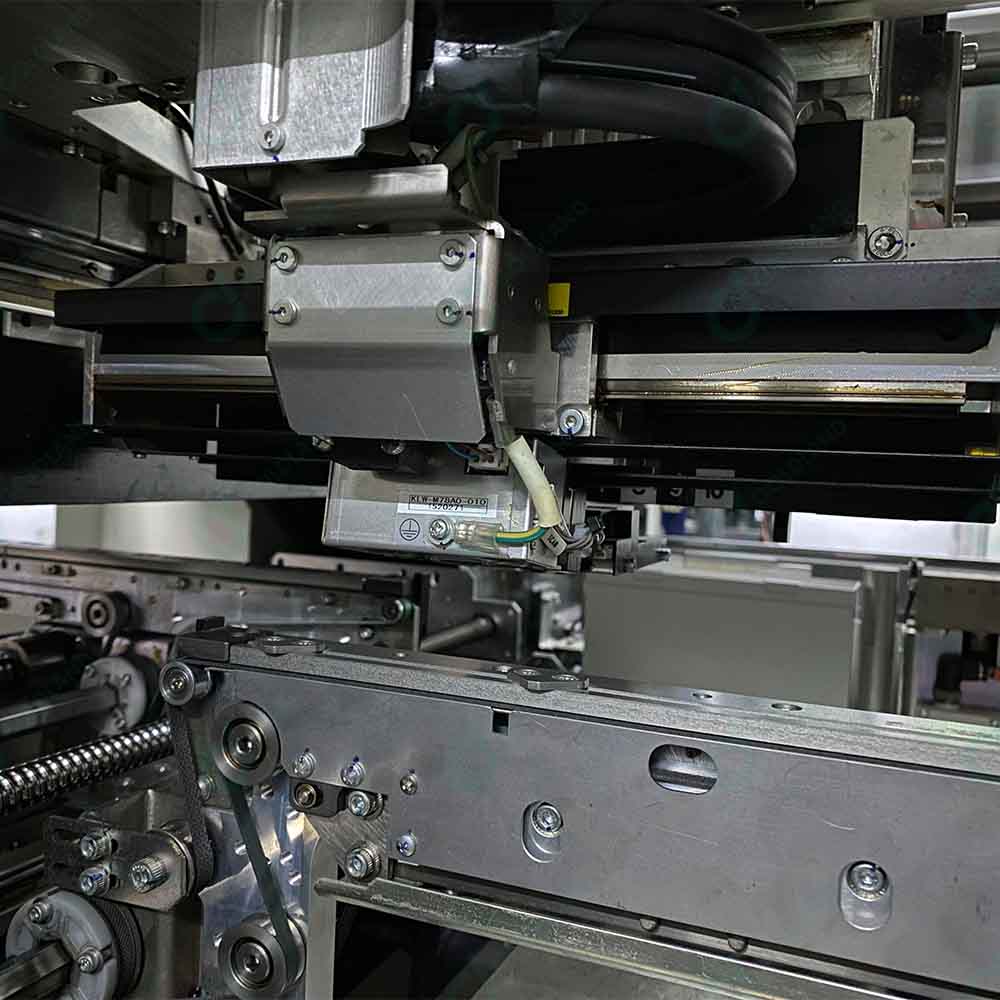

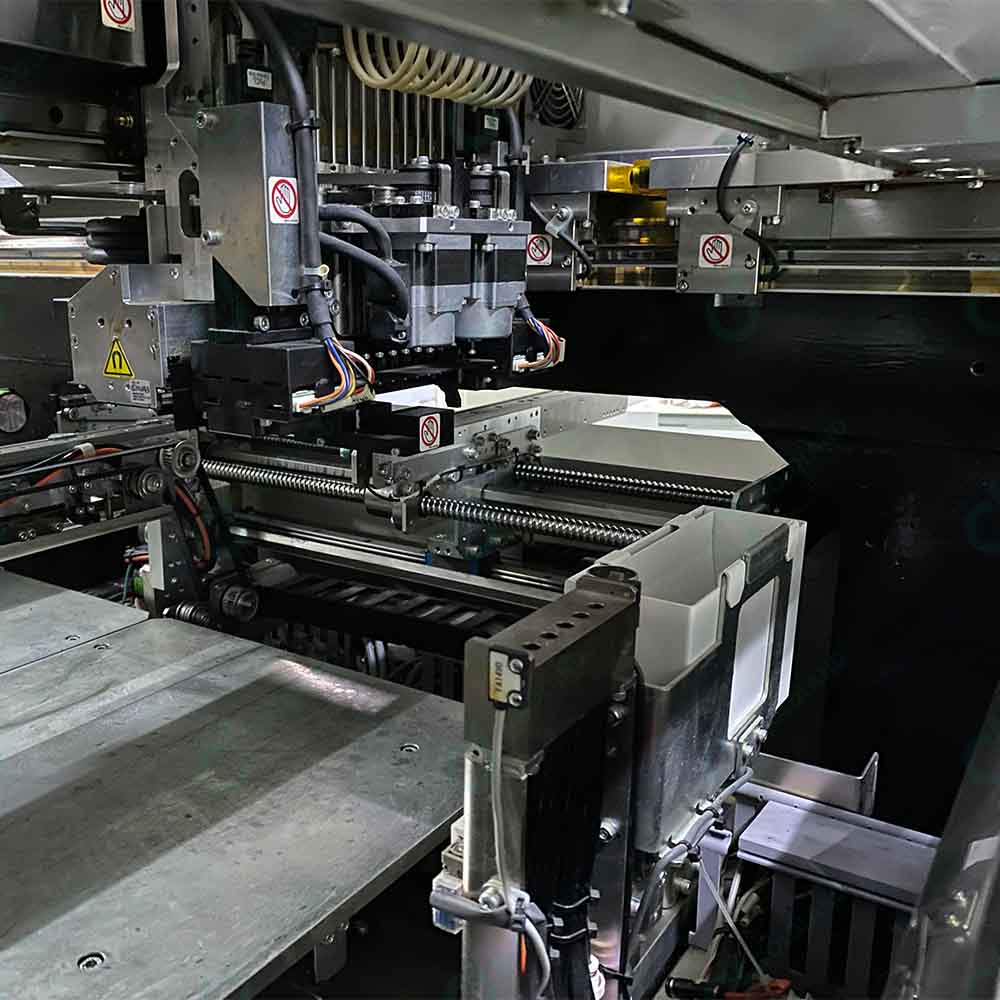

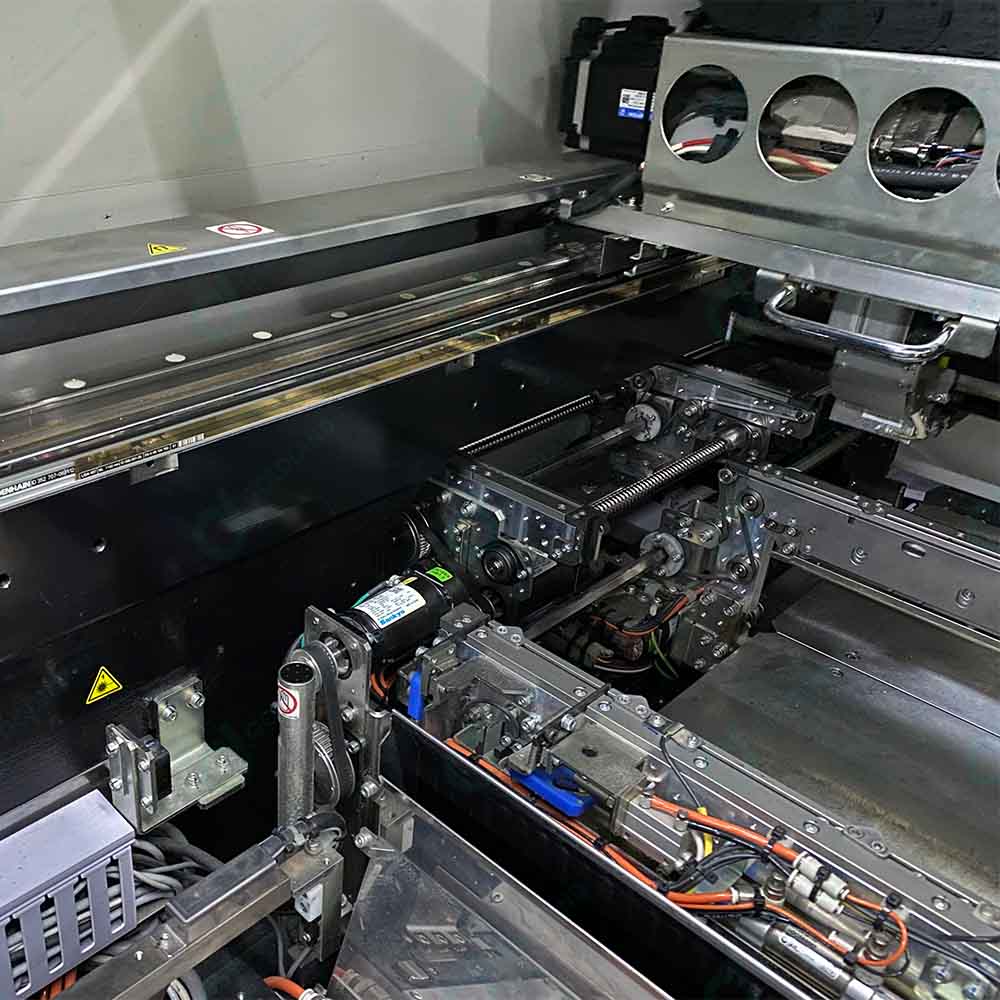

YAMAHA YSM20-2 SMT Placement Machine High Precision Fast Reliable Surface Mount Technology Equipment

Prices are for show only, please contact us for exact price.

Product Description

The YAMAHA YSM20-2 SMT machine offers exceptional performance in high-speed, high-precision PCB assembly. Engineered for flexibility, this advanced placement machine is ideal for high-volume production lines, with capabilities that include automatic component placement, superior accuracy, and fast cycle times. The YSM20-2 supports a wide range of components, from small chip components to large leaded parts, and is designed to maximize throughput while maintaining consistent quality. Its user-friendly interface and intelligent feeder systems enhance operational efficiency, making it a top choice for manufacturers in industries such as electronics, automotive, and telecommunications. Upgrade your SMT process with the YSM20-2 for optimized production efficiency and reduced costs.

Product Specifications

Model	YSM20	YSM20W
Applicable PCB	Dual stage (only for X axis 2-beam specs.): 1 PCB conveyance : L810 x W490 to L50 x W50; 2 PCB conveyance : L380 x W490 to L50 x W50 Single lane: L810 x W490 to L50 x W50 Dual lane (only for X axis 2-beam specs.): L810 x W230 to L50 x W50	Single lane :L810 x W742 to L50 x W50. Dual lane (only for X axis 2-beam specs.): L810 x W356 to L50 x W50
Head / Applicable components	High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less; Note : Multi-camera (option) may be needed in some cases due to part height and part size; Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm. Height 28mm or less.
Mounting capability	X axis 2-beam : High-speed multi-purpose (HM: High-speed Multi) head x 2: 90.000CPH (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam : High-speed multi-purpose(HM: High-speed Multi) head x 2: 80,000CPH (under optimum conditions as defined by Yamaha Motor)
Mounting accuracy (Under optimum conditions as defined bv Yamaha Motor when standard evaluation materials are used)	+/- 0.035mm (+/-0.025mm) Cpk1.0
Number of component Types	Fixed plate : Max. 140 tvpes (conversion for 8mm tape feeder); Feeder carriage exchange : Max.128 toes (conversion for 8mm tape feeder); Trays for 30 types (fixed) and 10 types (carriage)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/- 10% 50/60Hz
Air supolv source	0 45MPa or more. in clean, dry state
External dimension (excludina proiections)	L 1374 x W 1857 x H1445mm
Weight	Approx. 2.050 kg	Approx. 2.500 ka
