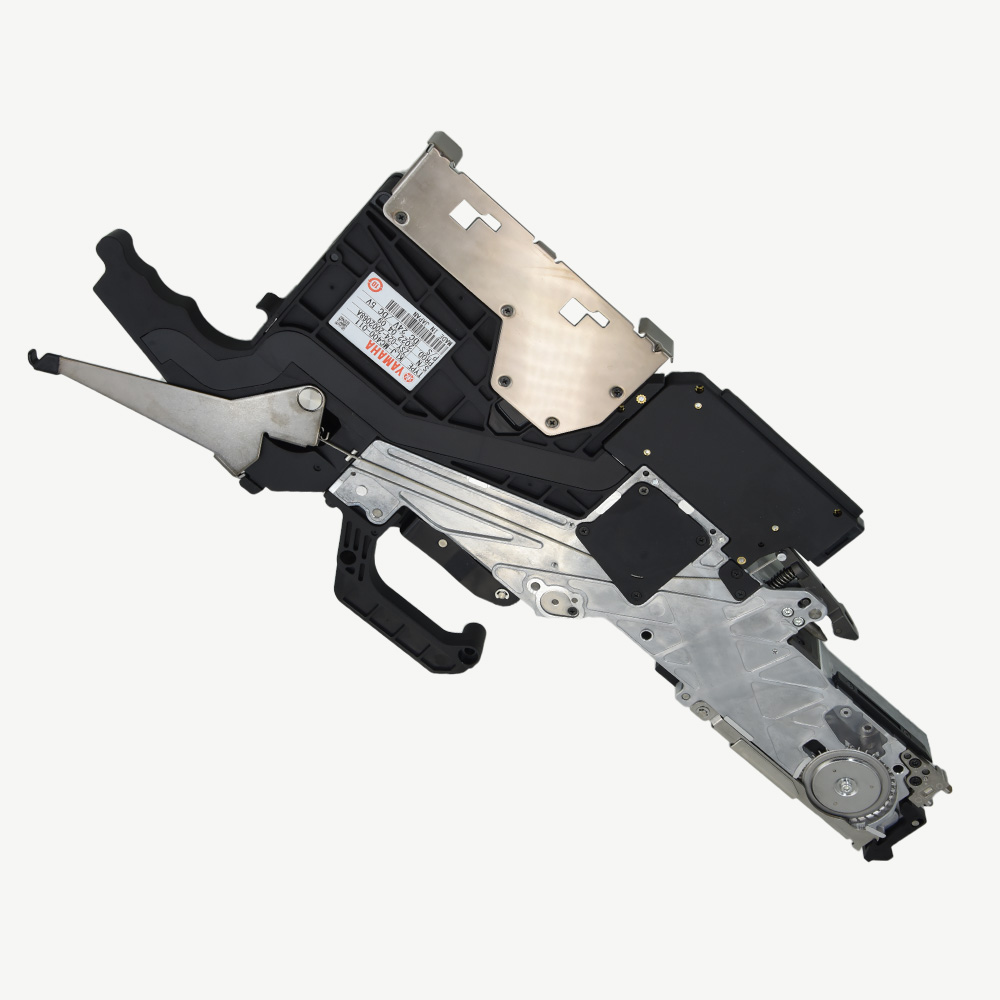

KLJ-MC400-011 YAMAHA 24mm Tape Feeder - ZS Type

KLJ-MC400-011 YAMAHA 24mm Tape Feeder - ZS Type Specification

Features
Highly precise feeding, Easy installation/removal, Durable construction, Quick-release mechanism, Compatible with YAMAHA pick and place machines

Usage & Applications
For feeding 24mm SMT component tapes into YAMAHA pick and place machines (ZS Series)

Lubricating System
Self-lubricating design

Shape
Rectangular Feeder Structure

Capacity
Supports 24mm component tape

Noise Level
Low

Drive Type
Mechanically and pneumatically driven

Size
24mm (Tape Width)

Surface Finish
Smooth, Industrial Finish

Product Type
24mm Tape Feeder, ZS Type

Material
Aluminum Alloy, High-strength Steel

Technology
Surface Mount Technology (SMT)

Power Source
Pneumatic

Pressure
0.5 MPa (typical)

Surface Treatment
Anodized/Coated

Dimension (L*W*H)
Approximately 520mm x 130mm x 75mm

Weight
About 2.5 kg

Color
Silver & Black

Service Life
Over 5 million feed cycles

Applicable Machines
YAMAHA ZS Series SMT Machines

Component Compatibility
For 24mm width paper and embossed tape

Operating Temperature Range
0C to 50C

Model Number
KLJ-MC400-011

Maintenance
Low maintenance required

Standard Packaging
Carton Box

Feeder Type
Automatic Tape Feeder

KLJ-MC400-011 YAMAHA 24mm Tape Feeder - ZS Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About KLJ-MC400-011 YAMAHA 24mm Tape Feeder - ZS Type

Prices are for show only, please contact us for exact price

SMT Feeder Parts

YAMAHA SS 24mm feeder parts
Part Number	Part Name
KHJ-MC202-00	COVER,FEEDER SIDE 1
KHJ-MC40C-00	SEAL,MAIN LABEL
KHJ-MC10E-00	SCREW,FLAT HEXLOBE
KHJ-MC210-00	MOTOR, FEED
KHJ-MC210-01	MOTOR, FEED
KHJ-MC134-00	GEAR,IDLE F1
KHJ-MC135-00	GEAR,IDLE F2
KHJ-MC136-01	GEAR,IDLE F3

Precision Engineering for Seamless SMT Assembly

The KLJ-MC400-011 24mm Tape Feeder ensures exacting control over component delivery in YAMAHA ZS Series SMT machines. Constructed from high-strength materials and designed for minimal friction, it enables consistent, high-accuracy feeding essential for advanced surface mount technology (SMT) operations. Its precision engineering supports fast changeovers and reliable placement, maximizing throughput and minimizing downtime in busy production lines.

Durable Construction with Efficient Operation

Built from anodized aluminum alloy and high-strength steel, this YAMAHA feeder is designed for rigorous, continuous use. Its automatic, pneumatic-driven mechanism guarantees smooth operation while the self-lubricating design keeps maintenance needs low. Engineered for over 5 million feed cycles, it delivers extremely long service life, supporting high-volume manufacturers and minimizing routine interruptions.

User-Friendly Installation and Versatile Compatibility

The KLJ-MC400-011 features a quick-release mechanism for rapid installation and removal, making it simple to switch feeders or perform required checks. Compatible with all YAMAHA ZS Series SMT pick and place machines, it accommodates both paper and embossed tape types for 24mm wide components, ensuring flexibility across multiple assembly requirements.

FAQ's of KLJ-MC400-011 YAMAHA 24mm Tape Feeder - ZS Type:

Q: How does the KLJ-MC400-011 YAMAHA 24mm Tape Feeder operate within SMT production?

A: This tape feeder uses a combination of mechanical and pneumatic drives to deliver 24mm component tape directly into YAMAHA ZS Series pick and place machines. The automatic feeding mechanism ensures accurate and reliable placement of components, streamlining the SMT assembly process.

Q: What types of component tapes are supported by this feeder?

A: The KLJ-MC400-011 is compatible with both 24mm width paper and embossed component tapes, making it suitable for a wide variety of electronic components commonly used in surface-mount technology applications.

Q: When should this tape feeder be used during the PCB assembly process?

A: The tape feeder is deployed during the component placement stage of PCB assembly, where it feeds surface-mount components to the pick head of the YAMAHA ZS Series machine for accurate placement on the circuit board.

Q: Where can the KLJ-MC400-011 feeder be installed?

A: This feeder is designed specifically for YAMAHA ZS Series SMT pick and place machines and can be easily installed or removed thanks to its quick-release mechanism, allowing for flexible deployment across multiple machines as needed.

Q: What is the process for installing or removing this tape feeder?

A: Thanks to its user-friendly quick-release mechanism, installation and removal of the KLJ-MC400-011 take minimal time. Operators simply align the feeder, secure it to the machine, and connect to the pneumatic source, ensuring swift changeovers on the assembly line.

Q: What are the key benefits of using this tape feeder model?

A: Key benefits include highly precise and reliable tape feeding, low maintenance requirements due to the self-lubricating system, a long service life of over 5 million feed cycles, and compatibility with YAMAHA ZS Series pick and place equipment, all contributing to improved production efficiency.
