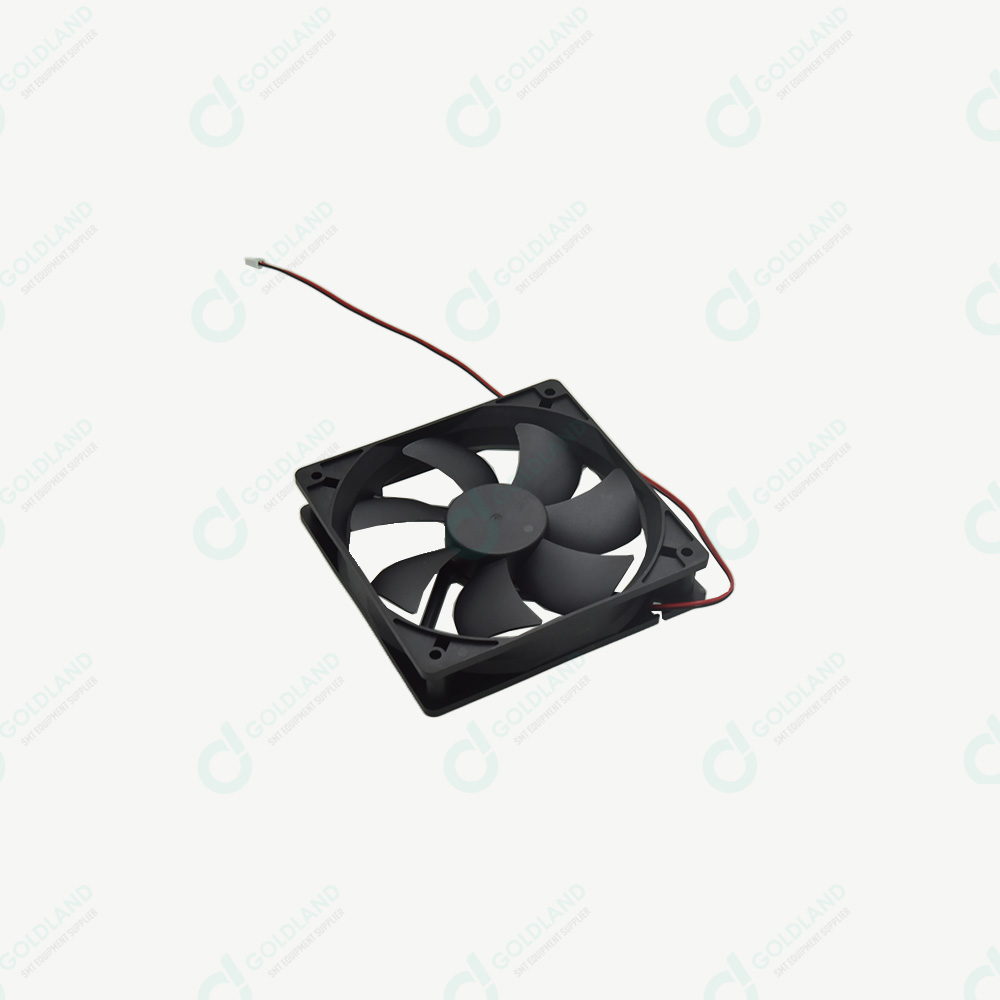

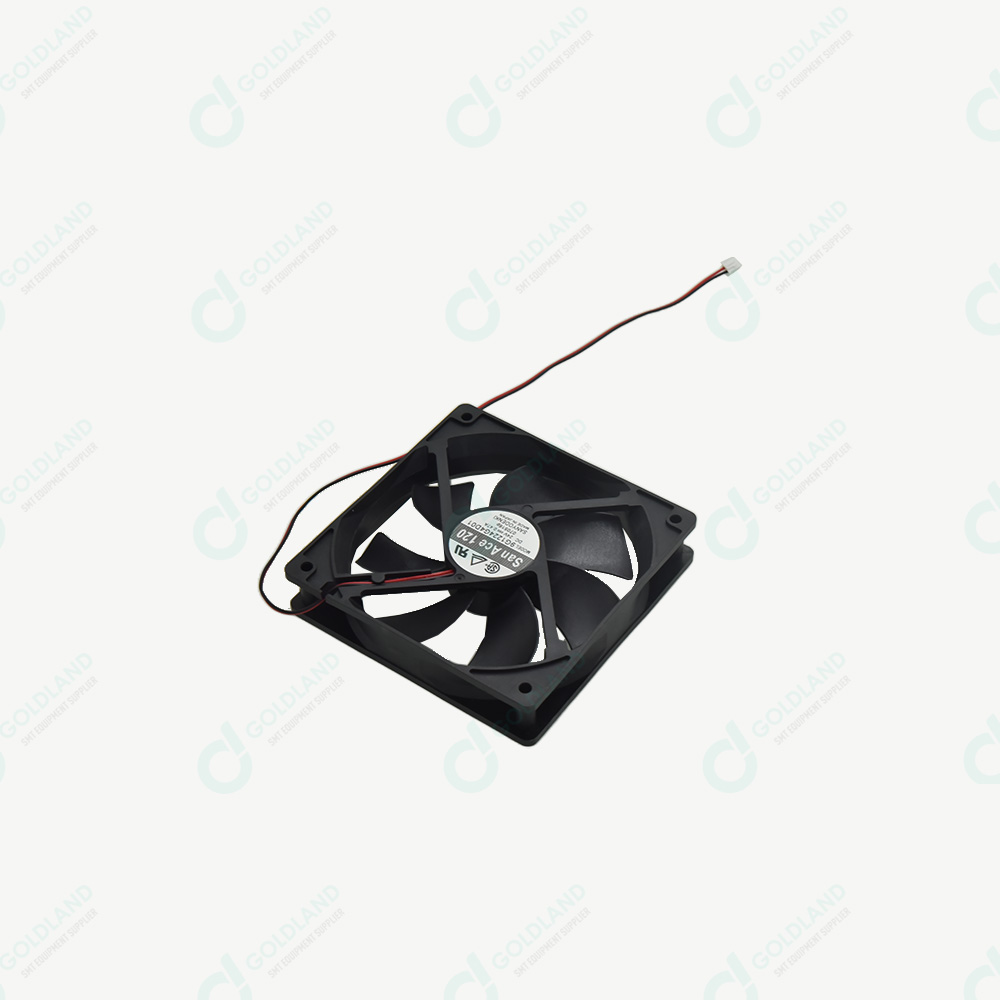

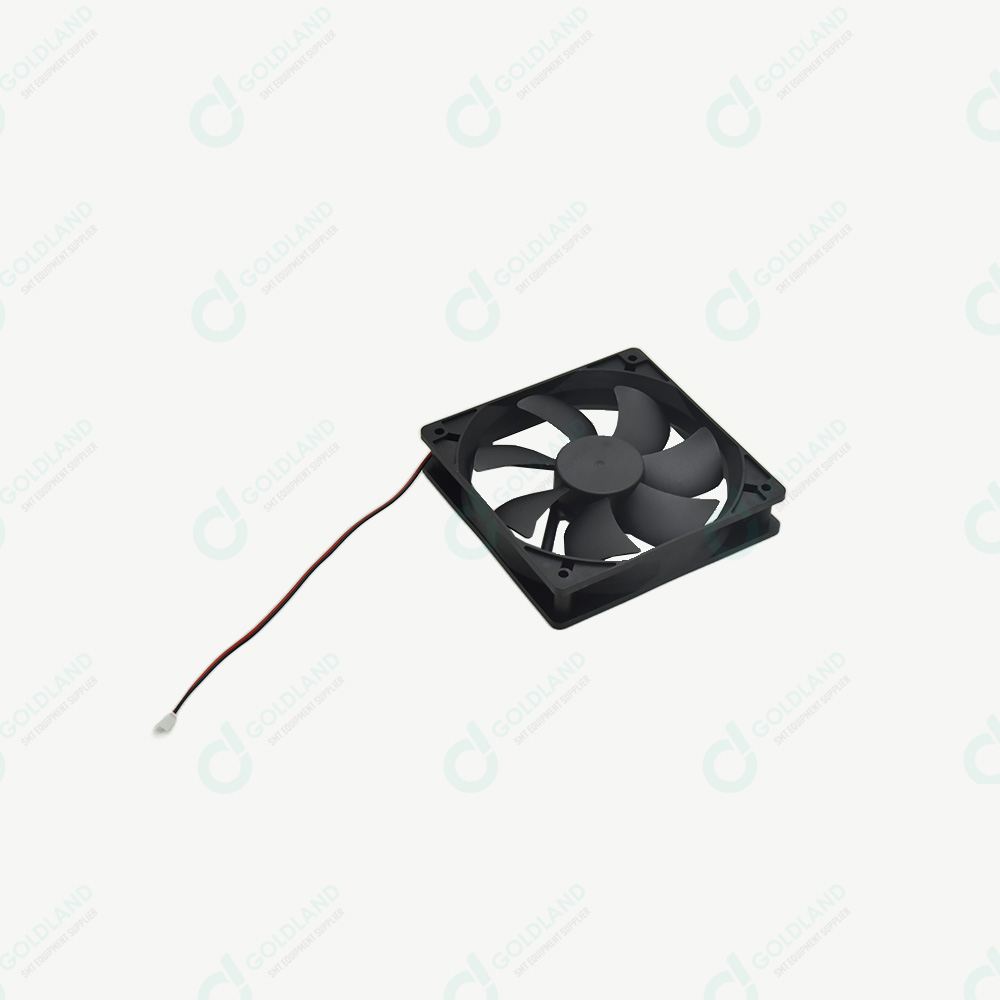

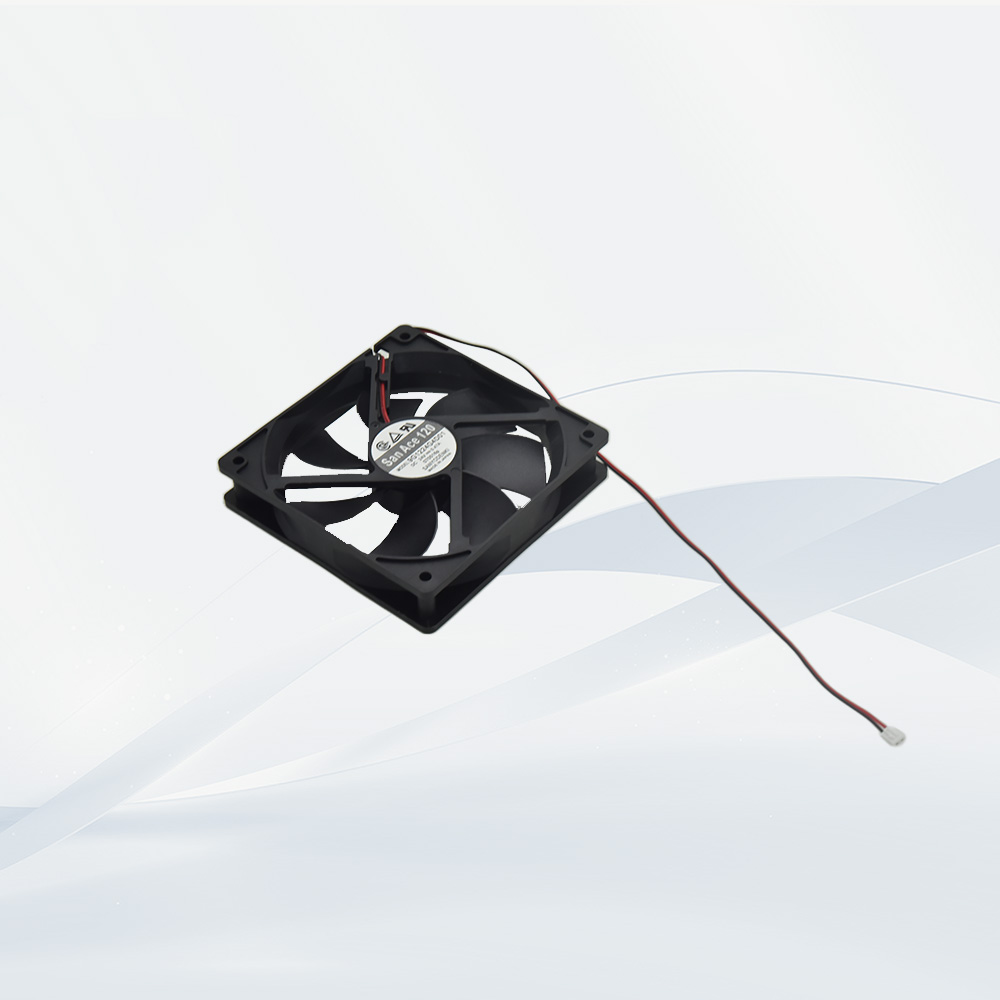

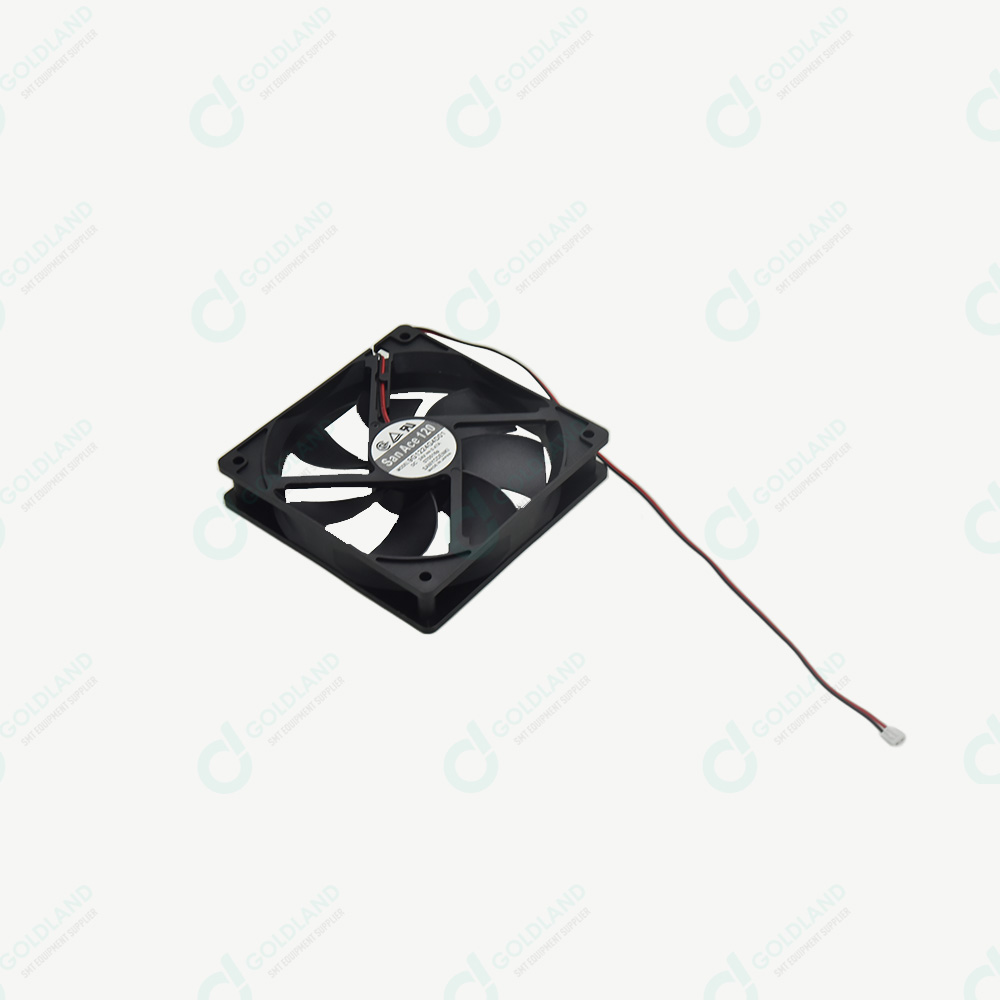

9G1224G4D01 SANYO Denki San Ace 120

9G1224G4D01 SANYO Denki San Ace 120 Specification

Features
Long life, high reliability, energy efficient, compact design, overcurrent protection

Drive Type
Direct Drive

Lubricating System
Maintenance-free double ball bearing

Diameter
Impeller 120 mm

Capacity
154 CFM (Max. Air Flow)

Usage & Applications
Industrial Equipment, Servers, Power Supplies, Cabinet Cooling

Shape
Square

Size
120 mm

Motor Power
Brushless DC motor

Noise Level
39.0 dBA

Surface Finish
Matte

Product Type
Axial Cooling Fan

Material
Plastic (Impeller & Frame)

Technology
Brushless Motor

Power Source
DC Electric

Power
6.2 W

Voltage
24V DC

Pressure
48.0 Pa (Max. Static Pressure)

Surface Treatment
Black Anodized

Dimension (L*W*H)
120 x 120 x 25 mm

Weight
220 g approx.

Color
Black

Expected Life
40,000 hours at 60C

Mounting Hole Size
4.3 mm diameter

Frame Thickness
25 mm

Connector Type
3-wire

Lead Wire Length
300 mm

Insulation Resistance
10 M or more (500VDC megger)

Speed
3000 RPM

Protection Function
Locked rotor protection

Operating Temperature Range
-20C to +70C

Current
0.26 A

Bearing Type
Ball Bearing

Model
9G1224G4D01

9G1224G4D01 SANYO Denki San Ace 120 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 9G1224G4D01 SANYO Denki San Ace 120

Prices are for show only, please contact us for exact price.

SMT Product List

6318840	10249104	30647903	WHEEL DRVE,
6318841	10249129	40152210	RGHT CLIP ASS STD,
6318844	10249133	40152310	LEFT CLIP ASS STD,
6318854	10249186	44241611	BLOCK SHEAR,
6318855	10249214	47405502	SWITCH BRACKET,
6318856	10249225	48216301	UNIVERSAL Y motor brushless,

Efficient Cooling for Industrial Demands

The SANYO Denki San Ace 120 model 9G1224G4D01 is engineered to deliver remarkable air movement, supporting demanding equipment like servers, industrial machines, and power supplies. Its brushless DC motor and double ball bearings achieve impressive energy efficiency and reduced noise, with a compact and sturdy build for extensive industrial deployment.

Built for Longevity and Reliability

Thanks to its construction using a maintenance-free double ball bearing and high-quality plastic, this fan ensures an expected lifespan of up to 40,000 hours even at elevated temperatures. The protective features, such as locked rotor and overcurrent protection, make it a dependable choice for critical systems where reliability is paramount.

Versatile Application and Simple Installation

With a standard size of 120x120x25mm and mounting holes sized at 4.3mm in diameter, the San Ace 120 integrates easily into various enclosures. The 3-wire, 300mm lead allows for straightforward, precise installation and monitoring, making it suitable for a wide range of cooling setups across multiple industries.

FAQ's of 9G1224G4D01 SANYO Denki San Ace 120:

Q: How does the locked rotor protection function enhance the 9G1224G4D01 fan's reliability?

A: Locked rotor protection automatically stops the fan when its impeller is blocked, preventing overheating and electrical damage. This feature not only safeguards the fan's internal components but also extends its operational lifespan, making it especially valuable in environments where obstructions are possible.

Q: What environments are suitable for installing the SANYO Denki San Ace 120 fan?

A: This fan is designed for a wide operating temperature range from -20C to +70C, making it suitable for industrial, IT, and commercial settings such as servers, power supplies, cabinet cooling, and other equipment prone to high heat generation.

Q: When should the fan be replaced for optimal performance?

A: The 9G1224G4D01 fan offers an expected life of 40,000 hours at 60C. For optimal reliability, consider replacing the fan when it approaches this operational threshold or if airflow and noise levels change significantly, indicating potential wear.

Q: Where can this model be mounted or installed?

A: Its 120mm square frame and standard 4.3mm mounting holes make it compatible with most standard chassis, enclosures, server racks, and industrial cabinets. The 300mm wire and direct drive design further simplify integration in varied applications.

Q: What is the benefit of the ball bearing system in this cooling fan?

A: The maintenance-free double ball bearing system reduces friction, minimizes wear, and allows for continuous operation under high temperatures. This results in a longer service life and reliable performance even in demanding environments.

Q: How can users benefit from the energy-efficient design of this fan?

A: With a power rating of just 6.2 W and direct drive brushless motor technology, the San Ace 120 delivers substantial cooling with lower energy consumption, helping to reduce overall operational costs while maintaining equipment safety and performance.
