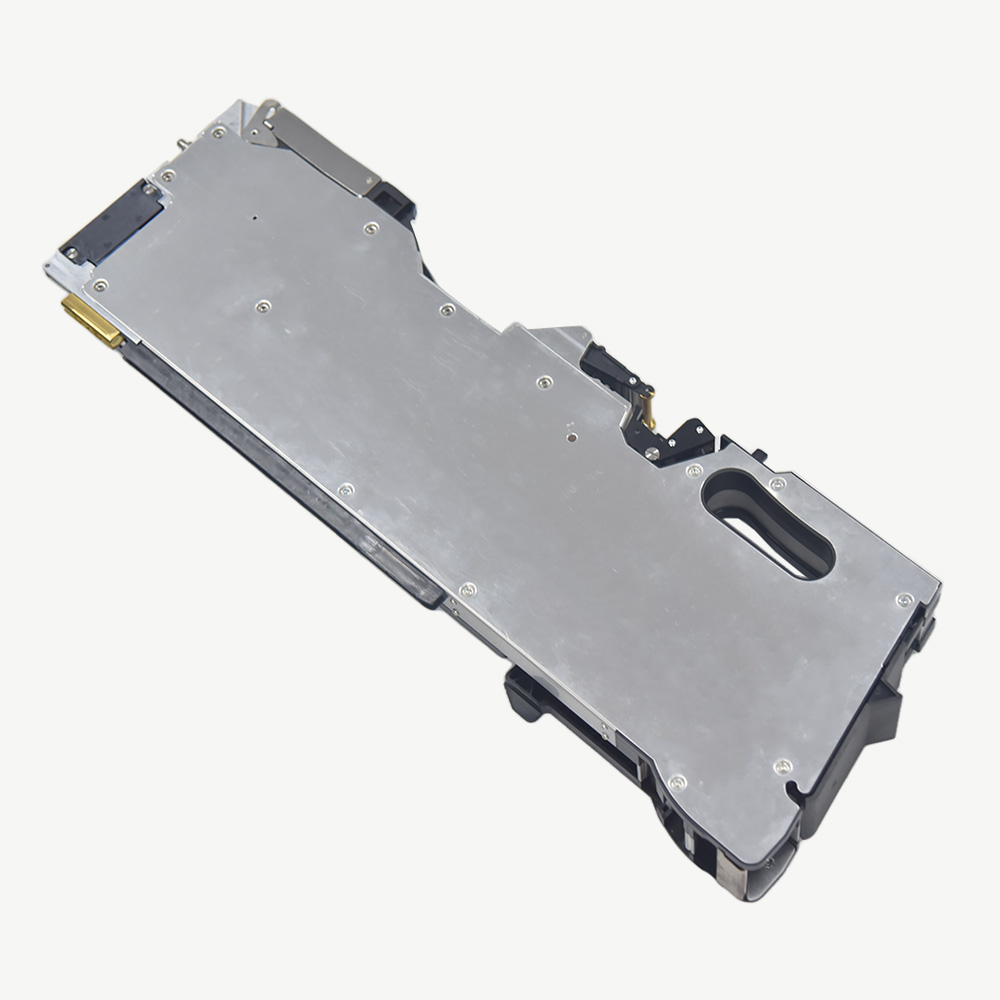

00141395 SIPLACE Smart Feeder 44mm X, with Splice Sensor

00141395 SIPLACE Smart Feeder 44mm X, with Splice Sensor Specification

Capacity
Suitable for 44mm tape width; high throughput

Features
Splice sensor integration, quick-release design, LED status indicators, compatibility with SIPLACE placement systems

Drive Type
Electronic drive with automatic control

Surface Finish
Smooth industrial finish

Size
44mm tape width compatible

Motor Power
Integrated low-power DC motor

Noise Level
Low noise operation (< 55 dB)

Lubricating System
Maintenance-free design

Shape
Rectangular modular unit

Usage & Applications
Automated SMT component feeding with splice detection in electronics assembly

Product Type
SIPLACE Smart Feeder 44mm X with Splice Sensor

Material
High-quality industrial-grade metal and engineering plastic

Technology
Automated precision feeding with splice detection

Power Source
Electric

Power
Typically less than 60W (refer to equipment manual)

Voltage
24V DC

Surface Treatment
Anodized and powder-coated finish for corrosion resistance

Dimension (L*W*H)
Approx. 220 mm x 120 mm x 85 mm

Weight
Approx. 1.8 kg

Color
Silver and black

Mounting Type
Tool-free, quick change capability

Track Identification
Electronic track ID memory support

Storage Temperature Range
-20C to 60C

Communication Interface
Compatible with SIPLACE machine interface protocols

Safety
Overcurrent and overvoltage protection

Splice Sensor
High-sensitivity integrated optical splice detection

Feed Pitch
Up to 8 mm and 12 mm (programmable)

Operating Temperature Range
10C to 40C

Tape Compatibility
44mm SMD carrier tape

00141395 SIPLACE Smart Feeder 44mm X, with Splice Sensor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 00141395 SIPLACE Smart Feeder 44mm X, with Splice Sensor

Prices are for show only, please contact us for exact price

SMT Feeder Parts

03022080-01	Nachruestpaket / Kabelbefestigung BE-Tisch	RETRFIT KIT / CABLE FIXING COMP.TABLE
03022101-01	Zwischenplatte f. Marke komplett L450,5	CAUL FOR MARK COMPLETE L450,5
03022105S02	Blattfeder / Folienentsorgung X16-88	Foil Disposal / Flat Spring X16-88
03022236S03	Kabelschlepp SIPLACE X-Series 1P	trailing-cable unit SIPLACE X-Series 1P
03022237S03	Kabelschlepp SIPLACE X-Series 2P U	trailing-cable unit SIPLACE X-Series 2PU
03022256S02	Auswerfer / X8-12	EJECTOR / X8-12
03022320-01	Stuetzklotz / X16-88	SUPPORT BLOCK / X16-88
03022396S02	Gurteinlauffeder / X16	BELT CLIP / X16
03022400S02	Gurteinlauffeder / X24	BELT CLIP / X24
03022426-01	Kabelfixierung	CABLE FIXING

Advanced Splice Sensor Technology

Featuring an integrated high-sensitivity optical splice sensor, the 00141395 SIPLACE Smart Feeder enhances splice detection accuracy during automated PCB assembly. This technology ensures uninterrupted production and minimizes feeding errors, which is essential for high-throughput environments.

Effortless Installation and Operation

The feeder's tool-free, quick-change mounting system allows for rapid installation and replacement, significantly reducing machine downtime. Electronic drive with auto control and LED status indicators make daily operation intuitive for operators of all skill levels.

Designed for Performance and Durability

Constructed from high-quality industrial metal and engineering plastic, the feeder ensures durability and longevity. Its smooth, anodized, and powder-coated finish offers excellent resistance to corrosion, making it ideal for continuous use in demanding industrial environments.

FAQ's of 00141395 SIPLACE Smart Feeder 44mm X, with Splice Sensor:

Q: How does the splice sensor in the SIPLACE Smart Feeder improve SMT assembly efficiency?

A: The high-sensitivity integrated optical splice sensor detects splices in the carrier tape, allowing the feeder to detect interruptions or anomalies during component feeding. This ensures uninterrupted SMT assembly by minimizing misfeeds and production stoppages.

Q: What types of tape and pitch is this feeder compatible with?

A: The SIPLACE Smart Feeder is compatible with 44mm SMD carrier tape and supports programmable feed pitches of up to 8 mm and 12 mm, making it flexible for a variety of SMT component sizes and requirements.

Q: When should I consider changing the feeder or performing maintenance?

A: Although designed with a maintenance-free lubricating system, periodic cleaning and inspection for debris is recommended. Replacement is generally only necessary if physical damage occurs or if advised by the equipment manual due to excessive wear.

Q: Where can this feeder be used and stored safely?

A: The feeder operates effectively in environments with temperatures between 10C and 40C. For storage, keep it in areas where the temperature ranges from -20C to 60C to maintain optimal condition and longevity.

Q: What is the benefit of the quick-release, tool-free mounting system?

A: The tool-free quick-change capability allows operators to install or swap feeders rapidly without specialized tools. This reduces setup times, streamlining production changeovers and boosting overall assembly line efficiency.

Q: How does the feeder interface with SIPLACE machines?

A: It is fully compatible with SIPLACE machine interface protocols, allowing seamless integration and communication with existing placement systems, ensuring efficient automated workflows.
