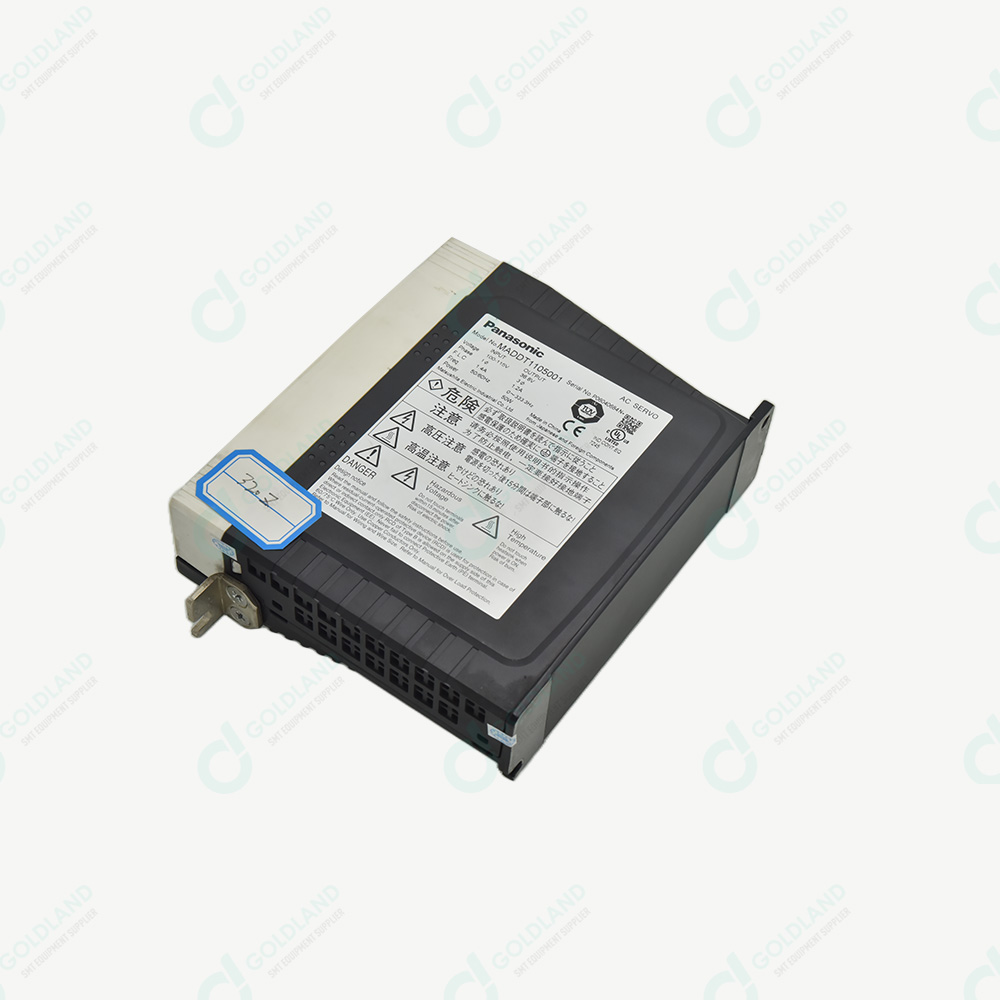

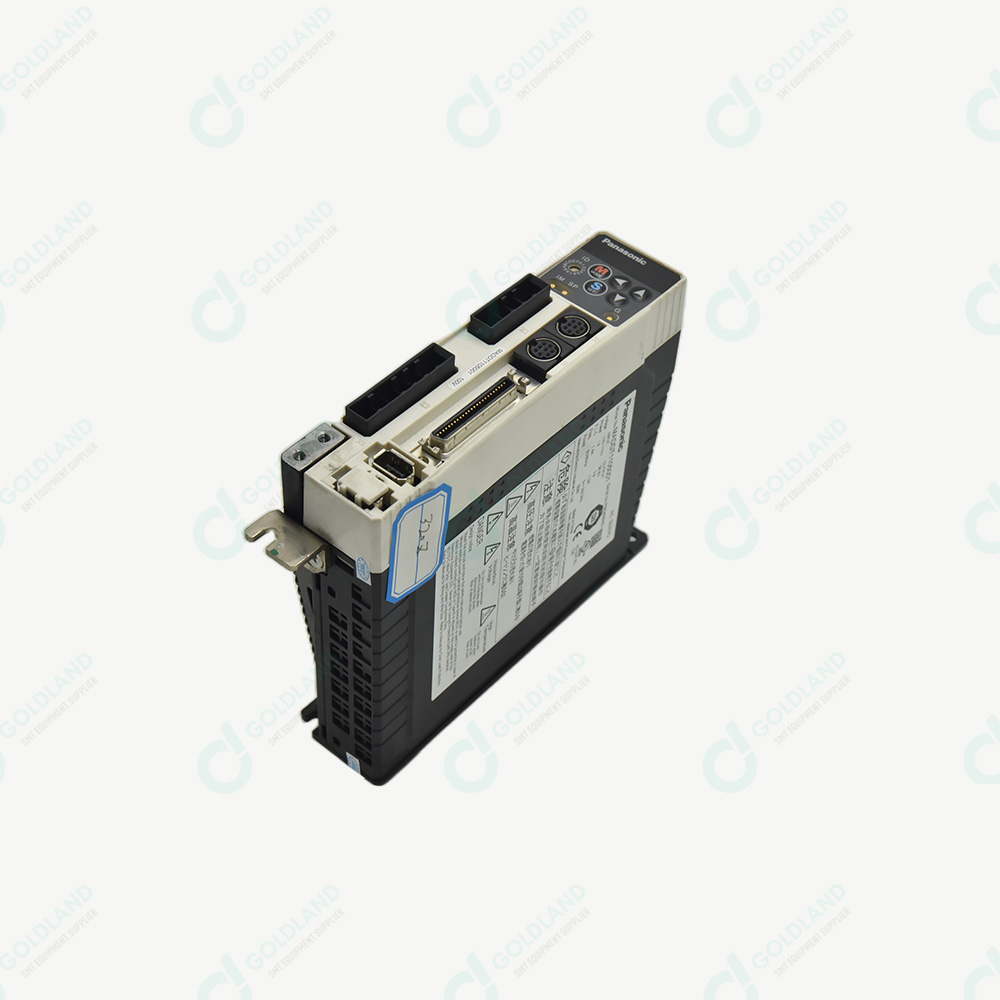

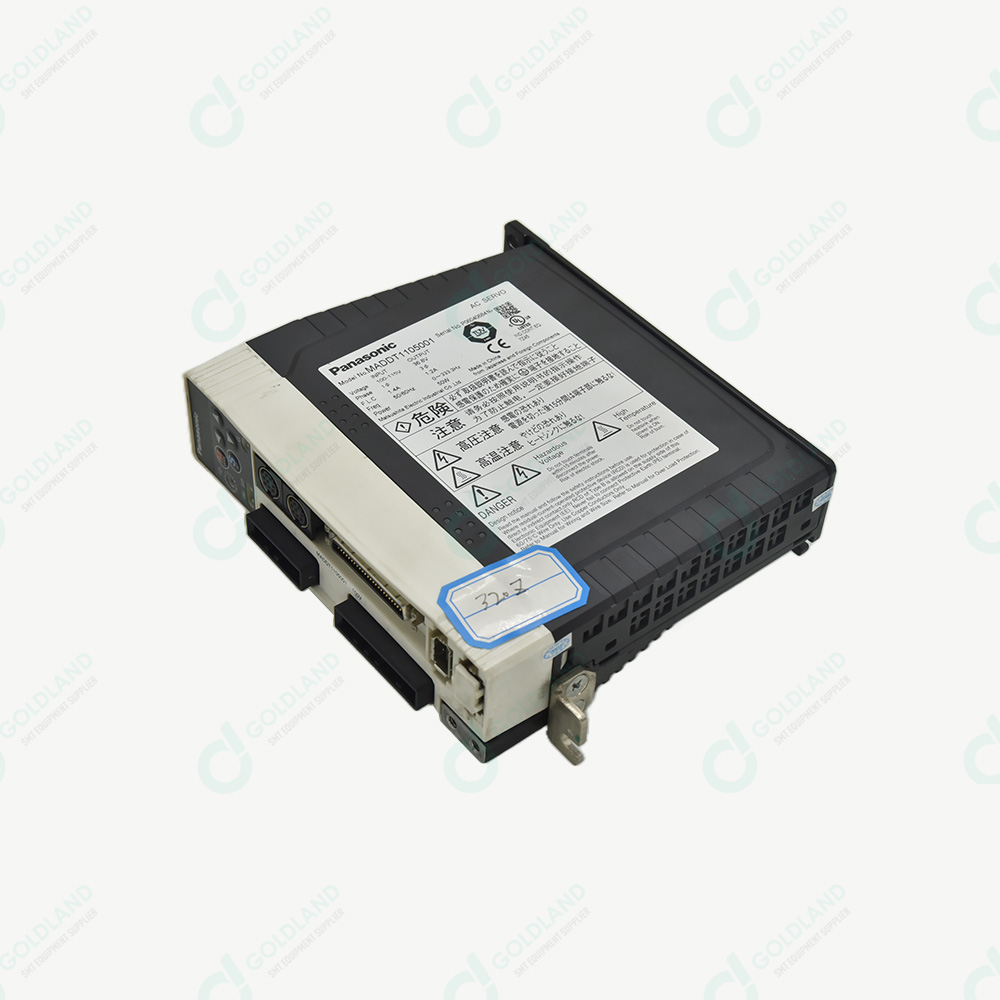

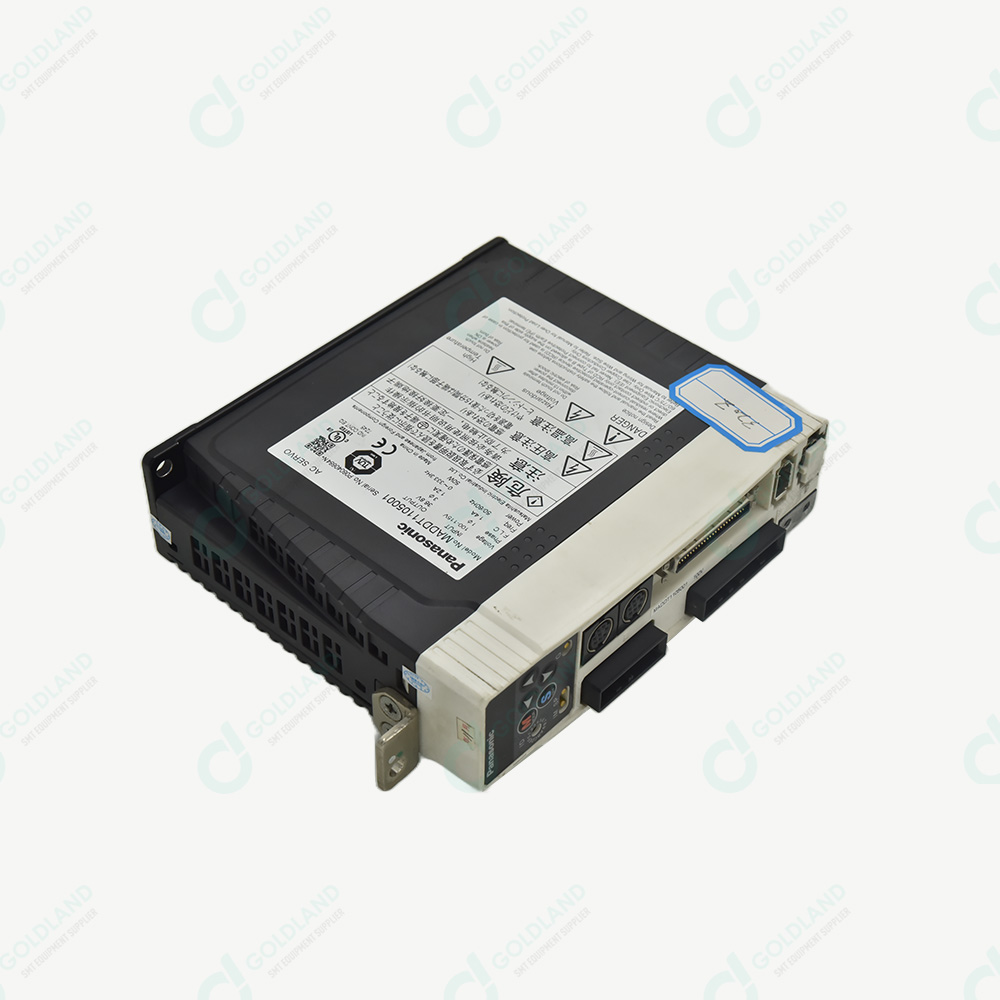

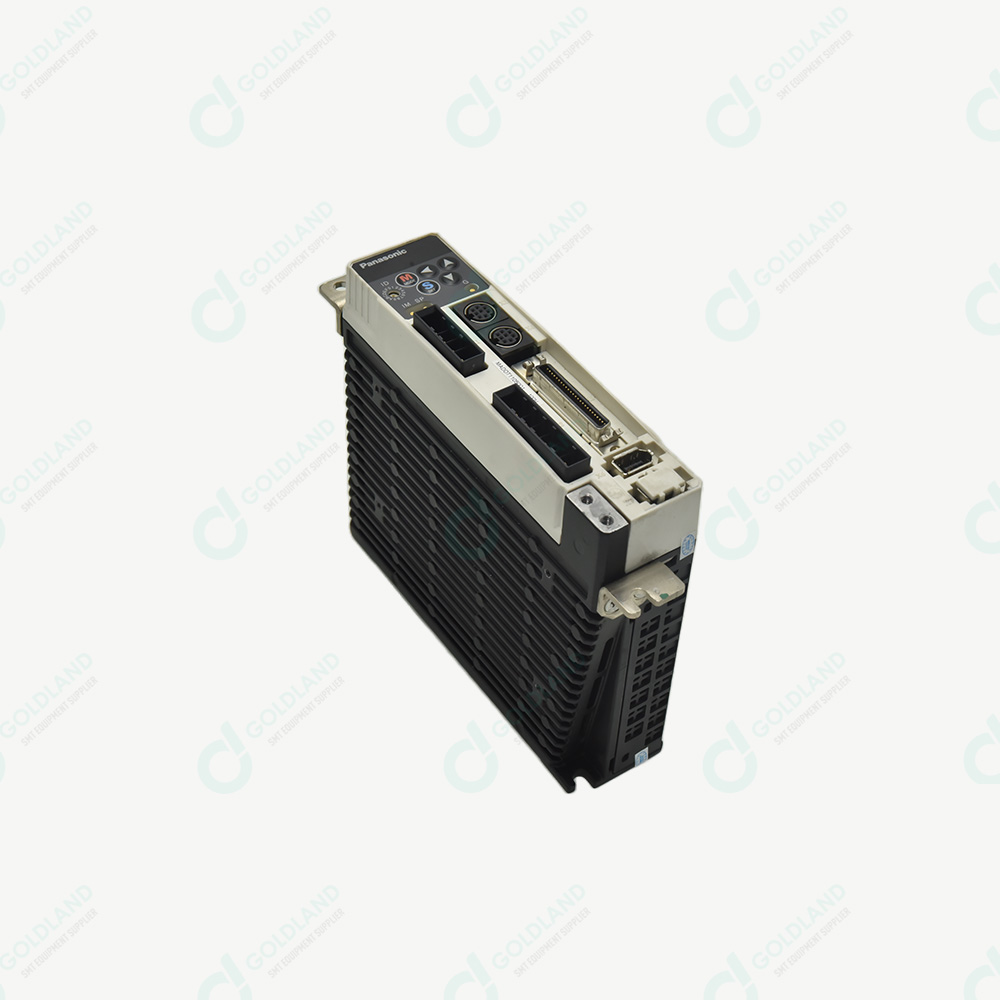

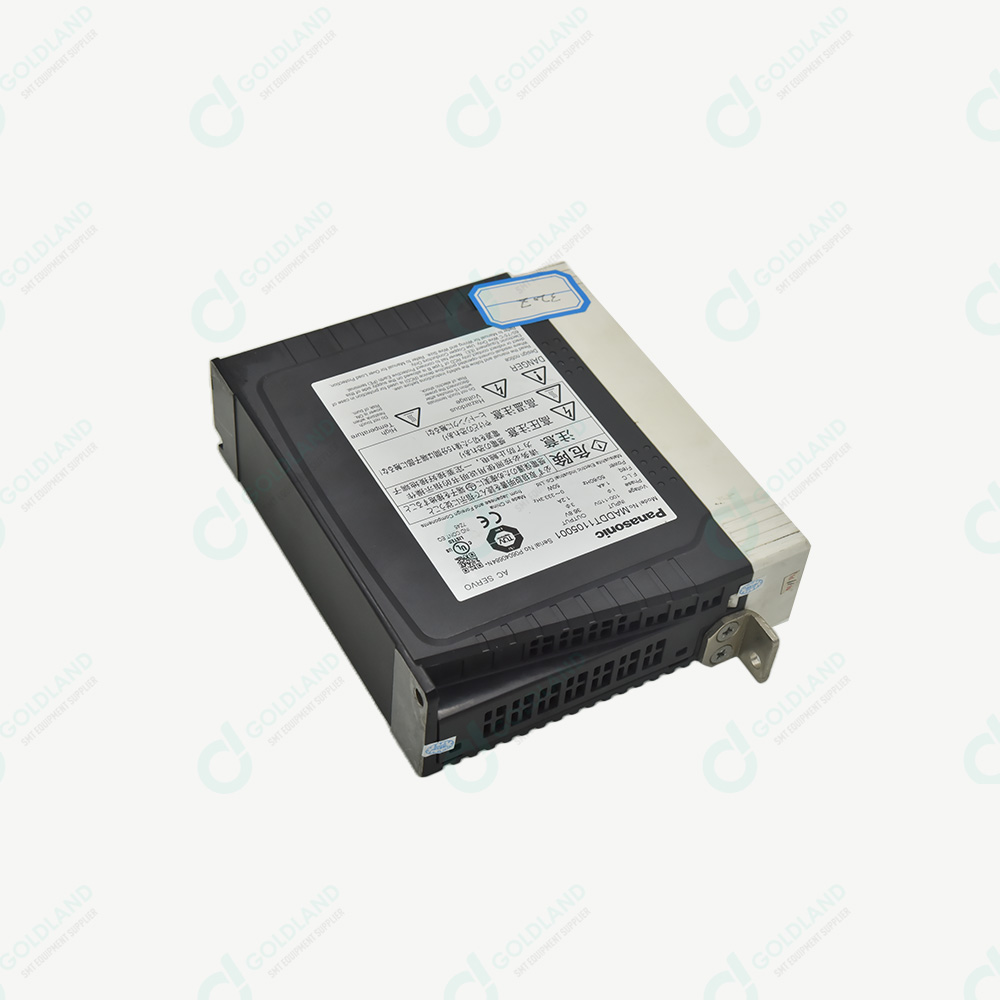

MADDT1105001 Panasonic AC Servo Controller for SM320

MADDT1105001 Panasonic AC Servo Controller for SM320 Specification

Noise Level
Low Noise Operation

Shape
Rectangular

Size
Standard for SM320

Motor Power
Supports 1 kW motors

Usage & Applications
For Panasonic SM320 Surface Mount Machines

Drive Type
Servo Drive

Surface Finish
Smooth, Industrial Finish

Features
High Speed, Precise Control, Overload Protection

Capacity
High Performance Control

Product Type
AC Servo Controller

Material
Industrial Grade Components

Technology
Latest Servo Control Technology

Power Source
Electric

Power
1.0 kW

Voltage
200-240V AC

Surface Treatment
Coated

Dimension (L*W*H)
Approx. 180mm x 90mm x 170mm

Weight
Approx. 2.3 kg

Color
Gray

Interface
RS232/RS485 Communication Ports

Protection
Overcurrent, Overvoltage, Overheating Protection

Mounting Type
Panel Mount

Input Frequency
50/60 Hz

Display
LED Status Indicators

Compatibility
Compatible with Panasonic SM320 models

Control Method
Vector Control, Pulse Control

Phase
Single/Three Phase

Ambient Temperature Range
0C to 55C

Model Number
MADDT1105001

MADDT1105001 Panasonic AC Servo Controller for SM320 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Australia, Central America

About MADDT1105001 Panasonic AC Servo Controller for SM320

Prices are for show only, please contact us for exact price.

SMT Product List

X02P51500	TRANSFER UNIT(PANASONIK RL131)
X02G41101	BODY(PANASONIK RL131)
1087110021	NSERTON GUDE (PANASONK AVK)
1087111045	LM GUDE (PANASONK AVK3)
1083825008	PPE(PANASONK AVK9
N610156037AA	SCISSORS UNT (PANASONK AV132)
N610156038AA	SCISSORS UNT (PANASONK AV132)

Seamless Integration and Compatibility

Engineered to be fully compatible with Panasonic SM320 models, the MADDT1105001 Servo Controller offers straightforward integration with minimal setup time. Standard panel mounting and industrial-standard dimensions ensure that it fits perfectly into existing control cabinets, enhancing system compatibility and reducing installation headaches.

Advanced Protection and Robust Performance

Users benefit from comprehensive protections, including overcurrent, overvoltage, and overheating safeguards that protect both the controller and connected equipment. Its smooth, coated industrial finish, coupled with highly reliable, advanced servo control technology, ensures consistent performance and long service life, even in demanding industrial settings.

Precise Control with Easy Monitoring

Cutting-edge vector and pulse control methods guarantee high-speed, accurate motor responses for precision-dependent applications, while LED status indicators allow for easy operational monitoring and troubleshooting. Communication via RS232 or RS485 ports provides flexible connectivity for diverse automation requirements.

FAQ's of MADDT1105001 Panasonic AC Servo Controller for SM320:

Q: How do I install the MADDT1105001 Panasonic AC Servo Controller in my SM320 machine?

A: The MADDT1105001 is designed for panel mounting and comes in a size standard for SM320 models. Secure the controller within your control cabinet using the designated screw holes, then connect the necessary power supply (200-240V AC, single or three phase). Follow the wiring diagrams provided in the product manual to safely connect it to the SM320 machine and peripheral devices.

Q: What protection features does this servo controller provide during operation?

A: This servo controller includes overcurrent, overvoltage, and overheating protection mechanisms. These features safeguard both the controller and connected motors, minimizing downtime and preventing potential damage or system failures during intensive industrial operations.

Q: When is it appropriate to use the MADDT1105001 controller?

A: The MADDT1105001 is suited for use in high-speed, precision-driven environments where SM320 Surface Mount Machines are used-ideal for electronics manufacturing, assembly lines, and automation processes that require reliable, accurate motor control up to 1 kW.

Q: Where can I connect communication devices to this controller?

A: Communication devices can be connected via the integrated RS232 or RS485 ports on the controller. These ports enable easy integration with automation systems, central control units, or diagnostic tools, enhancing process control and data collection capabilities.

Q: What is the process for monitoring the controller's operational status?

A: The controller is equipped with LED status indicators, making operational monitoring straightforward. These LEDs provide real-time information about power status, errors, and operational modes, which assist in troubleshooting and maintenance activities.

Q: How does the latest servo control technology benefit my manufacturing process?

A: The use of advanced vector and pulse control technology ensures rapid and precise response to control inputs, resulting in smoother motor operations, minimized vibration, and higher throughput. This leads to greater production accuracy, reduced machine wear, and improved product quality.
