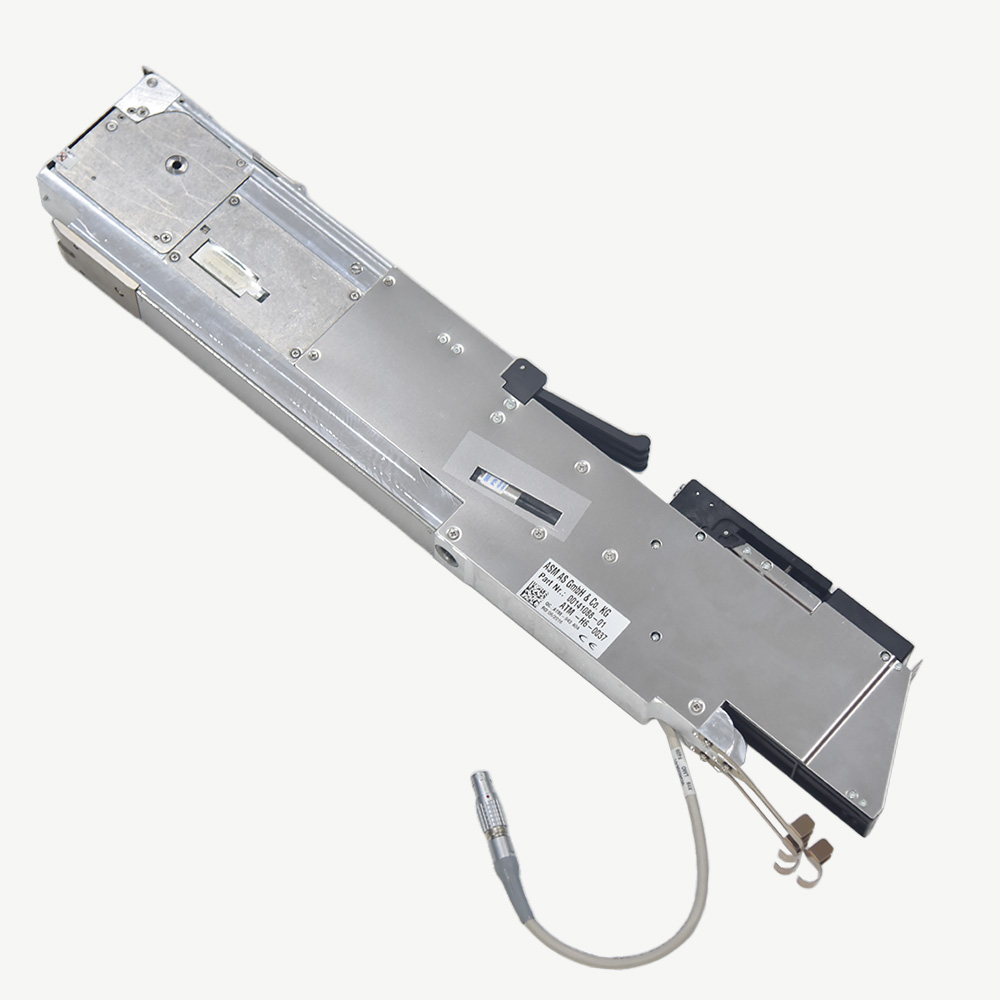

00141088 SIPLACE Tape Feeder Module 3X8mm SL

00141088 SIPLACE Tape Feeder Module 3X8mm SL Specification

Drive Type
Motorized feed

Features
Quick change, high precision feeding, auto tape advance

Motor Power
Integrated micro-motor drive

Lubricating System
Maintenance-free

Size
3 X 8mm (compatible with 8mm tape width)

Noise Level
Low noise operation

Capacity
Supports 8mm tape width, up to 3 positions

Shape
Rectangular module

Usage & Applications
SIPLACE pick and place machines for PCB assembly

Surface Finish
Matte/industrial

Product Type
Tape Feeder Module

Material
High-strength industrial alloy

Technology
SMT (Surface Mount Technology)

Power Source
Electric

Power
Standard per SIPLACE feeder requirement

Voltage
24V DC

Pressure
Pneumatic supported (for tape advance)

Surface Treatment
Anodized finish

Dimension (L*W*H)
Approx. 210 x 50 x 35 mm

Weight
Approx. 1.2 kg

Color
Metallic silver/black

Mounting Method
Tool-free snap-in mounting

Feeder Compatibility
SIPLACE SX/S-series-compatible

Tape Types Supported
Paper, embossed, and plastic tapes

ESD Safe
Yes, for sensitive electronics

Pitch Selection
Programmable pitch (2mm, 4mm, etc.)

Maintenance
Tool-less cleaning and replacement

Operational Temperature
5C to 40C

Tape Width
Compatible with standard 8mm SMT tapes

00141088 SIPLACE Tape Feeder Module 3X8mm SL Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Western Europe, Middle East, Africa, Australia, Central America, North America, Asia, South America, Eastern Europe

About 00141088 SIPLACE Tape Feeder Module 3X8mm SL

Prices are for show only, please contact us for exact price

SMT Product List

03020578S05	BE-Kamera Stat. P+P (Typ25) 16x16 digit.	COMP.-CAMERA STAT.P+P (Type25)16x16 dig.
03020588S05	Lesekopf Siplace X-Achse	READ HEAD SIPLACE X-AXIS
03020624-01	Schlauchverbindung	HOSE CONNECTION
03020626S02	Sternmotor C29 kplt.	STAR MOTOR C 29 COMPLETE Exchange by trained staff
03020656-02	Kabel X-Serie / Leistung / Daten EDIF-Entr.	Cable, X-S / power / data,EDIF unlock. rail
03020668-01	MODUL / 1-Wire Hub PPW	MODUL / 1-Wire Hub PPW
03020724-01	Winkelverteiler 2,5-Y60 / GR	Winkelverteiler 2,5-Y60 / GR
03020792-02	Schutz HF R2 lang Haube gesamt	COVER HF R2 LONG COMPLETE
03020794-02	Schutz X-HS R2 rechts Haube gesamt	COVER X-HS R2 RIGHT SIDE COMPLETE
03020825-01	Schutz X-HS R rechts Hauben-S-Prof Bgr	PROTECTION X-HS RIGHT SIDE COVER

Effortless Tool-Free Mounting

Designed for rapid deployment, the SIPLACE Tape Feeder Module offers a snap-in mounting system, eliminating the need for additional tools. This innovative feature not only accelerates setup and changeovers but also minimizes the risk of installation errors, saving valuable production time and optimizing workflow efficiency in SMT lines.

Versatile Tape Compatibility

Engineered for flexibility, this module supports paper, embossed, and plastic tapes in standard 8mm widths, with programmable pitch selection (2mm, 4mm, etc.). Its adaptability ensures seamless integration with a variety of component reels, catering to diverse assembly requirements and simplifying inventory management.

Precision Performance and ESD Safety

Operating within a temperature range of 5C to 40C, the module ensures reliable feeding with an integrated micro-motor drive and low-noise performance. Built from high-strength alloy and featuring ESD protection, it safeguards sensitive electronic components, maintaining consistent accuracy and quality for every production run.

FAQ's of 00141088 SIPLACE Tape Feeder Module 3X8mm SL:

Q: How do I install the SIPLACE Tape Feeder Module 3X8mm SL?

A: Installation is straightforward thanks to the tool-free snap-in mounting method. Simply align the module with the compatible available slot on SIPLACE SX or S-series pick-and-place machines and push it in until securely locked in place. No auxiliary tools or additional fastening are required.

Q: What types of tape can this feeder module handle?

A: The feeder module supports paper, embossed, and plastic tapes, accommodating various packaging formats commonly used in SMT component reels. It is optimized for standard 8mm tape widths and can handle programmable pitch increments such as 2mm and 4mm.

Q: When is maintenance required and how is it performed?

A: Routine maintenance is minimal due to the module's maintenance-free lubricating system. When cleaning or replacement is needed, the design allows for tool-less access and quick changes, encouraging fast turnaround without interrupting production for extended periods.

Q: Where can this tape feeder module be used?

A: This module is designed specifically for use in SIPLACE SX and S-series pick-and-place machines, making it ideal for electronics manufacturing environments engaged in printed circuit board assembly processes, particularly in facilities in India and globally.

Q: What are the key benefits of using this feeder module in SMT production?

A: Major benefits include high-precision feeding, tool-free installation and maintenance, ESD-safe handling of sensitive electronics, quick tape changes, low noise operation, and highly durable build quality. All these features contribute to higher productivity and reliable component placement.

Q: How does programmable pitch selection work?

A: The feeder module enables pitch selection (such as 2mm or 4mm) through programming on the SIPLACE machine interface, allowing operators to match tape feed to different component requirements, enhancing versatility during assembly runs.

Q: What ensures the feeder's smooth and accurate tape advancement?

A: An integrated micro-motor drive powers the tape advancement, while pneumatic support assists with smooth, precise movement. These mechanisms ensure consistent component delivery at the programmed pitch, maintaining accuracy even in fast-paced production environments.
