Siemens D4 Pick and Place Machine High-Speed, Precision SMT Mounter for Efficient PCB Assembly

Siemens D4 Pick and Place Machine High-Speed, Precision SMT Mounter for Efficient PCB Assembly Specification

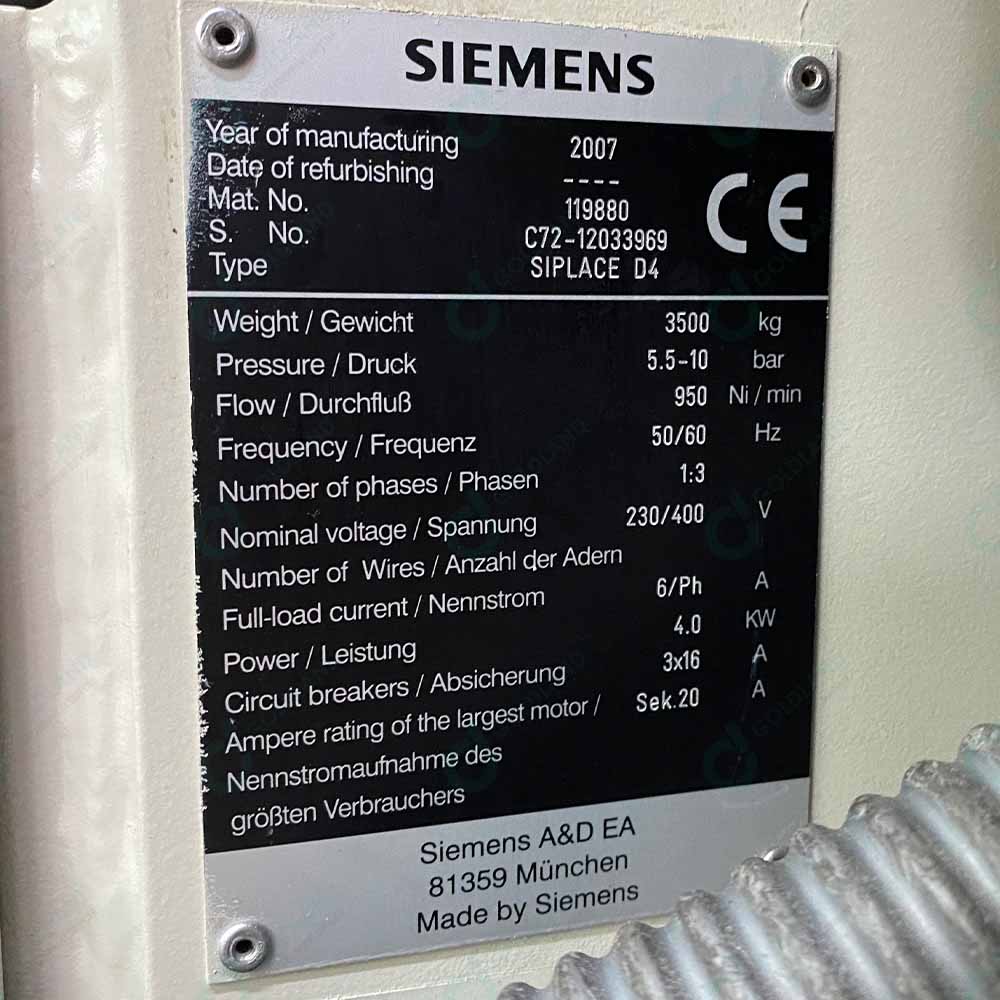

Product Type
Pick and Place Machine

Material
Industrial Grade Steel & Alloy Components

Capacity
Up to 40,000 CPH (components per hour)

Computerized
Yes

Automatic Grade
Automatic

Control System
Advanced Siemens PC-Based Control with Touch Screen Interface

Processing Type
Surface Mount Technology (SMT) Mounter

Voltage
220V AC, 50/60Hz

Power
4.5 kW

Dimension (L*W*H)
1850 mm x 2560 mm x 1500 mm

Weight
1750 kg

Color
Siemens Grey & Blue

Noise Level
< 68 dB(A) during operation

Placement Accuracy
0.05 mm

Interface
SMEMA-compatible, USB, Ethernet

Software
Siemens Siplace OS with Optimization and Traceability Modules

Vision System
Integrated High-Resolution Fiducial and Component Camera

Feeder Capacity
Up to 120 x 8mm Tape Feeders

PCB Size Range
Min. 50 mm x 50 mm / Max. 510 mm x 460 mm

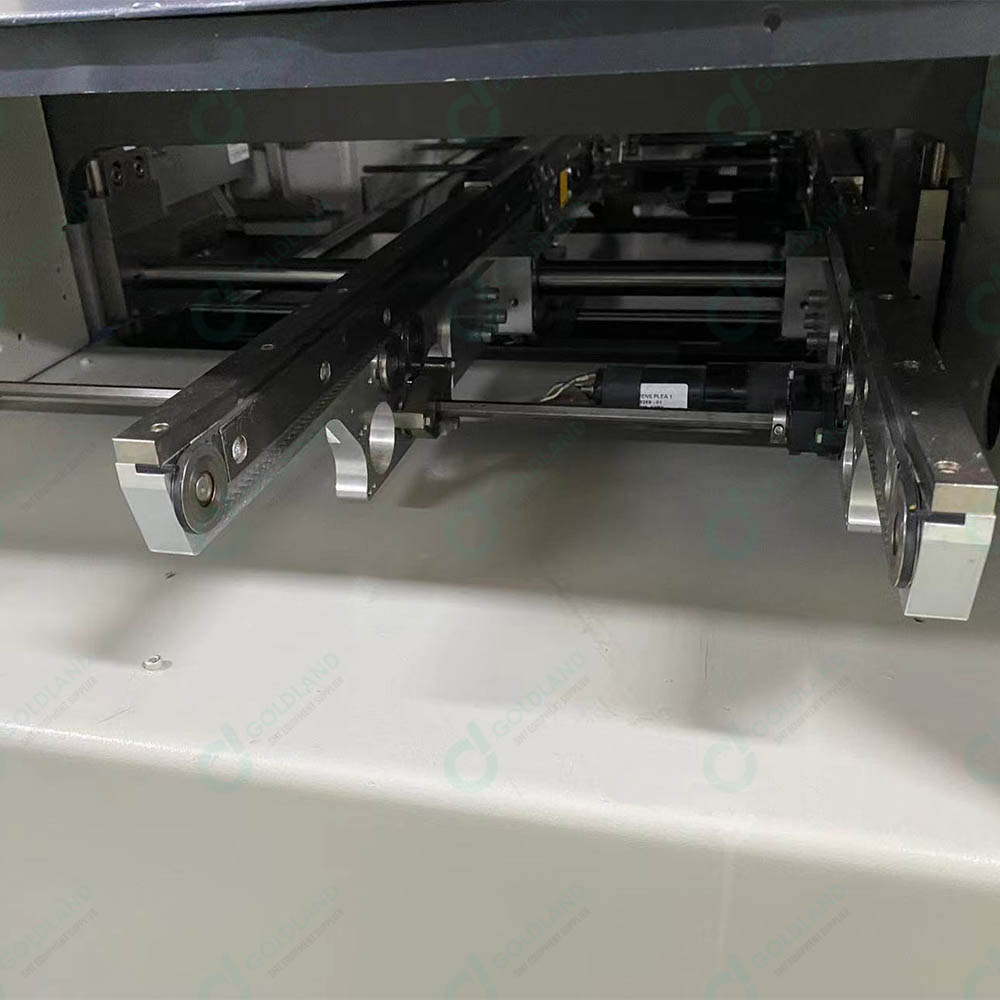

Conveyor System
Fully Programmable, Adjustable Width Conveyor

Operating Temperature Range
15C - 35C

Operating Humidity
20% - 80% (non-condensing)

Air Pressure Requirement
0.5 - 0.7 MPa

Component Range
0201 (metric) to 55 mm x 55 mm IC / 15 mm height

Siemens D4 Pick and Place Machine High-Speed, Precision SMT Mounter for Efficient PCB Assembly Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia

About Siemens D4 Pick and Place Machine High-Speed, Precision SMT Mounter for Efficient PCB Assembly

Prices are for show only, please contact us for exact price.

Product Description

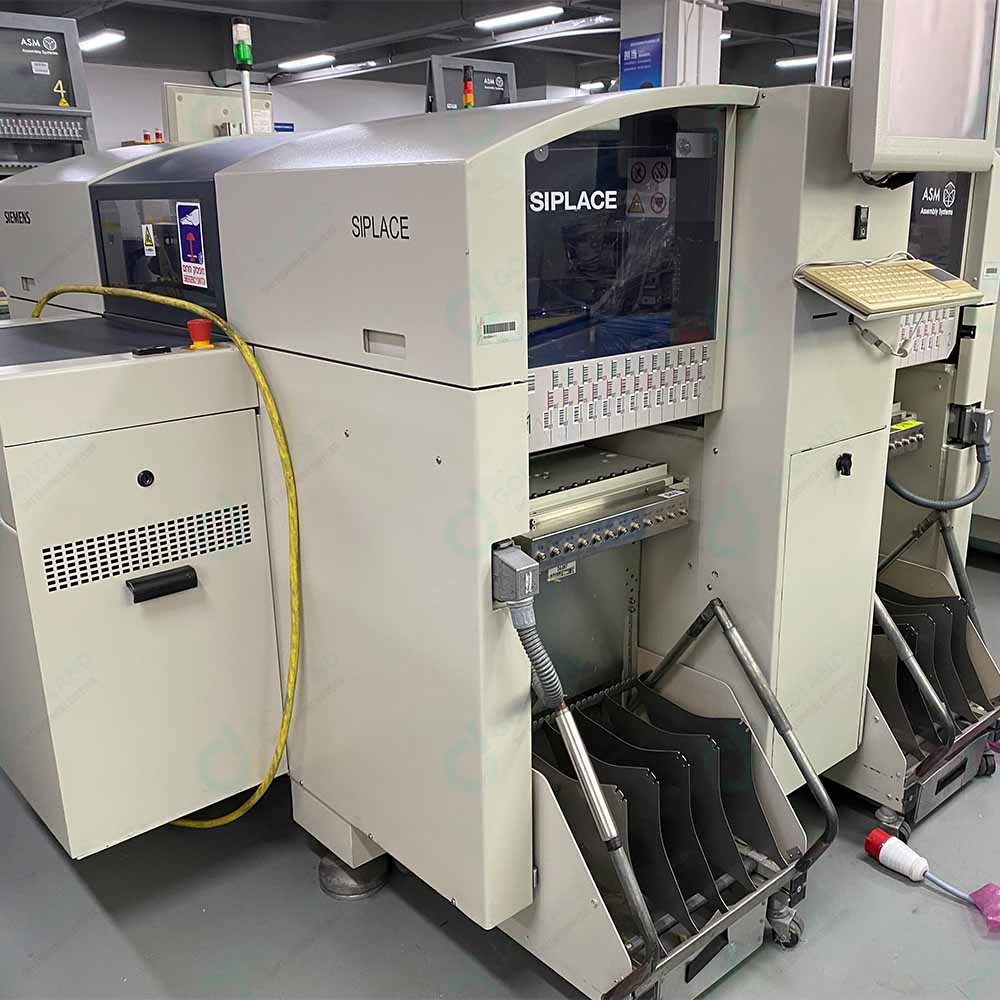

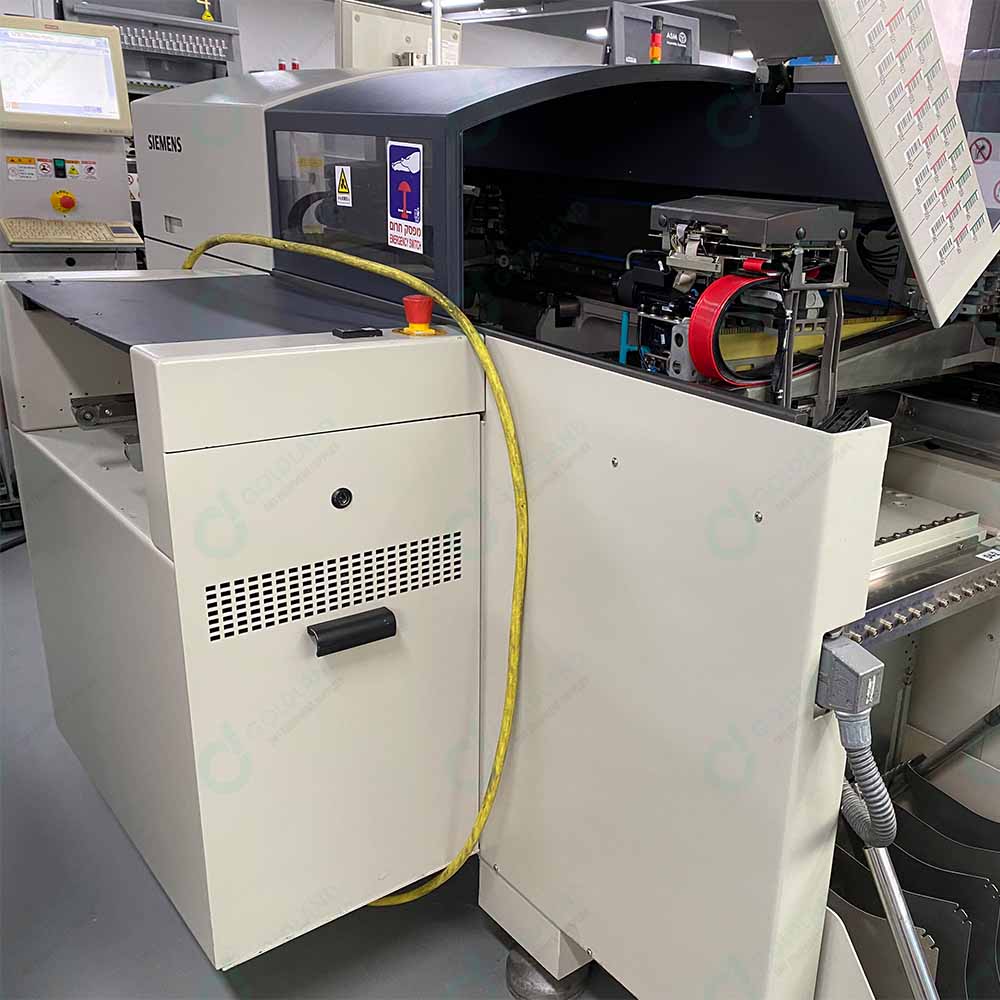

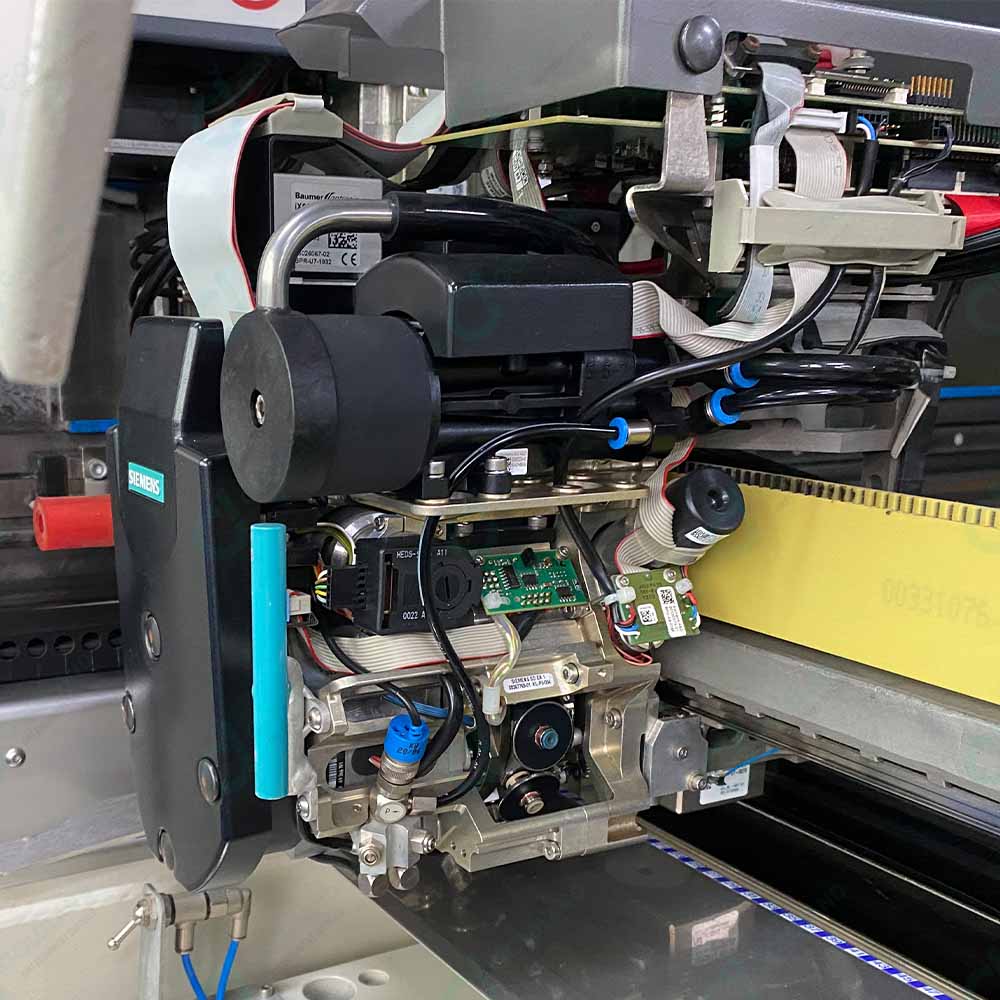

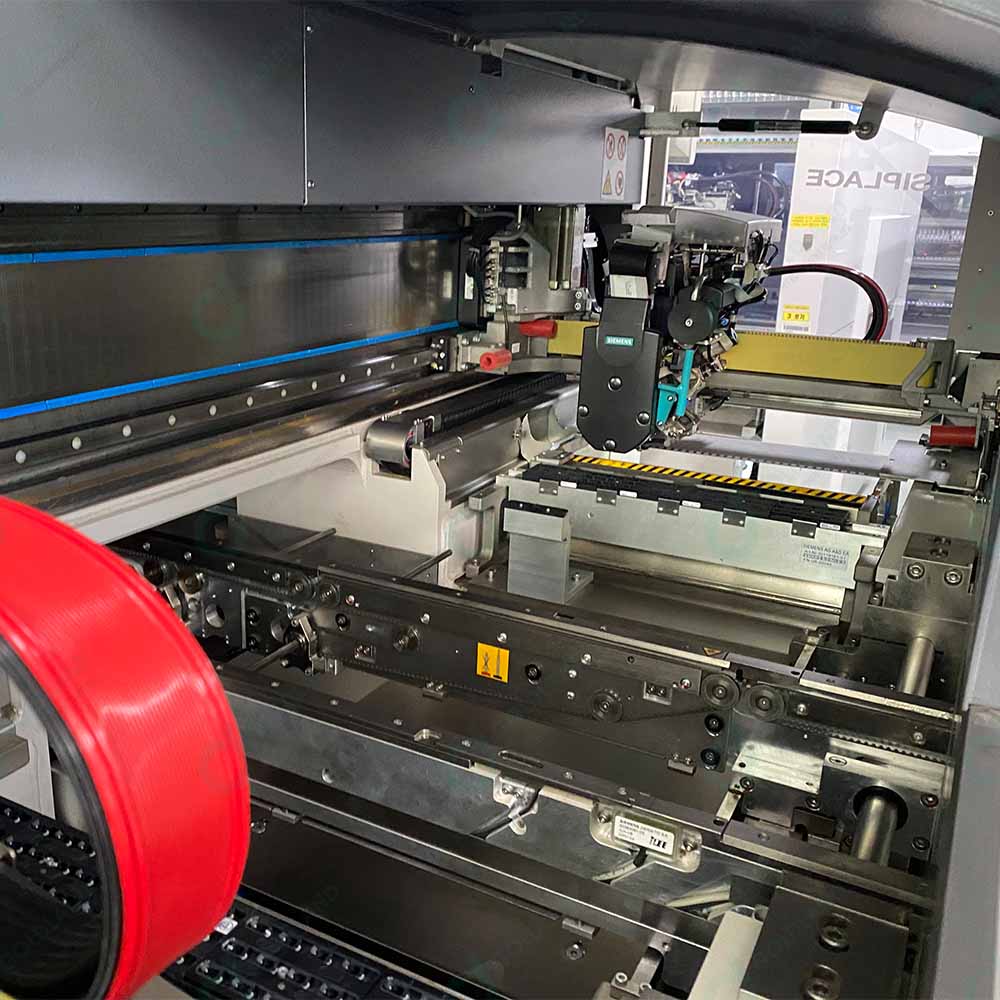

The Siemens D4 pick and place machine is a high-speed SMT mounter designed for efficient, high-precision component placement in PCB assembly. Engineered for high-mix, high-volume production, the D4 supports automated feeder systems, advanced vision alignment, and intelligent placement technology to maximize throughput and reduce defects. Its modular design allows for seamless integration into electronics manufacturing, automotive production, telecommunications, and other industrial PCB assembly lines. The Siemens D4 excels in handling a wide range of components, from fine-pitch chips to large components, ensuring superior placement accuracy and optimized production workflow. With real-time monitoring, smart factory compatibility, and flexible configuration, this pick and place machine helps manufacturers improve production efficiency, lower operational costs, and achieve consistent high-quality results

Product Specifications

Machine Model		Placement Head Model		Placement Speed (CPH)			Component Height(mm)	Component Dimensions (mm)mm	Placement accuracy (mm)@3
Machine Model		Placement area 1	Placement area 2	IPC value	Benchmark value	Theoretical value	Component Height(mm)	Component Dimensions (mm)mm	Placement accuracy (mm)@3
X4iS	X4iS-A	C&P20P/C&P20P	C&P20P/C&P20P	125,000	150,000	200,000	4	03015-6x6	0.036
		C&P20P/C&P20P	CPP_L/CPP_L	102,000	120,000	160,000	8.5	03015-50x40	0.036
		C&P20P/C&P20P	CPP_H/CPP_H	100,300	118,000	157,300	11.5	03015-50x40	0.036
		CPP_L/CPP_L	CPP_L/CPP_L	79,900	94,000	112,300	8.5	0402-50x40	0.034
		CPP_L/CPP_L	CPP_H/CPP_H	73,960	87,000	97,800	11.5	0402-50x40	0.034
		CPP_H/CPP_H	CPP_H/CPP_H	68,000	80,000	90,000	11.5	0402-50x40	0.034
	X4iS-B	C&P20P/C&P20P	CPP_H/TH	85,000	99,900	133,200	25	03015-50x40	0.025
		CPP_L/CPP_L	CPP_H/TH	58,150	68,400	77,500	25	0402-50x40	0.025
		CPP_H/CPP_H	CPP_H/TH	52,190	61,400	69,075	25	0402-50x40	0.025
	X4iS-C	C&P20P/C&P20P	TH/TH	70,900	85,500	114,000	25	03015-200x125	0.025
		CPP_L/CPP_L	TH/TH	49,300	58,000	65,900	25	0402-200x125	0.025
		CPP_H/CPP_H	TH/TH	43,350	51,000	57,300	25	0402-200x125	0.025
X4 S	X4 S-A	C&P20P/C&P20 P	C&P20P/C&P20P	105,00	125,000	170,500	4	03015-6x6	0.036
		C&P20P/C&P20 P	CPP_L/CPP_L	90,500	106,500	145,250	8.5	03015-50x40	0.036
		C&P20P/C&P20 P	CPP_H/CPP_H	86,250	101,500	138,450	11.5	03015-50x40	0.036
		CPP_L/CPP_L	CPP_L/CPP_L	74,800	88,000	123,200	8.5	0402-50x40	0.034
		CPP_L/CPP_L	CPP_H/CPP_H	70,550	83,000	112,500	11.5	0402-50x40	0.034
		CPP_H/CPP_H	CPP_H/CPP_H	66,300	78,000	106,000	11.5	0402-50x40	0.034
	X4 S-B	C&P20P/C&P20 P	CPP_H/TH	68,500	81,000	110,480	25	03015-50x40	0.025
		CPP_L/CPP_L	CPP_H/TH	57,800	68,000	95,700	25	0402-50x40	0.025
		CPP_H/CPP_H	CPP_H/TH	53,550	63,000	85,650	25	0402-50x40	0.025
	X4 S-C	C&P20P/C&P20 P	TH/TH	60,500	71,500	97,520	25	03015-200x125	0.025
		CPP_L/CPP_L	TH/TH	45,050	53,000	75,900	25	0402-200x125	0.025
		CPP_H/CPP_H	TH/TH	40,800	48,000	65,250	25	0402-200x125	0.025
	X4 S-D	CPP_H/TH	TH/TH	28,050	33,000	48,400	25	0402-200x125	0.025
	X4 S-E	TH/TH	TH/TH	15,300	18,000	18,600	25	0201-200x125	0.025
X3 S	X3 S-A	C&P20P/C&P20 P	C&P20 P	78,100	93,750	127,875	4	03015-6x6	0.036
		C&P20P/C&P20 P	CPP_L	73,200	86,150	117,500	8.5	03015-50x40	0.036
		C&P20P/C&P20 P	CPP_H	70,100	82,500	112,530	11.5	03015-50x40	0.036
		CPP_L/CPP_L	CPP_L	57,500	67,650	92,400	8.5	0402-50x40	0.036
		CPP_H/CPP_H	CPP_H	49,750	58,500	78,250	11.5	0402-50x40	0.036
		CPP_L/CPP_L	CPP_H	54,000	63,500	85,000	11.5	0402-50x40	0.036
	X3 S-B	C&P20P/C&P20 P	TH	57,000	67,500	92,070	25	03015-200x125	0.025
		CPP_L/CPP_L	TH	41,650	49,000	68,750	25	0402-200x125	0.025
		CPP_H/CPP_H	TH	37,500	44,000	60,200	25	0402-200x125	0.025
	X3 S-C	CPP_H/TH	TH	25,500	29,100	41,250	25	0402-200x125	0.025
	X3 S-D	TH/TH	TH	11,900	14,000	21,450	25	0201-200x125	0.025
X2 S	X2 S-A	C&P20P	C&P20P	52,000	62,500	85,250	4	03015-6x6	0.036
		C&P20P	CPP_L	45,500	53,750	73,300	8.5	03015-50x40	0.034
		C&P20P	CPP_H	43,000	50,750	69,220	11.5	03015-50x40	0.034
		CPP_L	CPP_L	37,400	45,000	61,600	8.5	03015-50x40	0.034
		CPP_H	CPP_H	33,500	39,000	55,500	11.5	03015-50x40	0.034
		CPP_L	CPP_H	35,450	42,000	57,900	11.5	03015-50x40	0.034
	X2 S-B	C&P20P	TH	30,800	36,250	49,450	25	03015-200x125	0.025
		CPP_L	TH	24,000	27,500	37,450	25	0402-200x125	0.025
		CPP_H	TH	20,600	24,500	32,900	25	0402-200x125	0.025
	X2 S-C	TH	TH	9,000	10,000	13,000	25	0201-200x125	0.025
X4i		CP20/CP20	CP20/CP20	102,000	120,000	135,500	4	01005-6x6	0.041
		CP20/CP20	CPP/CPPa	91,500	107,000	123,750	4	01005-27x27	0.041
		CPP/CPPa	CPP/CPPa	81,000	94,000	112,000	4	01005-27x27	0.041
X4	X4-A	CP20/CP20	CP20/CP20	82,000	90,000	124,000	4	01005-6x6	0.041
		CP20/CP20	CPP/CPPa	75,000	85,000	118,000	4	01005-27x27	0.041
		CPP/CPPa	CPP/CPPa	68,000	80,000	112,000	8.5	01005-27x27	0.041
	X4-B	CP20/CP20	CPP/THb	61,900	68,600	93,000	25	01005-27x27	0.025
	X4-B	CPP/CPPa	CPP/THb	54,900	63,600	87,000	25	01005-27x27	0.025
	X4-C	CP20/CP20	TH/TH	48,000	52,500	75,000	25	01005-200x125	0.025
	X4-C	CPP/CPPa	TH/TH	41,000	47,500	69,000	25	01005-200x125	0.025
	X4-D	CPP/THb	TH/TH	27,900	31,100	44,000	25	01005-200x125	0.025
	X4-E	TH/TH	TH/TH	14,000	15,000	26,000	25	0201-200x125	0.025
X3	X3-A	CP20/CP20	CP20/CP20	62,700	69,500	93,000	4	01005-6x6	0.041
		CP20/CP20	CPPa	59,200	66,500	90,000	4	01005-27x27	0.041
		CPP/CPPa	CPPa	52,200	61,500	84,000	8.5	01005-27x27	0.041
	X3-B	CP20/CP20	TH	45,300	50,000	68,500	25	01005-200x125	0.025
	X3-B	CPP/CPPa	TH	38,300	45,000	62,500	25	01005-200x125	0.025
	X3-C	CPP/THb	TH	25,200	28,600	37,500	25	01005-200x125	0.025
	X3-D	TH/TH	TH	11,300	12,500	19,500	25	0201-200x125	0.025
X2	X2-A	CP20	CP20/CP20	43,400	49,000	62,000	4	01005-6x6	0.041
		CP20	CPPa	39,900	46,000	59,000	4	01005-27x27	0.041
		CPPa	CPPa	36,400	43,000	56,000	8.5	01005-27x27	0.041
	X2-B	CP20	TH	26,000	29,500	37,500	25	01005-200x125	0.025
	X2-B	CPPa	TH	22,500	26,500	35,500	25	01005-200x125	0.025
	X2-C	TH	TH	8,600	10,000	13,000	25	0201-200x125	0.025
D1	D1-A	C&P12		13,000	15,000	20,000	6	0201-18.7x18.7	0.050
	D1-B	C&P6		8,400	9,800	11,500	8.5	0201-27x27	0.053
	D1-C	P&P		2,600	2,800	3,500	19	0402-200x125	0.038
D2	D2-A	C&P12/C&P12		27,200	31,000	40,500	6	0201-18.7x18.7	0.050
	D2-B	C&P12/C&P6		20,900	23,000	32,000	6	0201-27x27	0.053
	D2-C	C&P6/C&P6		16,500	19,500	23,000	8.5	0201-27x27	0.053
D3	D3-A	C&P12/C&P12	C&P12	37,600	40,400	61,000	6	0201-18.7x18.7	0.041
	D3-B	C&P12/C&P12	C&P6	33,200	36,200	52,500	6	0201-27x27	0.045
	D3-C	C&P12/C&P12	TH	28,800	31,400	47,000	6	0201-200x125	0.025
	D3-D	C&P12/C&P6	C&P6	28,500	30,100	43,500	6	0201-27x27	0.045
	D3-E	C&P12/C&P6	TH	24,100	25,300	38,500	6	0201-200x125	0.025
	D3-F	C&P12/TH	TH	21,300	23,800	33,500	6	0201-200x125	0.025
	D3-G	C&P6/C&P6	C&P6	25,100	28,100	34,500	8.5	0201-27x27	0.045
	D3-H	C&P6/C&P6	TH	20,700	23,300	29,500	8.5	0201-200x125	0.025
	D3-I	C&P6/TH	TH	16,900	19,400	24,500	8.5	0201-200x125	0.025
	D3-K	TH/TH	TH	11,600	12,500	19,500	25	0402-200x125	0.025
D4		C&P12/C&P12	C&P12/C&P12	57,000	66,000	81,500	6	01005-16x16	0.05
D1i		C&P6	TH	13,000	15,000	20,000	19	01005-200x125	0.025
D2i		C&P12	C&P12	27,200	31,000	40,500	6	01005-200x125	0.025
D4i		C&P12/C&P12	C&P12/C&P12	57,000	66,000	81,500	6	01005-18.7x18.7	0.05
SX	SX1	TH		24,000	30,000	33,875	25	0201-200x125	0.025
SX	SX2	CPP	TH	48,000	60,000	67,750	11.5	01005-200x125	0.025
TX1	TX1-A	CP20P		32,500	37,500	50,200	4	0201-6x6	0.03
	TX1-B	CCP_H		22,000	22,000	26,250	11.5	0402-50x40	0.034
	TX1-C	TH		5,050	5,500	7,300	25	0402-55x45	0.025
TX2	TX2-A	C&P20P/C&P20P		65,000	75,000	100,500	4	0201- 6x6	0.03
	TX2-B	CPP_L/CPP_L		42,600	46,500	61,900	8.5	0402-50x40	0.034
	TX2-C	CPP_H/CPP_H		40,000	44,000	52,500	11.5	0402-50x40	0.034
	TX2-D	TH/CPP_H		25,000	28,500	38,000	11.5	0402-55x45	0.034
TX2i	TX2i-A	C&P20/C&P20P		67,000	78,000	103,800	4	0201-6x6	0.025
	TX2i-B	CPP_L/CPP_L		43,600	48,000	63,900	6	01005-27x27	0.034
	TX2i-C	CPP-L/CPP_H		41,000	45,000	59,850	25	0402-55x45	0.028
HF3	HF3-A	C&P12/C&P12	C&P12			40,400	6	0201-0.6x0.3	0.06
	HF3-B	C&P12/C&P12	C&P6			35,700	6	0201-0.6x0.3	0.045
	HF3-C	C&P12/C&P12	TH			30,100	25	0201-200x125	0.035
	HF3-D	C&P12/C&P6	C&P6			29,600	6	0201-18.7x18.7	0.045
	HF3-E	C&P12/C&P6	TH			24,000	25	0201-200x125	0.035
	HF3-F	C&P6/C&P6	C&P6			27,600	8.5	0201-27x27	0.045
	HF3-G	C&P6/C&P6	TH			22,000	25	0201-200x125	0.035
HS60		C&P12/C&P12	C&P12/C&P12			60000	6	0201-0.63x18.7	0.06
E-BY SIPLA CE	E-By-A	C&P12		25,000	E-Speed: 45,300		4	01005-6x6	0.041
	E-By-B	C&P12		14,700	E-Speed: 24,300		7.5	01005-18.7x18.7	0.041
	E-By-C	CP12/PP		14,700	E-Speed: 24,200		19	0201-45x98	0.0375
	E-By-D	C&P6/PP		9,500	E-Speed: 13,700		19	0201-45x98	0.0375
	E-By-A	TH		4.400	E-Speed: 5,200		25	0201-200x110	0.025

Exceptional Speed and Versatility

The Siemens D4 Pick and Place Machine delivers incredible throughput with up to 40,000 components per hour. It is engineered to handle a wide range of components and PCB sizes, supporting flexible electronics production environments. Its robust feeder capacity and automated settings further allow quick adaptation to changing assembly needs.

Superior Precision and Vision Technology

Equipped with a high-resolution fiducial and component camera, the D4 mounter guarantees precise component placement at 0.05 mm accuracy. The integrated vision system enhances error-free assembly and enables tight quality control, making it ideal for demanding electronics applications.

User-Friendly Interface and Advanced Control

Featuring a Siemens PC-based advanced control system with a touch screen interface, the D4 offers ease of use for operators. Siemens Siplace OS ensures smooth workflow, placement optimization, and full traceability of all assembly steps, improving process transparency and reliability.

FAQ's of Siemens D4 Pick and Place Machine High-Speed, Precision SMT Mounter for Efficient PCB Assembly:

Q: How does the Siemens D4 Pick and Place Machine enhance PCB assembly efficiency?

A: The Siemens D4 offers high-speed placement of up to 40,000 components per hour and supports a wide component range, enabling manufacturers to drastically reduce assembly times while maintaining outstanding placement accuracy.

Q: What types and sizes of PCBs and components can the D4 handle?

A: The machine accommodates PCB sizes from 50 mm x 50 mm up to 510 mm x 460 mm and can place components as small as 0201 (metric) up to 55 mm x 55 mm ICs with a maximum component height of 15 mm.

Q: Where can the Siemens D4 Pick and Place Machine be installed and used?

A: This mounter is suited for use in electronic manufacturing facilities across India, and is distributed, supplied, and supported by authorized Siemens partners, making it ideal for manufacturers, exporters, and suppliers.

Q: What are the power and environmental requirements for optimal operation?

A: The D4 requires a 220V AC power supply (50/60Hz), air pressure between 0.5-0.7 MPa, operating temperatures of 15C-35C, and humidity levels between 20%-80% (non-condensing), ensuring reliable performance in standard industrial environments.

Q: How does the integrated vision system benefit the assembly process?

A: The high-resolution fiducial and component camera ensures precise component alignment, reduces placement errors, and supports automatic calibration-all of which result in higher product quality and reduced rework.

Q: What software features does Siemens Siplace OS provide?

A: Siemens Siplace OS delivers process optimization, job traceability, feeder management, and user-friendly operation, helping manufacturers streamline production and maintain detailed records of all assembly operations.

Q: When is it best to choose the Siemens D4 over other SMT mounters?

A: The D4 is an ideal choice for electronics manufacturers requiring high-speed, high-precision placement, varied production runs, and seamless process control, especially for industries that demand rigorous quality and traceability standards.
