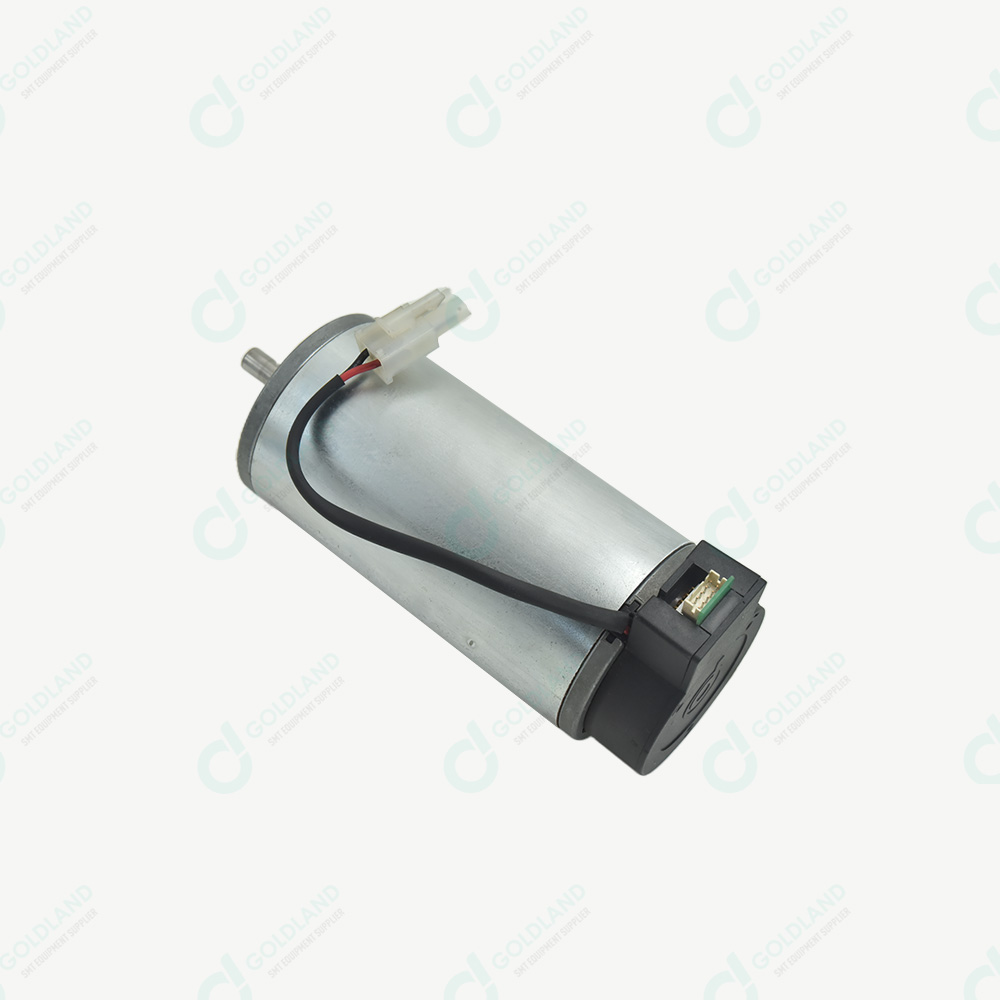

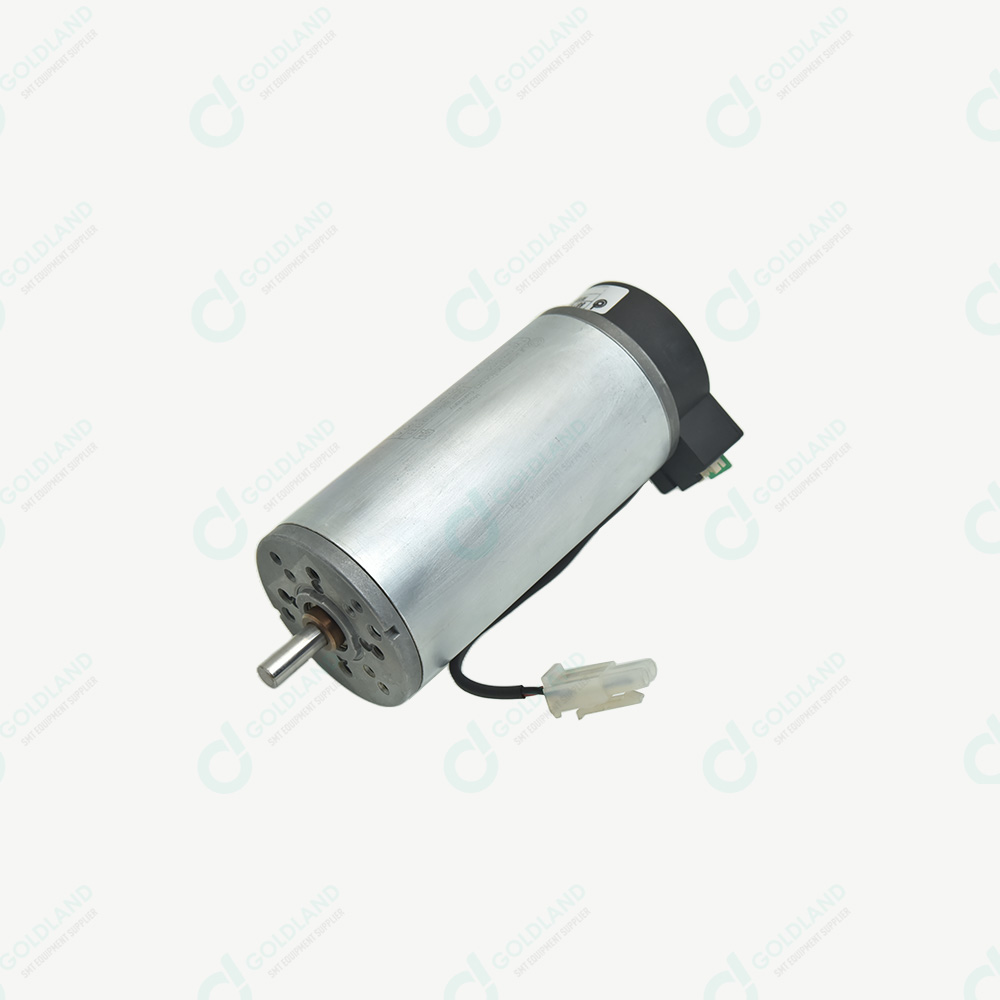

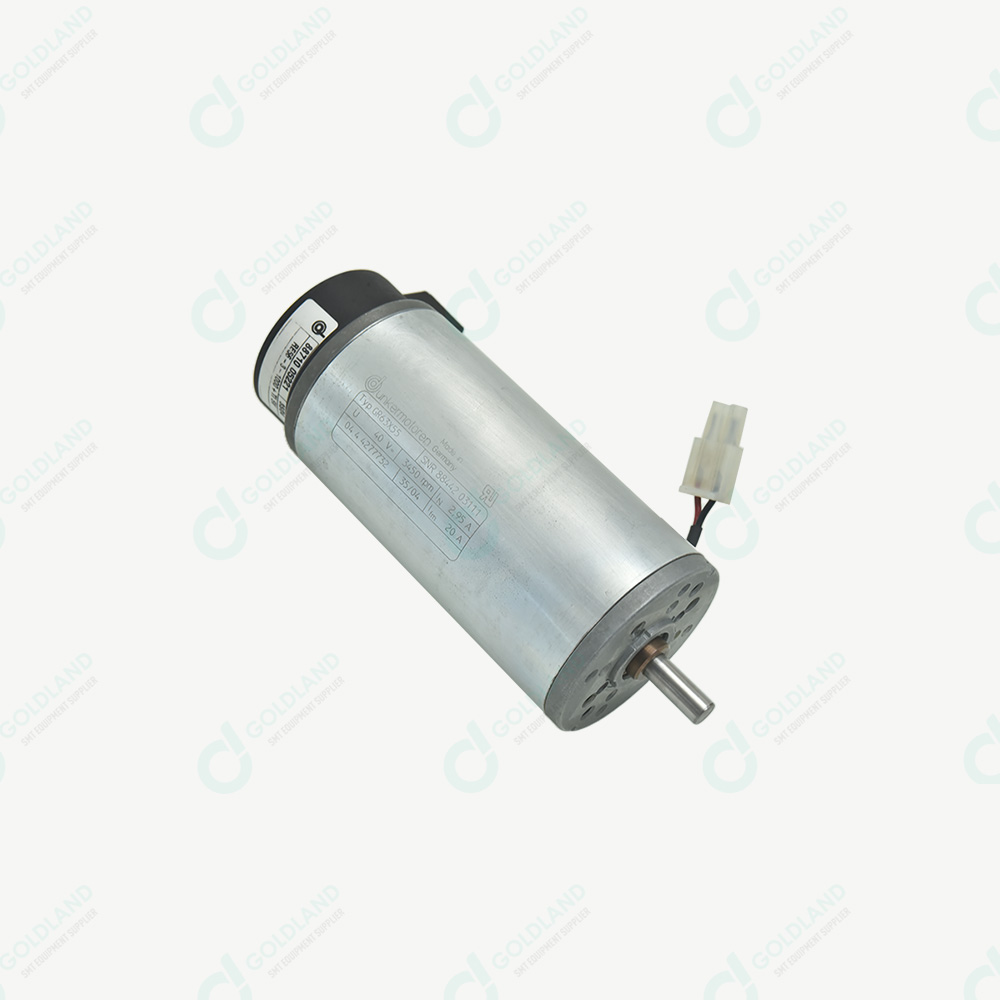

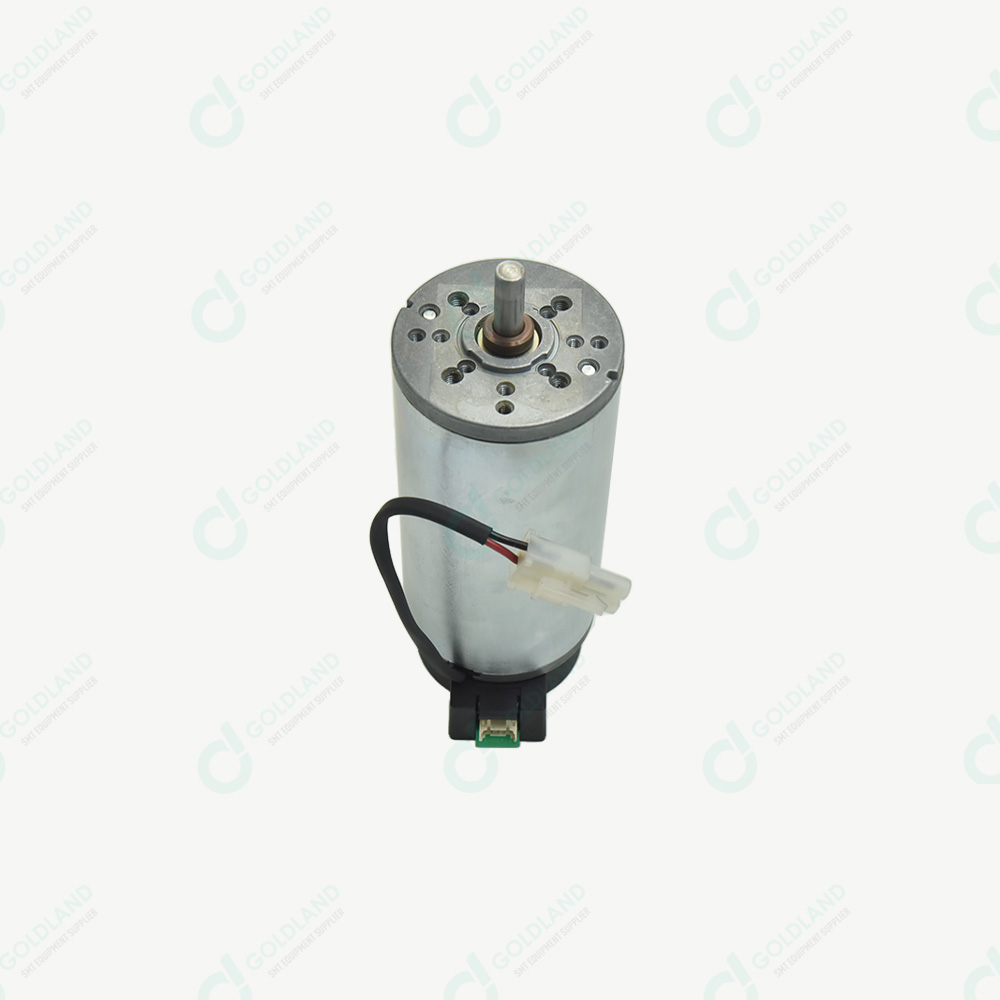

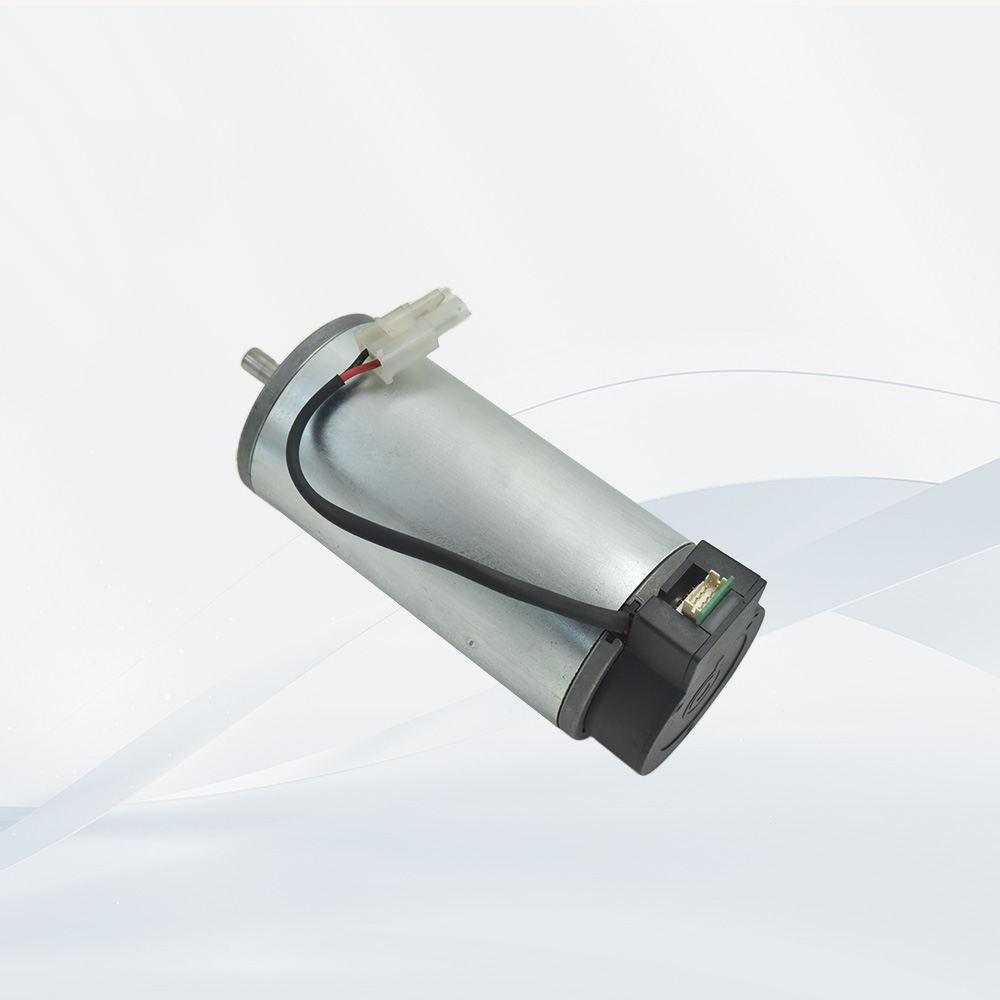

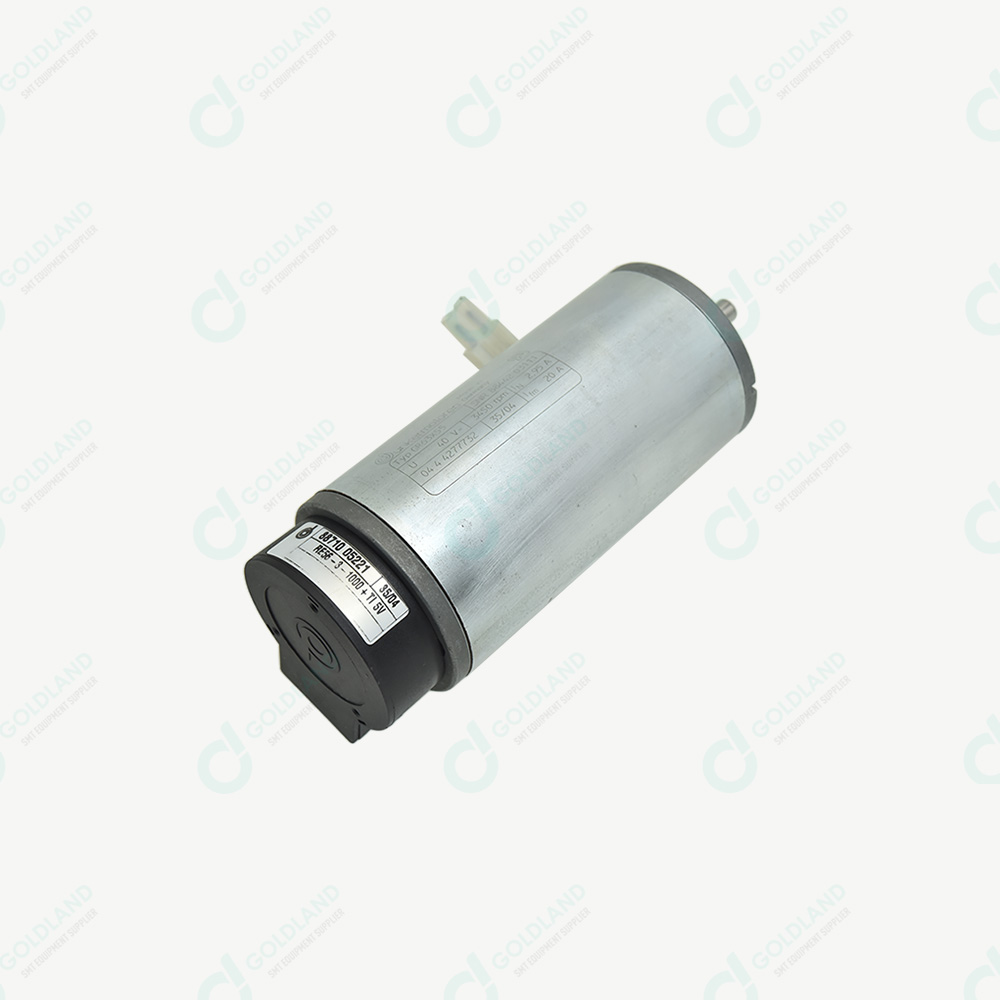

Dunkenmotoren GR 63x55 40V

Dunkenmotoren GR 63x55 40V Specification

Drive Type
Direct Drive

Surface Finish
Smooth/Matte

Diameter
63 mm

Usage & Applications
Industrial automation, conveyor drives, robotics, machine tools

Noise Level
Low Noise

Lubricating System
Maintenance-free, pre-lubricated bearings

Size
GR 63x55

Motor Power
80 W

Shape
Cylindrical

Capacity
Continuous duty (S1)

Features
Compact size, high efficiency, robust construction, long service life

Product Type
DC Motor

Material
Aluminium (Housing), Steel (Shaft), Copper (Winding)

Technology
Brushed DC

Power Source
Electric

Power
80 W

Voltage
40 V

Surface Treatment
Powder Coated/Anodized

Dimension (L*W*H)
63 mm (Diameter) x 55 mm (Length)

Weight
Approx. 1.6 kg

Color
Black/Silver

Thermal Protection
PTC thermistor (optional)

Peak Torque
Up to 1.2 Nm (short-time)

Connection Type
Terminal box or leads

Ambient Temperature
-20C to +40C

Rated Torque
0.35 Nm

Rotation
CW/CCW reversible

Enclosure
IP54

Mounting Type
Flange Mount (B14)

Armature Resistance
3.2 Ohms

Commutation
Brush-type

Rated Speed
2520 rpm

Bearing Type
Ball Bearings

Number of Poles
2

Insulation Class
Class F

Dunkenmotoren GR 63x55 40V Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Australia, Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Dunkenmotoren GR 63x55 40V

Prices are for show only, please contact us for exact price

SMT Product List

H4521F	TIMING BELT (ST 13)		545 5GT9 o 75109X9
H4521T	TIMING BELT (ST 3,ST 13)		405 5GT9 o 75081X9
H4521N	TIMING BELT (ST 3)		360 5GT9 o 75072X9
H4521K	TIMING BELT (ST 10,ST 12)		295-SGT-9 o 75059X9
H45190	BELT TIMING		728-8YU-(23991X20)
WPA5101	BELT TIMING	WPA-5100	SET (2 bandas)
H4519W	BELT TIMING	326087	464-8YU-25 o 23958X25

Compact and Efficient Performance

The GR 63x55 motor delivers 80 W power in a compact cylindrical housing (63 mm diameter, 55 mm length), making it an ideal choice for space-limited installations. Its robust construction, rated for continuous duty (S1), assures reliability in industrial automation, robotics, and machine tools.

Built for Demanding Environments

Featuring an IP54 enclosure and Class F insulation, the motor is engineered to withstand harsh industrial settings. The aluminium housing, pre-lubricated ball bearings, and low-noise operation add to its suitability for critical tasks requiring long operational lifespans with minimal upkeep.

Versatile Installation and Operation

This model is flange-mounted (B14) and can be easily connected via terminal box or lead wires, accommodating various application needs. The reversible rotation (CW/CCW) and robust direct-drive mechanism further enhance its adaptability and convenience during system integration.

FAQ's of Dunkenmotoren GR 63x55 40V:

Q: How can I install the Dunkenmotoren GR 63x55 motor in my application?

A: The GR 63x55 is designed for easy installation using a B14 flange mount and can be connected electrically through either a terminal box or lead wires, allowing straightforward integration into conveyor drives, automation equipment, and machine tools.

Q: What are the primary benefits of using this motor in industrial automation?

A: This motor offers a combination of compact design, high efficiency, low noise, and robust construction. Its pre-lubricated ball bearings and IP54 rating provide long service life with minimal maintenance, making it ideal for continuous-duty tasks in automated systems.

Q: When is it recommended to use the optional PTC thermistor?

A: A PTC thermistor is advisable for applications where thermal monitoring and additional protection are important. It helps safeguard the motor against overheating, thus extending its operational life in demanding environments.

Q: Where can this motor be employed most effectively?

A: The GR 63x55 is best suited for use in industrial robotics, conveyor systems, machine tools, and other automated machinery requiring reliable, steady power in compact spaces.

Q: What features support the motor's durability in harsh conditions?

A: The motor's aluminium housing, powder-coated or anodized finish, IP54 enclosure, and Class F insulation protect it against dust, moisture, and elevated temperatures, ensuring durability in rigorous industrial settings.

Q: How does the maintenance-free bearing design benefit users?

A: The pre-lubricated ball bearings are maintenance-free, reducing downtime and the need for regular servicing, thus improving operational efficiency in continuous-duty applications.
