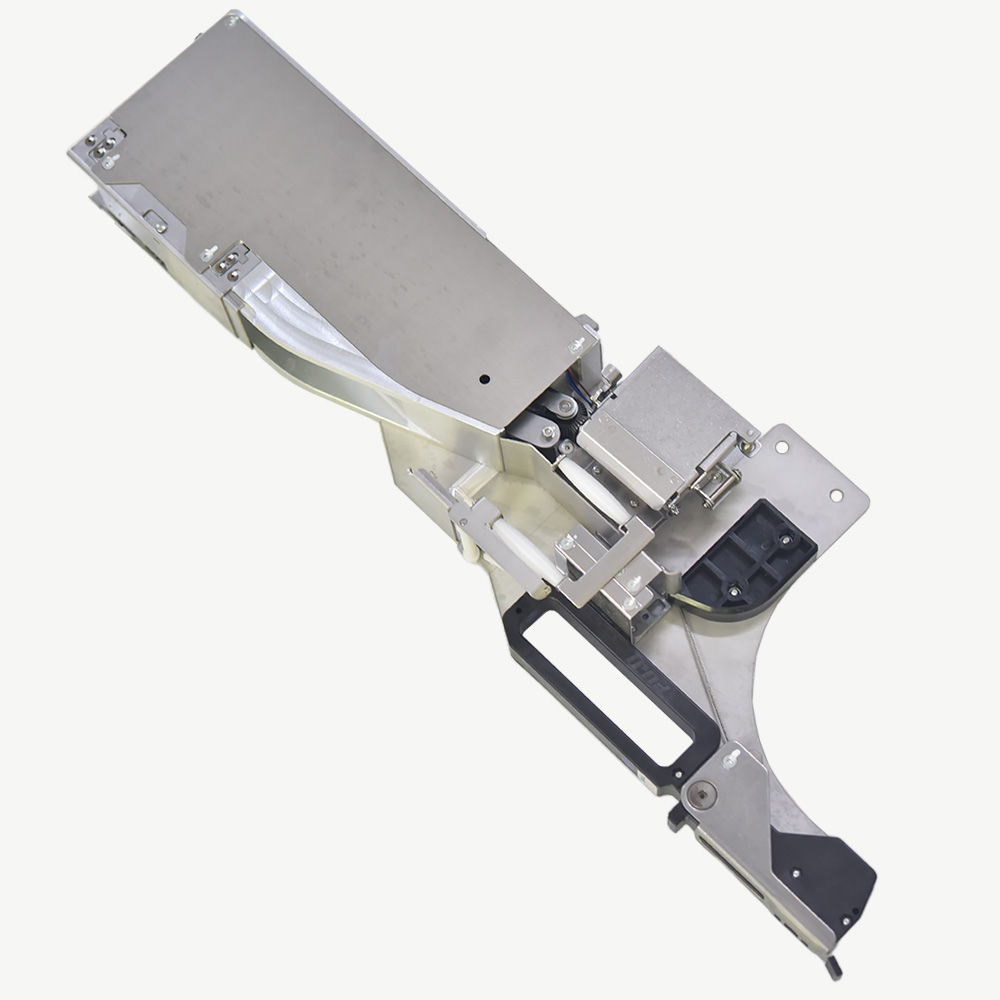

UF11000 FUJI NXTII 44mm Feeder, W44C, Bucket Type

UF11000 FUJI NXTII 44mm Feeder, W44C, Bucket Type Specification

Capacity
Suitable for 44mm component tape

Noise Level
Low Noise Operation (<60dB)

Lubricating System
Maintenance-Free

Size
44mm Tape Width

Features
High accuracy, Durable build, Easy installation, Quick component changeover, Error detection sensor, Anti-jam mechanism

Motor Power
Stepper Motor Drive

Shape
Rectangular, Bucket Type Housing

Surface Finish
Smooth, Industrial Finish

Drive Type
Electric Motor Driven

Usage & Applications
For use on FUJI NXTII SMT Pick and Place Machine, suitable for placement of a wide range of electronic components taped in 44mm width reels

Product Type
Feeder

Material
Industrial Grade Metal and Engineering Plastics

Technology
Surface Mount Technology (SMT), Bucket Type Mechanism

Power Source
Electric

Voltage
DC 24V

Surface Treatment
Anodized/Coated

Dimension (L*W*H)
Approx. 500mm x 150mm x 120mm

Weight
Approx. 3.5 kg

Color
Silver/Grey

Application Industry
Electronics Manufacturing, PCB Assembly Automation

OEM Reference
Genuine FUJI SMT Part

Compatible Machine
FUJI NXTII Series

Component Load Method
Bucket/Tray loading mechanism

Component Packaging
Handles SOP, QFP, PLCC, SMD parts in tapes up to 44mm width

Tape Width Supported
44mm

Storage Temperature Range
-20-60C

Availability
Stock & On Order

Tape Advance Method
Motorized bucket drive

Feeder Type
W44C, Bucket Type

Operating Temperature Range
0-45C

Model Number
UF11000 W44C

Mounting
Direct fit to NXTII modular system

Replacement Parts
Available on request

Component Detection
Optical sensor based

Maintenance
Tool-free, Periodic visual check recommended

UF11000 FUJI NXTII 44mm Feeder, W44C, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

About UF11000 FUJI NXTII 44mm Feeder, W44C, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

N4018A	SCREW, HEX SOCKET SET
PM03663	PIN
K5359E	SCREW, HEX SOCKET COUNTERSUNK
PP02625	LEVER
W1021A	WASHER, LOCK
AA69S05 / AA69S05	MOTOR, STEPPING
PZ35685	MOTOR, STEPPING
PP02711 / PP02711	GEAR
K5357H	SCREW, HEX SOCKET COUNTERSUNK
PH01713 / PH01714	GUIDE
PP02693	SLIDE, AUXILIARY
PZ53090	BOLT, HEX SOCKET
W1021A	WASHER, LOCK
W1040R	WASHER, FLAT
H57160	BOLT, HEX SOCKET

High-Precision Component Feeding

The UF11000 W44C Feeder ensures accurate and reliable delivery of electronic components, thanks to its bucket type mechanism, stepper motor drive, and optical sensors. This design minimizes mis-picks and ensures smooth, error-free operation during high-volume PCB assembly processes. Its compatibility with FUJI NXTII systems makes it particularly suitable for advanced electronics manufacturing environments.

Robust and User-Friendly Design

Constructed from industrial-grade materials with a smooth, anodized finish, this feeder is engineered to withstand rigorous use while maintaining low noise levels. The maintenance-free lubricating system and tool-free, periodic check requirements enable hassle-free operation and reduce downtime, benefiting both operators and production schedules.

Versatile Application and Easy Integration

Supporting components in 44mm wide tapes and designed for direct fitment in FUJI NXTII machines, the UF11000 W44C Feeder is ideal for PCB assembly automation. Its quick component changeover and anti-jam measures further enhance production line flexibility, meeting the demands of rapid electronics manufacturing and varied component packaging types.

FAQ's of UF11000 FUJI NXTII 44mm Feeder, W44C, Bucket Type:

Q: How is the UF11000 W44C Feeder installed on a FUJI NXTII machine?

A: The feeder is designed for direct fitment into the FUJI NXTII modular system. Installation is straightforward and does not require special tools. Simply align the feeder with the feeder slot on the NXTII pick-and-place machine and securely mount it as per machine guidelines.

Q: What types of components and packaging does the feeder support?

A: This model handles SOP, QFP, PLCC, and SMD electronic components packaged in carrier tapes up to 44mm width. It is optimized for bucket/tray loading mechanisms, making it suitable for a wide range of component shapes and sizes encountered in electronics manufacturing.

Q: When should maintenance be performed on the UF11000 W44C Feeder?

A: The feeder is designed for tool-free maintenance. It requires only periodic visual inspections to ensure optimal operation, thanks to its maintenance-free lubricating system. No specialized maintenance routines are needed, minimizing downtime on the production line.

Q: Where can replacement parts for the UF11000 W44C Feeder be sourced?

A: Replacement parts for this feeder are available on request from authorized FUJI distributors, suppliers, or directly from the manufacturer. Ensure to reference the model number UF11000 W44C when inquiring to ensure proper part compatibility.

Q: What benefits does the bucket type and motorized drive mechanism provide?

A: The bucket type structure combined with a stepper motor drive ensures precise, error-free component feeding. The system reduces the chance of component jams and allows for quick tape advancement, resulting in higher throughput and reliable operation during demanding production schedules.

Q: How does the error detection sensor enhance reliability during operation?

A: The integrated optical sensor continuously monitors component presence and alignment, enabling early error detection and reducing the risk of mis-picks or component loss. This boosts production quality and consistency by quickly alerting operators to potential feeding issues.
