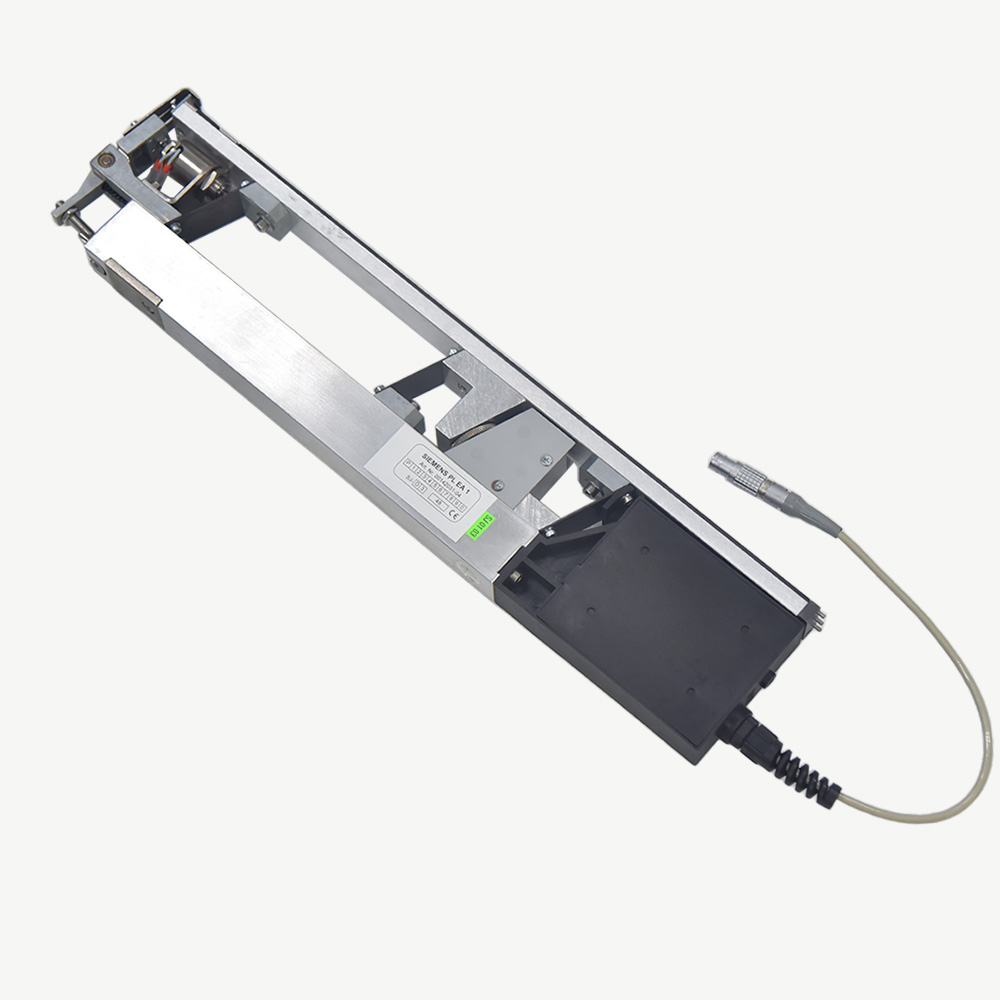

00142031 SIEMENS/ASM SIPLACE Vibrating Feeder X

00142031 SIEMENS/ASM SIPLACE Vibrating Feeder X Specification

Usage & Applications
SMT Assembly, Chip Component Feeding for Pick and Place Machines

Noise Level
< 70 dB

Surface Finish
Smooth/Matte

Capacity
Designed for SIPLACE X Series Tape Sizes

Motor Power
Integrated Vibrating Motor, 10 W

Shape
Rectangular

Size
Standard SIPLACE Compatible

Lubricating System
Maintenance Free (No Lubrication Required)

Drive Type
Direct Vibrating Drive

Features
Plug and Play, Precision Feeding, Low Maintenance, Compatible with ASM SIPLACE X Series

Product Type
Vibrating Feeder X

Material
Aluminum, Stainless Steel

Technology
Vibration Feeding Technology

Power Source
Electric

Power
10 W (approx)

Voltage
24 V DC

Surface Treatment
Anodized

Dimension (L*W*H)
Approx. 300 mm x 60 mm x 50 mm

Weight
1.5 kg (approx)

Color
Silver/Grey

Installation
Front-Side Mount

Mounting Type
Tool-less Quick Mount

Input Interface
Standard SIPLACE Feeder Slot

Control
Machine Software Controlled

Feeder Lane
Single Lane

Operation Mode
Continuous / On-demand

Environmental Resistance
ESD Safe Design

Component Type Supported
SMD Components

Compatible Equipment
SIEMENS/ASM SIPLACE Pick and Place Machines (X Series)

Feed Width
8-72 mm Tape (Varies by Model)

Operating Temperature Range
5C to 40C

Spare Parts Availability
Available

00142031 SIEMENS/ASM SIPLACE Vibrating Feeder X Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 00142031 SIEMENS/ASM SIPLACE Vibrating Feeder X

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

03022671S02	Antriebseinheit mit VA-Ritzel kplt.	drive unit complete
03022789-03	Barcodefolie X-Feeder Sektor 2	BarcodeLaminate X-Feeder Sector 2
03022842S02	Gurteinlauffeder / X32	BELT CLIP / X32
03022843S02	Gurteinlauffeder / X44	BELT CLIP / X44
03022858S02	Gurteinlauffeder / X56	BELT CLIP / X56
03022870S02	Gurteinlauffeder / X72	BELT CLIP / X72
03022871S02	Gurteinlauffeder / X88	BELT CLIP / X88
03022956S01	Hintergrund-Deckel ESD	BACK-COVER ESD
03023048-03	Barcodefolie X-Feeder Sektor 4	Barcode Laminate X-Feeder Sector 4
03023054-03	Barcodefolie X-Feeder Sektor 1	Barcode Laminate X-Feeder Sector 1

Designed for Seamless Integration with SIPLACE X Series

This vibrating feeder offers direct compatibility with SIEMENS/ASM SIPLACE X Series Pick and Place machines, ensuring straightforward installation and enhanced operational efficiency. With its standard SIPLACE feeder slot input and single-lane, front-side mounting, users can expect quick, tool-less setup and smooth feeding performance that fits seamlessly into existing SMT assembly lines.

Precision Feeding with Advanced Vibration Technology

Equipped with a direct vibrating drive and integrated 10 W motor, this feeder delivers consistent, accurate component supply for chip mounting. The vibration technology supports both continuous and on-demand operation modes, minimizing material jams and guaranteeing a steady workflow for a variety of SMD component tape sizes ranging from 8 to 72 mm.

Durable, Maintenance-Free Performance

Constructed from anodized aluminum and stainless steel, the feeder is built to last, offering resilience to common industrial stresses and ESD safe design for sensitive electronics handling. Requiring no regular lubrication and operating with a noise level below 70 dB, it delivers a clean and quiet working environment with minimal intervention, ensuring sustained productivity.

FAQ's of 00142031 SIEMENS/ASM SIPLACE Vibrating Feeder X:

Q: How is the 00142031 SIEMENS/ASM SIPLACE Vibrating Feeder X installed on the pick and place machine?

A: The feeder is designed for tool-less, quick front-side mounting and fits directly into the standard SIPLACE feeder slot on compatible SIPLACE X Series pick and place machines. This makes installation and removal fast and simple, without requiring any specialized tools.

Q: What tape and component sizes can this vibrating feeder accommodate?

A: It supports tape widths ranging from 8 mm to 72 mm (varies by model), making it suitable for feeding a wide range of SMD components used in SMT assembly operations.

Q: When should the feeder be operated in continuous vs. on-demand mode?

A: Continuous mode is ideal for high-volume assembly lines where a steady supply of components is needed, while on-demand mode is suitable for variable-speed or precise placement requirements to avoid unnecessary component waste.

Q: Where can spare parts for the Vibrating Feeder X be obtained?

A: Spare parts are available through authorized SIEMENS/ASM distributors, exporters, manufacturers, suppliers, and traders, especially within India and global distribution networks.

Q: What benefits does the ESD safe design offer for SMT assembly?

A: The ESD safe design ensures that sensitive electronic components are protected from electrostatic discharge during feeding, reducing the risk of damage and enhancing production yield.

Q: Is regular maintenance or lubrication required for the feeder?

A: No regular maintenance or lubrication is necessary. The feeder is engineered with a maintenance-free, direct vibrating drive system, reducing downtime and maintenance expenses.

Q: How is the feeder controlled during operation?

A: The feeder's operation is fully controlled via the SIPLACE machine software, allowing seamless integration and precise adjustment of feed rates according to assembly line requirements.
