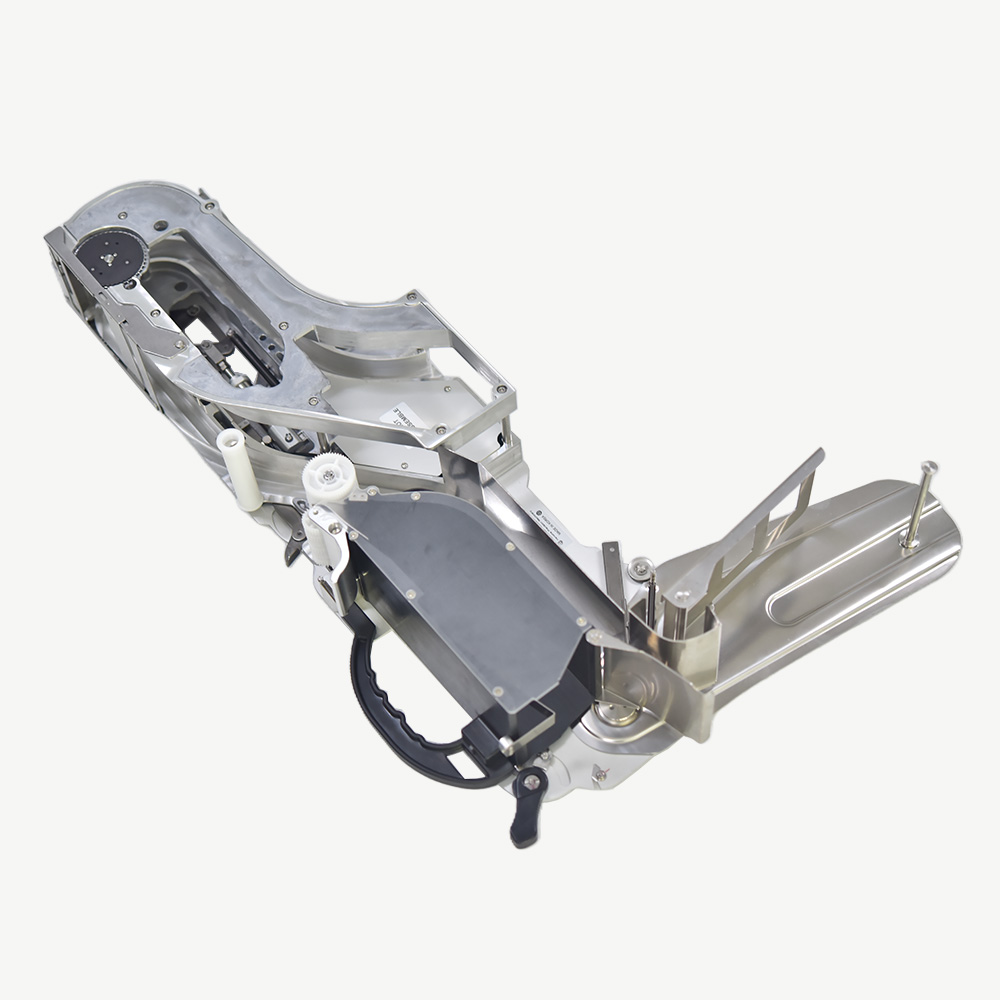

SMN-88mm SAMSUNG SMN 88mm Pneumatic Feeder

SMN-88mm SAMSUNG SMN 88mm Pneumatic Feeder Specification

Features
High precision, easy maintenance, anti-static design, quick changeover

Capacity
Supports 88mm tape reels

Lubricating System
Self-lubricated bearings

Drive Type
Pneumatic drive

Usage & Applications
For feeding components in SMT pick and place machines, compatible with Samsung machines

Surface Finish
Smooth / Anodized

Noise Level
Low (<70 dB)

Motor Power
Not Applicable (Pneumatic mechanism)

Shape
Rectangular body

Diameter
Reel supported: up to 330mm

Size
88mm Tape Width

Product Type
Pneumatic Feeder

Material
Aluminum Alloy, Stainless Steel

Technology
SMT (Surface Mount Technology)

Power Source
Pneumatic / Compressed Air

Power
Not Applicable (Pneumatic-driven)

Pressure
0.5~0.6 MPa

Surface Treatment
Anodized

Dimension (L*W*H)
Approx. 470mm x 88mm x 80mm

Weight
Approx. 2.5 kg

Color
Silver/Black

Operating Environment
5-40C, relative humidity <80%

Compatibility
Suitable for Samsung SM and SMN series SMT equipment

Feeding Method
Automatic pneumatic feeding for 88mm tape

Operational Speed
Up to 15,000 CPH (components per hour)

Maintenance
Tool-free disassembly/assembly

Mounting Type
Standard SMN Mounting Interface for Samsung SMT Machines

Component Type Supported
Large size/odd-form components

Anti-static Function
Yes

Air Connection
Standard 6mm pneumatic tube

Tape Width Tolerance
0.1mm

SMN-88mm SAMSUNG SMN 88mm Pneumatic Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
South America, Western Europe, Middle East, Asia, Australia, Central America, North America, Eastern Europe, Africa

About SMN-88mm SAMSUNG SMN 88mm Pneumatic Feeder

Prices are for show only, please contact us for exact price

SMT Product List

AM03-001556B	TAPE GUIDE V08 ASSY
AM03-001558B	DRAIN HANDLE V08 ASSY
AM03-001567A	UI ASSY V8
AM03-003751A / AM03-001569A	ASSY,ETC,IMS-INDEX MOTOR ASSY VL
AM03-010389J / J91741316A	ASSY,BOARD-MF MAIN BOARD / SME08
AM03-025649A	D-GEARTRAIN M 08 ASSY
EP08-000052A	DRAIN MOTOR
FC29-000679A	HANDLE-HANDLE LEFT
FC29-000680B	HANDLE RIGHT
GD03-000037A	DRAIN GEAR-1
GD03-000046A	D-FOLLOWER SPRING
J70653565A	DRAIN GEAR FORK
J70661295A00	CLAMP HOOK SPRING
J90652099A	D-TENSIONER M 08 ASSY
J70661457A	LOCKER HINGE M08

Precision Feeding for Large and Odd-Form Components

The SMN-88mm Pneumatic Feeder is engineered to support wide tape reels, specifically for handling large size and odd-shaped parts. Its robust design ensures reliable placement in demanding applications, making it indispensable for electronics assembly lines working with diverse component profiles.

Seamless Compatibility & Easy Integration

This feeder offers a standard SMN mounting interface, ensuring effortless integration with Samsung SM and SMN series SMT equipment. Its straightforward tool-free design allows for quick changes and minimal downtime, enabling operators to maintain high productivity on the production floor.

High-Speed, Low-Noise Operation

With an operational speed of up to 15,000 CPH and noise output below 70 dB, the SMN-88mm ensures both rapid and quiet performance. The pneumatic-driven mechanism delivers reliable, consistent throughput, enhancing overall manufacturing efficiency while maintaining a comfortable working environment.

FAQ's of SMN-88mm SAMSUNG SMN 88mm Pneumatic Feeder:

Q: How does the SMN-88mm Samsung Pneumatic Feeder operate within my SMT production line?

A: The SMN-88mm Feeder uses a pneumatic drive to automatically supply large or odd-form components from 88mm tape reels to the pick and place head of your Samsung SM or SMN series SMT machines, ensuring efficient and continuous operation.

Q: What types of components and tape sizes can this pneumatic feeder handle?

A: This feeder is designed specifically for wide, 88mm tape reels and is tailored for large size or odd-form electronic components, supporting reel diameters up to 330mm.

Q: When is tool-free maintenance required and how is it performed?

A: Maintenance can be performed as part of regular checks or when changing reels. The feeder features tool-free disassembly and assembly, allowing for quick cleaning, inspection, and part replacement without interrupting production for long periods.

Q: Where can the SMN-88mm feeder be installed?

A: It is compatible exclusively with SMT pick and place machines from the Samsung SM and SMN series, utilizing a standard SMN mounting interface for straightforward installation on supported equipment.

Q: What are the benefits of the anti-static design on this feeder?

A: The integrated anti-static system minimizes the risk of electrostatic discharge (ESD), safeguarding sensitive components throughout the automated feeding process, which is critical in modern electronics manufacturing.

Q: How does the pneumatic feeding process improve operational efficiency?

A: Relying on compressed air (0.5~0.6 MPa), the pneumatic mechanism ensures high-precision, high-speed feeding with low noise, reducing manual intervention and enabling rapid component placement at speeds up to 15,000 CPH.

Q: What are the usage and application scenarios for this feeder?

A: The feeder is ideal for high-volume PCB assembly in environments requiring automated feeding of large or irregular-shaped components, making it suitable for electronics manufacturers using Samsung SMT lines, where reliability and quick changeover are essential.
