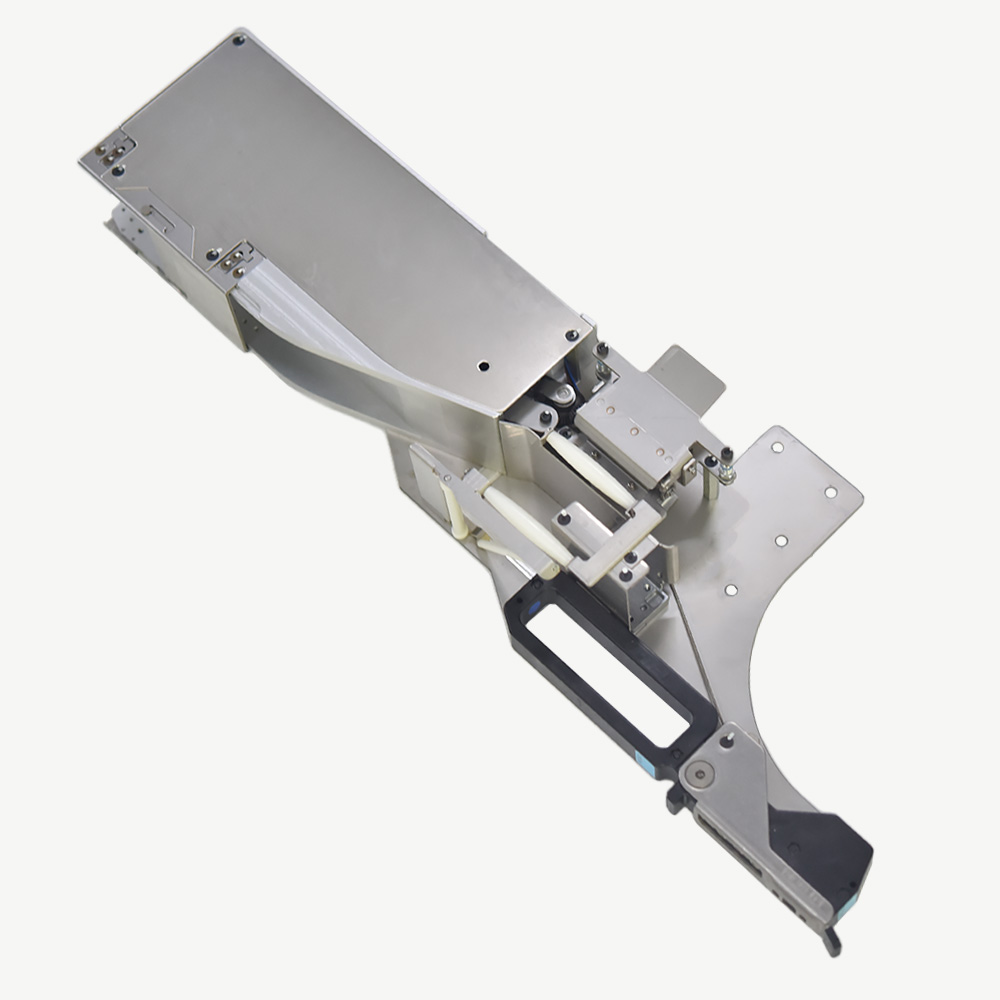

UF11200 W56c FUJI NXT Feeder, Bucket Type

UF11200 W56c FUJI NXT Feeder, Bucket Type Specification

Motor Power
N/A (uses machines mechanism)

Drive Type
Mechanical Drive by NXT Machine

Features
High precision feeding, durable construction, compatible with NXT series

Shape
Rectangular/Feeder Shape

Usage & Applications
For mounting components in FUJI NXT SMT machines

Lubricating System
Maintenance-free

Size
56mm (W56c)

Surface Finish
Smooth Finish

Capacity
Holds and supplies tape components

Noise Level
Low

Product Type
SMT Feeder, Bucket Type

Material
Aluminum Alloy

Technology
FUJI NXT Feeder Technology

Power Source
Electric

Power
N/A (passive) / very low

Voltage
24V DC (from machine)

Surface Treatment
Anodized

Dimension (L*W*H)
Approx. 420 x 60 x 150 mm

Weight
Approx. 2.5 kg

Color
Silver/Black

Feeder Pitch
Preset as per NXT standard

Part Number
UF11200 W56c

Humidity Range
20%-80% RH non-condensing

Maintenance
Easy to clean and replace

Operating Temperature
0C to 40C

Installation Position
Front or side feeder bank

Compatible Models
FUJI NXT, NXT II, NXT III Series

Mounting Method
Tool-free quick mounting

Component Width Supported
56mm tape width

UF11200 W56c FUJI NXT Feeder, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About UF11200 W56c FUJI NXT Feeder, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

PM089G4	GUIDE
H5276A / H5277A / H54250 / H63592	BOLT, HEX SOCKET
W1021A	WASHER, LOCK
PM061A1	BOLT
PM0K9K2	BOLT, HEX SOCKET
PP03421	WASHER, FLAT
AA6WF05	BKT
PP02763	BKT
H4911A	BEARING, MINIATURE
PT01940	GEAR
PM089M2	PIN, PIVOT
PM08XK3	PIN, PIVOT
K5170M	SCREW, C / R TRUSS
N10736	NUT, HEX
PS04040	SEAL

High Compatibility and Precision Feeding

The UF11200 W56c FUJI NXT Feeder is compatible with FUJI NXT, NXT II, and NXT III Series, delivering reliable and accurate positioning of 56mm tape components for superior assembly quality. Its preset feeder pitch meets NXT standards for consistent operation.

Durable and User-Friendly Design

Crafted from high-grade aluminum alloy with an anodized finish, this feeder stands out for its durability and smooth handling. Its tool-free quick-mount feature simplifies setup, while the maintenance-free design ensures sustained productivity with limited downtime.

Efficient SMT Production Solutions

Optimized for front or side bank installation, the UF11200 W56c streamlines the SMT assembly process. It operates within a broad temperature and humidity range and needs very low power, enhancing manufacturing efficiency for various applications in electronics production.

FAQ's of UF11200 W56c FUJI NXT Feeder, Bucket Type:

Q: How is the UF11200 W56c FUJI NXT Feeder installed on the SMT machine?

A: Installation is quick and tool-free, allowing you to mount the feeder on the front or side feeder banks of FUJI NXT, NXT II, or NXT III Series machines, saving time and effort during setup.

Q: What maintenance does the UF11200 W56c Feeder require?

A: The feeder has a maintenance-free lubricating system and a smooth, anodized surface that is easy to clean and generally only requires occasional checks and simple cleaning for consistent performance.

Q: Where can the UF11200 W56c Feeder be used within the FUJI NXT assembly line?

A: It can be installed at either the front or side feeder banks of FUJI NXT series machines, providing flexible integration based on your production workflow and requirements.

Q: What benefit does the aluminum alloy construction provide?

A: Aluminum alloy ensures a lightweight yet durable feeder body that can withstand repetitive industrial use while maintaining precise and stable tape feeding for 56mm components.

Q: How does the feeder operate without its own motor power?

A: The UF11200 W56c utilizes the mechanical drive system of the FUJI NXT machine itself, requiring no dedicated motor power, which simplifies operation and reduces maintenance concerns.

Q: What applications is the UF11200 W56c Feeder best suited for?

A: This feeder is ideal for mounting components from 56mm tape reels in FUJI NXT SMT machines, supporting distributors, manufacturers, and exporters in the electronics assembly industry.
