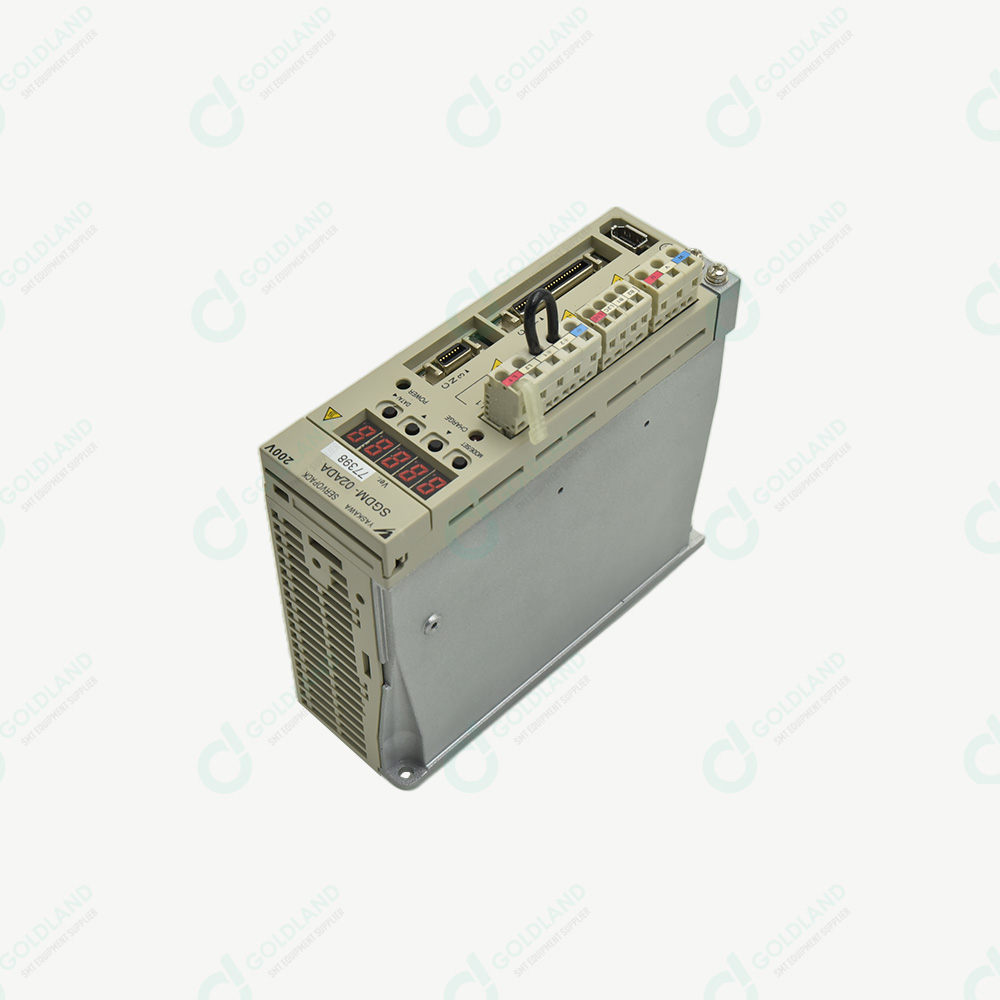

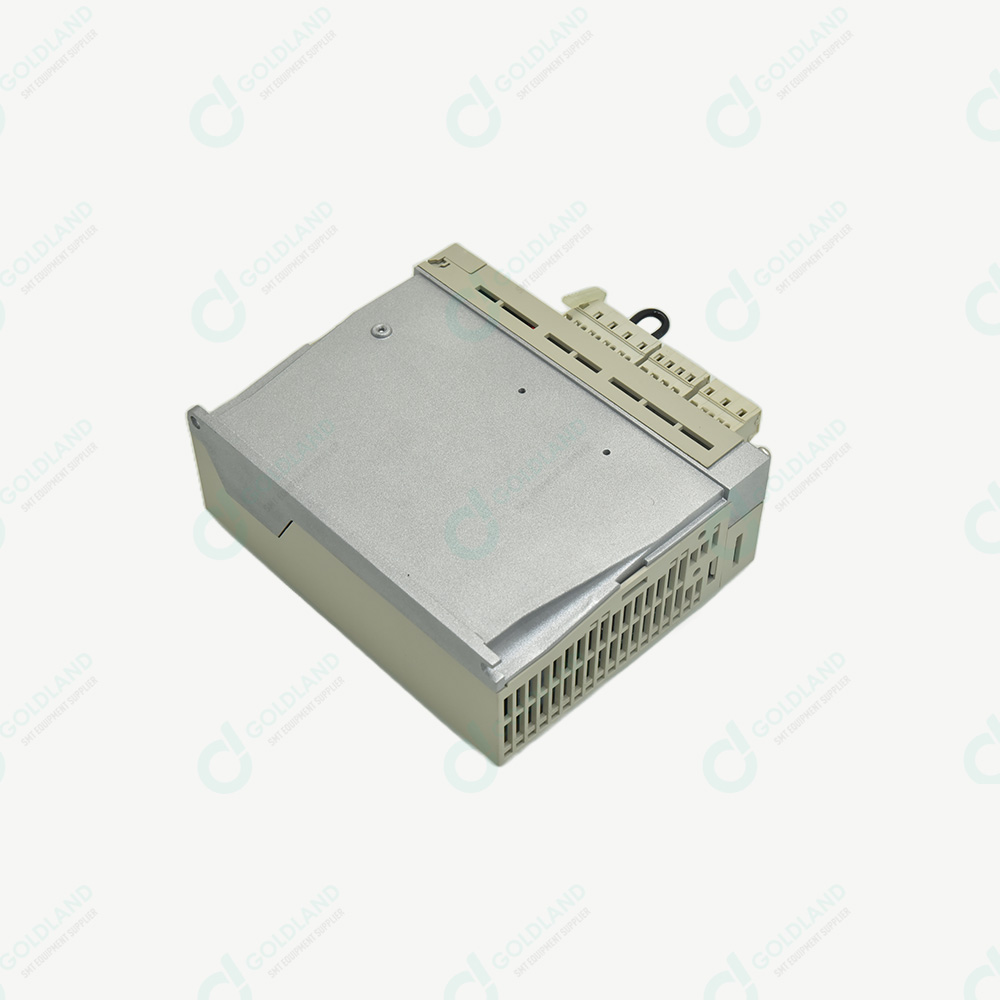

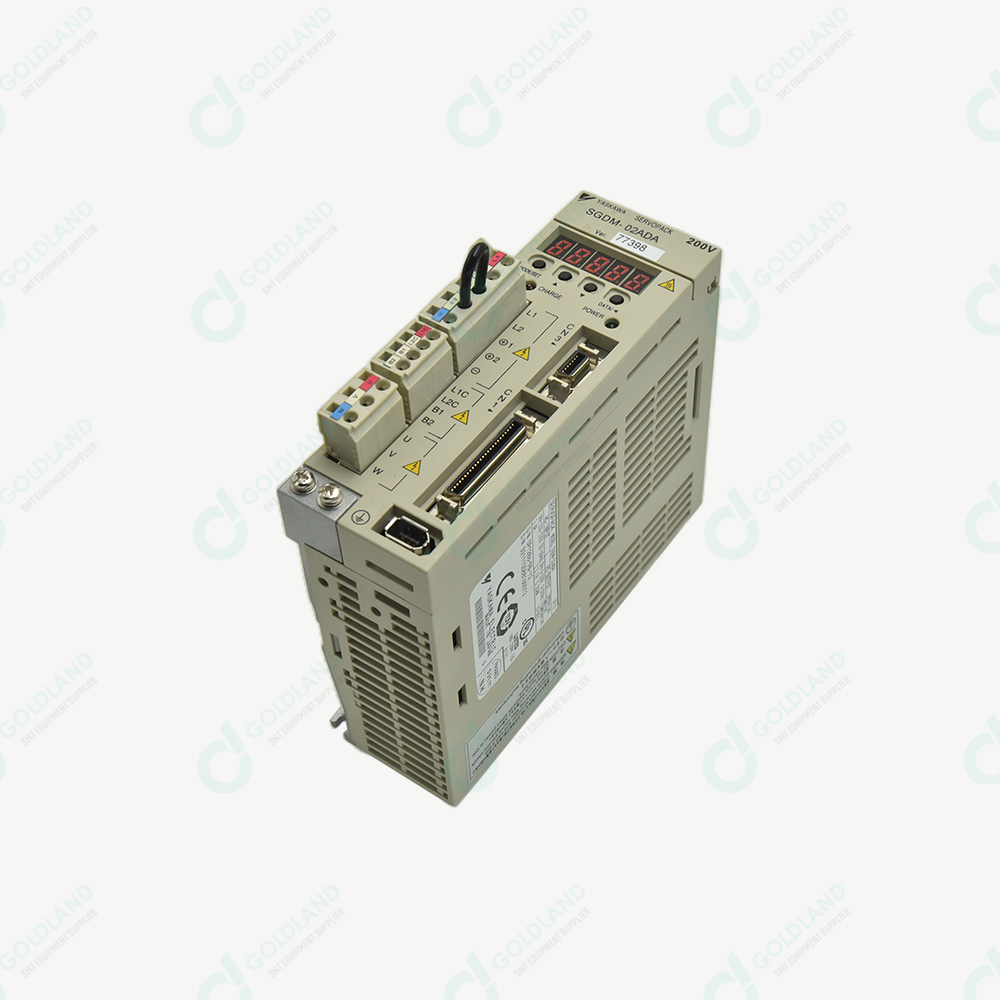

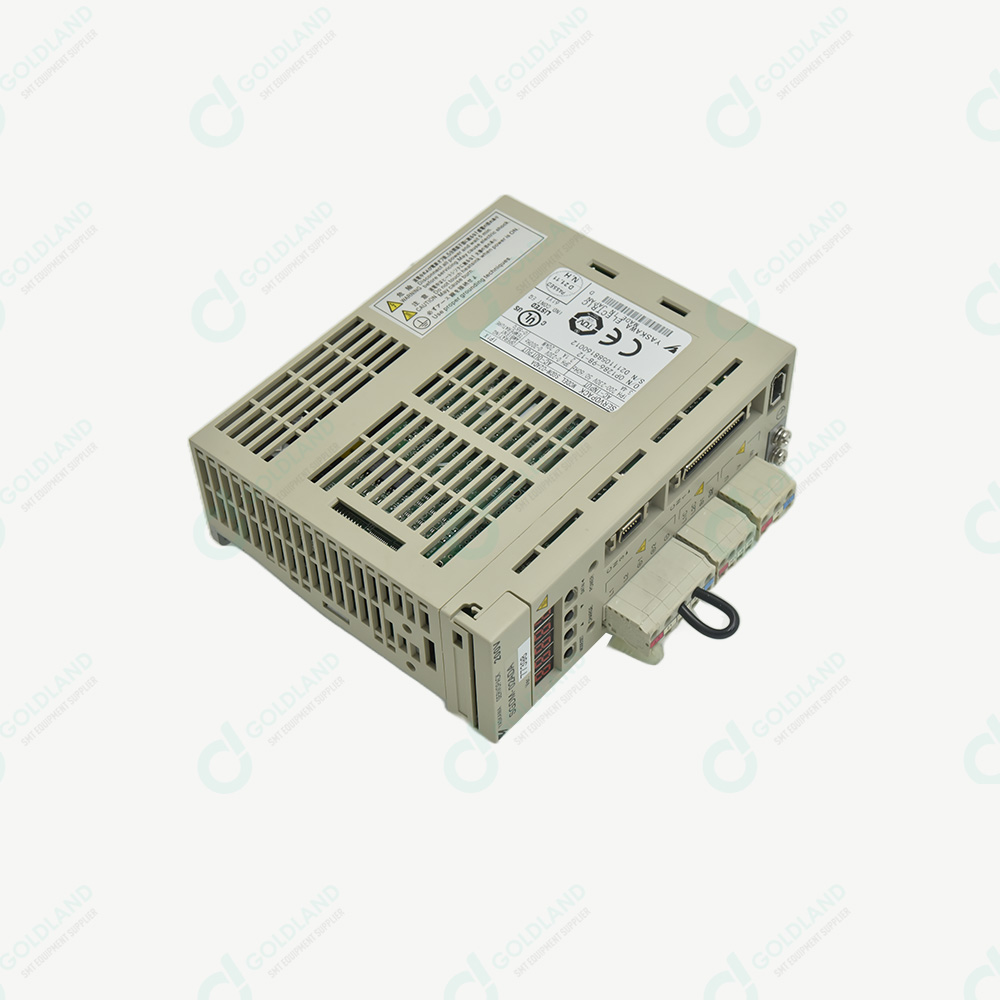

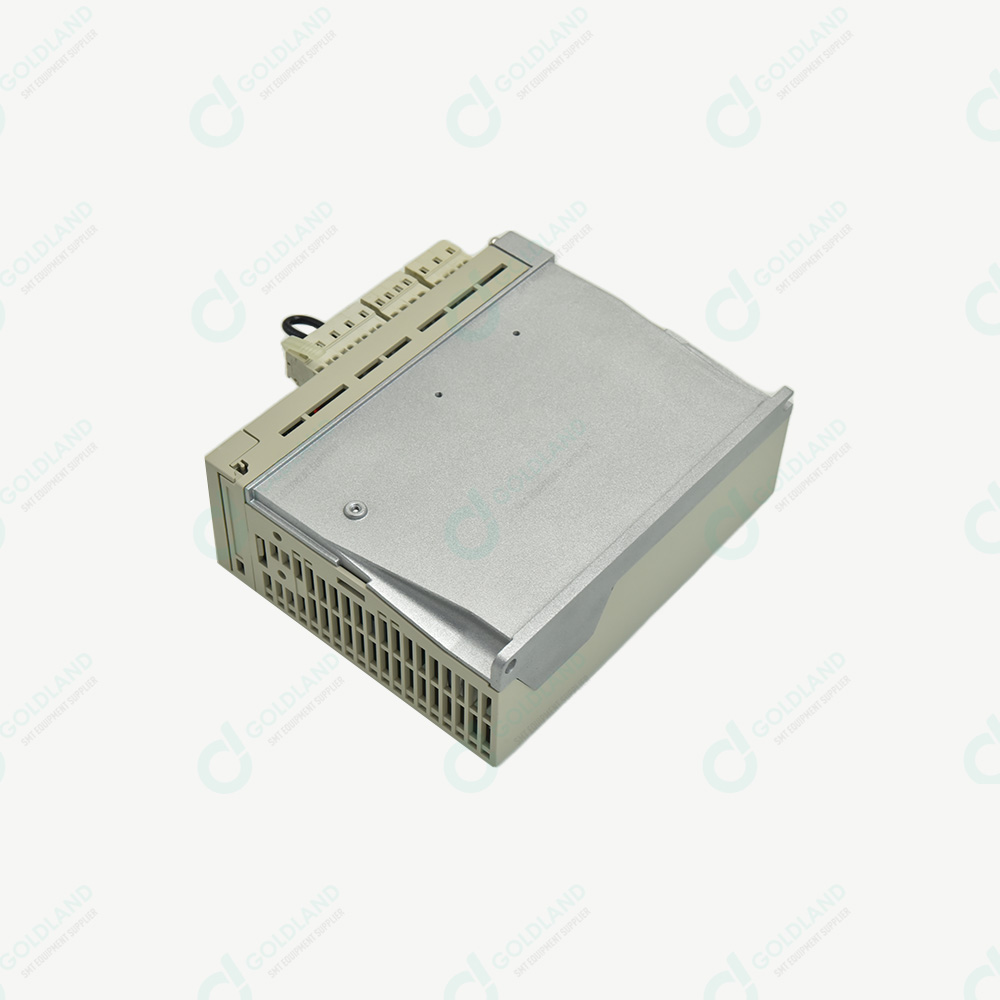

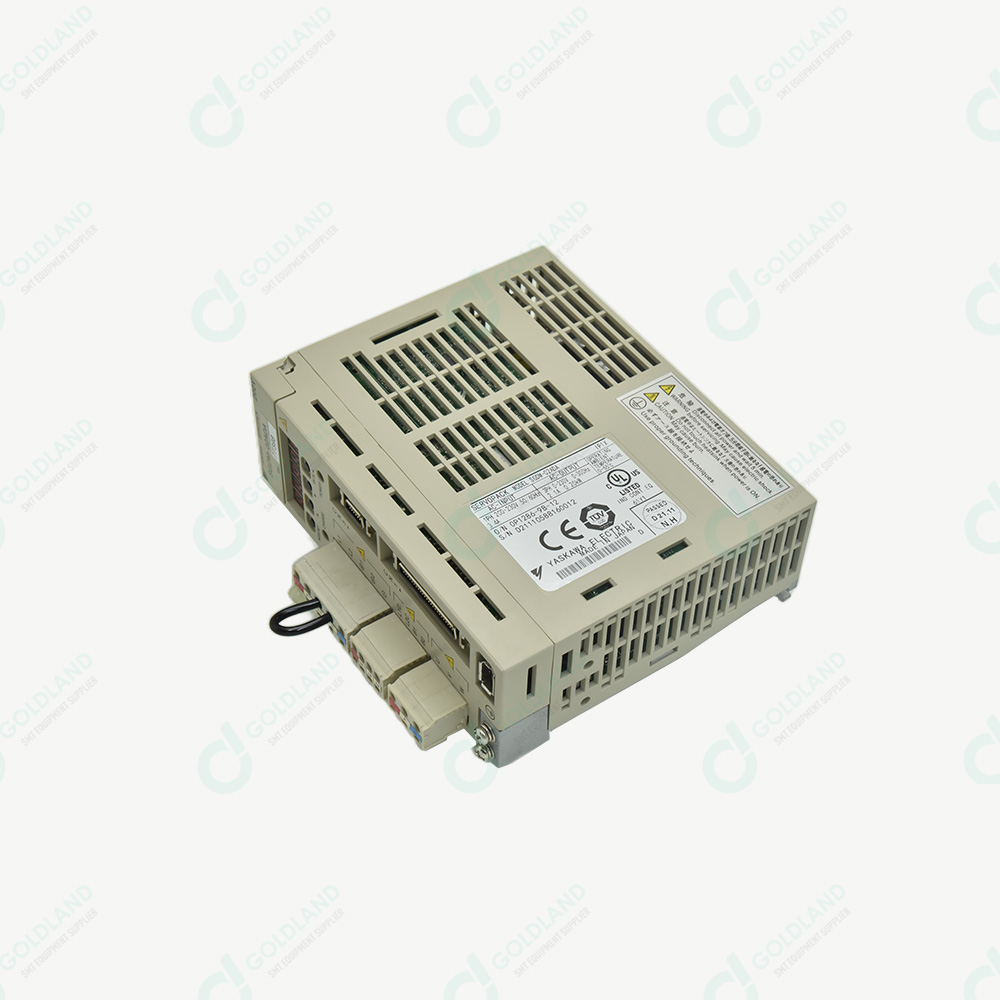

SGDM-02ADA FUJI Yaskawa

SGDM-02ADA FUJI Yaskawa Specification

Drive Type
AC Servo Drive

Surface Finish
Smooth/Matte

Capacity
Supports 0.2kW Servo Motor

Size
Standard (Compact)

Usage & Applications
Automation Systems, CNC Machines, Robotics, Industrial Equipment

Noise Level
Low (Silent Operating)

Motor Power
200W

Features
High Precision Control, Fast Response, Overload Protection, Easy Installation

Shape
Rectangular

Product Type
Servo Drive

Material
Metal Housing with Electronic Components

Technology
Digital AC Servo Technology

Power Source
Electric

Power
200W (0.2kW)

Voltage
200-230V AC, Single/Three Phase

Surface Treatment
Powder Coated

Dimension (L*W*H)
Approx. 150 mm 80 mm 180 mm

Weight
Approx. 1.5 kg

Color
Grey

Insulation Class
Class F

Input Frequency
50/60 Hz

Mounting Type
Panel Mount

Feedback Type
Incremental Encoder

Protection
Overcurrent, Overvoltage, Overheat, Short Circuit

Storage Temperature
-20C to 85C

Display
7-Segment LED Status Display

Control Method
Pulse Train / Analog Input

Applicable Motor Series
SGMG/SGMA Servo Motors

Communication Interface
RS-232/RS-485 (Optional)

Operational Humidity
90% RH or Less (Non-Condensing)

Cooling Method
Natural Cooling (Convection)

Model Number
SGDM-02ADA

Ambient Temperature
0C to 55C (Operating)

SGDM-02ADA FUJI Yaskawa Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Eastern Europe, Africa, Asia, North America, South America, Australia, Central America, Western Europe, Middle East

About SGDM-02ADA FUJI Yaskawa

Prices are for show only, please contact us for exact price.

SMT Product List

PG00975	FUJI NXTII head rubber
ADBPP8021	FUJI XP243E PULLEY
ADBPP8011	FUJI XP243E PULLEY
H5448D	FUJI NXT PUMP VACUUM	DOP-300SA
H45095	FUJI NXT TIMING BELT
S61582	FUJI NXT H12HS head SENSOR	EX-11A-FJ-PN
XH01431	FUJI NXT FAN
PX04210	FUJI NXT BAR CODELABEL

Advanced Control for Precision Automation

Engineered for high-precision tasks, the SGDM-02ADA FUJI Yaskawa servo drive delivers reliable performance in automation, CNC machinery, and robotics. Its digital AC servo technology ensures accurate motion control and fast response times, enabling seamless operation in demanding industrial settings.

Simple Installation and Versatile Connectivity

Featuring a panel mount design and supporting both pulse train and analog input controls, the SGDM-02ADA is easy to integrate into existing systems. Optional RS-232 and RS-485 communication interfaces expand compatibility, while the 7-segment LED display enhances usability for operators.

Durability and Safety Assured

Constructed with a robust metal housing and powder-coated finish, this drive unit provides excellent durability. Built-in protections against overcurrent, overvoltage, overheat, and short circuits safeguard both the device and the application environments, ensuring reliable operation over a wide temperature and humidity range.

FAQ's of SGDM-02ADA FUJI Yaskawa:

Q: How is the SGDM-02ADA FUJI Yaskawa servo drive typically installed?

A: The SGDM-02ADA is designed for straightforward panel mounting, making it easy to incorporate into control cabinets or industrial panels. Its compact dimensions facilitate installation even in space-constrained environments.

Q: What types of control signals does the SGDM-02ADA support?

A: This servo drive accommodates both pulse train and analog input control methods, allowing for versatile integration with various automation and CNC systems. It also supports optional communication via RS-232 or RS-485 interfaces.

Q: Where can the SGDM-02ADA drive be used effectively?

A: The SGDM-02ADA is suited for a wide range of applications, including automation systems, CNC machines, robotics, and other industrial equipment that require precise motion control with a 200W servo motor.

Q: What protection features are included in the SGDM-02ADA drive?

A: The unit is equipped with overcurrent, overvoltage, overheat, and short circuit protection, safeguarding both the drive and connected equipment from electrical faults and environmental hazards.

Q: How does the cooling process work for this servo drive?

A: The SGDM-02ADA employs natural convection (fanless) cooling, which enhances reliability by reducing moving parts and minimizing maintenance needs. This also contributes to its silent operating noise profile.

Q: What benefits does the SGDM-02ADA offer for industrial automation?

A: With its high precision control, fast response times, reliable protection systems, and easy-to-read LED status display, the SGDM-02ADA enhances productivity, safety, and ease of use in automated and robotic applications.
