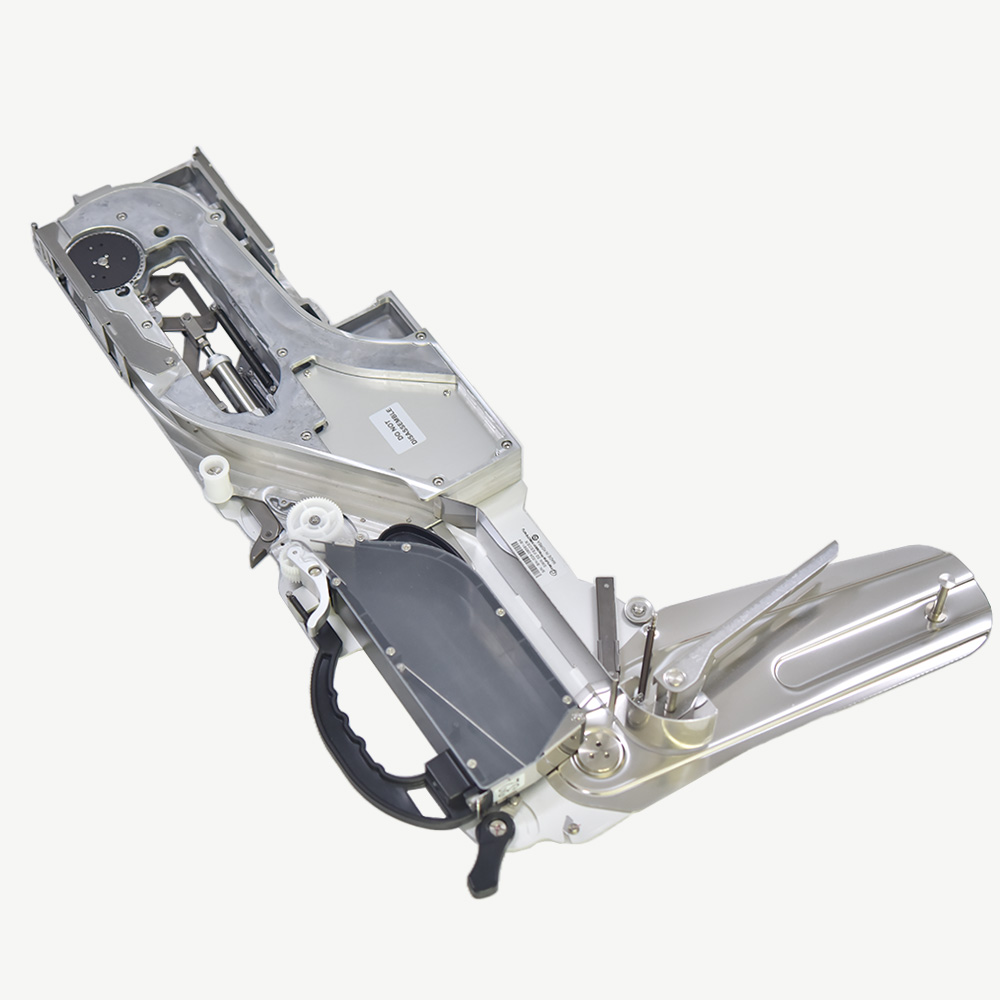

SMN-32mm-IT-NT SAMSUNG SMN 32mm IT Feeder, New Type

SMN-32mm-IT-NT SAMSUNG SMN 32mm IT Feeder, New Type Specification

Noise Level
Low Noise Operation

Shape
Rectangular Feeder Module

Features
High Precision Feeding, Durable Build, Easy Mounting, Quick Tape Loading

Usage & Applications
SMT/PCB Mounting & SMD Assembly Lines

Size
32mm Tape Width

Lubricating System
Self-lubricating Bearings

Capacity
Compatible with 32mm Component Tapes

Diameter
Feed Roller: 32mm Tape Size

Motor Power
Integrated Micro Motor

Drive Type
Electronic/Automatic

Surface Finish
Matte/Glossy Finish

Product Type
SMN-32mm-IT-NT SAMSUNG SMN 32mm IT Feeder (New Type)

Material
High-grade Metal Alloy

Technology
Surface Mount Technology (SMT)

Power Source
Electric

Power
Standard (As per SMT Equipment)

Voltage
24V DC (Typical SMT Feeder Input)

Surface Treatment
Anti-Corrosive Coating

Dimension (L*W*H)
520 mm x 95 mm x 93 mm (Approx.)

Weight
3.8 kg (Approx.)

Color
Silver/Black

Brand Compatibility
For Samsung SMN/SM Series SMT Machines

Operating Temperature
5C to 40C

Feeder Identification
Barcode/QR Enabled (for Smart Lines)

Mounting Method
Tool-less Mount, Clip-in Design

Storage Condition
Dry, Dust-free Environment

Feeder Type
Intelligent Tape Feeder, New Type (IT-NT)

Application Industry
Electronics Manufacturing, PCBA Processing

Component Placement
Automated Pick & Place

Tape Width Supported
32mm Tape Format

Replaceability
Modular & Quick-replace Design

SMN-32mm-IT-NT SAMSUNG SMN 32mm IT Feeder, New Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SMN-32mm-IT-NT SAMSUNG SMN 32mm IT Feeder, New Type

Prices are for show only, please contact us for exact price

SMT Product List

J90831277A	BS1-1_MOTOR_EXT_CABLE_ASSY SM33-CS028-1
J90831278A	BS1-2_MOTOR_EXT_CABLE_ASSY SM33-CS028-2
J90831279A	New Part Number: J90831279B
J90831280A	New Part Number: J90831280B
J90831281A
J90831282A	New Part Number: J90831282B
J90831283C	BS2-1_MOTOR_EXT_CABLE_ASSY
J90831284C	BS2-2_MOTOR_EXT_CABLE_ASSY
J90831463D	STOPPER_SENSOR_EXT_CABLE_ASSY
AM03-007078A	ASSY,Panasonic nozzle-Panasonic nozzle_VN065S_ASSY
AM03-000154B	ASSY,Panasonic nozzle-Panasonic nozzle_VN040N_ASSY
AM03-006325A	ASSY,Panasonic nozzle-Panasonic nozzle_VN080DB2_ASSY
AM03-012559A	ASSY,Panasonic nozzle-MTV1PA-NZ_VN140S_ASSY
AM03-000621A	DRAIN SENSOR HARNESS ASSY V8
AM03-000622A	CLAMP SWITCH HARNESS ASSY V8

High Precision and Performance

Experience superior feeding accuracy and efficiency with the SMN-32mm-IT-NT Feeder. Integrated micro motor technology and self-lubricating bearings minimize errors and wear during continuous operation, making it optimal for high-demand SMT and PCB assembly lines.

Effortless Mounting and Replacement

The feeder features a modular, tool-less 'clip-in' design, allowing for rapid mounting and quick replacement. Its plug-and-play mechanism lets you minimize downtime and adjust to production changes seamlessly, supporting fast-paced electronics manufacturing.

Smart Line Compatibility

Barcode and QR code-enabled identification allow real-time tracking and feeder management within smart manufacturing lines. This intelligent identification system ensures smooth integration with automation and MES solutions for advanced electronics production environments.

FAQ's of SMN-32mm-IT-NT SAMSUNG SMN 32mm IT Feeder, New Type:

Q: How do I mount the SMN-32mm-IT-NT Feeder on my Samsung SMT machine?

A: The SMN-32mm-IT-NT Feeder features a tool-less, clip-in design, enabling rapid and effortless mounting onto compatible Samsung SMN/SM Series SMT machines without the need for specialized tools.

Q: What tape width and type is this feeder compatible with?

A: This feeder is designed for 32mm tape formats, supporting various 32mm component tapes used in SMT and PCB assembly lines.

Q: When should I replace or service the feeder?

A: With its modular construction and durable materials, the feeder only requires replacement or servicing when signs of wear, operational errors, or feeding inconsistencies arise, ensuring minimal production downtime.

Q: Where should I store the feeder when not in use?

A: To maintain optimal performance and longevity, store the feeder in a dry, dust-free environment within the recommended operating temperature range of 5C to 40C.

Q: What benefits does the intelligent (IT-NT) design offer?

A: The intelligent design enables barcode/QR code identification for smart line tracking, easy tape loading, and supports quick replacement features, all contributing to increased efficiency in automated pick-and-place operations.

Q: How does the feeder contribute to streamlined assembly processes?

A: With high-precision feeding, low noise output, and quick-mount features, the feeder ensures smooth, uninterrupted component placement, reducing manual intervention and enhancing overall production throughput.
