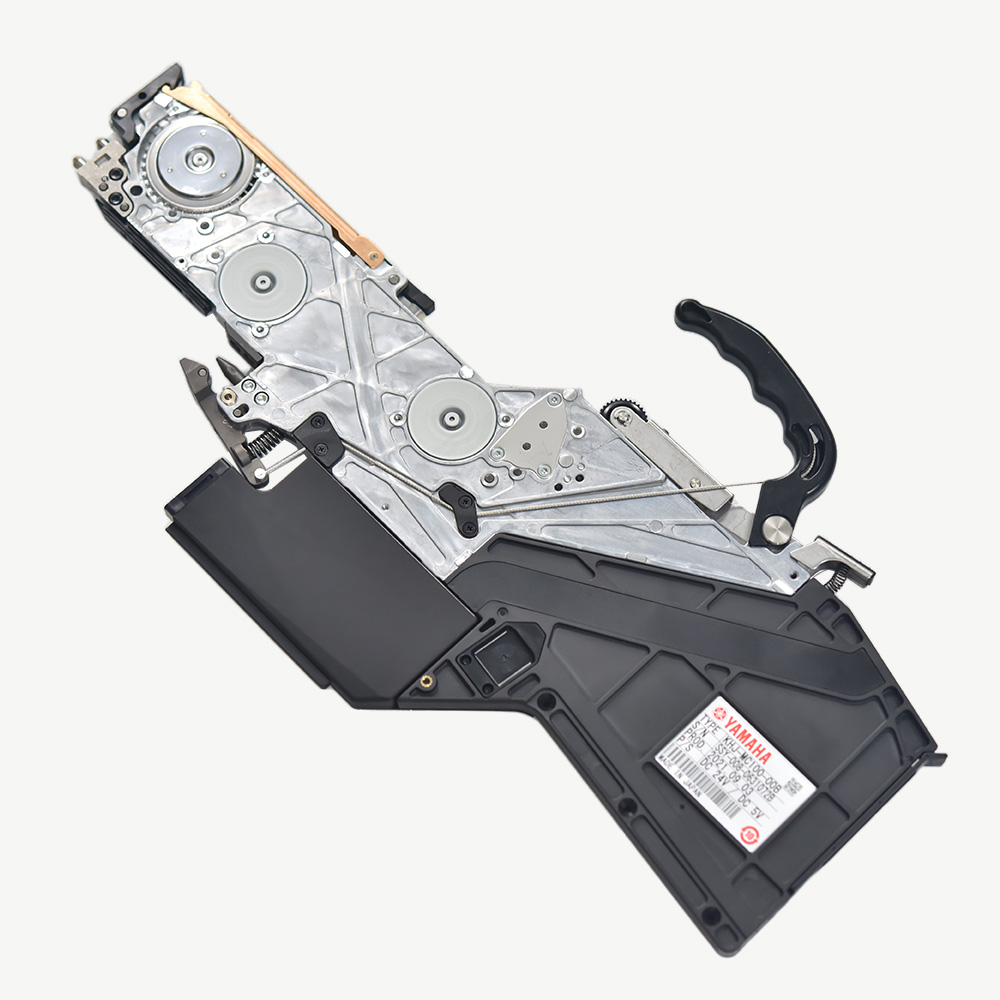

KHJ-MC100-00 YAMAHA Feeder SS 8mm for YS12, YS24

KHJ-MC100-00 YAMAHA Feeder SS 8mm for YS12, YS24 Specification

Shape
Rectangular with Slot for 8mm Tape

Size
8mm

Noise Level
Low

Features
Precise Feeding, Durable Build, Easy Installation, Machine Compatibility

Drive Type
Spring-Driven/Mechanical

Lubricating System
Self-lubricating (Low Maintenance)

Surface Finish
Corrosion Resistant Finish

Capacity
8mm SMD Tape

Usage & Applications
Used for feeding components in YAMAHA YS12, YS24 SMT machines

Product Type
YAMAHA Feeder SS 8mm

Material
Stainless Steel and High-Grade Alloy

Technology
Surface Mount Technology (SMT)

Power Source
Manual/Mechanical

Surface Treatment
Polished/Plated

Dimension (L*W*H)
Standard 8mm Reel Size (specifics may vary)

Weight
Approx. 1.2 kg

Color
Silver/Metallic

Maintenance
Minimal, periodic cleaning recommended

Installation Position
Front-side feeder bank

Compatible Machine Models
YAMAHA YS12, YS24

Replacement Cycle
Based on usage frequency

OEM/Original Part
Yes

Storage Condition
Dry, clean environment

Component Feeding Method
Automatic tape advancement

Interchangeability
Fully interchangeable with original YAMAHA feeders

Reel Size Supported
8mm

SMT Line Integration
Yes

Packaging
Standard protective box or customized as required

Model Number
KHJ-MC100-00

KHJ-MC100-00 YAMAHA Feeder SS 8mm for YS12, YS24 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About KHJ-MC100-00 YAMAHA Feeder SS 8mm for YS12, YS24

Prices are for show only, please contact us for exact price

SMT Feeder Parts

YAMAHA SS 24mm feeder parts
Part Number	Part Name
KHJ-MC202-00	COVER,FEEDER SIDE 1
KHJ-MC40C-00	SEAL,MAIN LABEL
KHJ-MC10E-00	SCREW,FLAT HEXLOBE
KHJ-MC210-00	MOTOR, FEED
KHJ-MC210-01	MOTOR, FEED
KHJ-MC134-00	GEAR,IDLE F1
KHJ-MC135-00	GEAR,IDLE F2
KHJ-MC136-01	GEAR,IDLE F3
KHJ-MC137-00	GEAR,IDLE F4
KHJ-MC238-00	GEAR,DRIVEN
KHJ-MC23C-00	PLATE,PUSHER GEAR

Supreme Compatibility for YS Series

The KHJ-MC100-00 Feeder is specifically designed for seamless integration with YAMAHA YS12 and YS24 models. Its perfect fit ensures stable operation and hassle-free installation onto the front-side feeder bank, maintaining workflow efficiency in demanding SMT production lines.

Reliable and Durable Performance

Fabricated from premium stainless steel and high-grade alloys, the feeder is robustly built for long service life. Its corrosion-resistant surface finish and self-lubricating, low-maintenance mechanism support continuous usage without unnecessary downtime, while periodic cleaning is all that's needed to keep performance optimal.

Precision in Component Feeding

With automatic tape advancement and spring-driven mechanical technology, this feeder delivers consistent, accurate component placement. Operators benefit from reduced setup times and precise feeding, making it a valuable asset for high-throughput SMT assembly environments.

FAQ's of KHJ-MC100-00 YAMAHA Feeder SS 8mm for YS12, YS24:

Q: How do I install the KHJ-MC100-00 YAMAHA Feeder onto my YS12 or YS24 machine?

A: Installation is straightforward-simply mount the feeder onto the front-side feeder bank of your YAMAHA YS12 or YS24 by aligning it with the designated slots. Secure appropriately to ensure stability, then load your 8mm tape reel for automatic advancement.

Q: What maintenance does the KHJ-MC100-00 Feeder require, and how often should it be performed?

A: Maintenance is minimal thanks to its self-lubricating mechanism. Periodic cleaning to remove dust and debris is recommended based on your line's operational frequency to ensure smooth performance over time.

Q: When is it necessary to replace the KHJ-MC100-00 Feeder?

A: Replacement should be considered when there is visible wear, persistent feeding issues, or performance decline. The cycle depends largely on your usage frequency and the operating environment of your SMT line.

Q: Where should I store the KHJ-MC100-00 Feeder when not in use?

A: For optimal longevity, store the feeder in a dry, clean environment, preferably inside its standard protective packaging or a customized box to prevent dust accumulation or accidental damage.

Q: What tape and reel sizes are supported by this feeder?

A: The KHJ-MC100-00 is designed for 8mm SMD tape reels, aligning with common requirements for component feeding on YAMAHA YS12 and YS24 machines.

Q: How can using this feeder benefit my SMT production process?

A: Utilizing the KHJ-MC100-00 Feeder enhances placement accuracy, reduces downtime with easy setup, offers reliable and low-noise component feeding, and maintains performance with minimal upkeep-maximizing your SMT line's throughput.
