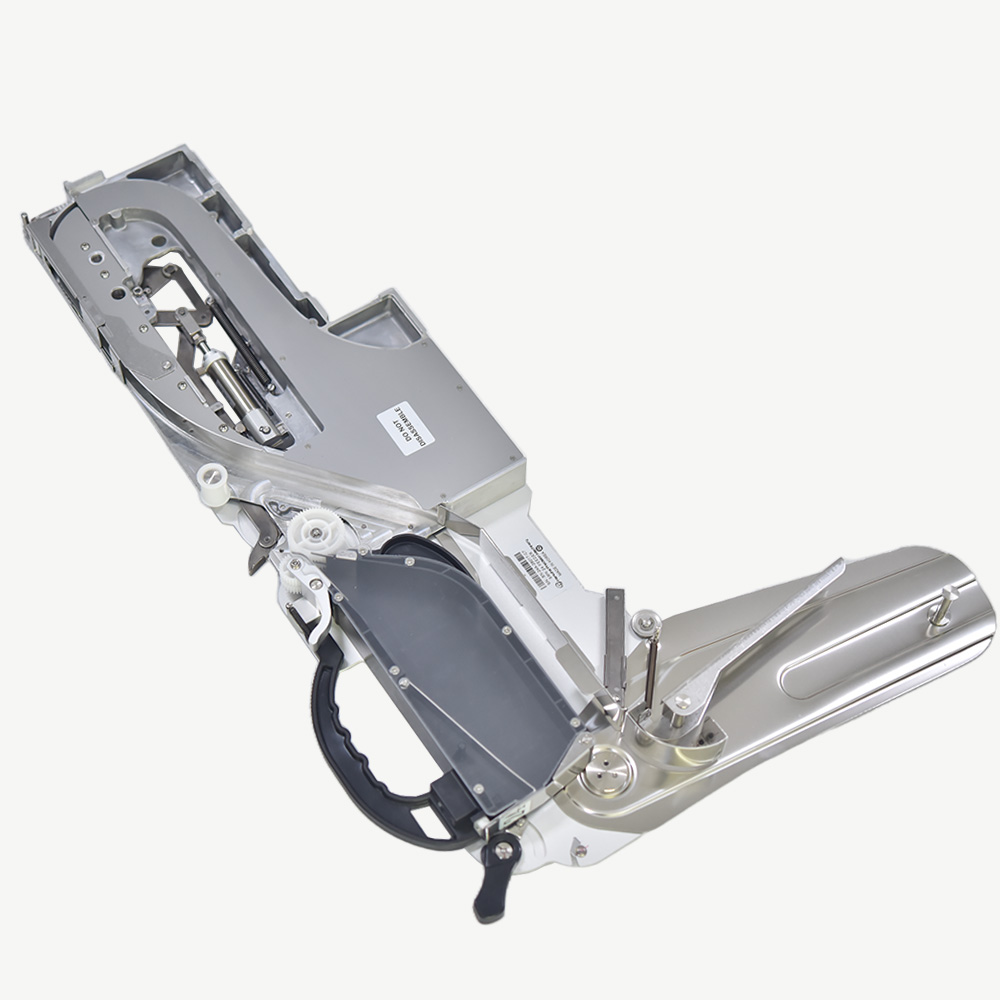

SMN-24mm-IT-NT SAMSUNG SMN 24mm IT Feeder, New Type

SMN-24mm-IT-NT SAMSUNG SMN 24mm IT Feeder, New Type Specification

Capacity
Compatible with 24mm Tape Width

Size
24mm

Usage & Applications
For Samsung SMT Pick & Place Machine / Component Feeding

Lubricating System
Pre-lubricated Bearings

Drive Type
Automatic

Shape
Rectangular

Surface Finish
Smooth / Polished

Noise Level
70 dB

Features
New Type, High Precision, Durable, Easy Installation, Stable Feeding

Product Type
SMN-24mm-IT-NT Feeder

Material
Aluminum Alloy, Stainless Steel

Technology
SMT (Surface Mount Technology)

Power Source
Electric / Pneumatic

Pressure
0.5-0.6 MPa (for pneumatic operation)

Surface Treatment
Anodized / Powder Coated

Dimension (L*W*H)
Approx. 380mm x 80mm x 120mm

Weight
About 1.6 kg

Color
Silver & Black

Feeding Speed
High-Speed (applicable in high-throughput SMT lines)

Transport Mechanism
Pin & Gear Drive

Operating Temperature
5C - 40C

Part Number
SMN-24mm-IT-NT

Component Type Supported
Electronic SMD Tape Components

OEM/ODM Availability
Available Upon Request

Maintenance
Low Maintenance Required

Mounting
Plug-and-Play, Quick Release

Compatible Models
Samsung SMN Series (e.g., SM481, SM482, SM471)

SMN-24mm-IT-NT SAMSUNG SMN 24mm IT Feeder, New Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

About SMN-24mm-IT-NT SAMSUNG SMN 24mm IT Feeder, New Type

Prices are for show only, please contact us for exact price

SMT Product List

FC29-000680B	HANDLE RIGHT
GD03-000037A	DRAIN GEAR-1
GD03-000046A	D-FOLLOWER SPRING
J70653565A	DRAIN GEAR FORK
J70661295A00	CLAMP HOOK SPRING
J90652099A	D-TENSIONER M 08 ASSY
AM03-008023A	CABLE ASSY-MS1_SERVO_MOTOR SM33-CS012
AM03-008024A	CABLE ASSY-WW1_SERVO_MOTOR SM33-CS014
J90831192C	PCB_SENSOR_CABLE_ASSY
J90831196B	New Part Number: AM03-033716A
J90831197B	CONVEYOR_HOME_SENSOR_CABLE_ASSY
J90831200A_AS	WS1_SERVO_MOTOR_CABLE_ASSY
J90831204A_AS	WS2_SERVO_MOTOR_CABLE_ASSY
J90831216B	CONV_FLAT_IN_FRONT_CABLE_ASSY
J90831218B	CONV_FLAT_OUT_FRONT_CABLE_ASSY

Advanced Feeding Technology

Experience precise, stable, and high-speed component transfer with the SMN-24mm-IT-NT feeder's pin & gear drive system. The carefully engineered structure, including pre-lubricated bearings and automatic drive type, helps in maintaining a consistent feeding process for 24mm tape width, enhancing pick-and-place throughput in SMT lines.

Designed for Seamless Integration

The SMN-24mm-IT-NT is tailored for Samsung SMN Series machines like SM481, SM482, and SM471. Installation is a breeze with plug-and-play compatibility and quick release mounting. Its standardized dimensions and mounting interface allow for straightforward setup and replacement, minimizing downtime on your production floor.

Durability Meets Efficiency

Manufactured with anodized aluminum alloy and stainless steel, this feeder offers both resilience and stability. The unit is pre-lubricated, requiring low maintenance while providing smooth, quiet operation at just 70 dB. Its robust design ensures reliable performance, even in high-throughput industrial environments.

FAQ's of SMN-24mm-IT-NT SAMSUNG SMN 24mm IT Feeder, New Type:

Q: How do I install the SMN-24mm-IT-NT Samsung SMN 24mm IT Feeder on compatible machines?

A: Installation is straightforward thanks to its plug-and-play design and quick release mounting. Simply attach the feeder to the designated slot on Samsung SMN Series pick-and-place machines-such as SM481, SM482, or SM471-ensuring proper alignment for stable and secure operation.

Q: What type of components can this feeder support during operation?

A: This feeder is engineered specifically for electronic SMD tape components, supporting a tape width of 24mm. It is suitable for high-speed, precise feeding in surface mount technology (SMT) processes, making it ideal for various electronic assembly lines.

Q: When is this feeder most effective in an SMT production line?

A: The SMN-24mm-IT-NT excels in high-throughput, high-speed production environments where efficient and consistent component feeding is critical. Its stable feeding mechanism and quick-release features help maximize uptime and productivity.

Q: Where is the SMN-24mm-IT-NT feeder commonly used?

A: It is typically installed on Samsung SMT pick-and-place machines in electronics manufacturing facilities, particularly those focusing on mass production using the SMN Series. It is suitable for use by distributors, manufacturers, suppliers, and exporters.

Q: What is the maintenance process for this feeder, and how often is it required?

A: Maintenance is minimal due to the use of pre-lubricated bearings and quality materials like aluminum alloy and stainless steel. Routine checks are recommended to ensure clean surfaces and mechanical integrity, but the feeder is designed for low-maintenance use.

Q: How does the SMN-24mm-IT-NT benefit SMT assembly operations?

A: By combining robust materials, smooth surface finishes, and a reliable pin and gear drive, this feeder enhances operational efficiency. Its high-speed performance, ease of installation, and stable feeding reduce downtime and improve overall throughput in SMT lines.

Q: Is OEM or ODM customization available for this feeder model?

A: Yes, OEM and ODM requests can be accommodated for the SMN-24mm-IT-NT feeder. Manufacturers can tailor the feeder to specific requirements upon consultation, ensuring an optimized solution for unique production needs.
