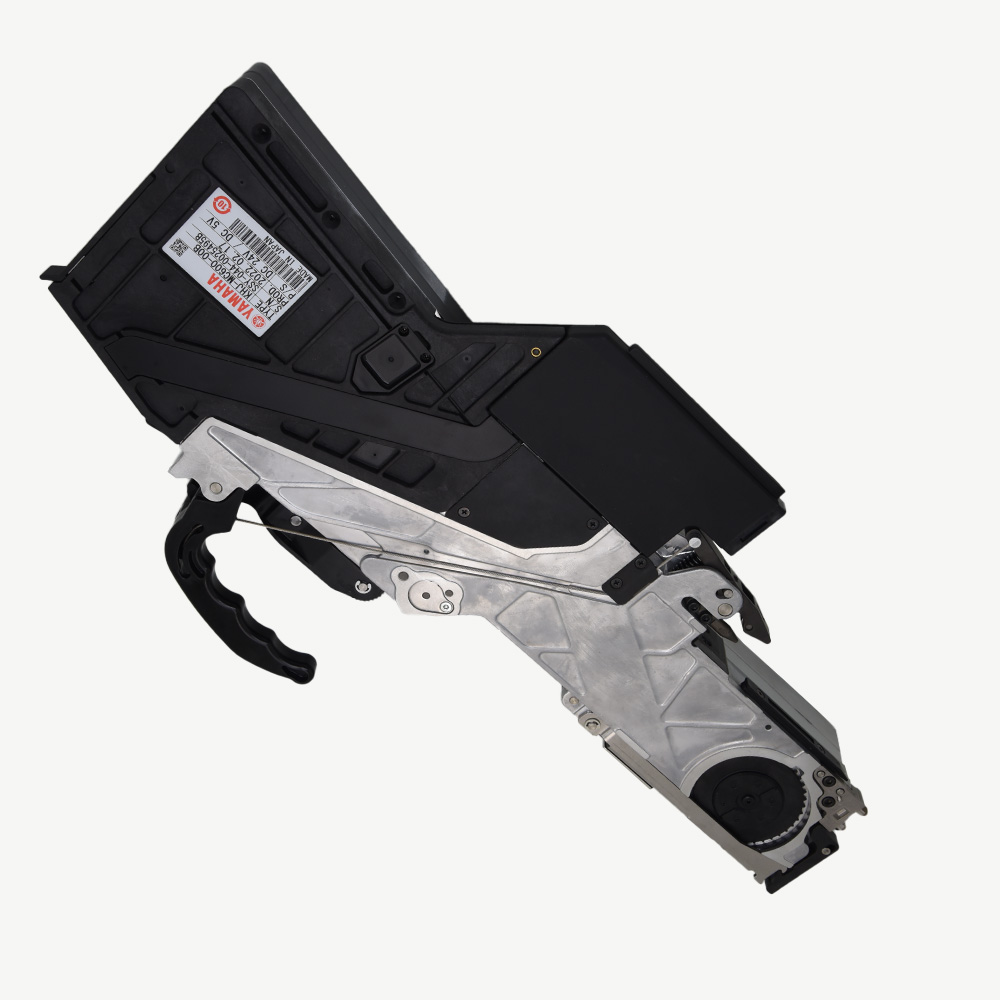

KHJ-MC600-00B YAMAHA Feeder SS 44mm for YS12, YS24

KHJ-MC600-00B YAMAHA Feeder SS 44mm for YS12, YS24 Specification

Features
High Precision Feed, Easy Installation, Durable Construction

Size
44mm Tape Width

Usage & Applications
YAMAHA SMT Pick and Place Machine YS12, YS24

Lubricating System
Maintenance Free

Surface Finish
Smooth Brushed

Drive Type
Electric Drive

Motor Power
Integrated Step Motor

Shape
Rectangular

Capacity
Single Lane 44mm SOP Tape

Noise Level
Low Noise Operation

Product Type
Tape Feeder

Material
Stainless Steel

Technology
SMT (Surface Mount Technology)

Power Source
Electric

Power
Low Power Consumption

Voltage
DC 24V (via placement machine system)

Surface Treatment
Corrosion Resistant Coating

Dimension (L*W*H)
Approx. 485mm x 125mm x 70mm

Weight
Approx. 2.7 kg

Color
Silver

Component Type Supported
SMD Components in 44mm Carrier Tape

Mounting Method
Direct Fit to Machine Feeder Base

Compatible Models
YAMAHA YS12, YS24, YS88, YS100, YV100XG, ZS series

Condition
Brand New

Part Number
KHJ-MC600-00B

Operating Temperature Range
5C to 40C

Tape Type
Embossed & Paper Tape Supported

Release Method
Mechanical Spring & Motor Driven

Pickup Accuracy
0.1mm

Minimum Tape Pitch
12mm

Feeding Direction
Left to Right

Storage Temperature Range
-20C to 60C

OEM/Aftermarket
OEM

KHJ-MC600-00B YAMAHA Feeder SS 44mm for YS12, YS24 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Central America, North America, Eastern Europe, Western Europe, Asia, Australia, South America, Africa, Middle East

About KHJ-MC600-00B YAMAHA Feeder SS 44mm for YS12, YS24

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

YAMAHA SS 44mm feeder parts
Part Number	Part Name
KHJ-MC501-00	BODY,FEEDER
KHJ-MC502-00	COVER,FEEDER
KHJ-MC106-00	PLATE,UNDER
KHJ-MC206-00	PLATE,UNDER
KHJ-MC60C-00	SEAL,MAIN LABEL
KHJ-MC60K-003	SPACER,44A
KHJ-MC60L-003	SPACER,44B
KHJ-MC510-000	MOTOR, FEED
KHJ-MC532-00	SPROCKET

Advanced SMT Feeding Solution

KHJ-MC600-00B is engineered for surface mount technology (SMT) applications, delivering high-precision feeding of SMD components through 44mm carrier tapes. Its robust stainless steel construction and integrated step motor promise consistent performance and durability, making it essential for high-throughput YAMAHA pick and place lines.

Simple Installation and Reliable Operation

With direct-fit mounting to YAMAHA SMT machines, installation of the KHJ-MC600-00B Feeder is straightforward, requiring no modifications. Its maintenance-free design, low noise, and integrated electric drive system ensure seamless, reliable operation, keeping your production process efficient and uninterrupted.

Versatile Compatibility and Application

This feeder is compatible with various YAMAHA models, including YS12, YS24, YS88, YS100, YV100XG, and ZS series, supporting both embossed and paper tapes in 44mm width. Its wide operating temperature range and corrosion-resistant finish make it suitable for diverse manufacturing settings and climates.

FAQ's of KHJ-MC600-00B YAMAHA Feeder SS 44mm for YS12, YS24:

Q: What components can the KHJ-MC600-00B YAMAHA Feeder handle?

A: The KHJ-MC600-00B is designed for feeding surface mount devices (SMD) that are packaged in 44mm carrier tapes, supporting both embossed and paper tape formats with a minimum tape pitch of 12mm.

Q: Which YAMAHA pick and place machines is this feeder compatible with?

A: This feeder is compatible with YAMAHA models YS12, YS24, YS88, YS100, YV100XG, and the ZS series. It is engineered for a direct fit to the machine feeder base without any modification.

Q: How is the feeder installed and powered?

A: Installation is direct, simply mounting the feeder onto the machine's feeder base. It operates on DC 24V which is supplied via the placement machine system, ensuring seamless integration and power management.

Q: What are the operational benefits of using this feeder?

A: Benefits include high precision feeding (0.1mm accuracy), low noise operation, a maintenance-free lubricating system, and a corrosion-resistant construction, ensuring long-term durability and reduced downtime in production.

Q: What is the pickup and feeding process with this feeder?

A: The KHJ-MC600-00B uses a mechanical spring and motor driven release mechanism to accurately advance tape and present components for pickup, ensuring consistent high-speed operation with precise component placement.

Q: Where can the KHJ-MC600-00B Feeder be used?

A: It is suitable for use in electronics manufacturing facilities employing YAMAHA SMT pick and place equipment, especially where high reliability and precision for 44mm tape width components are required.
