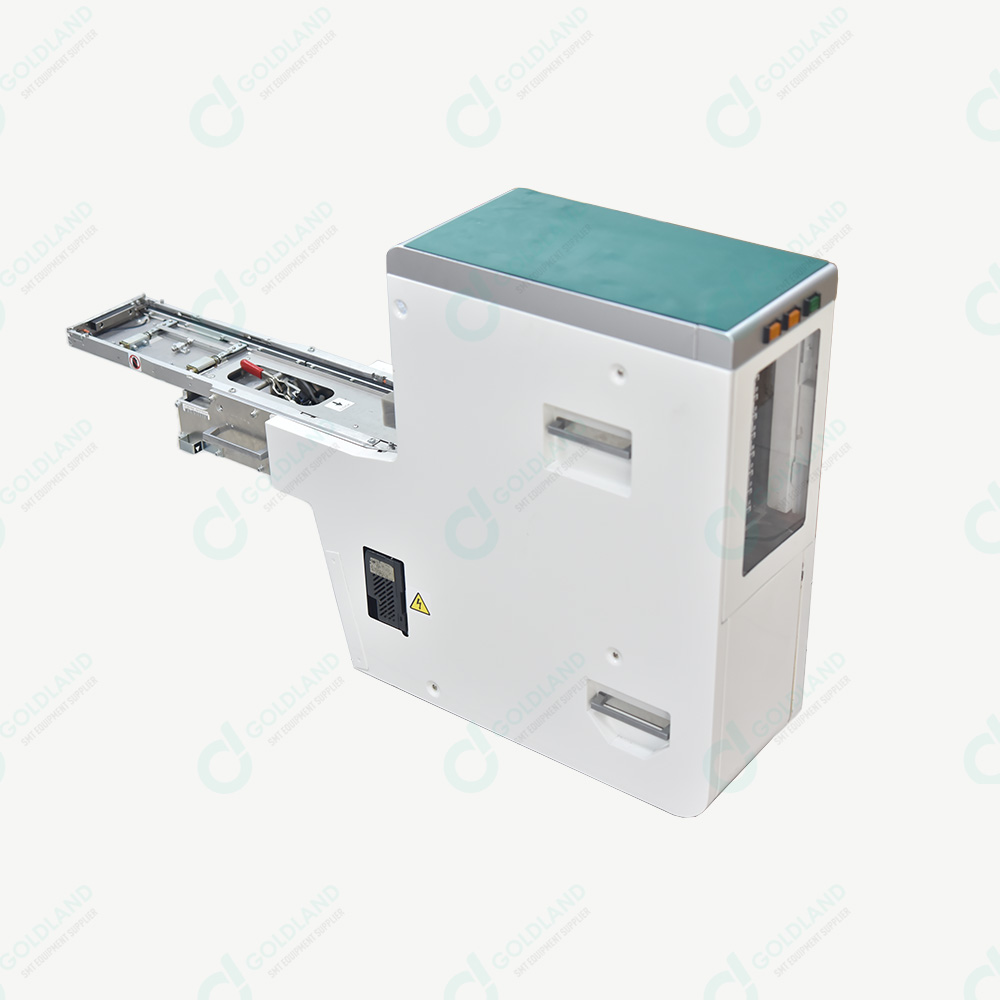

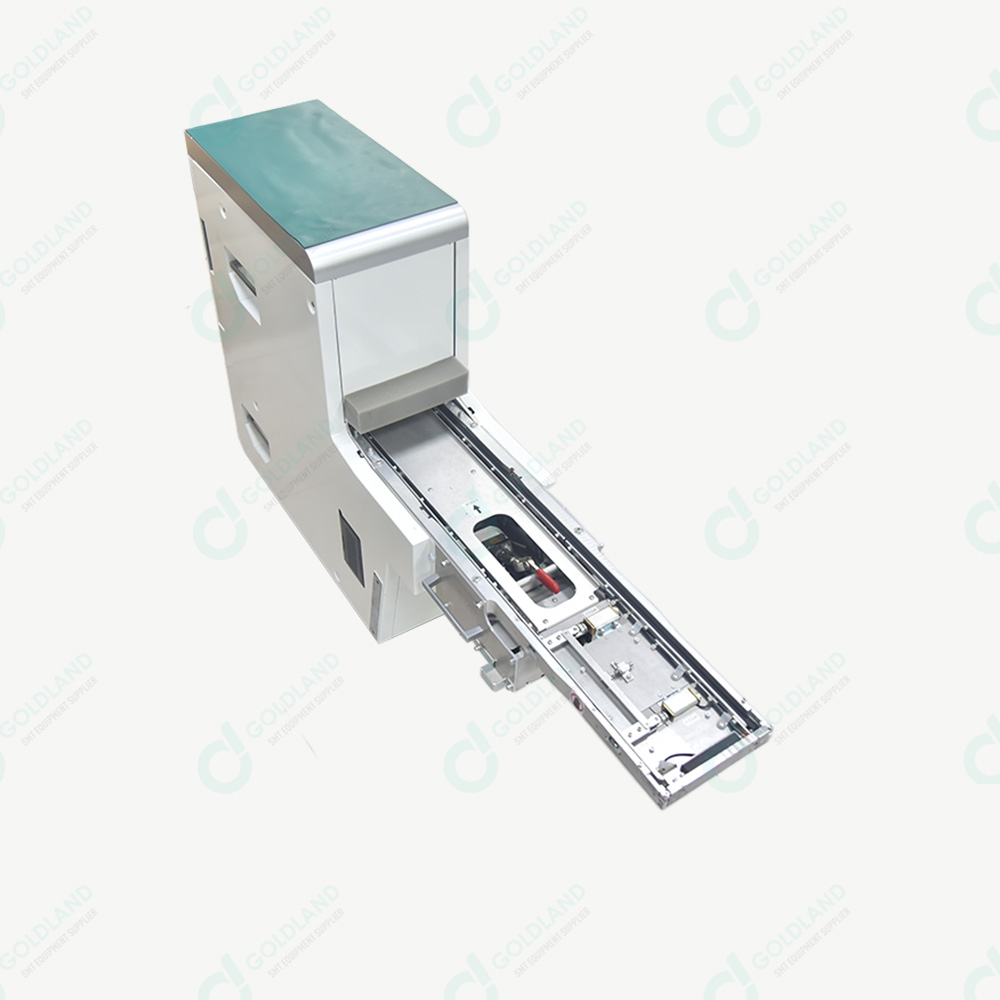

FUJI M-Tary SMT Placement Machine High Speed High Precision Component Placement for PCB Assembly

FUJI M-Tary SMT Placement Machine High Speed High Precision Component Placement for PCB Assembly Specification

Product Type
SMT Placement Machine

Material
Industrial Grade Steel and High-Quality Electronics

Capacity
Up to 150,000 CPH (Components Per Hour)

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
Advanced Motion Control with Touchscreen Interface

Processing Type
Component Placement for SMT/PCB Assembly

Voltage
AC 200-240V, 50/60Hz

Power
Approx. 5.5 kW

Dimension (L*W*H)
1650mm x 2200mm x 1530mm

Weight
Approx. 1800 kg

Color
Industrial Grey/White

PCB Size Range
Min. 50 x 50 mm, Max. 610 x 560 mm

Vision System
High Resolution Multi-Camera Recognition with Auto Correction

Safety Features
Emergency Stop, Door Interlock, Overload Protection, Error Display Functions

Mounting Accuracy
0.03 mm

Noise Level
Less than 70 dB(A) during operation

Component Size Range
0201 (metric) to 74 x 74 mm (customizable nozzle options)

Applicable PCB Thickness
0.5 mm to 5.0 mm

Operating Environment
Temperature: 15-35C, Humidity: 35-75% RH

Component Types Supported
Chip, IC, BGA, SOP, QFP, Connectors, LEDs, and other SMD components

Air Supply Requirement
0.5 MPa, Clean and Dry Air

Conveyor System
Auto Width Adjustment, In-Line SMT Compatibility

Feeder Capacity
Up to 120 Tape Feeders or Bulk Tray Options

Data Interface
LAN, USB, RS232C

Software Support
FUJI NXT/M-Series Compatible, Offline Programming, Remote Diagnostics

FUJI M-Tary SMT Placement Machine High Speed High Precision Component Placement for PCB Assembly Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About FUJI M-Tary SMT Placement Machine High Speed High Precision Component Placement for PCB Assembly

Jump on the exclusive Clearance for the FUJI M-Tary SMT Placement Machine and experience world-class performance in PCB assembly! Engineered with lavish precision, this high-speed, fully automatic machine delivers stellar placement accuracy of 0.03 mm, handling PCB sizes from 50 x 50 mm up to 610 x 560 mm. With support for multiple component types-including chips, connectors, and LEDs-and housing up to 120 feeders, it is the definitive solution for advanced electronic manufacturing. Add to Cart now and elevate your production versatility and speed.

Versatile Applications of FUJI M-Tary SMT Placement Machine

The FUJI M-Tary SMT Placement Machine is used for high-speed, high-precision component placement in the fabrication of PCBs. It is widely used as an essential piece of equipment in electronic manufacturing industries, especially for assembling complex boards. Ideal application areas include consumer electronics, automotive electronics, telecommunications, and LED lighting industries, ensuring reliability and performance for both mass production and custom builds.

Sample Policy, Delivery Time, and Certifications

Purchase orders are processed efficiently with our quick dispatch system for the FUJI M-Tary SMT Placement Machine. Delivery is prompt and coordinated with full documentation, ensuring a seamless buying experience. Certified according to international quality standards, each machine goes through rigorous testing. For sample requests, please consult our sample policy to learn about eligibility and procedures, ensuring compliance and customer satisfaction at every stage.

FAQ's of FUJI M-Tary SMT Placement Machine High Speed High Precision Component Placement for PCB Assembly:

Q: How does the FUJI M-Tary SMT Placement Machine achieve high precision and speed?

A: The machine leverages an advanced motion control system, high-resolution multi-camera vision, and servo-controlled component placement technology to consistently reach 0.03 mm accuracy and speeds up to 150,000 components per hour.

Q: What types and sizes of components can be placed using this SMT machine?

A: It supports a wide range, from tiny 0201 metric chips to larger components up to 74 x 74 mm, including ICs, BGAs, QFPs, connectors, LEDs, and various SMD elements, thanks to customizable nozzle options.

Q: Where can the FUJI M-Tary machine be applied in production?

A: It is suitable for electronic assembly lines in industries like consumer electronics, automotive, telecom, and LED manufacturing, where high throughput and accuracy are vital.

Q: What is the process for ordering and receiving this SMT machine?

A: Customers submit a purchase order, after which orders are quickly dispatched. Delivery times are minimized through efficient logistics, and machines are pre-certified for immediate setup.

Q: What are the main benefits of using the FUJI M-Tary SMT Placement Machine?

A: The machine delivers stellar productivity, outstanding reliability, and lavish component support, reducing errors and increasing throughput with features like automatic width adjustment and remote diagnostics.
