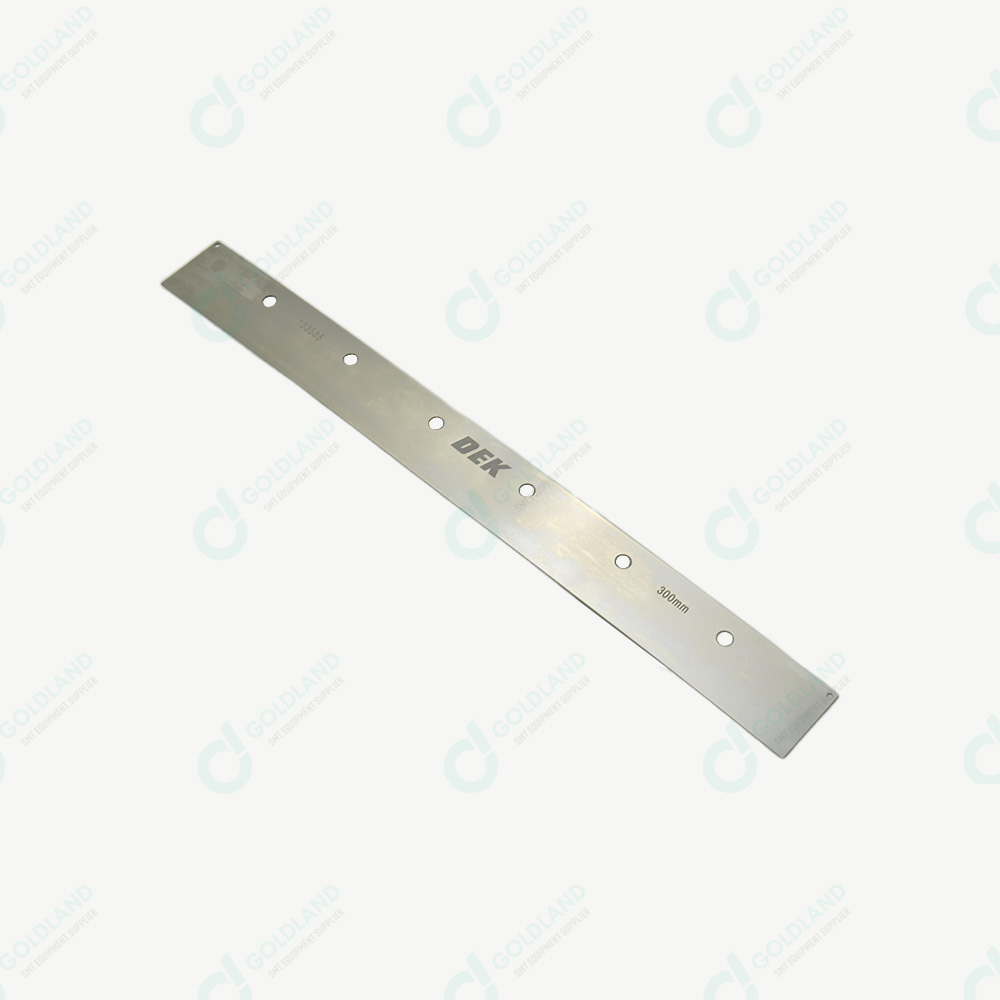

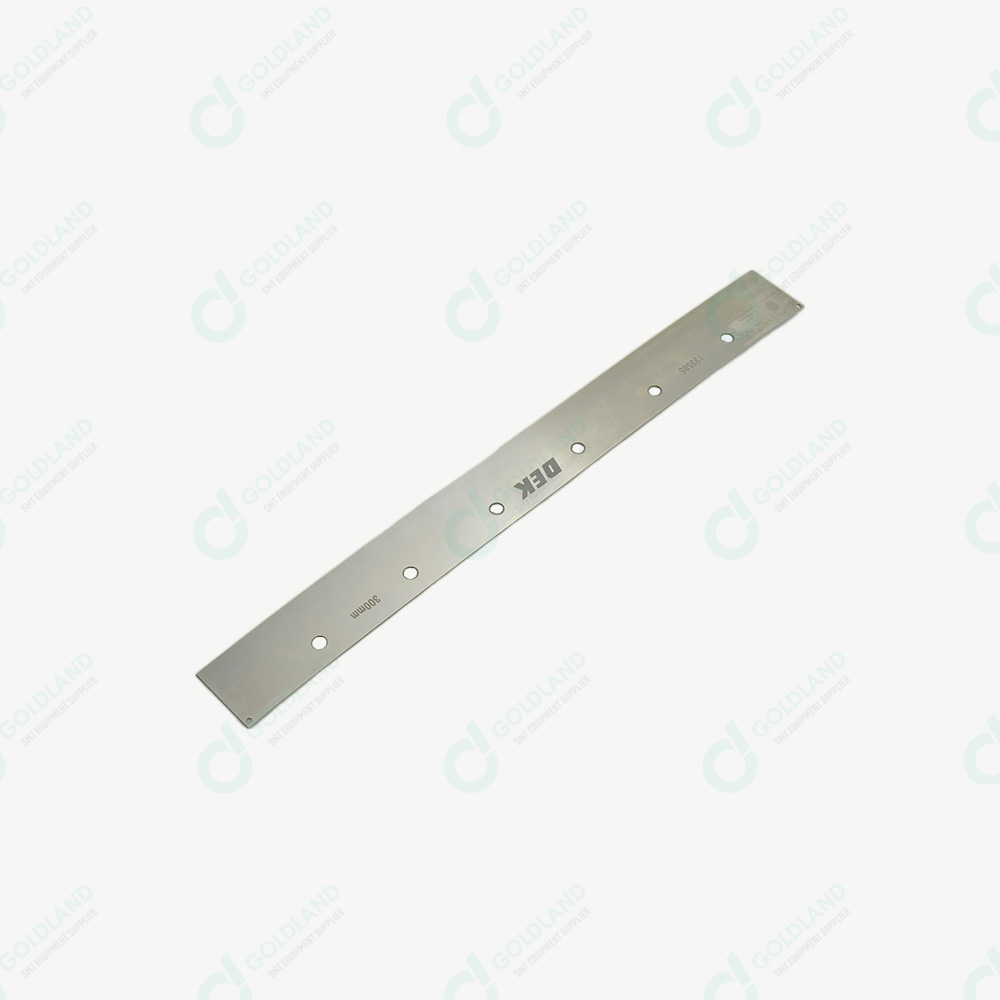

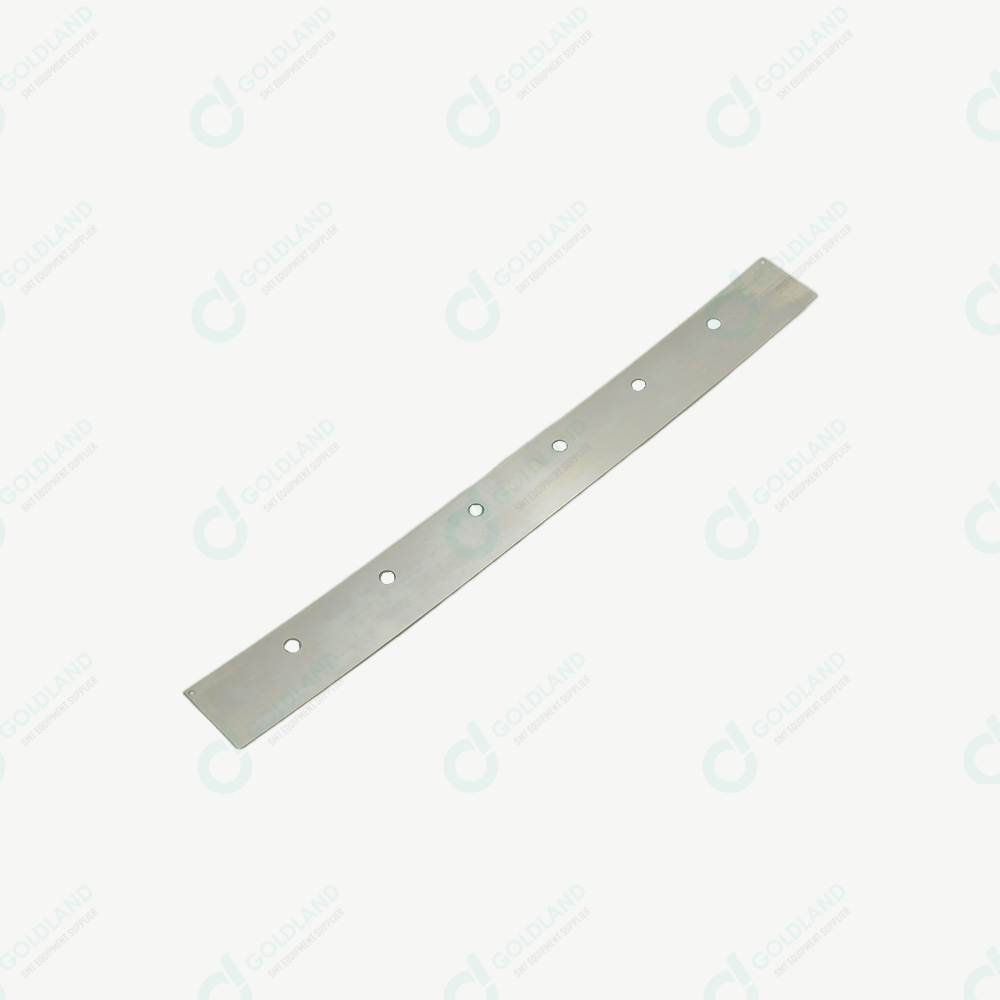

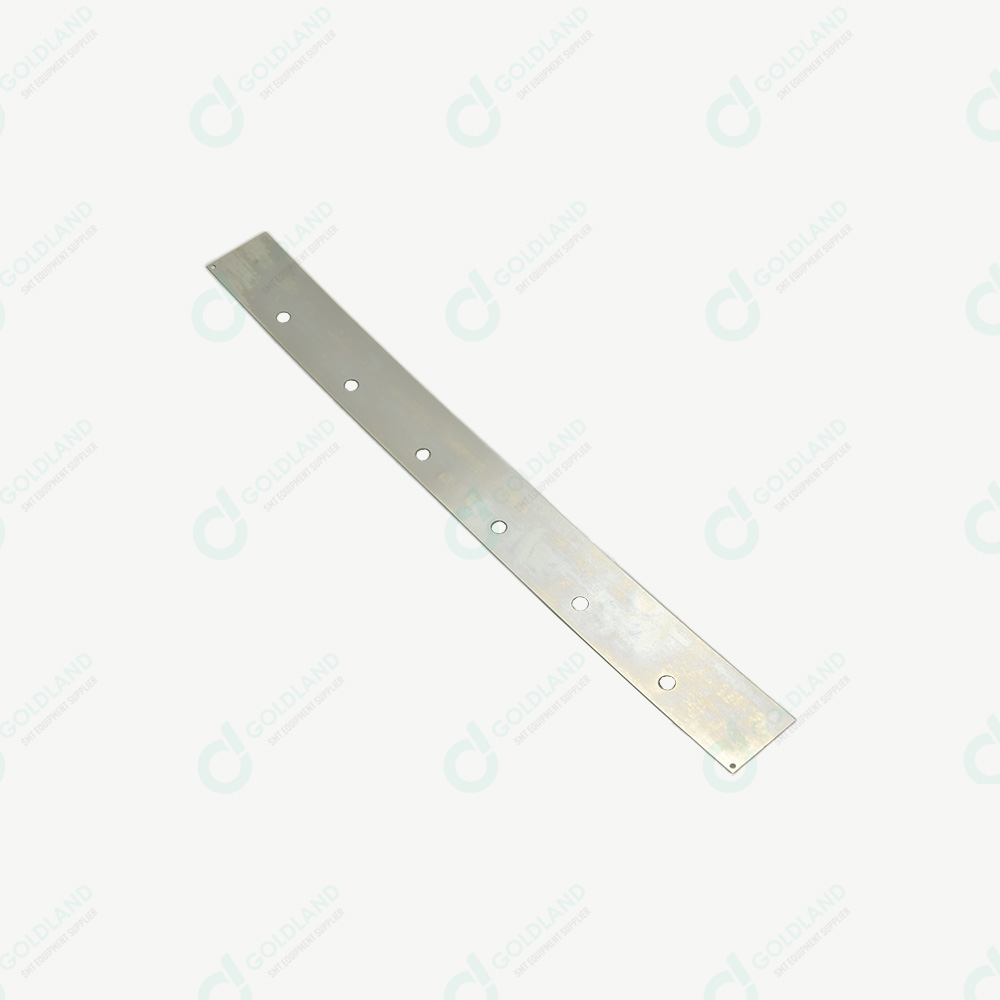

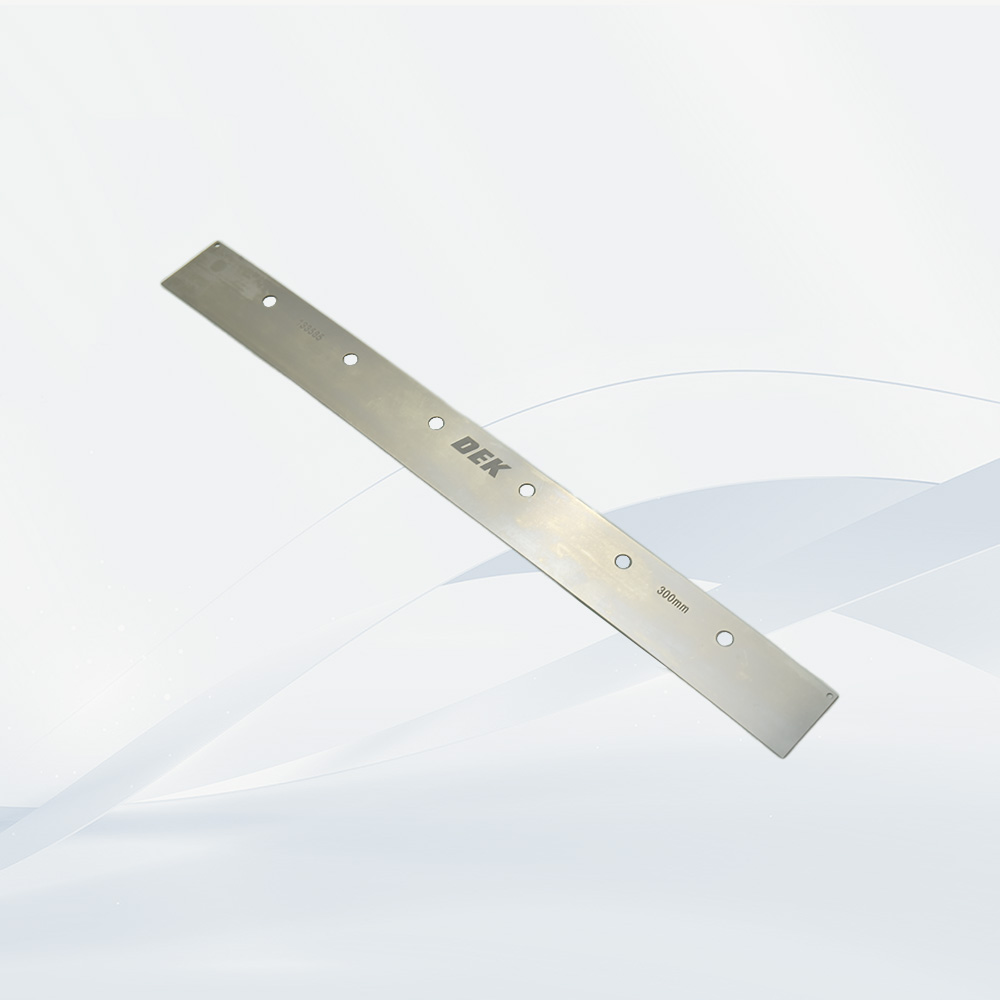

133585 DEK Sqy Blade Asm 60 Deg 300mm Horizon 03ixNeohorizon 03ix

133585 DEK Sqy Blade Asm 60 Deg 300mm Horizon 03ixNeohorizon 03ix Specification

Noise Level
Silent/Manual

Drive Type
Manual

Capacity
Single Blade per Assembly

Surface Finish
Smooth/Polished

Size
300 mm

Shape
Straight Blade with Angled Holder

Usage & Applications
DEK Horizon 03ix / NeoHorizon 03ix screen printers, Solder Paste Printing

Features
Precision Printing, Durable, Easy Installation, 60 Angle

Product Type
Squeegee Blade Assembly

Material
Steel Blade, Aluminium Holder

Technology
Screen Printing SMT Squeegee

Power Source
Manual

Pressure
Operator Dependent

Surface Treatment
Polished

Dimension (L*W*H)
300mm (Length), Custom width/height based on holder

Weight
Approx. 350g

Color
Silver/Grey

Applicability
DEK Horizon 03ix, DEK NeoHorizon 03ix models

Compatibility
Compatible with SMT Solder Paste Printers

Mounting Type
Clip-On/Quick Fit

End Use Environment
Clean Room/ESD Safe Environments

Holder Material
Aluminium Alloy

Packaging
Individually Packed for Protection

Replacement Part Number
133585

Blade Angle
60 Degrees

Operating Temperature
Standard Ambient Conditions

Part Category
SMT Stencil Printing Accessories

Blade Material
High-Quality Tool Steel

Maintenance
Low, Clean After Use

OEM Equivalent
Yes (Replacement for original DEK part)

133585 DEK Sqy Blade Asm 60 Deg 300mm Horizon 03ixNeohorizon 03ix Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 133585 DEK Sqy Blade Asm 60 Deg 300mm Horizon 03ixNeohorizon 03ix

Prices are for show only, please contact us for exact price.

SMT Product List

Part Number	Part Name
193409	DEK ES CARD
193205	BOM SQUEEGE 520MM
215607	BOM ASSY BOARD CLAMP FOIL 500MM
133584	BLADE SQ 60 DEGREE 250MM (SQA302)
133585	BLADE SQ 60 DEGREE 350MM (SQA304)
133586	BLADE SQ 60 DEGREE 400MM (SQA305)
129927	BLADE SQ 60 DEGREE 440MM (SQA306)
133588	BLADE SQ 60 DEGREE 510MM (SQA308)
122022	TRANSPORT BELT,265,3mm SINGLE (JOINED)
141146	THK AFB GREASE`
191650	SENSOR FORK 4W OMRON EE-SX675 (TXT)

Engineered for Precision and Durability

Manufactured with a premium tool steel blade and a polished aluminium holder, the 133585 DEK Sqy Blade Assembly is purpose-built for exacting solder paste printing. Its robust construction withstands repeated use in professional SMT manufacturing environments while guaranteeing consistent results. The 60-degree angled holder ensures optimal paste transfer, supporting both high accuracy and reduced manual effort.

Effortless Compatibility and Installation

This squeegee blade is specifically designed as a direct replacement for DEK part 133585, fitting seamlessly into Horizon 03ix and NeoHorizon 03ix printers. Its clip-on/quick fit system allows for fast, tool-free changes, minimizing printer downtime. Each blade comes individually packaged, ensuring it arrives protected and ready for immediate installation.

FAQ's of 133585 DEK Sqy Blade Asm 60 Deg 300mm Horizon 03ixNeohorizon 03ix:

Q: How do I install the 133585 DEK Sqy Blade Assembly in my DEK Horizon 03ix or NeoHorizon 03ix printer?

A: The 133585 DEK Sqy Blade Assembly features a clip-on/quick fit design, allowing you to install or replace it easily without the need for tools. Simply align the blade with the holder slot in your printer and press it securely into place.

Q: What makes this blade assembly suitable for clean room and ESD-safe environments?

A: This assembly is constructed from polished aluminium alloy and high-quality tool steel, materials that are both easy to clean and resistant to particle generation, making it suitable for use in clean room and ESD-safe environments typical in SMT manufacturing.

Q: When should I replace the blade assembly in my solder paste printer?

A: Replacement frequency depends on usage and material wear. Inspect the blade regularly for signs of dulling or damage and replace it as soon as performance drops or physical defects are noted, ensuring consistent, high-quality printing results.

Q: Where can I use the 133585 DEK Sqy Blade Assembly?

A: This blade assembly is compatible specifically with DEK Horizon 03ix and NeoHorizon 03ix screen printers, primarily in environments handling SMT solder paste printing, especially where precision, cleanliness, and ESD safety are required.

Q: What are the benefits of using a 60-degree angled blade in my SMT printer?

A: A 60-degree angle offers an ideal balance between paste transfer efficiency and control, promoting uniform paste distribution and minimizing defects during the screen printing process. This aids both in print quality and operational reliability.

Q: How should I maintain and clean this blade assembly after use?

A: After each printing session, remove the blade assembly and clean it with appropriate solvents to remove solder paste residue. Avoid abrasive tools to protect the polished finish and ensure a long service life.
