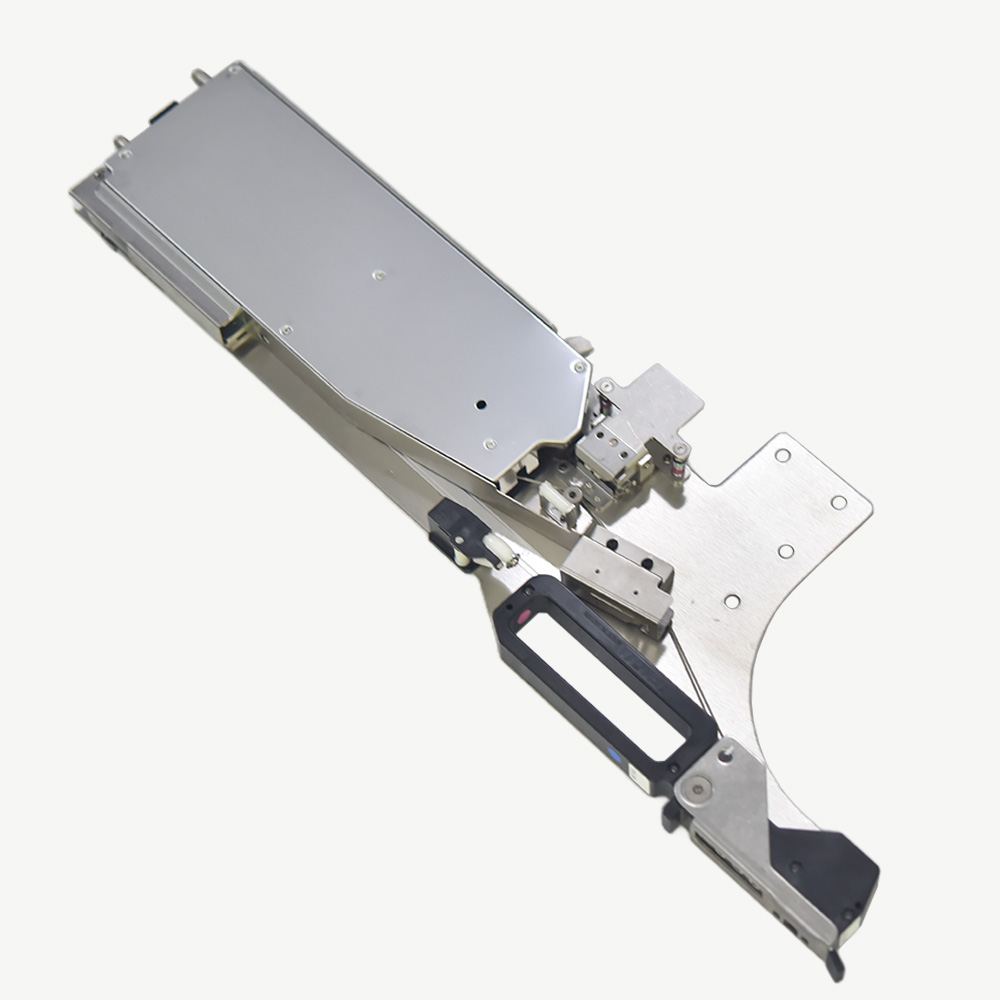

UF10400 FUJI NXT / XPF Feeder, W16c, Bucket Type

UF10400 FUJI NXT / XPF Feeder, W16c, Bucket Type Specification

Noise Level
Low

Size
W16c (16mm tape width)

Usage & Applications
For mounting components in FUJI NXT/XPF SMT Pick and Place Machines

Features
High-precision, anti-jam, robust build, easy installation

Surface Finish
Smooth, Anti-corrosive

Motor Power
High-precision stepper motor included

Capacity
16mm Tape Width, Multiple part feeding

Shape
Rectangular, with integrated tape path

Lubricating System
Maintenance-free, pre-lubricated

Drive Type
Stepper Motor Driven

Product Type
SMT Feeder (Bucket Type)

Material
Aluminum Alloy, Stainless Steel

Technology
FUJI NXT/XPF Compatible, Precision Electronic Feeding

Power Source
Electric

Power
24V DC

Voltage
24V

Surface Treatment
Anodized

Dimension (L*W*H)
Approx. 420mm x 130mm x 80mm

Weight
Approx. 2.2 kg

Color
Silver & Black

Parts Placement Accuracy
0.1 mm

Storage Temperature
-20C to 60C

Packaging Tape Width
16mm

Replacement Parts
Easily Serviceable Modular Design

Humidity Tolerance
Max 80% RH, non-condensing

Feeder Code / Model
UF10400

Compatible Machines
FUJI NXT and FUJI XPF Series

Component Type
Suitable for chip components, SMD

Loading Mechanism
Bucket Type

Tape Guide
Enhanced guiding structure for stable feeding

Operational Temperature Range
10C to 40C

UF10400 FUJI NXT / XPF Feeder, W16c, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Australia, Central America, Asia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About UF10400 FUJI NXT / XPF Feeder, W16c, Bucket Type

Prices are for show only, please contact us for exact price

SMT Feeder Parts

PP03341 / PP03342 / 2MDLFA030400	PLATE, CONNECTING
PZ44260	SPRING
PM06AR6 / 2MDLFA036200	BOLT
N4018A	SCREW, HEX SOCKET SET
PP02671	COVER
K5170C / PZ13391	SCREW, C / R COUNTERSUNK
XK05553 / 2AGKFA002401	BOARD, PRINTED CIRCUIT
K5169M	SCREW, C / R COUNTERSUNK
K51716	SCREW, C / R TRUSS
PM03957 / PM03958 / PM03958	PIN, ECCENTRIC
PM03966 / PM03967	PIN, ECCENTRIC
N10813 / N10796	NUT, HEX
W1022A	WASHER, LOCK
PH02062	COVER, SWITCH
RH44843 / RH44844	HARNESS

High-Precision Feeding for Superior Placement

With an accuracy of 0.1mm and an enhanced guiding structure, the UF10400 Feeder excels in delivering chip components and SMDs reliably. Its robust, rectangular design allows for smooth tape movement while minimizing the risk of jams, ensuring your FUJI NXT or XPF series machines can work continuously without interruptions.

Engineered for Compatibility and Efficiency

Specifically compatible with FUJI NXT and XPF SMT Pick and Place Machines, this feeder provides seamless integration and easy installation. Its modular design supports effortless maintenance and rapid part replacement, extending its service life and minimizing downtime during production cycles.

Durable Materials for Long-Lasting Performance

Constructed from anodized aluminum alloy and stainless steel, the UF10400 Feeder is both durable and resistant to corrosion. Pre-lubricated for maintenance-free operation, it withstands varied operational and storage temperatures (from -20C to 60C) and functions reliably even in humid production environments.

FAQ's of UF10400 FUJI NXT / XPF Feeder, W16c, Bucket Type:

Q: How do I install the UF10400 FUJI NXT/XPF Feeder on my SMT machine?

A: Installation is straightforward due to the feeder's modular, user-friendly design. Simply align the feeder with the designated slot on your FUJI NXT or XPF machine, secure it in place according to the machine's manual, and connect the 24V DC power supply to activate the stepper motor drive.

Q: What component types and tape widths does this feeder support?

A: The UF10400 Feeder is designed for mounting chip components and SMDs using 16mm packaging tape. Its enhanced guiding structure accommodates multiple parts and ensures stable, precise feeding specifically for W16c tape width.

Q: When should I service or replace parts on the UF10400 feeder?

A: Thanks to its pre-lubricated and maintenance-free design, routine servicing is minimal. However, if feeding issues or wear are observed, modular parts can be easily accessed and replaced without extensive downtime.

Q: Where is the UF10400 Feeder best utilized?

A: Ideal for electronics manufacturing environments, this feeder is intended for use in FUJI NXT and XPF SMT Pick and Place Machines, providing reliable performance in production facilities requiring high placement accuracy and consistent feeding.

Q: What are the benefits of the anti-jam and robust build features?

A: The anti-jam design, combined with the sturdy aluminum alloy and stainless-steel structure, significantly reduces production stoppages due to tape misalignment or feeding errors, ensuring efficient and uninterrupted operation.

Q: How does the feeder maintain operational precision?

A: A high-precision stepper motor and enhanced tape guide mechanism work together to deliver components with 0.1mm placement accuracy, essential for demanding SMT assembly lines.

Q: What environmental conditions can the UF10400 Feeder tolerate?

A: This feeder operates reliably between 10C and 40C, can be stored from -20C to 60C, and tolerates up to 80% relative humidity (non-condensing), making it suitable for diverse manufacturing settings.
