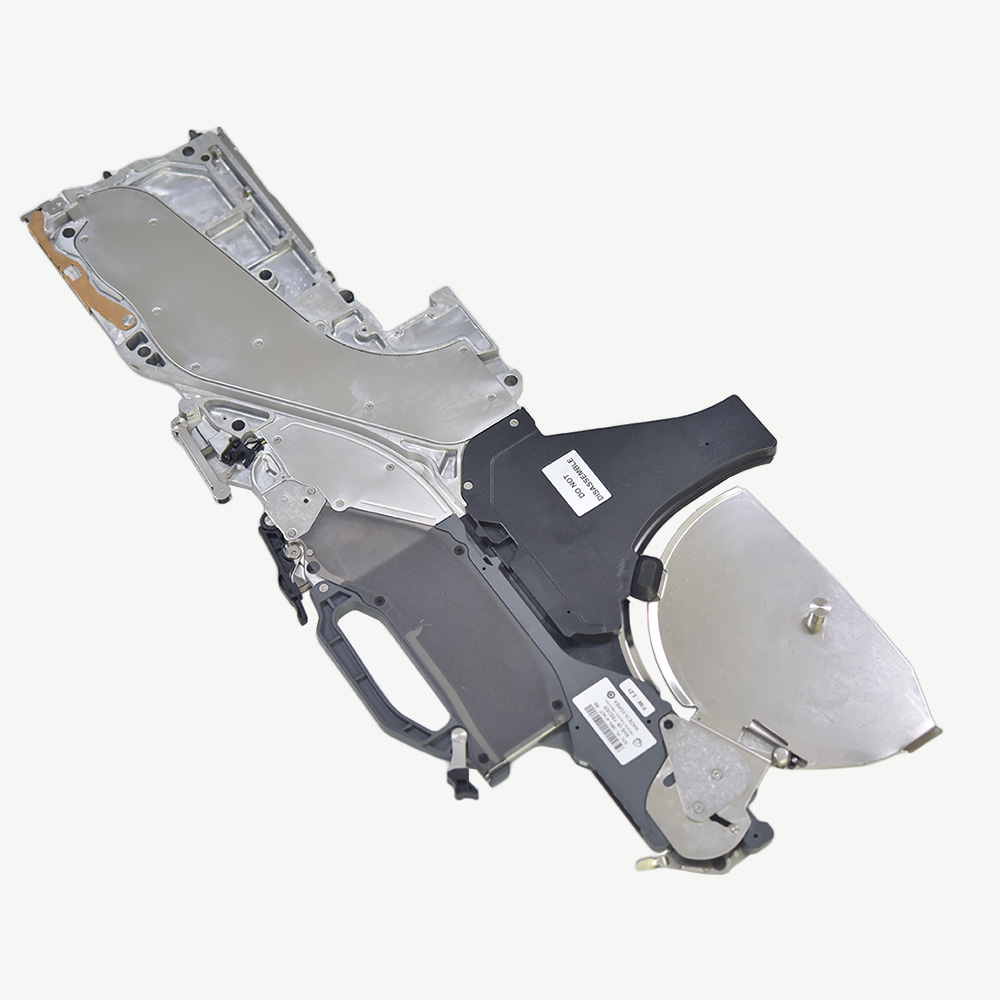

SMN-0804-IT-NT SAMSUNG SMN 8x4mm Pitch It Feeder, New Type

SMN-0804-IT-NT SAMSUNG SMN 8x4mm Pitch It Feeder, New Type Specification

Shape
Rectangular feeder housing

Features
High durability, precision feeding, easy installation, compatible with Samsung SMN series

Size
8x4 mm pitch feeder

Usage & Applications
Used for feeding components in SMT pick-and-place machines (Samsung SMN series)

Lubricating System
Pre-lubricated mechanism

Capacity
Designed for 8mm width tape

Surface Finish
Smooth, polished

Noise Level
Silent operation

Drive Type
Mechanical, spring-driven

Product Type
SAMSUNG SMN 8x4mm Pitch It Feeder, New Type

Material
Metal and high-grade plastic

Technology
SMT (Surface Mount Technology)

Power Source
Manual

Surface Treatment
Anti-corrosive coating

Dimension (L*W*H)
Standard for 8x4mm feeder

Weight
Approx. 1.5 kg

Color
Metallic silver with black elements

Tape Pitch
Supports 8mm width with 4mm advance pitch

Component Type Compatibility
Suitable for paper & embossed tape

Compatibility
Fits Samsung SMN, CN, and SME pick-and-place machines

Packing Type
Individual box packaging

Storage
Stackable design for easy storage

Mounting
Tool-less installation and removal

Replacement Parts Availability
Easy maintenance with available spare parts

Feeding Accuracy
High precision for minimal component misplacement

Condition
Brand new (unused, unopened)

Operation Mode
Manual push

SMN-0804-IT-NT SAMSUNG SMN 8x4mm Pitch It Feeder, New Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
South America, Asia, Australia, Central America, North America, Eastern Europe, Western Europe, Middle East, Africa

About SMN-0804-IT-NT SAMSUNG SMN 8x4mm Pitch It Feeder, New Type

Prices are for show only, please contact us for exact price

SMT Product List

J70653552A	D-TENSIONER HINGE
MC11-001010A	DRAIN GEAR-1 W4P1
FC07-000970A	DRAIN GEAR FORK-W4P1
G003-000049A	D-STAGE GEAR1
MC19-000492A	FIRST METAL BEARING
J70653745A	SECOND PINION 08
MC19-000514A	GEAR SHAFT SCREW
G003-000042A	HANDLE M08
FC24-000043A	HANDLE M08
FC24-000043A	D-BOX DOOR SME W4P1
J70650948B	LOCATION FLANGE
J70652174A	X ECCENTRIC PIN
J70653933A	D-STAGE GEAR SHAFT
G003-000023A	INSTALL GUIDE
J70653694A	CLAMP LEVER M 08

Precision Performance for SMT Lines

Engineered for accuracy, the SMN-0804-IT-NT Feeder ensures components are positioned with minimal misplacement during high-speed pick-and-place operations. Its mechanical, spring-driven drive delivers silent and reliable operation, crucial for modern SMT production environments. The anti-corrosive, polished surface not only enhances durability but also ensures consistent performance over time.

User-Friendly Installation & Maintenance

This new type of IT Feeder features a tool-less mounting system, allowing quick and easy installation or removal from your Samsung SMN series machines. Pre-lubricated mechanisms promote smooth feeding, while its stackable, rectangular shape makes storing multiple feeders simple. Maintenance is hassle-free, supported by readily available spare parts for ongoing use.

Versatile & Robust Construction

Whether you're feeding paper or embossed tapes, the SMN-0804-IT-NT's compatibility and high-grade build make it a dependable asset. Its approximately 1.5 kg metallic silver body, combined with black elements, delivers strength without compromising ease of handling, making it ideal for rigorous SMT assembly lines in any industrial setting.

FAQ's of SMN-0804-IT-NT SAMSUNG SMN 8x4mm Pitch It Feeder, New Type:

Q: How is the SMN-0804-IT-NT feeder installed on Samsung pick-and-place machines?

A: The feeder is designed with a tool-less installation mechanism, allowing users to quickly mount or remove it from compatible Samsung SMN, CN, and SME pick-and-place machines without the need for special tools.

Q: What types of components and tapes can this feeder handle?

A: The SMN-0804-IT-NT feeder is suitable for both paper and embossed tapes, supporting 8mm tape width and a 4mm advance pitch, making it versatile for various SMT components.

Q: When should the feeder be replaced or maintained?

A: Regular maintenance is simplified due to pre-lubricated components and easy access to spare parts. Replace or service the feeder if you notice feeding inconsistencies or after extended high-volume use.

Q: Where can this feeder be used within the SMT production process?

A: It is specifically designed for use in component feeding applications within Samsung SMN series pick-and-place machines, making it suitable for electronics assembly lines in manufacturing facilities.

Q: What is the operational process of this feeder?

A: The feeder operates manually through a spring-driven, mechanical push mechanism, ensuring high feeding precision with silent operation for efficient SMT assembly.

Q: What are the main benefits of using the SMN-0804-IT-NT feeder?

A: Key benefits include high placement accuracy, compatible design for Samsung SMT machines, robust metal and plastic construction, easy tool-less installation, silent performance, and stackable storage for organizational efficiency.
