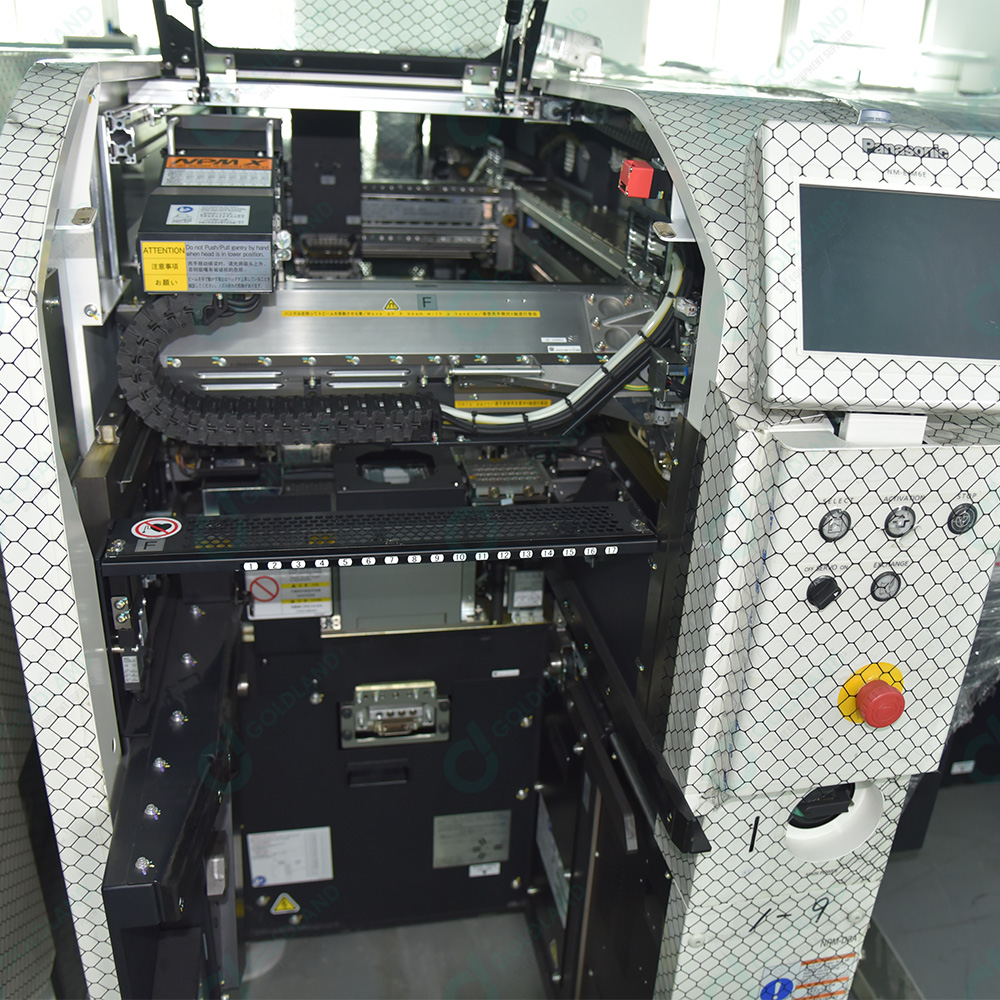

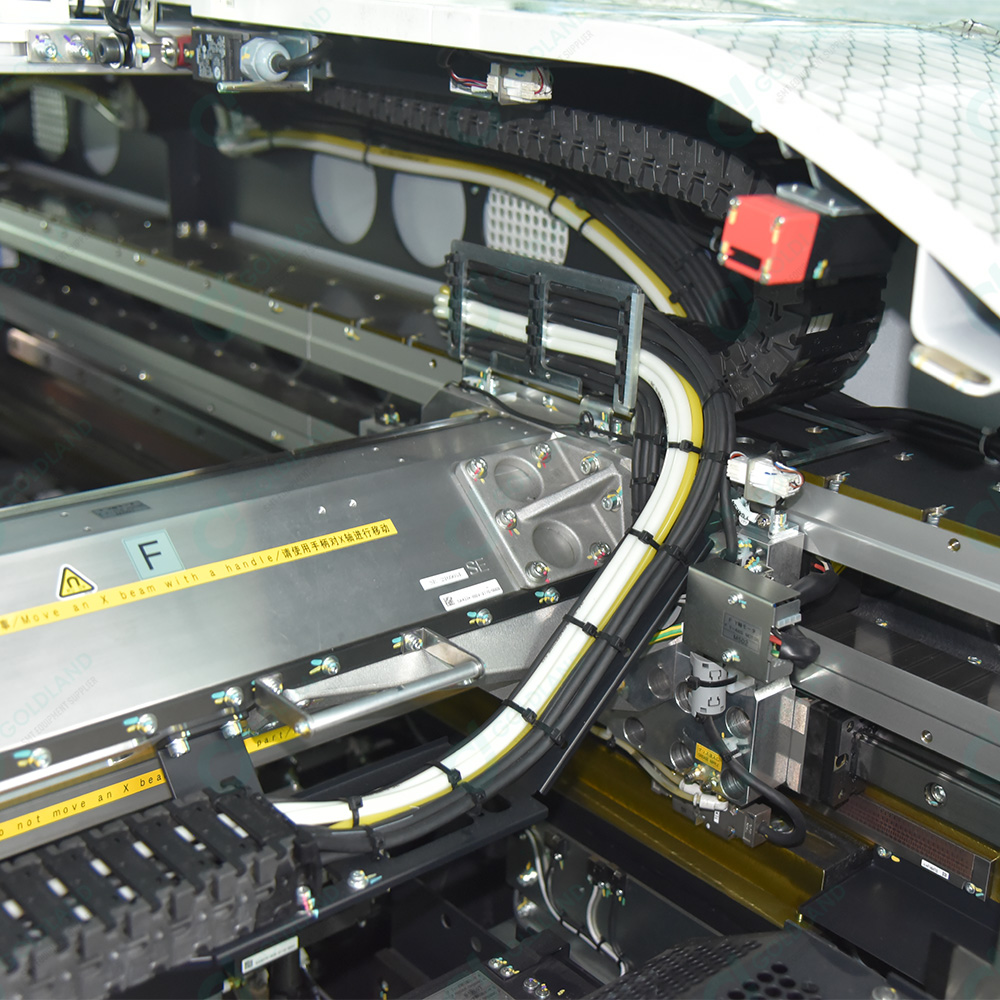

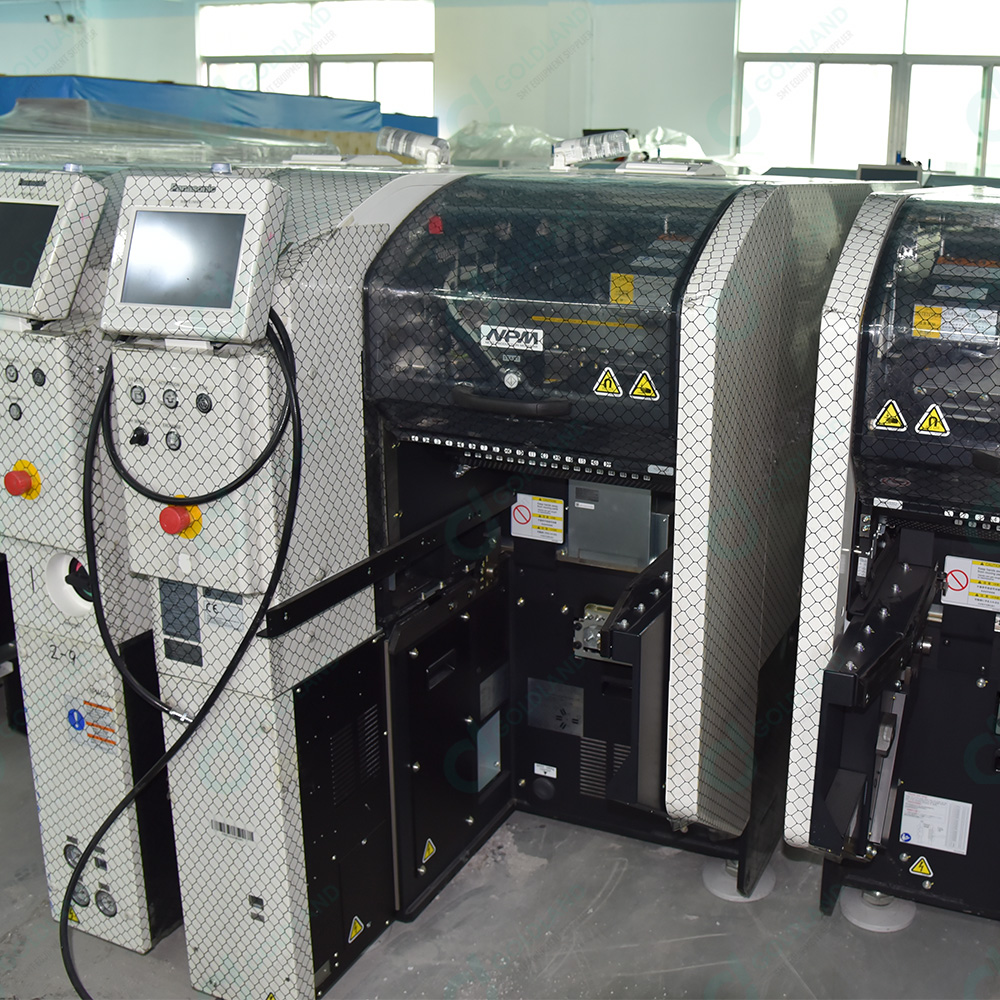

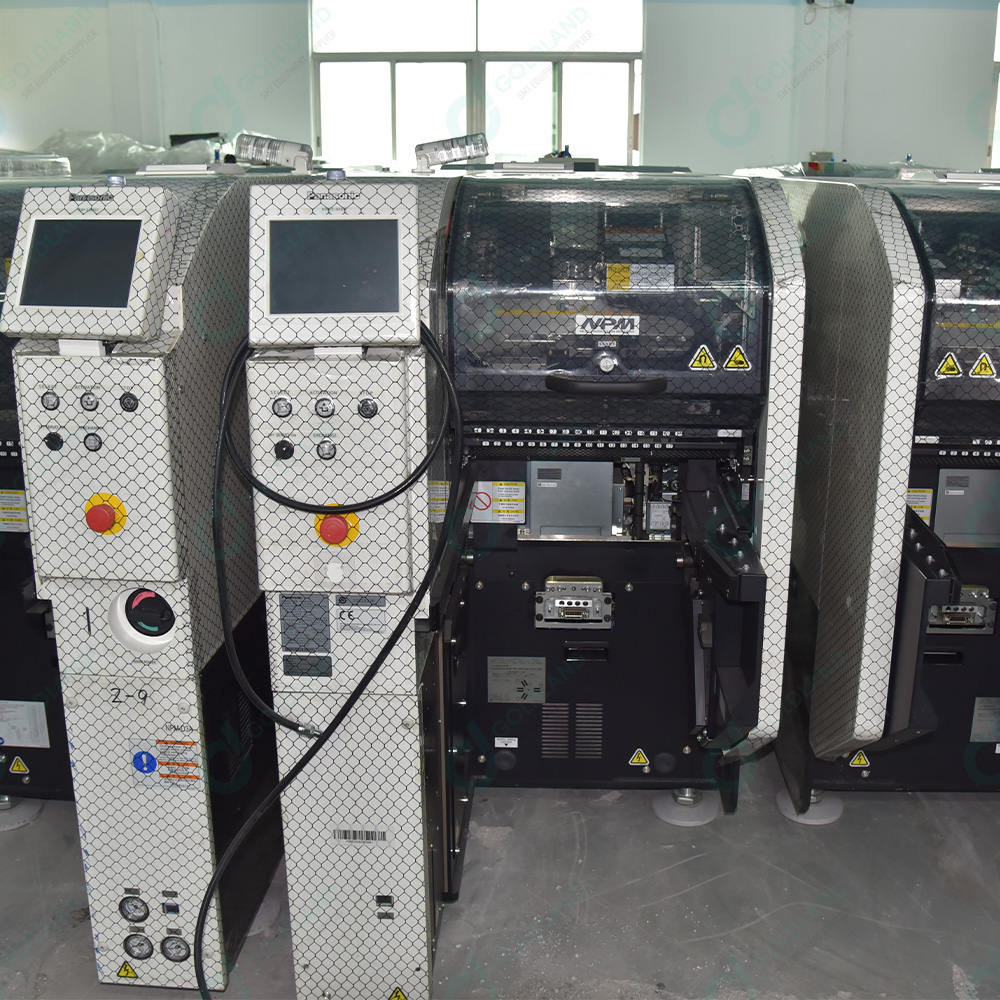

Panasonic NPM D3A SMT Mounter High Speed Precision Component Placement for PCB Assembly

Panasonic NPM D3A SMT Mounter High Speed Precision Component Placement for PCB Assembly Specification

Product Type
SMT Mounter (Surface Mount Technology Mounter)

Material
High-precision industrial-grade steel and engineered alloys

Capacity
Up to 92,000 CPH (Components Per Hour)

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
Advanced Panasonic proprietary control software

Processing Type
High-speed PCB Component Placement

Voltage
AC 200-415V, 3-Phase, 50/60Hz

Power
Approx. 5.0 kVA (Operating conditions may vary)

Dimension (L*W*H)
1740 mm 2165 mm 1444 mm

Weight
Approx. 2000 kg

Color
White with blue and grey accents

Component Range
01005 (0402 metric) to 120x90 mm, height up to 28 mm

Nozzle Heads
Twin-Head (Multiple configurations available)

Model
NPM-D3A

Software
Panasonic PanaCIM Production Management System compatibility

Noise Level
< 70 dB(A) during operation

Camera Alignment
High-resolution vision system with on-the-fly alignment

Conveyor Height
900 mm to 950 mm (Adjustable)

Placement Accuracy
25 m (Cpk 1.0) @ mounting speed

Cooling System
Integrated industrial cooling fans

Operating Environment
Temperature 15-35C, Humidity 35-85% RH (non-condensing)

Power Consumption
Approx. 4.8 kW

PCB Size Range
L50 W50 mm to L510 W590 mm (L810 W590 mm with board handling option)

Feeder Slots
Max. 180 slots (with 8 mm tape feeders)

Interface Ports
SMEMA, Ethernet, USB

Panasonic NPM D3A SMT Mounter High Speed Precision Component Placement for PCB Assembly Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
North America, South America, Asia, Australia, Central America, Eastern Europe, Western Europe, Middle East, Africa

About Panasonic NPM D3A SMT Mounter High Speed Precision Component Placement for PCB Assembly

Prices are for show only, please contact us for exact price.

Product Description

The Panasonic NPM-D3A is a state-of-the-art SMT mounter designed for high-speed and high-precision component placement in PCB assembly. Featuring advanced placement technology and flexible feeder configurations, the NPM-D3A ensures accuracy and efficiency in both high-mix and high-volume production environments. This mounter is capable of handling a wide range of components, from fine-pitch devices to larger parts, making it ideal for industries such as electronics, automotive, and telecommunications. With an intuitive user interface, automated setup processes, and real-time monitoring, the Panasonic NPM-D3A enhances production throughput while minimizing errors and defects. Built to support demanding production lines, this machine optimizes both operational efficiency and placement quality, making it a trusted choice for manufacturers looking to improve their SMT assembly process.

Product Specifications

Machine Model		Placement Head Model		Placement Speed (CPH)			Component Height(mm)	Component Dimensions (mm)mm	Placement accuracy (mm)@3
Machine Model		Placement area 1	Placement area 2	IPC value	Benchmark value	Theoretical value	Component Height(mm)	Component Dimensions (mm)mm	Placement accuracy (mm)@3
X4iS	X4iS-A	C&P20P/C&P20P	C&P20P/C&P20P	125,000	150,000	200,000	4	03015-6x6	0.036
		C&P20P/C&P20P	CPP_L/CPP_L	102,000	120,000	160,000	8.5	03015-50x40	0.036
		C&P20P/C&P20P	CPP_H/CPP_H	100,300	118,000	157,300	11.5	03015-50x40	0.036
		CPP_L/CPP_L	CPP_L/CPP_L	79,900	94,000	112,300	8.5	0402-50x40	0.034
		CPP_L/CPP_L	CPP_H/CPP_H	73,960	87,000	97,800	11.5	0402-50x40	0.034
		CPP_H/CPP_H	CPP_H/CPP_H	68,000	80,000	90,000	11.5	0402-50x40	0.034
	X4iS-B	C&P20P/C&P20P	CPP_H/TH	85,000	99,900	133,200	25	03015-50x40	0.025
		CPP_L/CPP_L	CPP_H/TH	58,150	68,400	77,500	25	0402-50x40	0.025
		CPP_H/CPP_H	CPP_H/TH	52,190	61,400	69,075	25	0402-50x40	0.025
	X4iS-C	C&P20P/C&P20P	TH/TH	70,900	85,500	114,000	25	03015-200x125	0.025
		CPP_L/CPP_L	TH/TH	49,300	58,000	65,900	25	0402-200x125	0.025
		CPP_H/CPP_H	TH/TH	43,350	51,000	57,300	25	0402-200x125	0.025
X4 S	X4 S-A	C&P20P/C&P20 P	C&P20P/C&P20P	105,00	125,000	170,500	4	03015-6x6	0.036
		C&P20P/C&P20 P	CPP_L/CPP_L	90,500	106,500	145,250	8.5	03015-50x40	0.036
		C&P20P/C&P20 P	CPP_H/CPP_H	86,250	101,500	138,450	11.5	03015-50x40	0.036
		CPP_L/CPP_L	CPP_L/CPP_L	74,800	88,000	123,200	8.5	0402-50x40	0.034
		CPP_L/CPP_L	CPP_H/CPP_H	70,550	83,000	112,500	11.5	0402-50x40	0.034
		CPP_H/CPP_H	CPP_H/CPP_H	66,300	78,000	106,000	11.5	0402-50x40	0.034
	X4 S-B	C&P20P/C&P20 P	CPP_H/TH	68,500	81,000	110,480	25	03015-50x40	0.025
		CPP_L/CPP_L	CPP_H/TH	57,800	68,000	95,700	25	0402-50x40	0.025
		CPP_H/CPP_H	CPP_H/TH	53,550	63,000	85,650	25	0402-50x40	0.025
	X4 S-C	C&P20P/C&P20 P	TH/TH	60,500	71,500	97,520	25	03015-200x125	0.025
		CPP_L/CPP_L	TH/TH	45,050	53,000	75,900	25	0402-200x125	0.025
		CPP_H/CPP_H	TH/TH	40,800	48,000	65,250	25	0402-200x125	0.025
	X4 S-D	CPP_H/TH	TH/TH	28,050	33,000	48,400	25	0402-200x125	0.025
	X4 S-E	TH/TH	TH/TH	15,300	18,000	18,600	25	0201-200x125	0.025
X3 S	X3 S-A	C&P20P/C&P20 P	C&P20 P	78,100	93,750	127,875	4	03015-6x6	0.036
		C&P20P/C&P20 P	CPP_L	73,200	86,150	117,500	8.5	03015-50x40	0.036
		C&P20P/C&P20 P	CPP_H	70,100	82,500	112,530	11.5	03015-50x40	0.036
		CPP_L/CPP_L	CPP_L	57,500	67,650	92,400	8.5	0402-50x40	0.036
		CPP_H/CPP_H	CPP_H	49,750	58,500	78,250	11.5	0402-50x40	0.036
		CPP_L/CPP_L	CPP_H	54,000	63,500	85,000	11.5	0402-50x40	0.036
	X3 S-B	C&P20P/C&P20 P	TH	57,000	67,500	92,070	25	03015-200x125	0.025
		CPP_L/CPP_L	TH	41,650	49,000	68,750	25	0402-200x125	0.025
		CPP_H/CPP_H	TH	37,500	44,000	60,200	25	0402-200x125	0.025
	X3 S-C	CPP_H/TH	TH	25,500	29,100	41,250	25	0402-200x125	0.025
	X3 S-D	TH/TH	TH	11,900	14,000	21,450	25	0201-200x125	0.025
X2 S	X2 S-A	C&P20P	C&P20P	52,000	62,500	85,250	4	03015-6x6	0.036
		C&P20P	CPP_L	45,500	53,750	73,300	8.5	03015-50x40	0.034
		C&P20P	CPP_H	43,000	50,750	69,220	11.5	03015-50x40	0.034
		CPP_L	CPP_L	37,400	45,000	61,600	8.5	03015-50x40	0.034
		CPP_H	CPP_H	33,500	39,000	55,500	11.5	03015-50x40	0.034
		CPP_L	CPP_H	35,450	42,000	57,900	11.5	03015-50x40	0.034
	X2 S-B	C&P20P	TH	30,800	36,250	49,450	25	03015-200x125	0.025
		CPP_L	TH	24,000	27,500	37,450	25	0402-200x125	0.025
		CPP_H	TH	20,600	24,500	32,900	25	0402-200x125	0.025
	X2 S-C	TH	TH	9,000	10,000	13,000	25	0201-200x125	0.025
X4i		CP20/CP20	CP20/CP20	102,000	120,000	135,500	4	01005-6x6	0.041
		CP20/CP20	CPP/CPPa	91,500	107,000	123,750	4	01005-27x27	0.041
		CPP/CPPa	CPP/CPPa	81,000	94,000	112,000	4	01005-27x27	0.041
X4	X4-A	CP20/CP20	CP20/CP20	82,000	90,000	124,000	4	01005-6x6	0.041
		CP20/CP20	CPP/CPPa	75,000	85,000	118,000	4	01005-27x27	0.041
		CPP/CPPa	CPP/CPPa	68,000	80,000	112,000	8.5	01005-27x27	0.041
	X4-B	CP20/CP20	CPP/THb	61,900	68,600	93,000	25	01005-27x27	0.025
	X4-B	CPP/CPPa	CPP/THb	54,900	63,600	87,000	25	01005-27x27	0.025
	X4-C	CP20/CP20	TH/TH	48,000	52,500	75,000	25	01005-200x125	0.025
	X4-C	CPP/CPPa	TH/TH	41,000	47,500	69,000	25	01005-200x125	0.025
	X4-D	CPP/THb	TH/TH	27,900	31,100	44,000	25	01005-200x125	0.025
	X4-E	TH/TH	TH/TH	14,000	15,000	26,000	25	0201-200x125	0.025
X3	X3-A	CP20/CP20	CP20/CP20	62,700	69,500	93,000	4	01005-6x6	0.041
		CP20/CP20	CPPa	59,200	66,500	90,000	4	01005-27x27	0.041
		CPP/CPPa	CPPa	52,200	61,500	84,000	8.5	01005-27x27	0.041
	X3-B	CP20/CP20	TH	45,300	50,000	68,500	25	01005-200x125	0.025
	X3-B	CPP/CPPa	TH	38,300	45,000	62,500	25	01005-200x125	0.025
	X3-C	CPP/THb	TH	25,200	28,600	37,500	25	01005-200x125	0.025
	X3-D	TH/TH	TH	11,300	12,500	19,500	25	0201-200x125	0.025
X2	X2-A	CP20	CP20/CP20	43,400	49,000	62,000	4	01005-6x6	0.041
		CP20	CPPa	39,900	46,000	59,000	4	01005-27x27	0.041
		CPPa	CPPa	36,400	43,000	56,000	8.5	01005-27x27	0.041
	X2-B	CP20	TH	26,000	29,500	37,500	25	01005-200x125	0.025
	X2-B	CPPa	TH	22,500	26,500	35,500	25	01005-200x125	0.025
	X2-C	TH	TH	8,600	10,000	13,000	25	0201-200x125	0.025
D1	D1-A	C&P12		13,000	15,000	20,000	6	0201-18.7x18.7	0.050
	D1-B	C&P6		8,400	9,800	11,500	8.5	0201-27x27	0.053
	D1-C	P&P		2,600	2,800	3,500	19	0402-200x125	0.038
D2	D2-A	C&P12/C&P12		27,200	31,000	40,500	6	0201-18.7x18.7	0.050
	D2-B	C&P12/C&P6		20,900	23,000	32,000	6	0201-27x27	0.053
	D2-C	C&P6/C&P6		16,500	19,500	23,000	8.5	0201-27x27	0.053
D3	D3-A	C&P12/C&P12	C&P12	37,600	40,400	61,000	6	0201-18.7x18.7	0.041
	D3-B	C&P12/C&P12	C&P6	33,200	36,200	52,500	6	0201-27x27	0.045
	D3-C	C&P12/C&P12	TH	28,800	31,400	47,000	6	0201-200x125	0.025
	D3-D	C&P12/C&P6	C&P6	28,500	30,100	43,500	6	0201-27x27	0.045
	D3-E	C&P12/C&P6	TH	24,100	25,300	38,500	6	0201-200x125	0.025
	D3-F	C&P12/TH	TH	21,300	23,800	33,500	6	0201-200x125	0.025
	D3-G	C&P6/C&P6	C&P6	25,100	28,100	34,500	8.5	0201-27x27	0.045
	D3-H	C&P6/C&P6	TH	20,700	23,300	29,500	8.5	0201-200x125	0.025
	D3-I	C&P6/TH	TH	16,900	19,400	24,500	8.5	0201-200x125	0.025
	D3-K	TH/TH	TH	11,600	12,500	19,500	25	0402-200x125	0.025
D4		C&P12/C&P12	C&P12/C&P12	57,000	66,000	81,500	6	01005-16x16	0.05
D1i		C&P6	TH	13,000	15,000	20,000	19	01005-200x125	0.025
D2i		C&P12	C&P12	27,200	31,000	40,500	6	01005-200x125	0.025
D4i		C&P12/C&P12	C&P12/C&P12	57,000	66,000	81,500	6	01005-18.7x18.7	0.05
SX	SX1	TH		24,000	30,000	33,875	25	0201-200x125	0.025
SX	SX2	CPP	TH	48,000	60,000	67,750	11.5	01005-200x125	0.025
TX1	TX1-A	CP20P		32,500	37,500	50,200	4	0201-6x6	0.03
	TX1-B	CCP_H		22,000	22,000	26,250	11.5	0402-50x40	0.034
	TX1-C	TH		5,050	5,500	7,300	25	0402-55x45	0.025
TX2	TX2-A	C&P20P/C&P20P		65,000	75,000	100,500	4	0201- 6x6	0.03
	TX2-B	CPP_L/CPP_L		42,600	46,500	61,900	8.5	0402-50x40	0.034
	TX2-C	CPP_H/CPP_H		40,000	44,000	52,500	11.5	0402-50x40	0.034
	TX2-D	TH/CPP_H		25,000	28,500	38,000	11.5	0402-55x45	0.034
TX2i	TX2i-A	C&P20/C&P20P		67,000	78,000	103,800	4	0201-6x6	0.025
	TX2i-B	CPP_L/CPP_L		43,600	48,000	63,900	6	01005-27x27	0.034
	TX2i-C	CPP-L/CPP_H		41,000	45,000	59,850	25	0402-55x45	0.028
HF3	HF3-A	C&P12/C&P12	C&P12			40,400	6	0201-0.6x0.3	0.06
	HF3-B	C&P12/C&P12	C&P6			35,700	6	0201-0.6x0.3	0.045
	HF3-C	C&P12/C&P12	TH			30,100	25	0201-200x125	0.035
	HF3-D	C&P12/C&P6	C&P6			29,600	6	0201-18.7x18.7	0.045
	HF3-E	C&P12/C&P6	TH			24,000	25	0201-200x125	0.035
	HF3-F	C&P6/C&P6	C&P6			27,600	8.5	0201-27x27	0.045
	HF3-G	C&P6/C&P6	TH			22,000	25	0201-200x125	0.035
HS60		C&P12/C&P12	C&P12/C&P12			60000	6	0201-0.63x18.7	0.06
E-BY SIPLA CE	E-By-A	C&P12		25,000	E-Speed: 45,300		4	01005-6x6	0.041
	E-By-B	C&P12		14,700	E-Speed: 24,300		7.5	01005-18.7x18.7	0.041
	E-By-C	CP12/PP		14,700	E-Speed: 24,200		19	0201-45x98	0.0375
	E-By-D	C&P6/PP		9,500	E-Speed: 13,700		19	0201-45x98	0.0375
	E-By-A	TH		4.400	E-Speed: 5,200		25	0201-200x110	0.025

High Speed and Precision Placement

The NPM-D3A SMT Mounter delivers industry-leading performance with placement speeds up to 92,000 components per hour, without compromising accuracy (25 m Cpk 1.0). Its twin-head design and high-resolution on-the-fly vision alignment allow for seamless placement of ultra-small 01005 chips up to large 120x90mm components, making it remarkably versatile for diverse assembly needs.

Flexible PCB and Component Handling

Engineered for versatility, the NPM-D3A accommodates PCB sizes from 50x50 mm up to 810x590 mm (with optional board handling). Its extensive feeder capacity-up to 180 slots-enables longer production runs with minimal interruption, streamlining complex assembly processes in high-mix environments.

Advanced Automation and Software Integration

Equipped with Panasonic's proprietary control system and full compatibility with the PanaCIM Production Management System, the NPM-D3A offers seamless data integration, real-time monitoring, and process optimization. SMEMA, Ethernet, and USB interface ports facilitate easy connection with factory automation networks and external devices.

FAQ's of Panasonic NPM D3A SMT Mounter High Speed Precision Component Placement for PCB Assembly:

Q: How does the Panasonic NPM-D3A SMT Mounter achieve high-speed and accurate component placement?

A: The NPM-D3A employs twin-head nozzle configurations, high-speed feeders, and a high-resolution vision system that performs on-the-fly alignment. Its precision engineering ensures placement accuracy of 25 m (Cpk 1.0) even at maximum operating speeds.

Q: What types and sizes of components can the NPM-D3A handle during the PCB assembly process?

A: This mounter is designed for an extensive component range-from ultra-small 01005 (0402 metric) chips to components measuring up to 120x90 mm, with a maximum height of 28 mm. This flexibility supports the assembly of both standard and specialized electronics.

Q: When should manufacturers consider using the NPM-D3A for their assembly lines?

A: The NPM-D3A is ideal for scenarios demanding high throughput and precision, such as consumer electronics, automotive, industrial controls, and other sectors requiring rapid, reliable PCB assembly with a broad component mix.

Q: Where can the Panasonic NPM-D3A be installed for effective operations?

A: It is suited for factory floor environments in India and worldwide, as long as the ambient temperature is between 15-35C and humidity stays within 35-85% RH (non-condensing). Its flexible conveyor height allows integration into diverse production lines.

Q: What is the process for PCB component placement using the NPM-D3A?

A: PCBs and components are loaded into the mounter, which automatically transports, aligns, and places components with its high-speed heads and vision system. The control software and PanaCIM integration enable efficient operation and continuous monitoring throughout the process.

Q: How is the NPM-D3A beneficial for high-volume electronic manufacturers?

A: With its capacity for up to 92,000 CPH, extensive feeder slots, and advanced software integration, the NPM-D3A minimizes downtime, boosts production efficiency, and maintains consistent product quality, delivering a significant competitive advantage.
