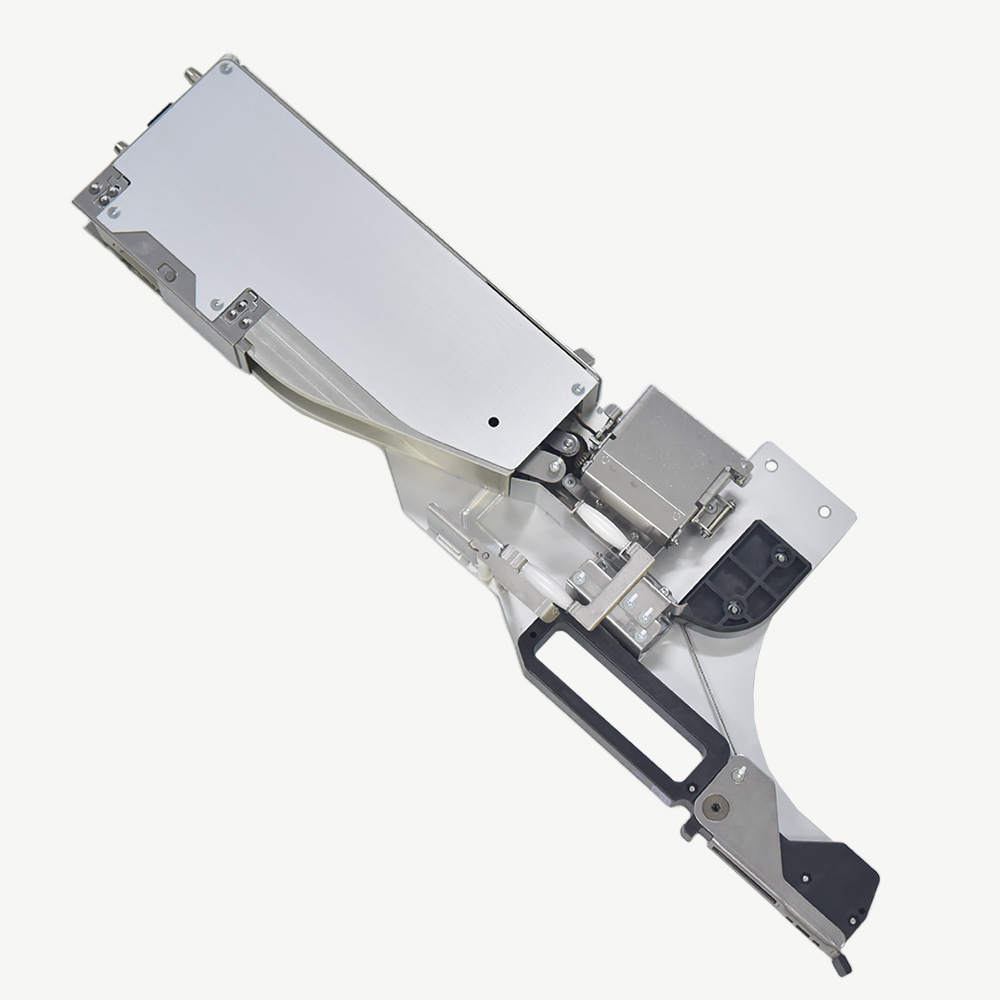

UF10800 FUJI NXTII / XPF 32mm Intelligent Feeder, W32C, Bucket Type

UF10800 FUJI NXTII / XPF 32mm Intelligent Feeder, W32C, Bucket Type Specification

Usage & Applications
SMT Placement Machines - FUJI NXTII / XPF Series

Drive Type
Electronic Drive

Surface Finish
Smooth, Corrosion Resistant

Diameter
Tape Reel Capacity: up to 380mm

Features
Barcode Data Memory, Plug & Play, Quick Mounting, Bucket Type, Smart ID Chip

Lubricating System
Maintenance-free, Pre-lubricated Bearings

Size
32mm Tape Width (W32C)

Noise Level
<60 dB (in operation)

Motor Power
Stepper Motor integrated (precise wattage per OEM specs)

Capacity
Compatible with 32mm Tape Reels

Shape
Rectangular Feeder Module

Product Type
Intelligent SMT Feeder

Material
High-grade Aluminum Alloy, Steel Components

Technology
FUJI NXTII / XPF Intelligent Feeder Technology

Power Source
Electric

Power
Low Power Consumption (precise value depends on placement machine)

Voltage
DC 24V (from machine interface)

Pressure
Not required (Electronic Drive)

Surface Treatment
Anodized/Polished

Dimension (L*W*H)
Approx. 370mm x 150mm x 60mm

Weight
Approx. 2.4 kg

Color
Silver & Black

Maintenance
Tool-free Maintenance Design

Jam Detection
Integrated Jam Detection Sensors

Compatibility
Supports all standard 32mm Tape/Tray Parts for FUJI NXTII/XPF

Feeder Model
UF10800

Part Number (OEM)
UF10800

Tape Pitch
Compatible with Standard SMT Tape Pitches

Changeover Time
Supports Quick Changeover

Communication Interface
Intelligent Data Interface (Feeder-Placement Machine Sync)

Data Storage
Embedded Feeder ID Memory (Traceability)

Tape Width Supported
32mm

Feeder Type
W32C - Wide, 32mm Channel

Loading Mechanism
Bucket Type for Odd-form/Tray Components

Component Type
Bucket Type/Tray Components feeding

Applicable Machines
FUJI NXTII / XPF Series

UF10800 FUJI NXTII / XPF 32mm Intelligent Feeder, W32C, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Australia, Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About UF10800 FUJI NXTII / XPF 32mm Intelligent Feeder, W32C, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

K5357M	SCREW, HEX SOCKET COUNTERSUNK
PP02683 / PP02667	COVER
K5170C / PZ13391	SCREW, C / R COUNTERSUNK
PZ02321	SPRING
PT01871	CLAMPER
PZ43291 / PZ43292	WIRE
PZ27752	BOLT
PP02566	PLATE, REAR
PZ27782	BOLT
PH01810 / PH01814	HANDLE
K5358A	SCREW, HEX SOCKET COUNTERSUNK
N10812	NUT, HEX
PP02653 / PP02654	LEVER
PT01881	CLIPPER, WIRE
K5357T	SCREW, HEX SOCKET COUNTERSUNK

Advanced Feeder Technology for Precision Placement

The UF10800 Intelligent Feeder utilizes smart technology to ensure synchronized component feeding, featuring electronic drive and stepper motor integration for consistent, precise operation. With embedded ID memory and barcode compatibility, it supports real-time traceability, crucial for quality control and process optimization in high-mix SMT production environments.

Versatile and User-Friendly Design

Engineered with operator convenience in mind, the UF10800's quick-change and tool-free maintenance enable fast setup and minimal downtime. Its bucket-type loading mechanism efficiently handles tray and odd-form components, while the anodized, smooth exterior ensures durability and corrosion resistance. Plug & play installation speeds up feeder swaps for maximum production efficiency.

FAQ's of UF10800 FUJI NXTII / XPF 32mm Intelligent Feeder, W32C, Bucket Type:

Q: How does the UF10800 Intelligent Feeder improve SMT placement productivity?

A: The UF10800 feeder supports quick changeover, plug & play mounting, and tool-free maintenance, reducing line downtime during reel swaps or feeder maintenance. Its intelligent data interface ensures seamless syncing with FUJI NXTII/XPF machines, while integrated jam detection and traceable feeder IDs help maintain consistent production flow and quality.

Q: What types of components can the UF10800 feeder handle?

A: This feeder is specifically designed to handle 32mm-wide SMT tape and tray/odd-form components, making it suitable for a broad range of devices. Its bucket-type mechanism accommodates standard tape reels (up to 380mm) and various tray-fed parts, providing flexibility for diverse SMT assembly processes.

Q: When should the UF10800 feeder be chosen for production lines?

A: The UF10800 is ideal for production scenarios that demand fast changeovers, high reliability, traceability, and the need to feed tray or odd-shaped components. It is particularly suited for manufacturers using the FUJI NXTII or XPF series placement machines with frequent product changes or a high mix of component types.

Q: Where is the UF10800 feeder compatible for use?

A: The UF10800 is compatible with FUJI NXTII and XPF series SMT placement machines, supporting all standard 32mm tape and tray components. It is frequently deployed in electronics manufacturing plants requiring high-mix, flexible production in India and abroad.

Q: What maintenance is required for the UF10800 feeder?

A: The feeder is designed for minimal maintenance, featuring a tool-free structure and pre-lubricated, maintenance-free bearings. Routine cleaning and visual checks are generally sufficient. In case of tape jams, its integrated sensors facilitate fast troubleshooting.

Q: How does the feeder ensure traceability and process control?

A: Each UF10800 feeder has embedded ID memory and barcode data storage, enabling traceability of feeder usage and changeover. This data can be integrated into the SMT line's quality management systems for process control, component tracking, and production documentation.

Q: What are the main benefits of using the UF10800 Intelligent Feeder?

A: Key benefits include seamless integration with FUJI SMT lines, robust reliability, fast and easy changeovers, comprehensive traceability, and efficient feeding of both standard and odd-form components. Its durable construction and quiet operation (<60 dB) enhance operator comfort and productivity.
