YAMAHA YSM20R-2 SMT Chip Shooter High Speed Component Placement for Precision Electronics Assembly

YAMAHA YSM20R-2 SMT Chip Shooter High Speed Component Placement for Precision Electronics Assembly Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Western Europe, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East

About YAMAHA YSM20R-2 SMT Chip Shooter High Speed Component Placement for Precision Electronics Assembly

Prices are for show only, please contact us for exact price.

Product Description

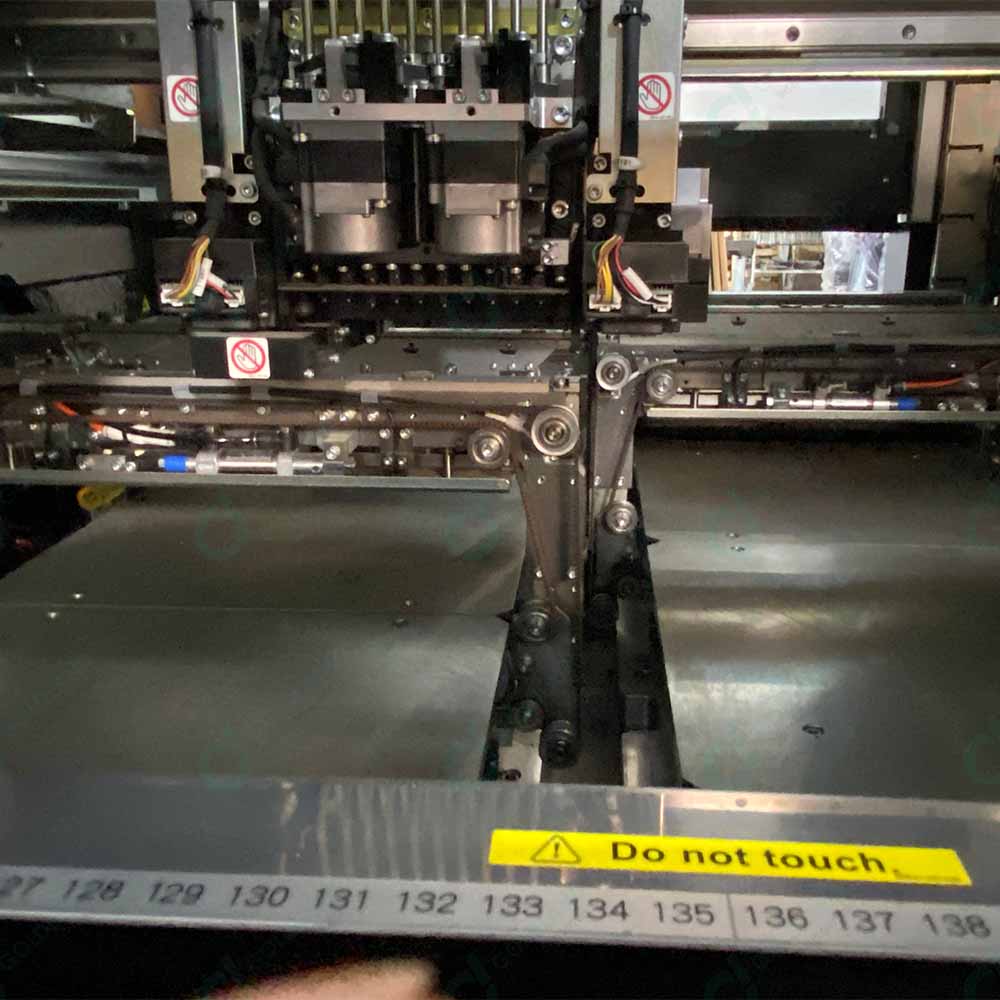

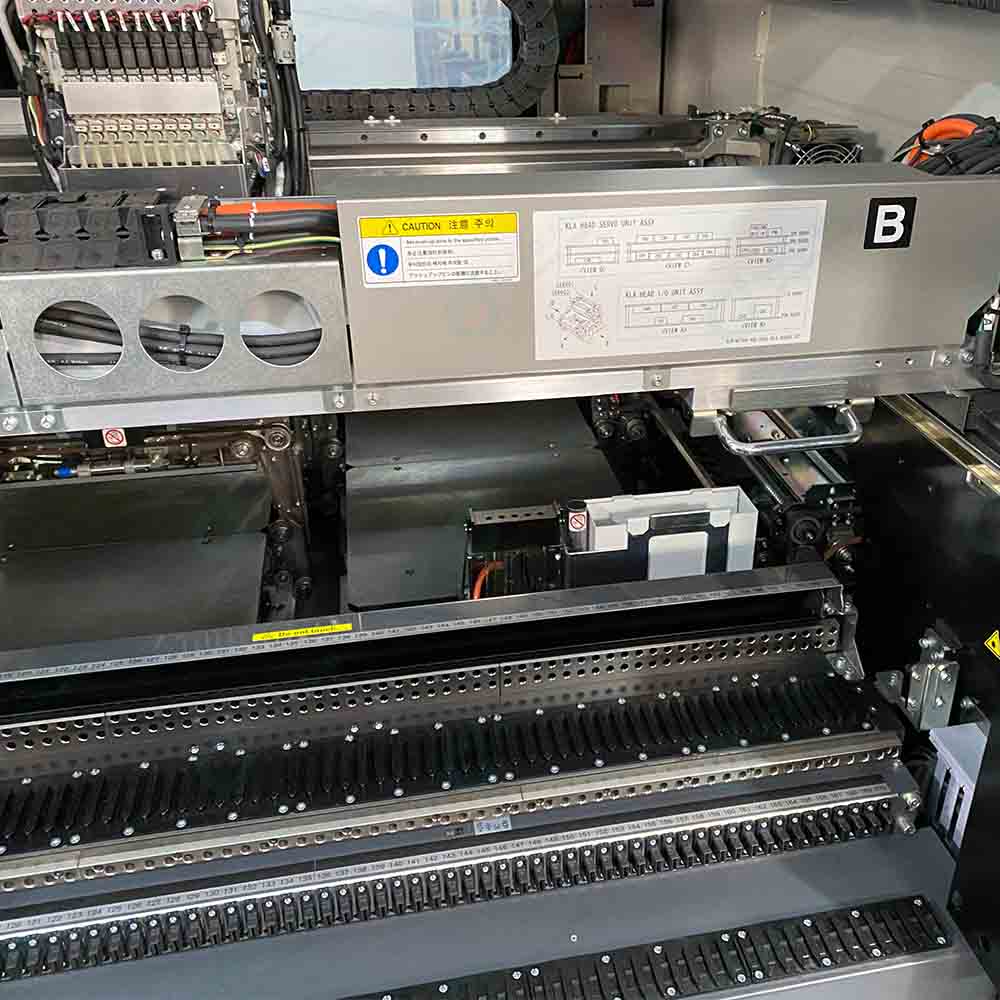

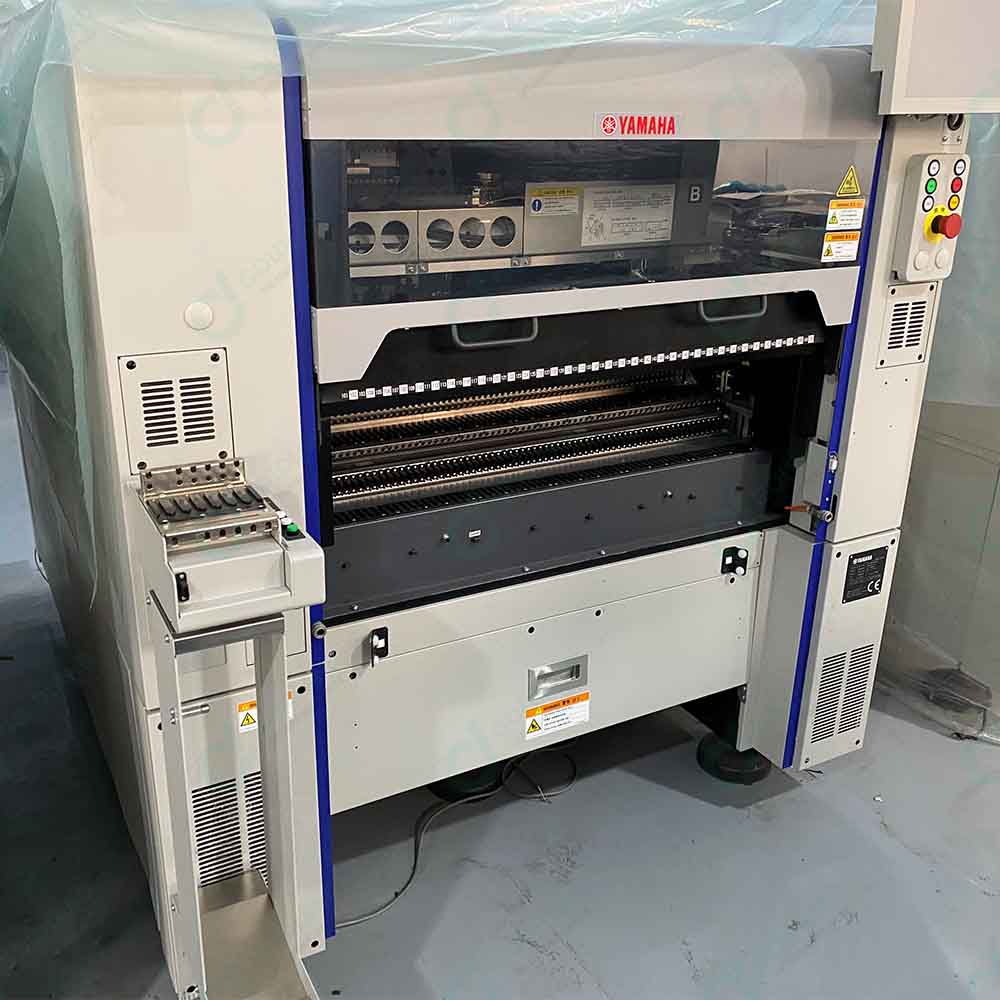

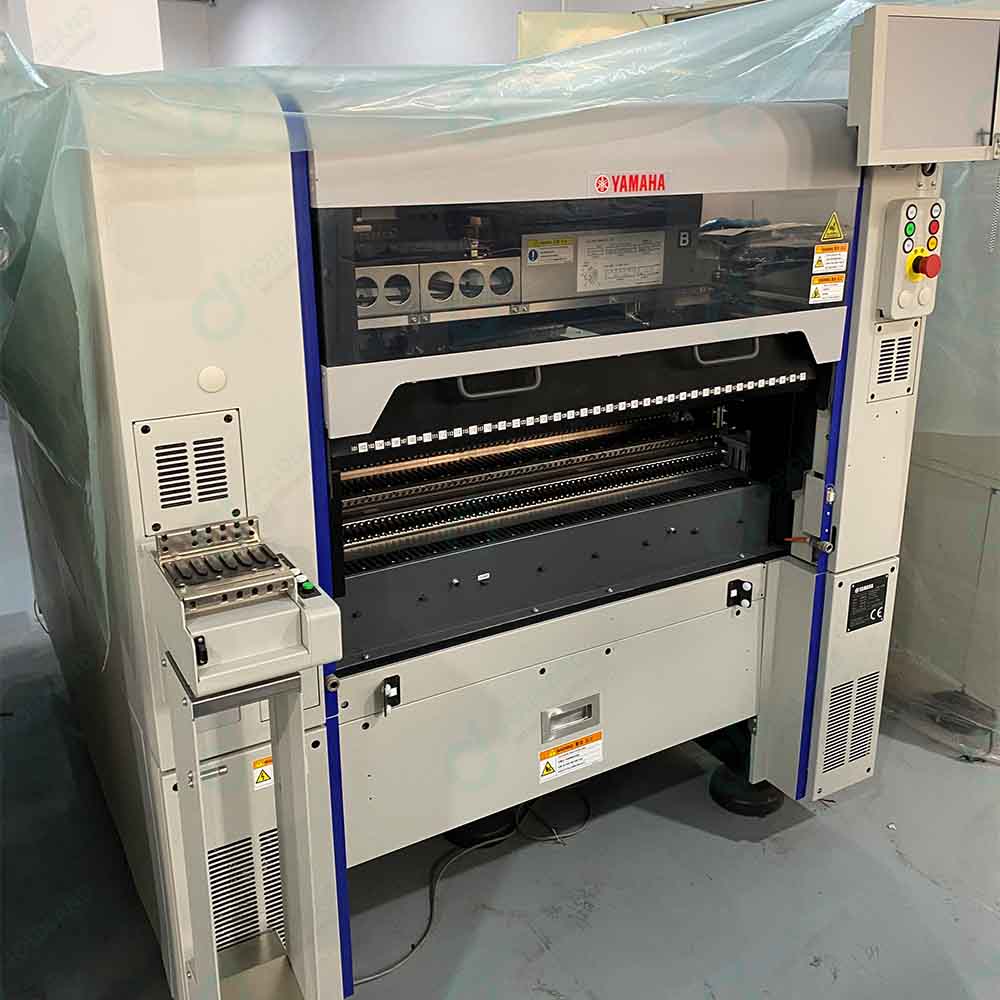

The YAMAHA YSM20R-2 SMT chip shooteris a high-performance pick-and-place machine designed for fast and accurate component placement in surface mount technology (SMT) applications. Known for its exceptional speed and precision, the YSM20R-2 offers a versatile solution for high-volume PCB assembly, handling a wide range of components from small chips to larger parts. The machines advanced feeder systems and intelligent software allow for seamless integration into high-speed production lines, minimizing cycle times while maintaining the highest placement accuracy. Ideal for electronics manufacturers looking to streamline operations and improve throughput, the YAMAHA YSM20R-2ensures reliable performance in diverse industries, including automotive, telecommunications, and consumer electronics. With its robust construction and user-friendly interface, it is built to support both high-mix and high-volume production environments, making it a valuable asset for efficient SMT assembly.

Product Specifications

Model	YSM20R TypePV	YSM20R TypeSV	YSM20WR
Applicable PCB	Single lane: L810xW490 to L50 xW50 Dual stage Note: For X-axis 2-beam option only 1 PCB conveyance: L810 xW490 to L50x W50 2 PCB conveyance: L380 x W490 to L50 x W50		Dual lane: Note 1 Same type PCBs: L810 x W356 to L50 xW50 Different type PCBs: up to L810x W662 Note 2 Same type PCB: L810 x W280 to L50 xW500 Different type PCBs:up to L810x W510

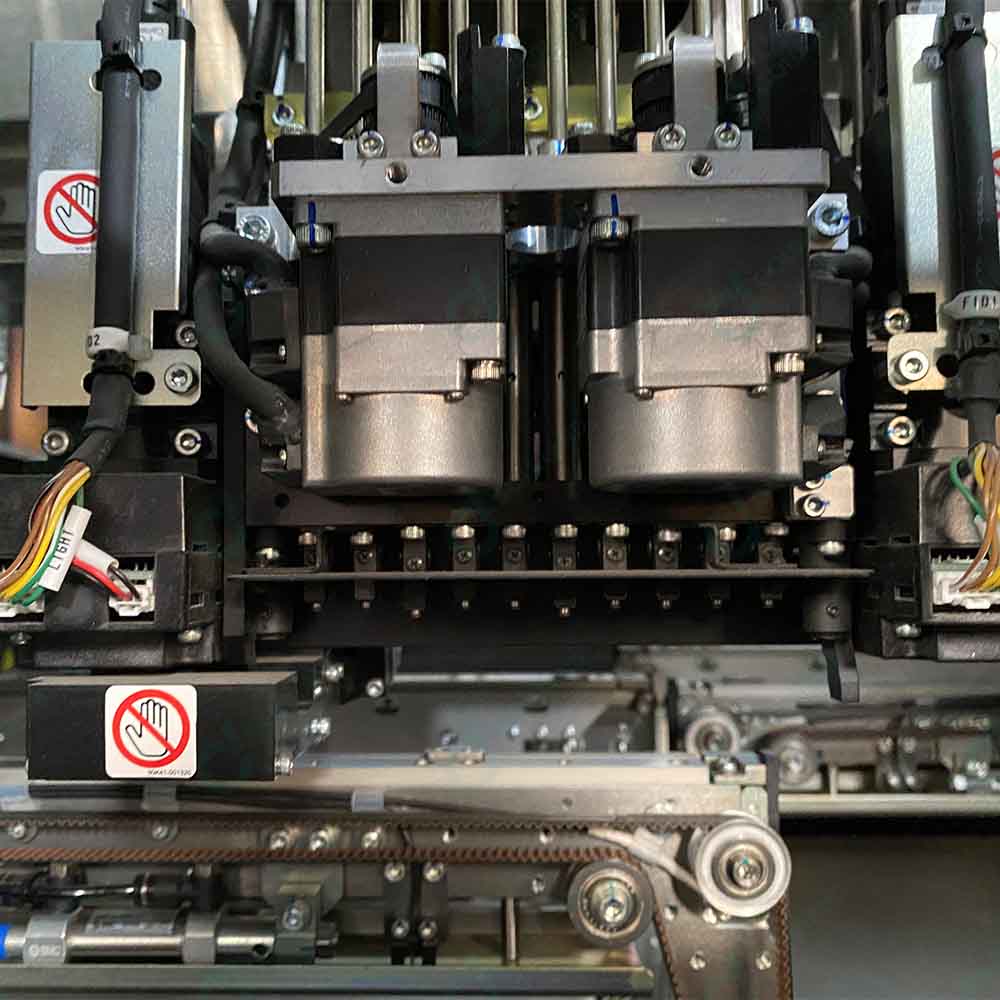

Head /Applicable components	High-Speed Multi (HM)Head Note 3: 0201 to W55xL100mm, Height 15mm or less Odd-shaped components (FM: Flexible Multi) head: 03015 to W55xL100mm, Height: 28mm or less	High-Speed Multi(HM)Head: 03015 to W55xL100mm, Height 15mm or less; Odd-shaped components (FM: Flexible Multi)head: 03015 to W55xL100mm, Height: 28mm or less	High-Speed Muti(HM)Head Note 3: 0201 to W55xL100mm,Height 15mm or less Odd-shaped components (FM:Flexible Multi) head: 03015 to W55xL100mm, Height 28mm or less
Mounting capability (under optimum conditions as defined by Yamaha Motor)	X axis 2-beam: High-speed multi-purpose (HM:High-speed Multi)head x 2: 95,000CPH	X axis 2-beam: High-speed multi-purpose (HM:High-speed Multi) head x 2: 90,000CPH	X axis 2-beam Note 1: High-speed multi-purpose (HM: High-speed Multi)head x 2: 81,000CPH


Model	YSM20R TypePV	YSM20R TypeSV	YSM20WR
Mounting accuracy	0.035mm(0.025mm) Cpk1.0 (3o) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)
Number of component Types	Fixed plate: Max.140 types (conversion for 8mm tape feeder) Feeder carriage exchange: Max.128 types (conversion for 8mm tape feeder) Trays for 30 types (Fixed type: max.,when fitted with sATS30) and 10 types (Carriage type:max., when fitted with cATS10)

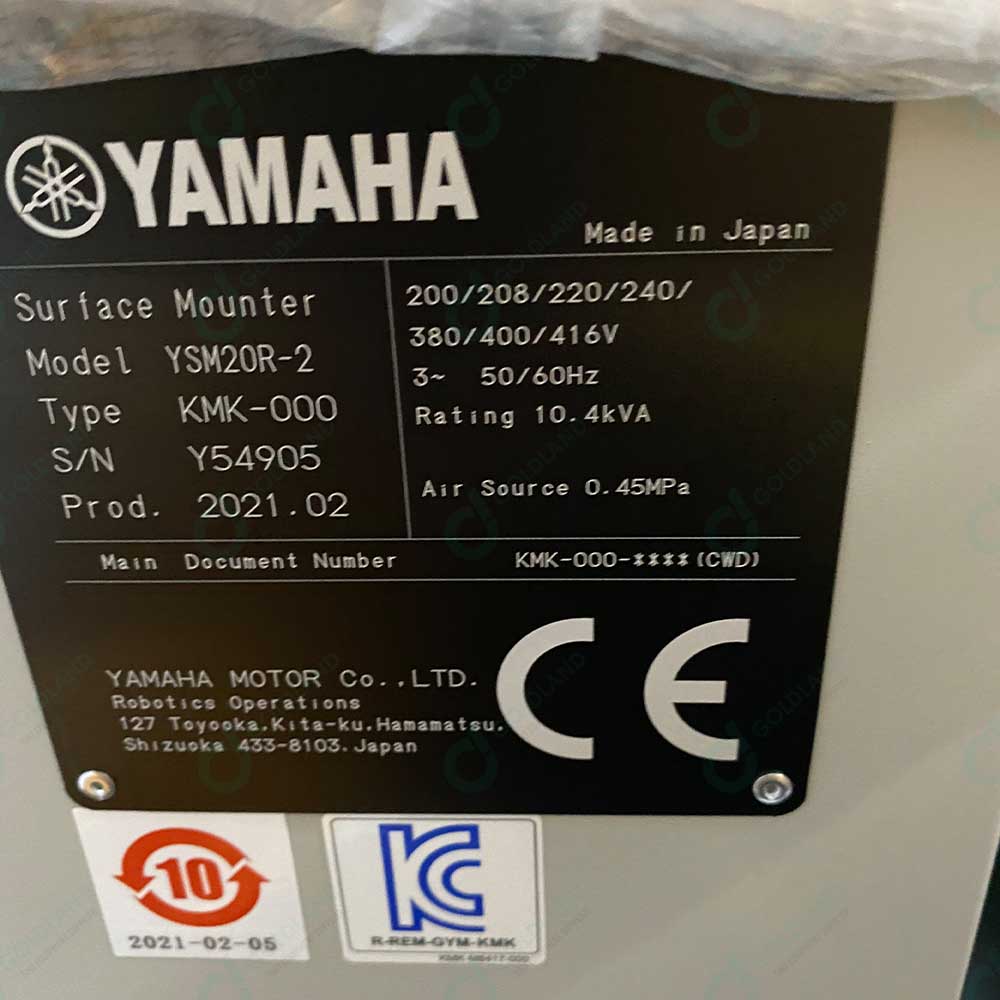

Power supply	3-Phase AC 200/208/220/240/380/400/416V+/-10%50/60Hz
Air supply source	0.45MPa or more,in clean,dry state
External dimension (excluding projections)	L 1,374xW1,857xH1,445mm (Main unit only)		L1,374xW2,110xH1,445mm(Main unit only)
Weight	Approx. 2,050kg (Main unit only)		Approx. 2,500kg (Main unit only)
