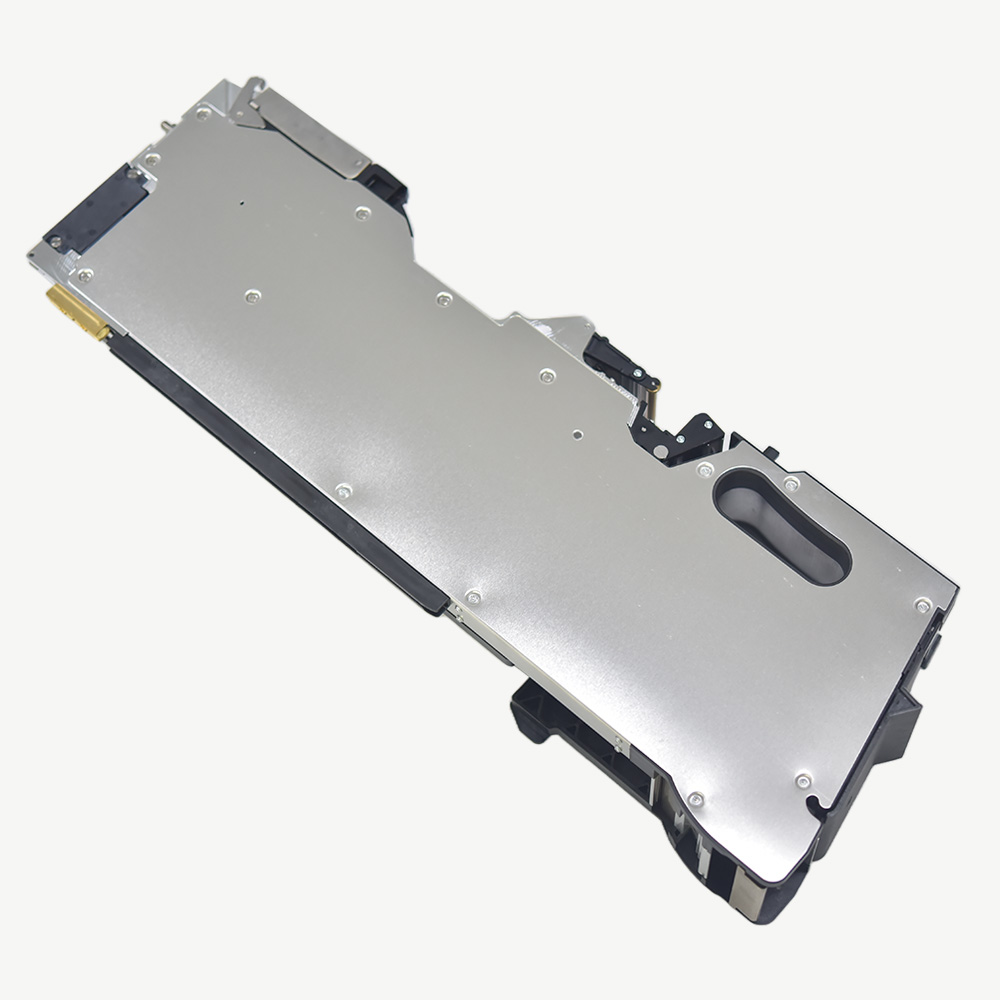

00141499 SIPLACE Smart Feeder 2x8mm X, with Splice Sensor

00141499 SIPLACE Smart Feeder 2x8mm X, with Splice Sensor Specification

Drive Type
Electric Motor Driven

Features
Splice Sensor, Quick Change, Compatibility with SIPLACE X-Series

Size
2x8mm Tape Format

Usage & Applications
SMT Placement Machines, High-Speed Pick and Place Automation

Surface Finish
Smooth, Industrial-Grade

Shape
Rectangular Module

Capacity
2 lane x 8mm tape

Motor Power
Integrated Micro Motor

Noise Level
< 60 dB

Lubricating System
Maintenance-Free

Product Type
SIPLACE Smart Feeder 2x8mm X with Splice Sensor

Material
Aluminum Alloy, High-Quality Engineering Plastics

Technology
Automated SMT Feeder Technology

Power Source
Electric

Power
Low Power Consumption

Voltage
24 V DC (typical for SIPLACE feeders)

Surface Treatment
Anodized/Protected Surface

Dimension (L*W*H)
Approx. 340 mm x 130 mm x 90 mm

Weight
1.1 kg (approximate)

Color
Grey / Black

Changeover Time
<3 Seconds for Tape Replacement

Relative Humidity
20% to 80% (non-condensing)

Communication Interface
Integrated ID Chip for Feeder Tracking

Maintenance
Toolless removal and installation, No regular lubrication required

Splice Sensor Type
Optical Splice Detection

Tape Width Supported
8 mm (2 Lanes)

Display/Indicators
Integrated LED Status Indicators

Tape Pitch Support
4 mm / 2 mm (standard for 8 mm tape)

Compatibility
SIPLACE X-Series, SIPLACE SX, and TX models

Feeding Accuracy
0.06 mm

Mounting Method
Tool-Free Snap-In Mounting

Operating Temperature
5C to 40C

Operating Life
10 million cycles

ESD Protection
Yes, ESD-Safe Design

00141499 SIPLACE Smart Feeder 2x8mm X, with Splice Sensor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Middle East, Eastern Europe, Western Europe, Africa

About 00141499 SIPLACE Smart Feeder 2x8mm X, with Splice Sensor

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

03023073-03	Barcodefolie X-Feeder Sektor 3	BarcodeLaminate X-Feeder Sector 3
03023618-01	Pipette SOKO 7xx 5x2	SOKO Panasonic nozzle 7xx for A 5x2 / a 3,8x0.8
03023746-04	Maschinenverkleidung X-F MTC re	machinery facing X-F MTC r
03023800-02	Maschinenverkleidung X-F Abdeckung kpl	COVER X-F COMPLETE
03024746-01	Monitorhalterung / HS6x	Monitor Holder / HS6x
03025007-04	Maschinenverkleidung X-HS MTC li	machinery facing X-HS MTC l
03025743-01	Tastaturauflage Mittenkonsole, kpl	Keyboard Holder, Operator Console, cpl.
03025837-01	x-Halter kpl.	X-HOLDER COMPL.
03026079-01	Servicepipettensatz Twin-Head	Panasonic nozzle SET TWIN HEAD
03026214-01	Bohrlehre LP Barcode HS	DRILL GAUGE PCB BARCODE HS

Advanced Splice Sensing for Seamless Operation

The optical splice sensor in the 00141499 SIPLACE Smart Feeder ensures precise tape splicing, minimizing misfeeds and assembly errors. Its integrated LED status indicators give immediate visual feedback for operational status, safeguarding production quality during high-speed SMT assembly processes.

Effortless Changeovers and Maintenance

Designed for maximum efficiency, the SIPLACE Smart Feeder allows tape replacement in under three seconds thanks to its tool-free snap-in mounting. Maintenance is equally simple, with toolless removal and installation-requiring no regular lubrication. This significantly reduces downtime and improves productivity.

Reliably Engineered for Industrial Demands

Manufactured from anodized aluminum alloy and high-quality engineering plastics, this feeder is robust, lightweight, and ESD-safe. Its integrated micro motor and smooth, industrial-grade finish guarantee low noise, minimal power consumption, and a service life exceeding 10 million cycles, making it ideal for 24/7 automation environments.

FAQ's of 00141499 SIPLACE Smart Feeder 2x8mm X, with Splice Sensor:

Q: How does the optical splice sensor in the SIPLACE Smart Feeder benefit SMT operations?

A: The optical splice sensor detects splices in the carrier tape with high accuracy, ensuring continuous SMT placement with minimal interruptions and reducing the risk of component misfeeds or placement errors.

Q: What tape formats and pitch widths does this feeder support?

A: The feeder supports dual 8 mm tape lanes with standard tape pitches of 4 mm and 2 mm, making it compatible with a wide range of SMT components typically used in high-speed pick and place environments.

Q: When should the SIPLACE Smart Feeder be maintained or lubricated?

A: Routine lubrication is not required due to the feeder's maintenance-free, integrated lubricating system. Toolless removal and installation make periodic cleaning or checks extremely fast and easy.

Q: Where can the SIPLACE Smart Feeder be installed, and with which machines is it compatible?

A: This feeder is designed for SIPLACE X-Series, SX, and TX models, and its tool-free snap-in mounting allows quick installation on compatible SMT placement machines in production environments.

Q: What is the process for replacing tape or switching between jobs with this feeder?

A: Tape replacement can be done in under three seconds thanks to the easy-access, tool-free snap-in design. This supports rapid changeovers and maximizes uptime during job switches.

Q: How does the integrated ID chip enhance feeder operation and traceability?

A: The built-in ID chip allows seamless feeder tracking by the SMT machine, providing data for process monitoring, inventory management, and maintenance scheduling to enhance transparency and efficiency.
