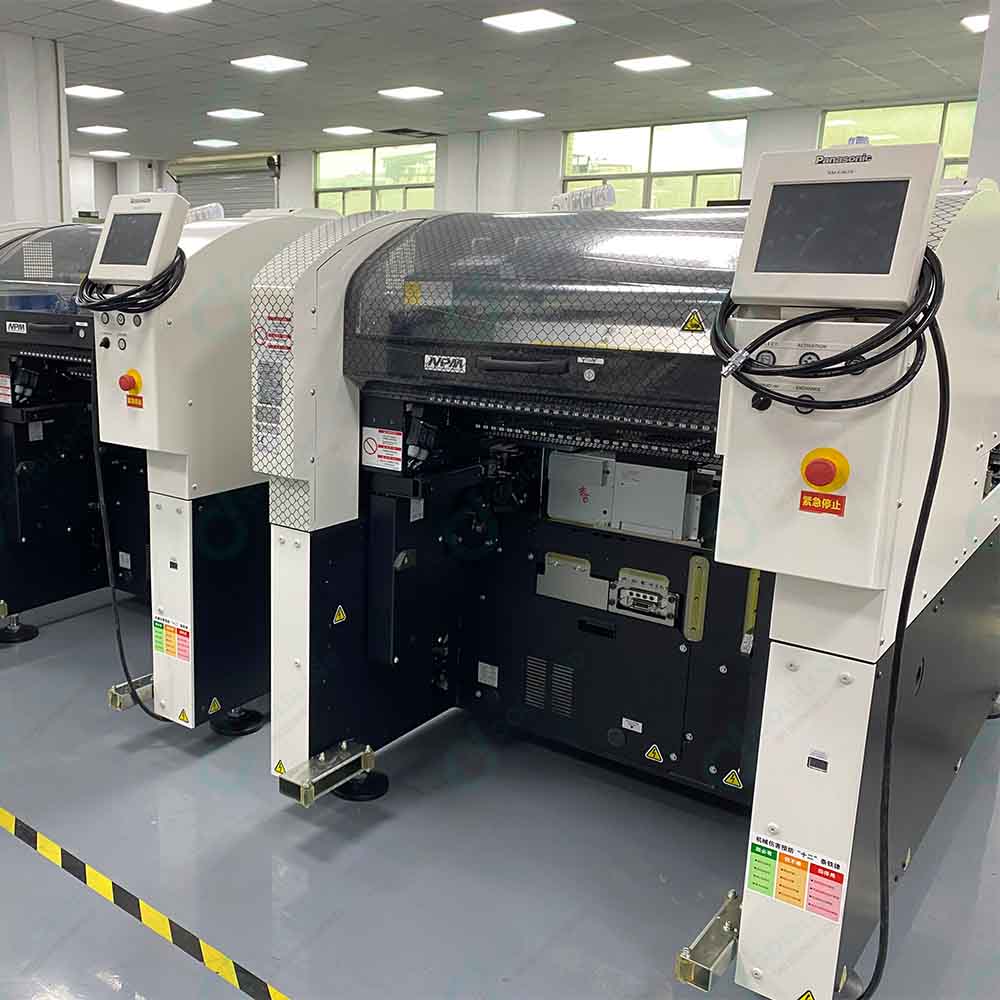

Panasonic NPM W2 Mounter Machine High Speed, High Precision SMT Solution for PCB Assembly

Panasonic NPM W2 Mounter Machine High Speed, High Precision SMT Solution for PCB Assembly Specification

Product Type
SMT Mounter Machine

Material
High-grade Industrial Alloy and Steel

Capacity
Up to 86,000 CPH (Components Per Hour)

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
Panasonic Intelligent Control Platform

Processing Type
SMT Placement

Voltage
Three-phase AC 200/208/220/240/380/400/416 V

Power
Maximum 4.5 kVA

Dimension (L*W*H)
1,350 mm x 2,706 mm x 1,445 mm

Weight
Approx. 2,300 kg

Color
Industrial White & Blue

Software Features
MES connectivity, production analytics, error recovery modules

Feeder Capacity
Up to 136 (8 mm tape) slots

Noise Level
Less than 65 dB(A)

Safety Features
Light curtain, emergency stop, safety interlocks

Camera System
High precision on-the-fly vision recognition system

Component Accuracy
25 m (Cpk 1.0, high speed) / 15 m (Cpk 1.0, high precision)

Conveyor System
Dual lane and single lane supported (flexible production modes)

Component Range
0201 mm (metric) to 100 x 90 mm, up to 28 mm height

Operating Environment
Temperature 10C-35C, Humidity 35%-80% RH (non-condensing)

Placement Heads
Lightweight multi-function head, 16 nozzles (high speed), available with 8-nozzle (multi-function)

Communication Interface
Ethernet, USB

PCB Thickness
0.3 mm - 6.5 mm

Mountable PCB Size
Min. 50 x 50 mm / Max. 750 x 550 mm (dual lane: max. size varies)

Panasonic NPM W2 Mounter Machine High Speed, High Precision SMT Solution for PCB Assembly Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Asia, Western Europe, Middle East, Africa

About Panasonic NPM W2 Mounter Machine High Speed, High Precision SMT Solution for PCB Assembly

Prices are for show only, please contact us for exact price.

Product Description

The Panasonic NPM-W2 mounter machineis an advanced, high-performance solution for Surface Mount Technology (SMT) PCB assembly. Designed for high-speed, precise component placement, the NPM-W2 delivers excellent accuracy in both small and large-scale production environments. With its flexible configuration and intelligent vision system, the NPM-W2 can handle a wide variety of components, ensuring fast and reliable assembly for industries such as electronics, automotive, and telecommunications. The machine's user-friendly interface and automated processes optimize production efficiency and reduce downtime. Whether you're looking to improve throughput or enhance placement accuracy, the NPM-W2 mounteroffers an innovative solution that supports both high-mix and high-volume production. Its robust build and advanced feeder systems make it an essential tool for manufacturers seeking to streamline their SMT processes and boost operational efficiency.

Product Specifications

NPM-W2

16+16 head

High Speed Mode (ON)

77,000cph (0.047s/chip)

IPC98(1608): 59200cph

8mm/Max.120

Single Conveyor:
50x50mm750x550mm(Batch Installation)
50x50mm750x510mm;

Dual Conveyor:
50x50mm350x550mmDual position installation
50x50mm750x260mm;

40m/chip

Single Conveyor:

Dual Conveyor

3/200/2.5

200L/Min

2470

2465/1280/1444

High Speed Mode (OFF)

70,000cph (0.051s/chip)

IPC98(1608): 56600cph

30m/chip;
25m/chip

12+12 head

High Speed Mode (ON)

64500cph (0.056s/chip)

IPC98(1608): 49500cph

40m/chip

High Speed Mode (OFF)

62500cph (0.058s/chip)

IPC98(1608): 49500cph

30m/chip

8+8 head

40000cph (0.090s/chip)

30m/chip,
30m/ 12-32mm QFP,
50m/ smaller than 12mm QFP,
CPK1

3+3 head

16,000cph, (0.327s/chip)
12500cph (0.423s/QFP)

30m/QFP

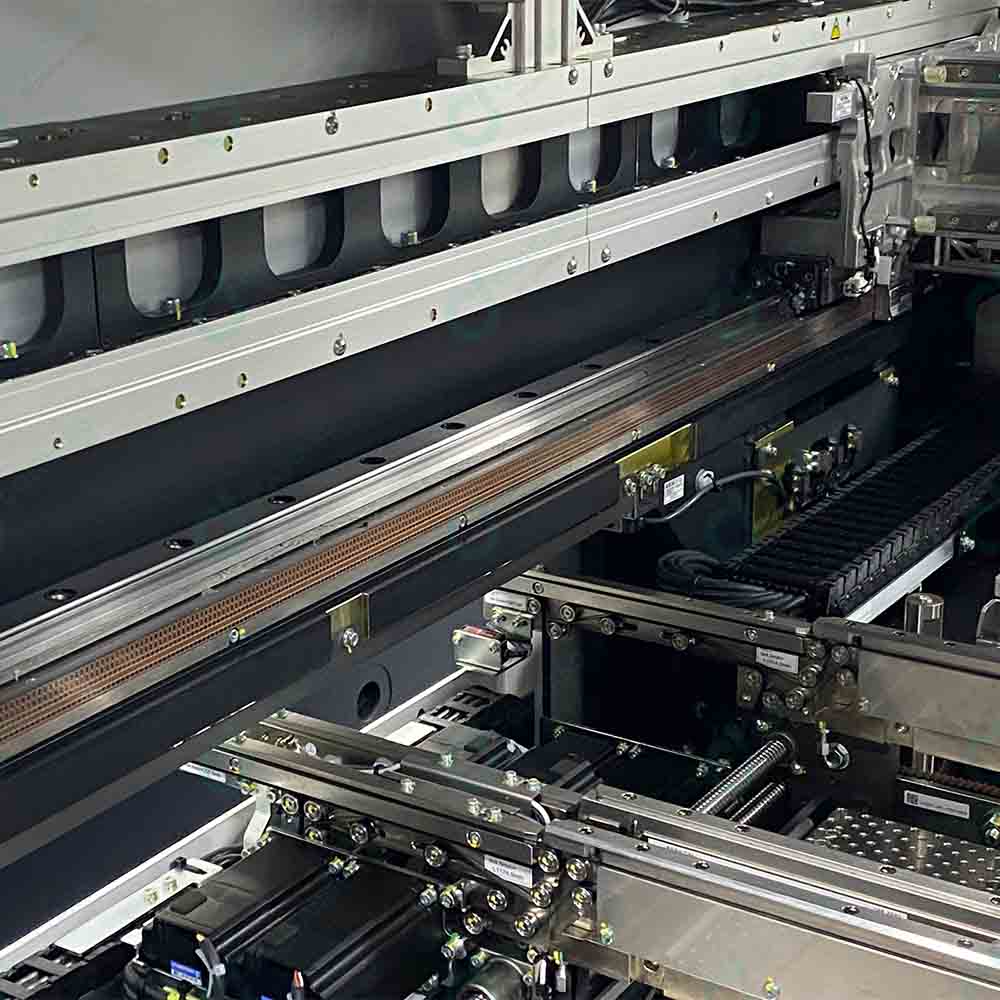

Unmatched Speed and Precision

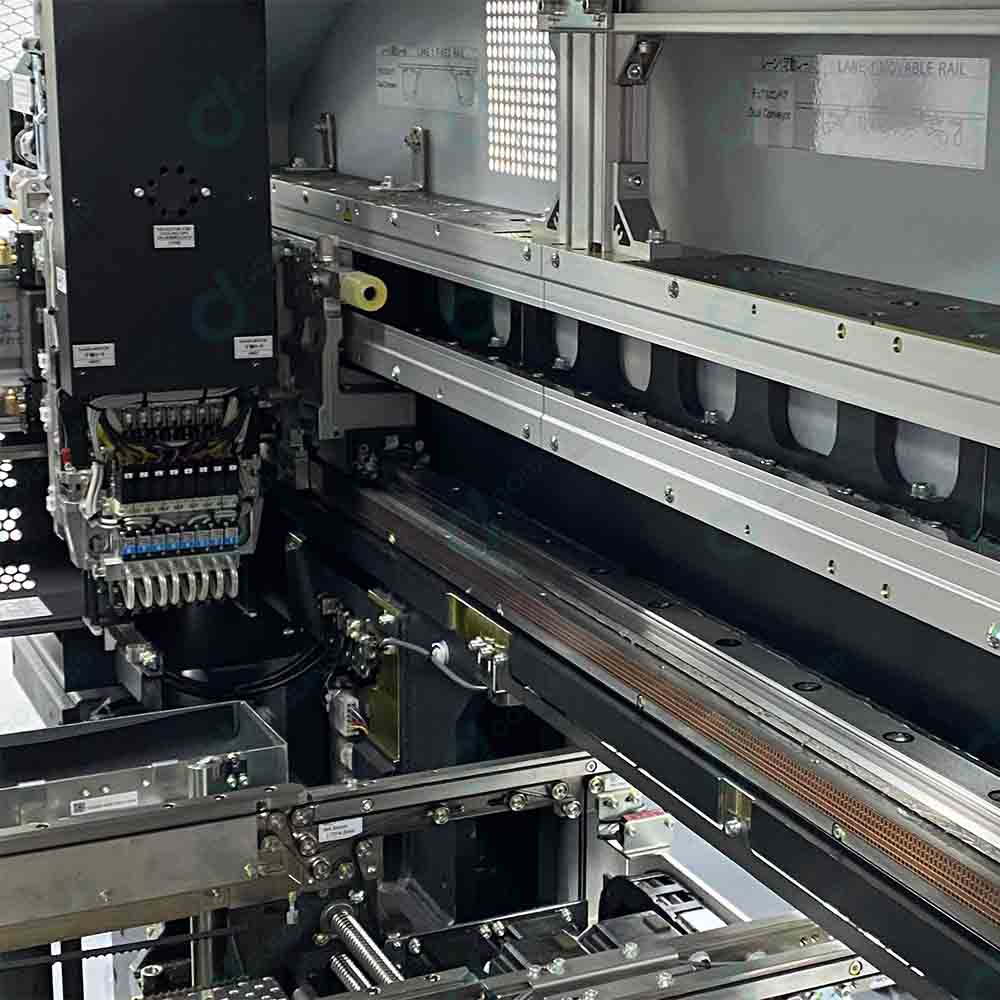

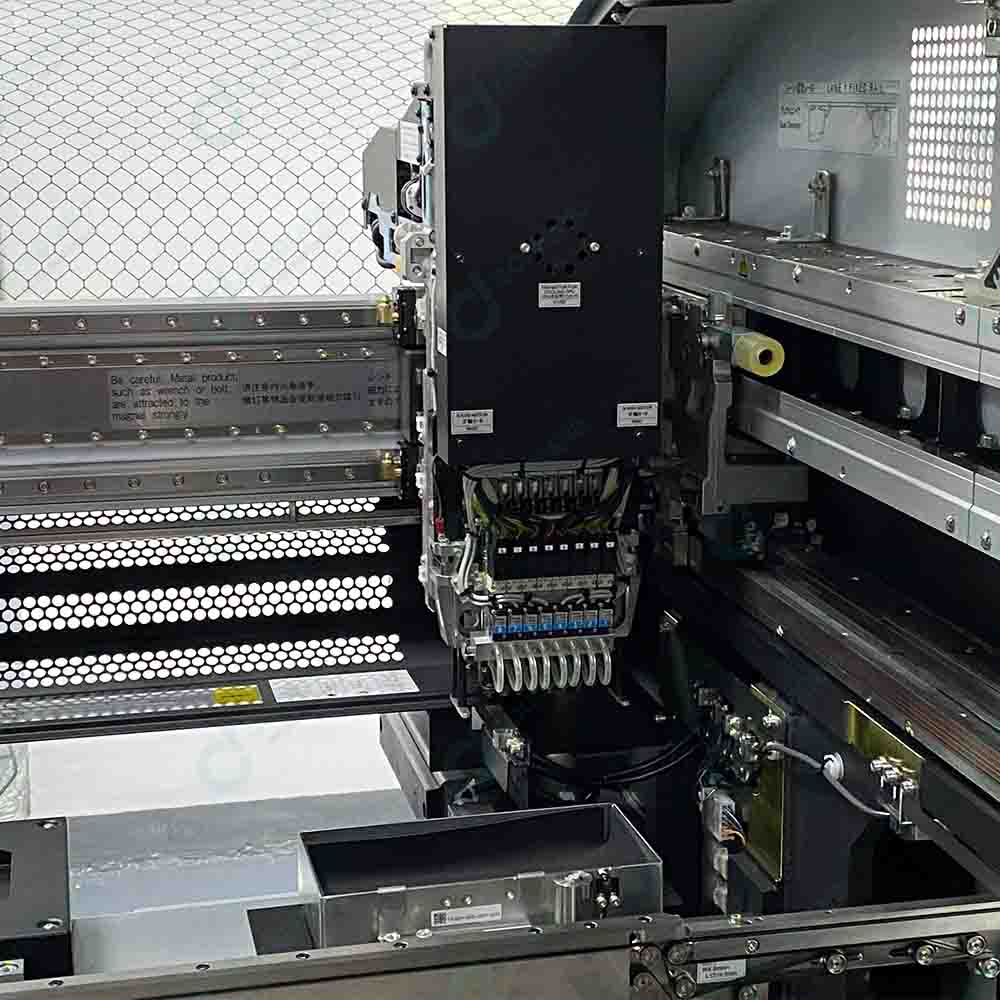

The NPM W2 Mounter delivers astonishing throughput of up to 86,000 components per hour (CPH) while maintaining high placement accuracy (up to 15 m, Cpk 1.0). Its lightweight head design and multiple nozzles enable rapid, precise mounting for a range of components, ensuring efficiency in high-volume production lines.

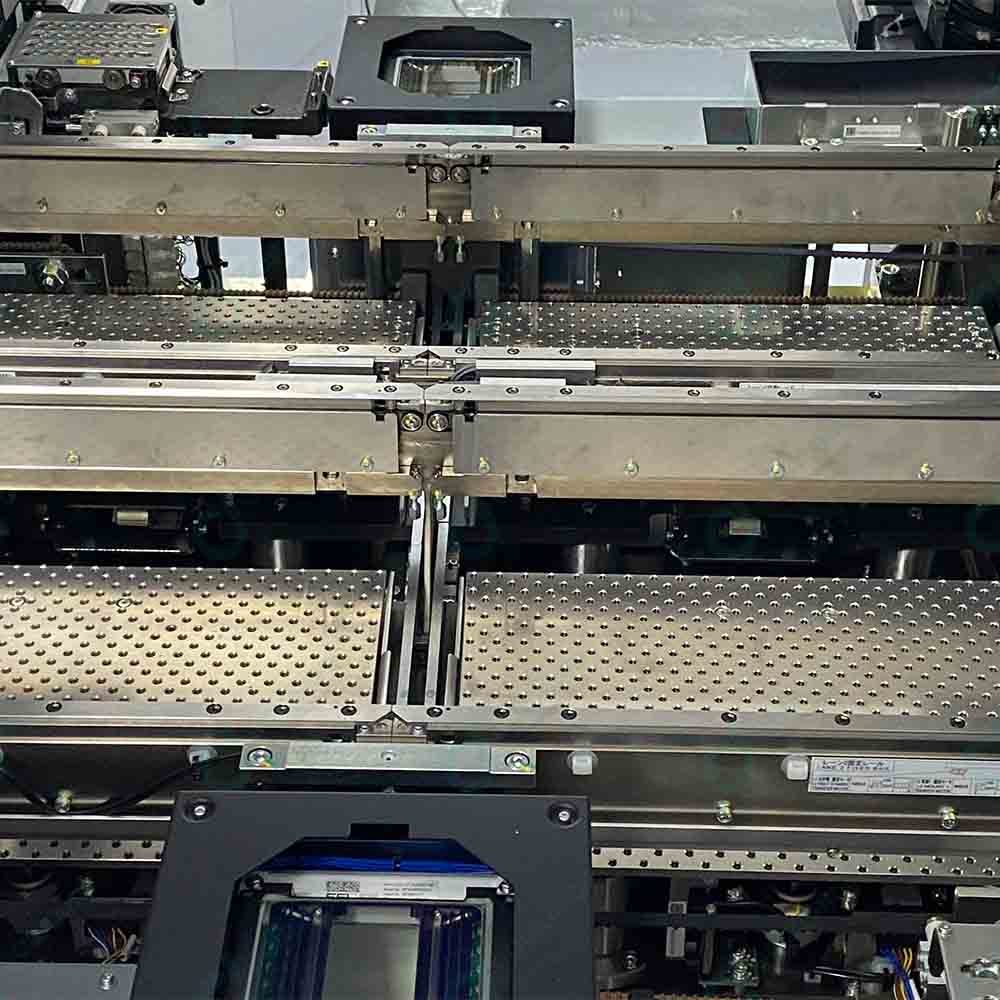

Flexibility and Range for Modern Production

Supporting both single and dual-lane conveyor modes, the NPM W2 can process PCBs of varying sizes and thicknesses (0.3-6.5 mm). Its extensive component range-from small 0201 chips to larger 100 x 90 mm packages-ensures adaptability for diverse manufacturing requirements while optimizing workflow.

Intelligent Control and Safety

Integrated with the Panasonic Intelligent Control Platform, the mounter offers advanced software functionalities, including MES connectivity, production analytics, and error recovery. Safety is a priority, with light curtains, emergency stop controls, and safety interlocks built-in for secure operation in any manufacturing setting.

FAQ's of Panasonic NPM W2 Mounter Machine High Speed, High Precision SMT Solution for PCB Assembly:

Q: How does the Panasonic NPM W2 Mounter improve PCB assembly efficiency?

A: The NPM W2 enhances efficiency with a high-speed placement capability of up to 86,000 components per hour, precision placement heads, and a flexible dual-lane conveyor system, reducing cycle times and increasing production throughput.

Q: What component sizes and types can the NPM W2 mount?

A: This machine accommodates a wide variety of components, from compact 0201 mm metric chips to large 100 x 90 mm devices, with a component height capacity of up to 28 mm, making it suitable for complex PCB assemblies.

Q: When should I use the dual-lane conveyor mode?

A: Dual-lane mode is ideal when running multiple PCB types or sizes simultaneously, maximizing line utilization and minimizing downtime for changeovers, especially in high-mix, low-volume or high-volume manufacturing environments.

Q: Where can the Panasonic NPM W2 Mounter be installed?

A: The mounter can be installed in electronics manufacturing environments that meet the required operating conditions: temperatures between 10C-35C and relative humidity of 35%-80% (non-condensing), with sufficient floor space to accommodate its dimensions (1,350 x 2,706 x 1,445 mm).

Q: What process does the mounter use for component placement?

A: Utilizing a high-precision on-the-fly vision recognition system and intelligent multi-function heads, the NPM W2 accurately picks and places components onto PCBs as part of the SMT assembly process, governed by the Panasonic Intelligent Control Platform.

Q: How is operator safety ensured on the NPM W2 Mounter?

A: The machine is equipped with several safety features, including a protective light curtain, emergency stop buttons, and safety interlocks, all contributing to a secure operational environment for operators and maintenance personnel.

Q: What benefits does the software integration offer for production?

A: MES connectivity and advanced analytics allow for real-time tracking of production metrics, error recovery, and enhanced traceability, supporting more informed decision-making and proactive maintenance for manufacturers.
