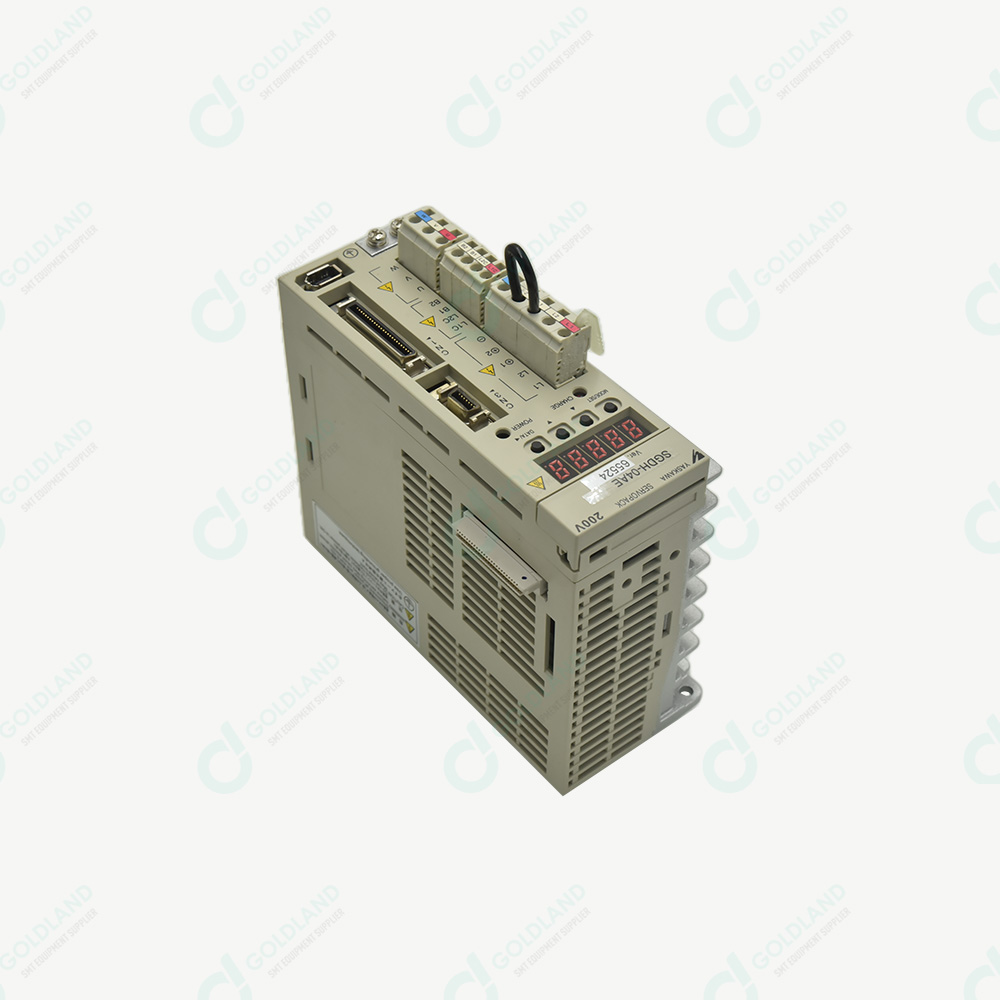

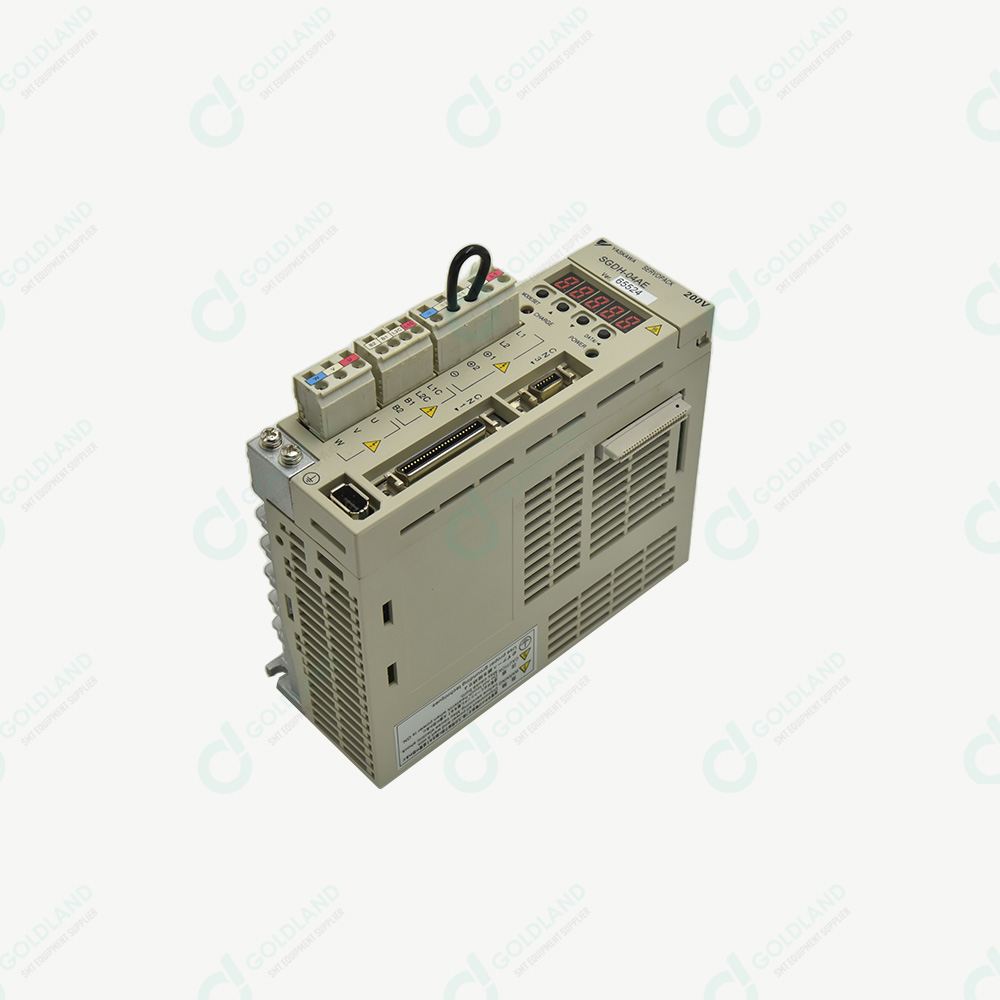

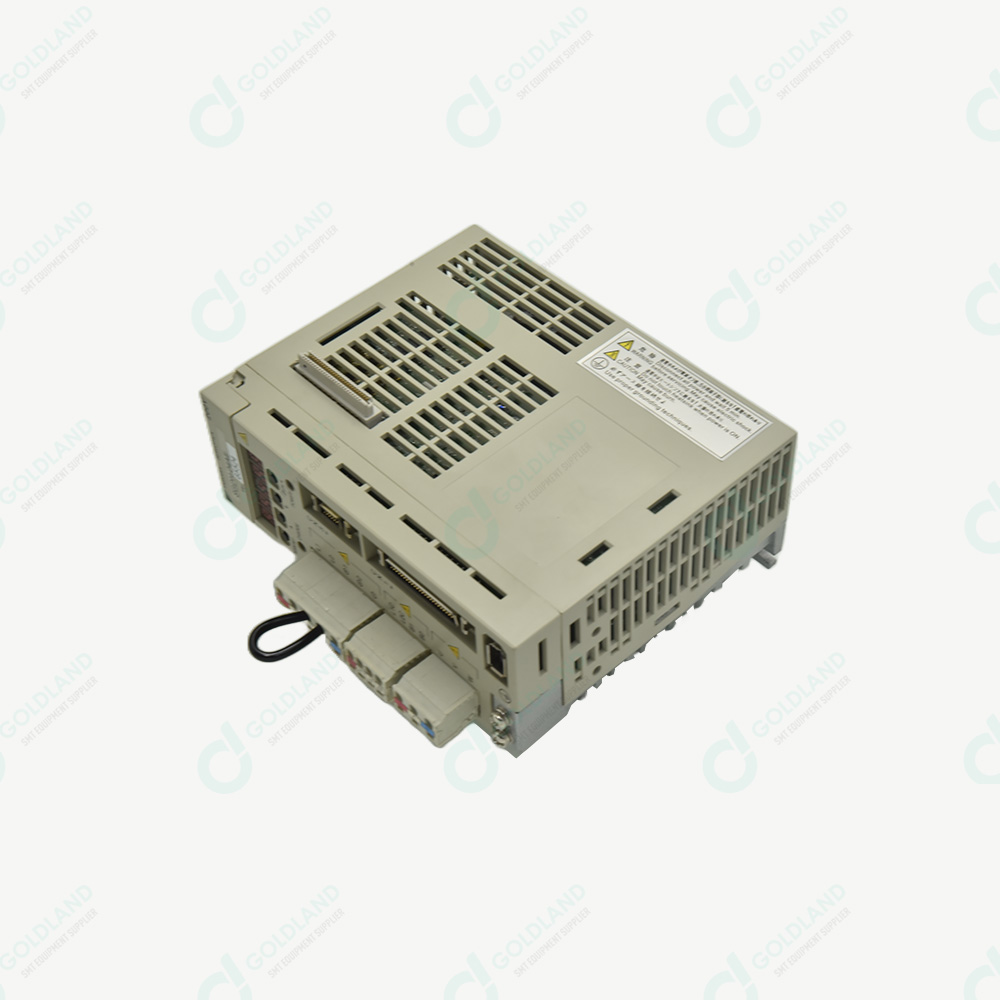

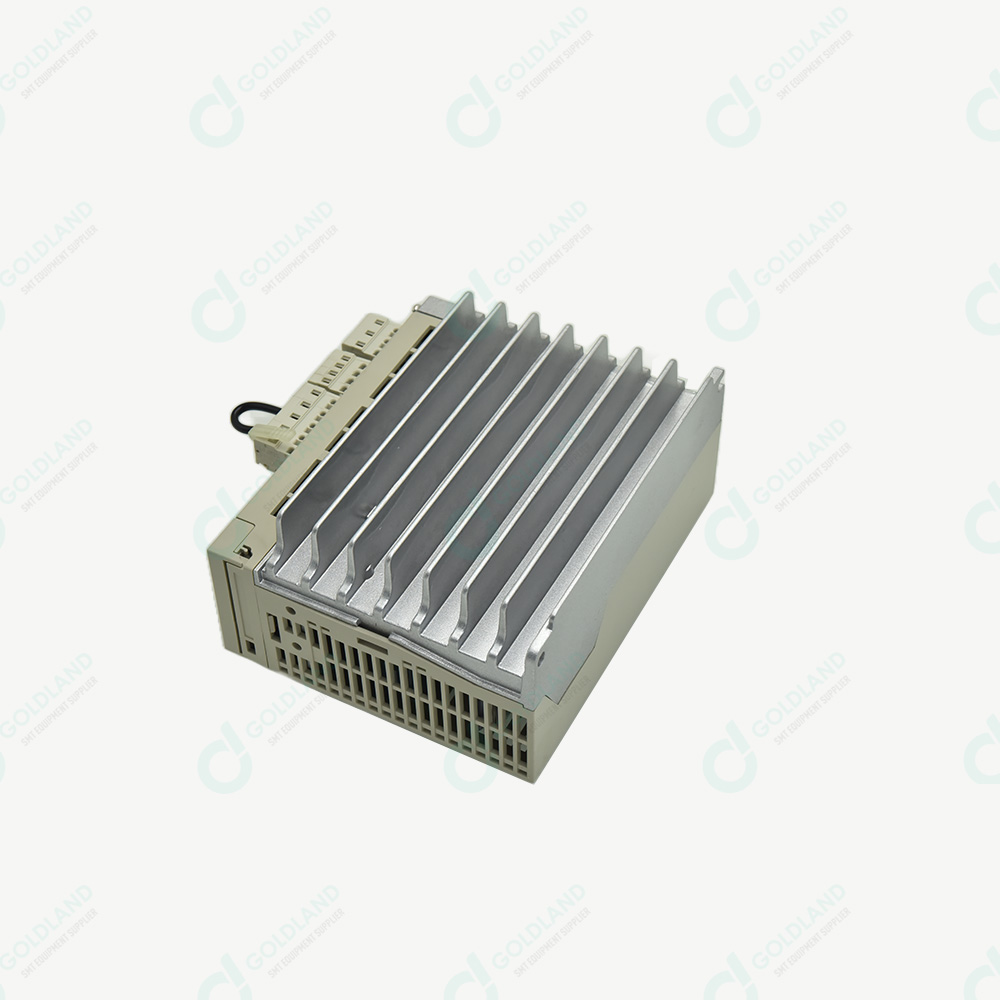

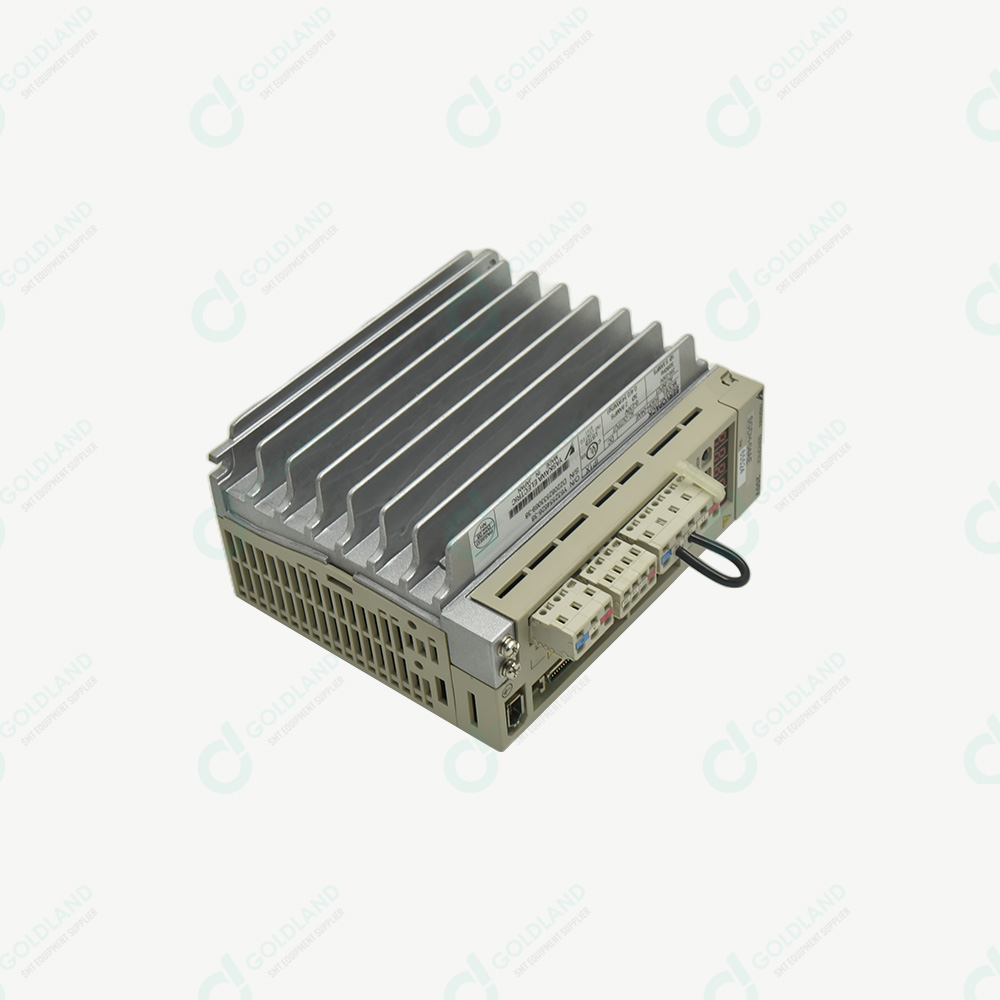

SGDH-04AE FUJI Yaskawa

SGDH-04AE FUJI Yaskawa Specification

Shape
Rectangular

Noise Level
Low Noise Operation

Drive Type
AC Servo Drive

Capacity
Supports 400W Servo Motor

Features
High Precision Control, Compact Design, Digital Display, Multiple Protection Functions

Motor Power
400W

Surface Finish
Powder Coated

Size
Standard Mounting Size

Usage & Applications
Industrial Automation, CNC Machinery, Packaging, Robotics

Product Type
Digital AC Servo Drive (SGDH-04AE)

Material
Industrial Grade Components

Technology
Yaskawa Sigma II Series Servo Technology

Power Source
Electric

Power
400W (0.4kW)

Voltage
200-230V AC

Surface Treatment
Coated Housing

Dimension (L*W*H)
Approx. 170 x 60 x 160 mm

Weight
Approx. 1.5 kg

Color
Silver/Grey

Model Number
SGDH-04AE

Control Method
PWM Control / Full Digital Control

Compatible Motor
Sigma II Series Servomotors

Operating Temperature
0C to 55C

Protection Features
Overcurrent, Overvoltage, Overtemperature, Short-Circuit, Motor Lock Detection

Mounting
Panel Mountable

Input Frequency
50/60 Hz

Encoder Support
Incremental / Absolute (17-bit)

Rated Output Current
2.6A

Peak Output Current
7.8A

Display
7-Segment Digital LED Display

Enclosure Rating
IP20

Communication Interface
RS232/RS422

SGDH-04AE FUJI Yaskawa Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SGDH-04AE FUJI Yaskawa

Prices are for show only, please contact us for exact price.

SMT Product List

H4287T	BEARING SLIDE		LM5UU
H4475Z	BELT Z AXIS		2100-3GT-9
202511	SHOCK ABSORBERS	242511	KSHA6X15-47W
WPU0340	SPRING		WPU0340
XH00800	NXT H12 head Filter
XH00400	NXT Filter
XB01021	NXT CONVEYOR BELT
DEQC0220	FUJI XP243E 3150mm conveyor belt
PH00991	FUJI NXTII head rubber

Advanced Digital Control for Precision

Utilizing Yaskawa's Sigma II Servo Technology, the SGDH-04AE offers full digital and PWM controls, delivering superior positioning and speed accuracy. The compatibility with both incremental and 17-bit absolute encoders further enhances performance, ensuring optimal motor operation even in complex automation tasks.

Robust Protection and Industrial Grade Build

This servo drive incorporates multiple layers of safety including overcurrent, overvoltage, overtemperature, short-circuit, and motor lock detection. Its industrial-grade construction, powder-coated enclosure, and IP20 rating guarantee durable and safe operation in diverse industrial settings across a wide temperature range from 0C to 55C.

Simple Integration and Versatile Communication

The SGDH-04AE supports seamless integration with existing systems and CNC machinery through standard panel mounting and compact dimensions. Its RS232/RS422 interfaces enable flexible network connectivity, facilitating efficient setup, diagnostics, and operation for a wide spectrum of automation applications.

FAQ's of SGDH-04AE FUJI Yaskawa:

Q: How does the SGDH-04AE achieve high-precision motor control?

A: The SGDH-04AE uses full digital control and PWM technology, alongside support for incremental and 17-bit absolute encoders, to deliver highly precise speed and positioning control essential for industrial automation and robotics applications.

Q: What protection features are included in the SGDH-04AE servo drive?

A: This drive is equipped with overcurrent, overvoltage, overtemperature, short-circuit, and motor lock detection protections, ensuring safe and reliable operation even under demanding conditions.

Q: When should I use the SGDH-04AE in my machinery?

A: The SGDH-04AE is ideal for applications requiring precise control of 400W AC servomotors, such as CNC machinery, packaging equipment, and robotic systems in industrial automation.

Q: Where can the SGDH-04AE be installed?

A: Designed for standard panel mounting, the SGDH-04AE fits easily into control panels within factories, workshops, and production facilities, thanks to its compact size and IP20-rated enclosure.

Q: What is the process for connecting the SGDH-04AE to automation networks?

A: With RS232 and RS422 communication interfaces, connection to controllers, HMIs, or PLCs is straightforward. Configuration and diagnostics are simplified by the digital LED display and intuitive parameter settings.

Q: How does using the SGDH-04AE benefit industrial operations?

A: This servo drive enhances productivity and system reliability through precise motor control, robust protection features, low noise, and seamless integration-minimizing downtime and optimizing performance across a range of automated applications.
