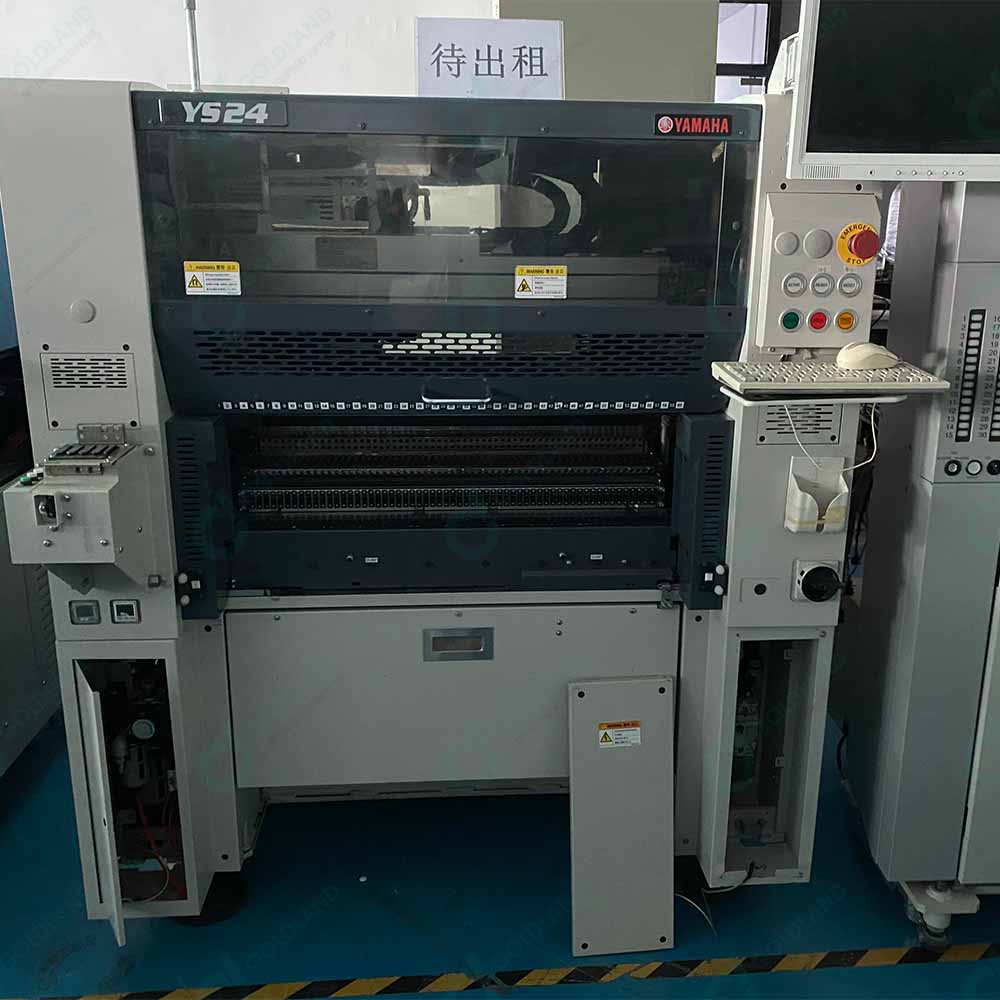

Yamaha YS24 High Speed Pick and Place Machine Precision Placement for High Volume SMT Production

Yamaha YS24 High Speed Pick and Place Machine Precision Placement for High Volume SMT Production Specification

Product Type
High-Speed Pick and Place Machine

Material
Steel / Aluminum Alloy Frame, Electrostatic Powder Coated Housing

Capacity
Maximum Placement Speed: 72,000 CPH (chips per hour), PCB Size: Max 510mm x 460mm (dual lane)

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
Yamaha Proprietary Control System with Advanced Motion Algorithms

Processing Type
Surface Mount Technology (SMT) Production

Voltage
AC 200-420V, 3-phase, 50/60Hz

Power
3.5 kVA

Dimension (L*W*H)
1,254 mm 1,440 mm 1,445 mm

Weight
Approx. 1,350 kg

Color
Corporate White and Blue

Air Supply
0.5 MPa or more, clean dry air

PCB Transport Height
900 mm 20 mm

Feeder Capacity
Up to 120 (8-mm tape) feeders

Head Configuration
Dual Gantry System, Multi-Functional Heads (FH Heads x 2/4, Multi Heads x 2/4)

Operating Environment
Temperature: 15-35C, Humidity: 35-85% RH

Vision System
Multi-angle recognition camera, On-the-fly component recognition

Programming Interface
Graphical user interface with offline programming and optimization

Connectivity
SMEMA/IPC9851 compliant, Ethernet port, USB port

Component Range
From 0402 chips to large ICs (up to 45mm x 100mm); supports odd-shaped components

Placement Accuracy
0.05 mm (chips), 0.03 mm (ICs)

Noise Level
Less than 75 dB(A)

Supported PCB Thickness
0.4 mm - 6.5 mm

Lighting System
LED illumination for high visibility during operation

Yamaha YS24 High Speed Pick and Place Machine Precision Placement for High Volume SMT Production Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Yamaha YS24 High Speed Pick and Place Machine Precision Placement for High Volume SMT Production

Prices are for show only, please contact us for exact price.

Product Description

The Yamaha YS24 High-Speed Pick and Place Machine is designed for optimal performance in Surface Mount Technology (SMT) applications, providing high-speed and high-precision component placement. With its advanced vision system and flexible feeder configuration, the YS24 is capable of handling a wide range of components, from fine-pitch devices to larger parts, making it ideal for both high-mix and high-volume production environments. Its automated setup and real-time monitoring features enhance operational efficiency, reduce setup times, and minimize errors, ultimately improving throughput and quality. The YS24 is well-suited for industries such as electronics manufacturing, automotive, and telecommunications, delivering reliable and consistent performance for PCB assembly. Designed to ensure minimal downtime, the Yamaha YS24 combines ease of use with robust construction, making it a trusted choice for manufacturers looking to streamline their production lines and improve overall performance

Product Specifications

Machine Model	YS24
Vintage
Applicable PCB	L50xW50mm L700xW460mm
Mounting Capability	72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
Mounting Accuracy	+/-0.05mm ( + 3), +/-0.03mm (3)
Applicable Components	0402 to 32x32mm MAX (Height 6.5mm or less)
Component Types	120 types (Max./8mm wide tape reel conversion)
Power Supply	Three phase AC 200/208/220/240/380/400/416 V +/-10%
Air Supply Source	0.45MPa
External Dimensions	L1,254x W1,687x H1,445mm (Excluding protrusions)
Weight	Approx. 1,700kg

Exceptional Placement Accuracy and Speed

The Yamaha YS24 achieves placement accuracy of 0.05 mm for chips and 0.03 mm for ICs, ensuring high-quality SMT assembly. With a maximum placement speed of 72,000 CPH, it is ideal for high-volume production lines demanding both speed and precision. Its dual gantry and multi-head configuration support a broad range of components, including odd-shaped and large ICs, making it versatile for complex production needs.

Robust Build and Advanced Connectivity

Engineered with a durable steel and aluminum alloy frame, the YS24 is built for longevity and stability. Electrostatic powder-coated housing enhances its resistance to wear. It features modern connectivity options, including SMEMA/IPC9851 compliance, Ethernet, and USB ports, ensuring seamless integration with existing SMT lines and production monitoring systems.

Simplified Operation and Maintenance

The YS24 comes with a user-friendly graphical programming interface and supports offline programming and optimization, helping reduce setup times. Thanks to its advanced motion algorithms and LED lighting system, operators experience high visibility and reliability during operation. Routine maintenance is straightforward, contributing to reduced downtime and maximized productivity.

FAQ's of Yamaha YS24 High Speed Pick and Place Machine Precision Placement for High Volume SMT Production:

Q: How does the Yamaha YS24 improve SMT production efficiency?

A: The Yamaha YS24 streamlines SMT production by offering high placement speeds up to 72,000 CPH and a dual gantry system that operates multi-functional heads. Its precision placement and robust feeder capacity minimize errors and reduce cycle times, significantly boosting throughput for high-volume manufacturing.

Q: What types of components can the YS24 handle?

A: The YS24 supports a broad range of components, from small 0402 chips to large ICs measuring up to 45mm x 100mm. Its advanced heads and vision system also support the placement of odd-shaped parts, making it suitable for diverse SMT assembly requirements.

Q: When is the best application environment for the Yamaha YS24?

A: The machine operates optimally in environments with a temperature of 15-35C and humidity between 35-85% RH. Its robust build and electrostatic powder coating allow it to perform consistently in controlled industrial conditions.

Q: Where can the YS24 be integrated within a manufacturing setup?

A: The YS24 is designed for seamless integration into high-volume SMT production lines. Its SMEMA/IPC9851 compliance and flexible transport height make it compatible with existing conveyors and upstream/downstream systems in both new and established electronics manufacturing facilities.

Q: What is the process for programming and optimizing the YS24?

A: The YS24 features a graphical user interface that simplifies programming. Operators can program and optimize jobs both online and offline, reducing changeover times and increasing overall machine uptime. Advanced motion algorithms further enhance placement speed and accuracy.

Q: How does the vision system enhance placement accuracy?

A: The multi-angle recognition camera system and on-the-fly component recognition enable precise alignment for each component. This reduces misplacements and guarantees placement accuracy of 0.05 mm for chips and 0.03 mm for ICs-even during high-speed operation.

Q: What are the main benefits of using the Yamaha YS24 for SMT production?

A: Key benefits include high throughput, reliable accuracy, versatility for different component types, and ease of operation. The machine's sturdy construction and advanced control system ensure long-term reliability, while its ergonomic design and low noise output create a safe and efficient working environment.
