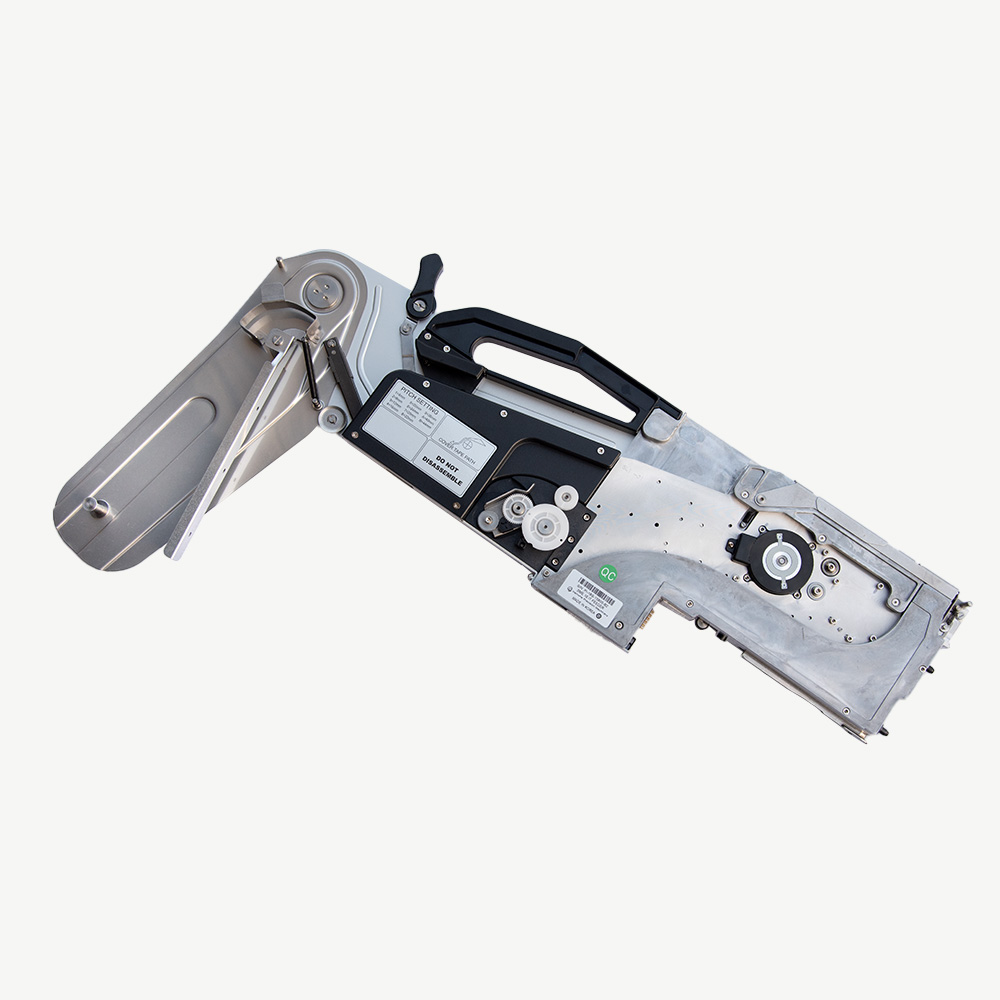

SME-16mm SAMSUNG SME 16mm Electronic Feeder

SME-16mm SAMSUNG SME 16mm Electronic Feeder Specification

Lubricating System
Maintenance Free

Surface Finish
Smooth/Matte

Noise Level
Low

Drive Type
Electronic

Capacity
16mm component tape

Features
High precision feeding, robust build, easy install & release, quick change, high compatibility with SMT lines

Size
16mm Tape Width

Usage & Applications
SMT Pick and Place Machines (Samsung, Hanwha Models)

Shape
Rectangular

Motor Power
Stepper Motor Integrated

Product Type
Electronic Feeder

Material
Aluminum Alloy, Steel

Technology
SMT (Surface Mount Technology)

Power Source
Electric

Power
10 W (typical)

Voltage
24V DC

Surface Treatment
Anodized & Coated

Dimension (L*W*H)
Approx. 420mm 102mm 60mm

Weight
Approx. 2.5 kg

Color
Silver/Gray

Control Interface
SMT Machine Bus

Installation
Tool-free, Clamping lock design

Operating Temperature
5C - 40C

Model
SME-16mm

Storage Temperature
-20C - 60C

Replacement Parts
Available on demand

Component Type Supported
SOIC, SOP, Capacitor, Resistor, IC, SMD Package

Tape Pitch
2, 4, 8, 12, and 16 mm support

Feeding Accuracy
0.1 mm

Compatible SMT Machines
Samsung SM Series, Hanwha SM Series

SME-16mm SAMSUNG SME 16mm Electronic Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SME-16mm SAMSUNG SME 16mm Electronic Feeder

Prices are for show only, please contact us for exact price

SMT Product List

J70653940A	FLAT TAPPING SCREW 3X7-2
FC18-902805	BUTTON HEAD SOCKET SCREW
FC18-901902	BUTTON HEAD SOCKET SCREW
FC18-901932	FLAT HEAD CAP SCREW
FC18-901341	E RING(4)
FC18-9013339	E RING(3)
FC18-902841	SOCKET SET SCREW(M3X0.5 L4)
AM03-012578A	SPROCKET W4P1 SME ASSY
AM03-010170A	MOTOR GEAR SHAFT1 ASSY
J90652106A	TOGGLE M 08 ASSY
J90652111A	D-GEARTRAIN M 08 ASSY
AM03-000525A	INDEX MOTOR ASSY
AM03-001245A	CABLE ASSY MAN PROBE HAMESS ASSY M 08
AM03-900122	CLAMP_SWITCH HARNESS ASSY M08
FC15-001975A	D-BOX COVER SME-W4P1

Precision and Compatibility for SMT Production

The SME-16mm Samsung feeder is engineered for exceptional precision, offering 0.1 mm feeding accuracy and seamless integration with Samsung SM Series and Hanwha SM Series pick-and-place machines. Its robust build quality ensures reliable performance, while the support for multiple tape pitches and component types makes it extremely versatile for automated SMT assembly lines.

Ease of Use and Maintenance-Free Operation

Featuring tool-free installation and a quick-change clamping lock, this feeder can be rapidly set up or replaced, minimizing downtime on busy SMT lines. The maintenance-free lubricating system and low-noise stepper motor further enhance its operational efficiency, letting manufacturers focus on production without concerns over feeder reliability.

FAQ's of SME-16mm SAMSUNG SME 16mm Electronic Feeder:

Q: How is the SME-16mm Electronic Feeder installed on SMT machines?

A: The SME-16mm feeder is designed for quick and easy installation without tools, thanks to its clamping lock mechanism. This allows operators to secure or release the feeder swiftly, reducing machine setup time.

Q: What component types and tape pitches does the feeder support?

A: This feeder accommodates a wide range of SMD packages, including SOIC, SOP, capacitors, resistors, and ICs. It also supports tape pitches of 2, 4, 8, 12, and 16 mm, making it suitable for diverse SMT assembly needs.

Q: When should replacement parts be requested for the SME-16mm feeder?

A: Replacement parts are available on demand from the supplier. It is advisable to request them in the event of visible wear, performance degradation, or during regular maintenance schedules to ensure uninterrupted operation.

Q: Where can the SME-16mm feeder be utilized?

A: This electronic feeder is intended for use with compatible SMT pick-and-place machines-specifically, Samsung SM Series and Hanwha SM Series models-in automated electronic manufacturing environments.

Q: What benefits does the clamping lock design offer?

A: The clamping lock design provides tool-free, rapid installation and removal of the feeder, enhancing operational efficiency and enabling quick changeovers to support high-mix, high-speed SMT production.

Q: Is any ongoing maintenance needed for the SME-16mm feeder?

A: No, the SME-16mm features a maintenance-free lubricating system. This reduces the need for regular servicing while ensuring consistent, long-term performance.
