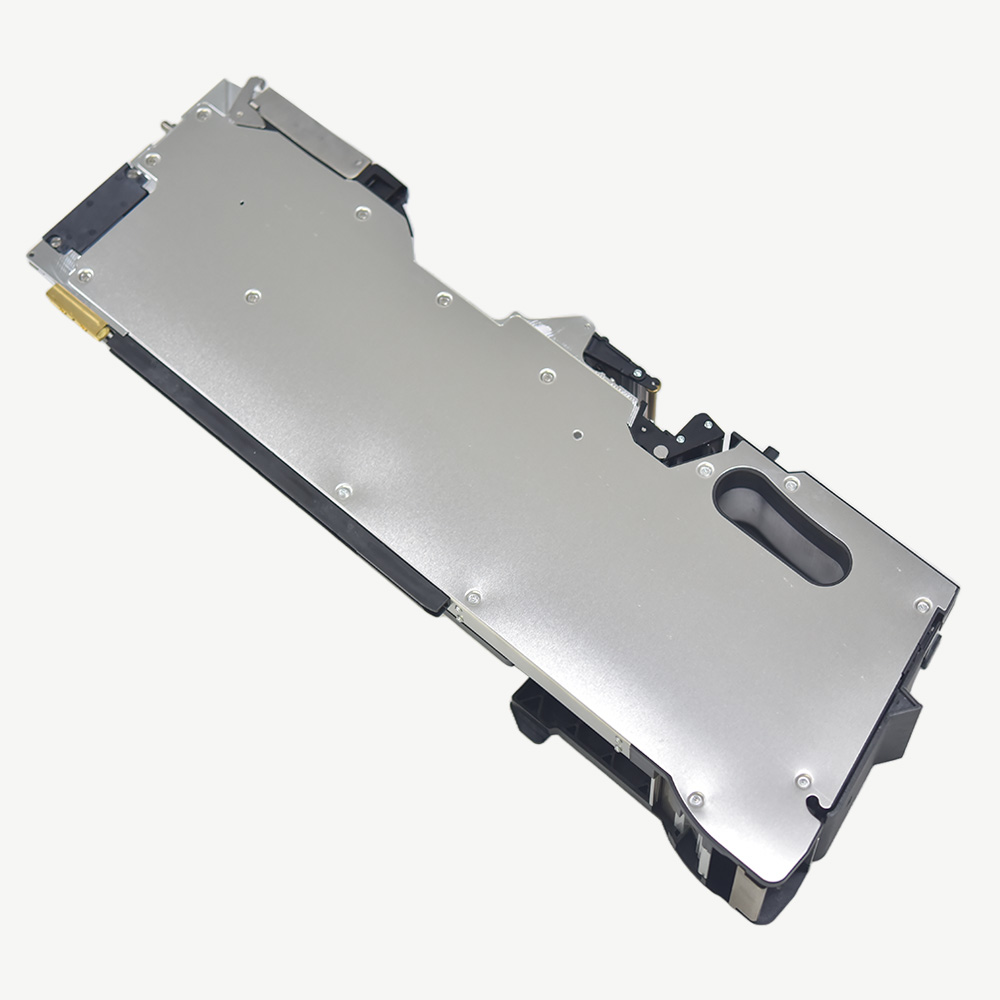

00141397 SIPLACE Smart Feeder

00141397 SIPLACE Smart Feeder Specification

Drive Type
Electromechanical Drive

Features
Quick Changeover, Auto-ID, Smart Monitoring, Robust Construction

Capacity
Up to 96 feeders per SIPLACE machine

Usage & Applications
SMD Components Feeding for SMT Assembly Lines

Surface Finish
Smooth Industrial Finish

Diameter
8mm / 12mm / 16mm compatible

Shape
Rectangular Modular

Motor Power
High-reliability stepper motor

Size
Standard (Fits SIPLACE platform)

Lubricating System
Maintenance-Free

Noise Level
<50 dB

Product Type
Smart Feeder

Material
High-grade industrial alloy

Technology
SIPLACE Intelligent Feeding System

Power Source
Electric

Power
15 W

Voltage
24 V DC

Surface Treatment
Anodized & Powder Coated

Dimension (L*W*H)
265 x 98 x 68 mm

Weight
1.5 kg

Color
Silver / Black

Replacement Parts Availability
Yes, via SIPLACE network

Package Content
Feeder unit, Manual, Calibration Card

Feeder Compatibility
8mm, 12mm, 16mm tape widths

Operating Temperature Range
10C to 40C

Mounting Type
Tool-free mount and release

Communication Interface
Integrated data/ID chip for intelligent lines

Error Detection
Automatic loss detection & jam indication

Humidity Range
10-90% RH, non-condensing

Storage Temperature
-20C to 60C

00141397 SIPLACE Smart Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, Western Europe, South America, Eastern Europe, Africa, Middle East

About 00141397 SIPLACE Smart Feeder

Prices are for show only, please contact us for exact price

SMT Feeder Parts

03029170S01	Hubtisch Einfachtransport, GS	Lifting Table Single Conveyor, GS
03029171-02	Hubtisch Doppeltransport, GS	Lifting Table Dual Conveyor, GS
03029178-02	Fuehrungsplatte Reinigungskassette DLM	guiding plate cleaning tool DLM
03029190-02	Verteiler Bestckkopf Vakuum	Distributor placement head vacuum
03029193-02	Zylinder und Sensor Sub-Modul	Cylinder and Sensors Sub-Module
03030762S02	LP-Kamera (TYP34) 28 digital	LP-CAMERA (TYP34) 28 digital
03031104-01	DIN 464 M4 x 16-St	DIN 464 M4 x 16-St
03031187S02	Sternmotor C28 kplt.	Star motor C28 cplt.
03031512S01	O-Ring 9x1,5	O-Ring 9x1,5
03032341S02	Steuerrechner BoxPC 627 V1	Control computer BoxPC 627 V1

Intelligent Feeding Technology

The SIPLACE Smart Feeder leverages the SIPLACE Intelligent Feeding System, featuring auto-ID and data chip integration. This enables real-time feeder tracking, process optimization, and seamless communication with intelligent SMT lines for improved efficiency and reduced downtime.

Robust Construction and Compact Design

Built from high-grade industrial alloy and enhanced with anodized and powder-coated surfaces, this feeder offers durability in demanding environments. Its modular, rectangular shape and smooth industrial finish make it both resilient and convenient for fast, tool-free mounting and release.

Efficient Operation and Maintenance

With a maintenance-free lubricating system and advanced error detection functions, the SIPLACE Smart Feeder minimizes interruptions. It supports quick changeover, is easy to calibrate, and is available with replacement parts through the SIPLACE network, ensuring reliable long-term performance.

FAQ's of 00141397 SIPLACE Smart Feeder:

Q: How do I mount or release the SIPLACE Smart Feeder on a SIPLACE machine?

A: The SIPLACE Smart Feeder is designed with a tool-free mount and release system, allowing you to attach or detach the feeder quickly and securely by hand, without the need for specialized tools.

Q: What types of tapes and SMD components are compatible with this feeder?

A: This feeder supports 8mm, 12mm, and 16mm tape widths, making it suitable for a wide range of SMD components typically used in SMT assembly lines.

Q: When should the feeder be calibrated or serviced?

A: Calibration is recommended according to SIPLACE's maintenance intervals or whenever replacing the feeder, and a calibration card is included in the package. Servicing is minimal, thanks to its maintenance-free lubrication system; however, automatic error detection will alert operators if attention is needed.

Q: Where can I obtain replacement parts or support for the SIPLACE Smart Feeder?

A: Replacement parts are available via the SIPLACE network, and support can be accessed through authorized SIPLACE distributors, exporters, or suppliers across India and globally.

Q: What are the key benefits of using the SIPLACE Smart Feeder in an SMT assembly line?

A: Key benefits include quick changeover, auto-ID for intelligent line integration, robust construction, reliable error and jam detection, maintenance-free operation, low operational noise (<50 dB), and high feeder capacity per machine.

Q: How does the feeder contribute to efficient SMT assembly processes?

A: The integrated smart monitoring and auto-ID chip enable real-time status updates, minimize incorrect placements, and support automatic loss detection-ensuring streamlined workflows, reducing downtime, and increasing throughput.
