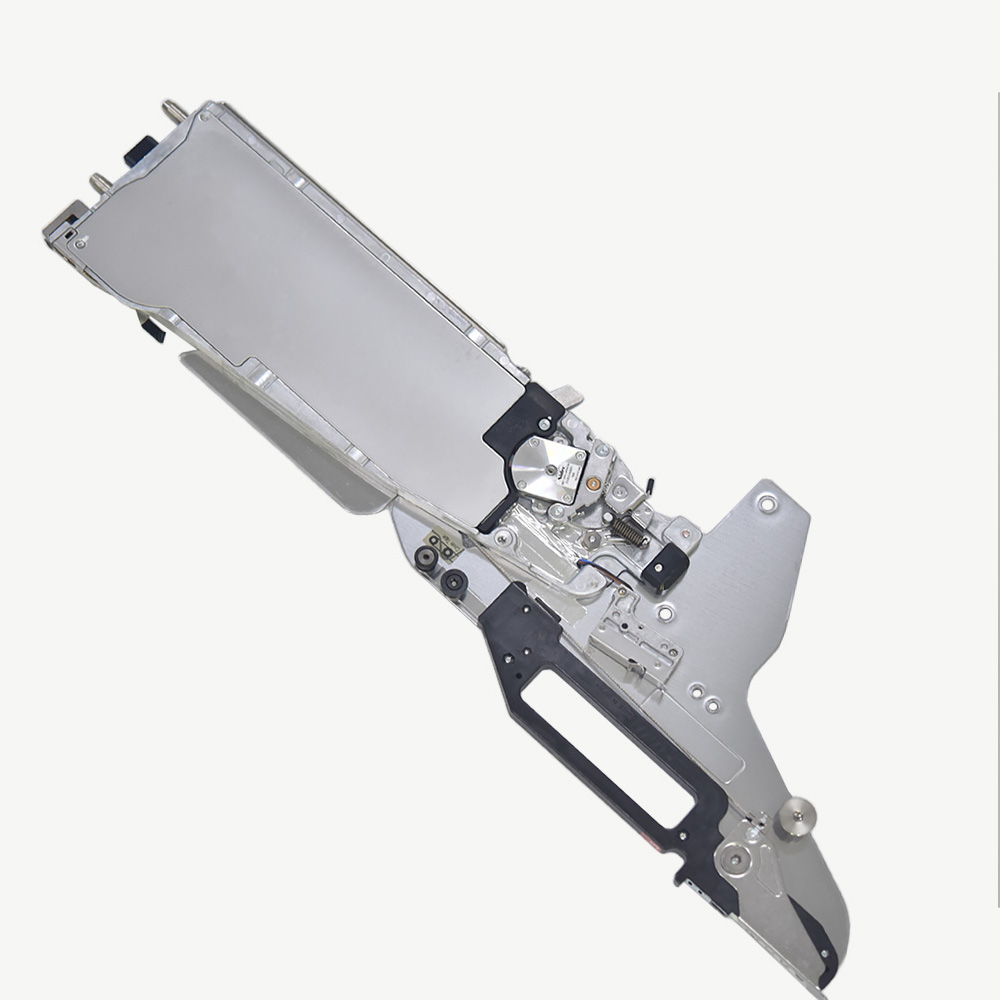

W08S FUJI NXT Feeder

W08S FUJI NXT Feeder Specification

Features
Lightweight, Durable, High-Precision Feeding

Usage & Applications
For FUJI NXT Pick and Place Machine SMT Assembly Line

Noise Level
Low Noise Operation

Size
Standard for 8mm Tape

Drive Type
Automatic, Stepper Motor Driven

Lubricating System
Maintenance Free

Surface Finish
Matte Anodized

Shape
Rectangular

Capacity
Handles 8mm Tape Reels

Motor Power
Integrated Micro Motor

Product Type
W08S FUJI NXT Feeder

Material
High-grade Aluminum Alloy

Technology
SMT (Surface Mount Technology)

Power Source
Electric

Power
Low Power Consumption

Voltage
24V DC

Surface Treatment
Anodized

Dimension (L*W*H)
Approx. 460 x 77 x 40 mm

Weight
About 1.5 kg

Color
Silver/Black

Maintenance
Easy to Service, Low Downtime

Storage Temperature Range
-10C to 55C

Component Type
0603, 0805, etc. electronic components

Tape Width Compatibility
8mm

Packaging
Standard Export Carton

Feeding Accuracy
High Precision, 0.1 mm

Operating Temperature Range
0C to 45C

Replaceable Parts
Spring, Guide Plate, Gears

Installation
Tool-less Quick Mount

Brand Compatibility
FUJI NXT Series (I, II, III, M3, M6) SMT Machines

W08S FUJI NXT Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About W08S FUJI NXT Feeder

Prices are for show only, please contact us for exact price

SMT Feeder Parts

H4443A	BEARING, MINIATURE
PM046C4	GEAR
PM08BZ2	COLLAR, SPACER
PP02591	SPROCKET
PZ53330	MAGNET
H5265A	BOLT, HEX SOCKET
W1039A	WASHER, FLAT
PM08CB2	BOLT
W10076	WASHER
PP02584	PLATE
PM06AS3	PIN
PP02833 / 2MDLFA010500 / 2MDLFA010500	GUIDE, TAPE
PZ37451	SPRING
PM06AR6 / 2MDLFA036200	BOLT
N4019T	SCREW, HEX SOCKET SET

High-Precision Feeding for FUJI NXT Series

Engineered for compatibility with FUJI NXT Series pick and place machines, the W08S feeder ensures consistent high-precision component delivery with a remarkable accuracy of 0.1 mm. Its design supports a wide range of components-including 0603 and 0805-accommodating various production requirements while maintaining operational stability and efficiency.

Effortless Installation and Maintenance

This feeder is built with user convenience in mind, featuring a tool-less quick mount mechanism for fast setup and removal. Maintenance is simplified thanks to easily replaceable parts like springs, guide plates, and gears, reducing both downtime and overall service costs. Its maintenance-free lubricating system further enhances reliability and user experience.

Durability and Versatile Performance

Constructed from high-grade aluminum alloy and finished with matte anodization, the W08S feeder is both lightweight and durable, capable of handling rigorous SMT assembly line conditions. Its robust build, low noise operation, and standard 8mm tape compatibility make it an indispensable tool for distributors, exporters, manufacturers, and suppliers in India and beyond.

FAQ's of W08S FUJI NXT Feeder:

Q: How is the W08S FUJI NXT Feeder installed on FUJI NXT SMT machines?

A: The W08S feeder features a tool-less quick mount system that allows for rapid and effortless installation onto all compatible FUJI NXT Series (I, II, III, M3, M6) SMT pick and place machines. No special tools are required, minimizing setup time and streamlining line changes.

Q: What types and sizes of electronic components can the W08S feeder handle?

A: This feeder accommodates a wide range of electronic components, including standard sizes like 0603, 0805, and more, provided they are supplied in 8mm tape format, making it suitable for diverse SMT applications.

Q: Where can the W08S FUJI NXT Feeder be used?

A: It is designed specifically for integration into FUJI NXT Series SMT assembly lines, making it ideal for use by electronics manufacturers, distributors, exporters, and suppliers involved in high-volume surface mount production.

Q: What is the typical maintenance process for the W08S feeder?

A: Routine maintenance is straightforward due to easily replaceable parts such as springs, guide plates, and gears. Its maintenance-free lubricating system further simplifies upkeep, reducing downtime and ensuring smooth operation.

Q: When should components like the spring or guide plate be replaced?

A: Replace these parts during routine maintenance or if any signs of wear or feeding irregularities are observed, to maintain high precision and consistent performance.

Q: What are the key benefits of choosing the W08S FUJI NXT Feeder?

A: Benefits include high precision (0.1 mm), low noise, easy installation, robust build quality, low power consumption, maintenance-friendly design, and seamless compatibility with standard 8mm tape reels, all contributing to improved productivity and reduced operational costs.
