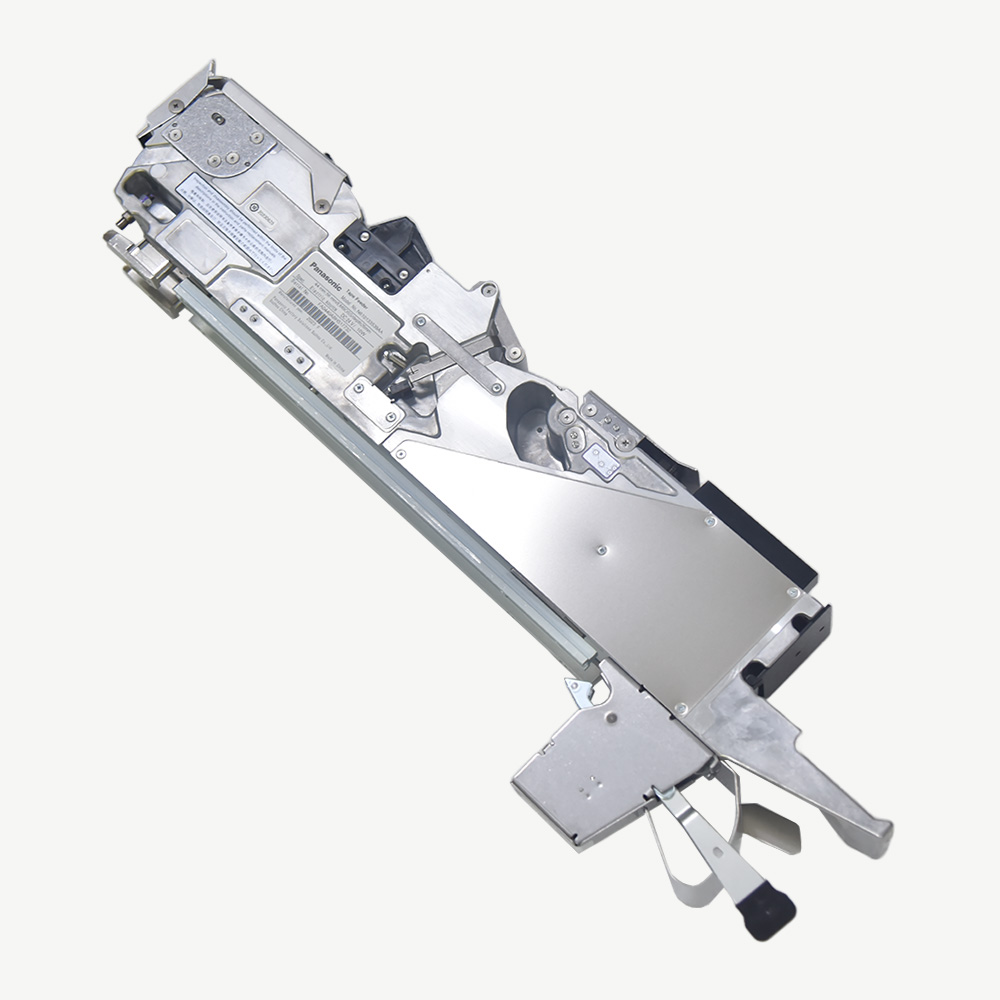

N610133539AA PANASOINC NPM Tape Feeder With Splicing Sensor, 44/56mm (26mm depth)

N610133539AA PANASOINC NPM Tape Feeder With Splicing Sensor, 44/56mm (26mm depth) Specification

Noise Level
Low, complies with industrial noise standards

Drive Type
Mechanical, spring-action advancement

Usage & Applications
Used in Panasonic NPM SMT machines for automated electronic component placement

Lubricating System
Factory-sealed, maintenance free

Shape
Rectangular compact feeder body

Surface Finish
Precision-machined, polished

Size
44mm / 56mm tape, 26mm depth feeder body

Diameter
Compatible with standard SMT component tape reels

Features
Integrated splicing sensor, Quick-load design, Auto-detect tape splicing

Capacity
Supports reel/tape up to 56mm wide

Product Type
Tape Feeder with Splicing Sensor

Material
High-strength industrial alloy / metal

Technology
NPM (Next Production Modular) Panasonic SMT technology

Power Source
Not applicable (mechanical component)

Surface Treatment
Anti-corrosive surface finishing

Dimension (L*W*H)
Customized for 44/56mm tape width, 26mm depth

Weight
Approx. 1.5-2.2 kg (depending on configuration)

Color
Silver / Black

Maintenance
Tool-free disassembly, user-serviceable

Humidity Range
20% to 80% RH (non-condensing)

Compatible Machine Series
Panasonic NPM (NPM-W/NPM-W2/NPM-DX, etc.)

Splice Sensor Type
Photoelectric (built-in optical sensor)

Part Number
N610133539AA

Feeder Depth
26mm

Mounting Method
Drop-in/slide lock system

Handling
Ergonomic grip points, light weight design

Operating Temperature Range
5C to 40C

Detectable Tape Widths
44mm and 56mm

Packaging
Individually packed in protective carton

Feeder Type
High-speed, intelligent tape feeder

N610133539AA PANASOINC NPM Tape Feeder With Splicing Sensor, 44/56mm (26mm depth) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Middle East, Africa, Eastern Europe, Western Europe, Asia, Australia, Central America, North America, South America

About N610133539AA PANASOINC NPM Tape Feeder With Splicing Sensor, 44/56mm (26mm depth)

Prices are for show only, please contact us for exact price

SMT Product List

X02P51500	TRANSFER UNIT(PANASONIK RL131)
X02G41101	BODY(PANASONIK RL131)
1087110021	NSERTON GUDE (PANASONK AVK)
1087111045	LM GUDE (PANASONK AVK3)
1083825008	PPE(PANASONK AVK9
N610156037AA	SCISSORS UNT (PANASONK AV132)
N610156038AA	SCISSORS UNT (PANASONK AV132)
X02G51112	FXED BLADE (PANASONK RL131)
N210056710AA	CUTTER(PANASONK RL131)
N644N919ME	CUPLINK(PANASONK AVK2B)
3087114001 / MSM082AJA	MOTOR MSM082AJA
N210192364AA / X02G52201	BACK UP PN(PANASONK RL131)
N644N1319	panasonic coupling
MRS18-DUL	Axial fans
N510002593AA	N510002593AA Panasonic driver

Seamless Integration with Panasonic NPM Series

Specifically designed for Panasonic NPM SMT systems, this tape feeder ensures flawless compatibility and operation. The drop-in, slide lock mounting allows fast and secure installation, making it an optimal choice for both new setups and replacement in existing lines. Its intelligent features facilitate smooth, automated production environments.

Advanced Splicing Detection for Uninterrupted Production

Featuring a built-in, photoelectric splicing sensor, the feeder automatically detects and manages tape splices. This reduces downtime, enhances accuracy in component placement, and ensures continuous operation on high-speed SMT assembly lines. Its auto-detect capability transforms the assembly process by minimizing manual intervention.

User-Friendly Maintenance and Operation

The feeder's robust yet lightweight construction, ergonomic grip points, and tool-free disassembly simplify handling and upkeep. Its precision-machined body is factory-sealed, requiring no lubrication, which further eases routine maintenance and extends product longevity in demanding manufacturing environments.

FAQ's of N610133539AA PANASOINC NPM Tape Feeder With Splicing Sensor, 44/56mm (26mm depth):

Q: How does the splicing sensor in the N610133539AA feeder work?

A: The integrated photoelectric splicing sensor in the N610133539AA feeder uses optical technology to detect tape splices automatically as the tape advances. When a splice is identified, the system signals the Panasonic NPM machine, supporting continuous component placement without manual interruption.

Q: What types of tape and component reels are compatible with this feeder?

A: The feeder supports standard SMT component tape reels with widths of 44mm or 56mm and depths up to 26mm, making it suitable for a variety of electronic component packaging formats used in high-speed production lines.

Q: When should the N610133539AA tape feeder be used on the production line?

A: Use this feeder whenever precise, automated delivery of components on wide (44mm/56mm) reels is required for Mitsubishi NPM series machines, especially in production environments demanding high throughput and minimal downtime.

Q: Where can the N610133539AA feeder be installed?

A: It is designed for seamless installation in compatible Panasonic NPM machine models such as NPM-W, NPM-W2, and NPM-DX. The drop-in/slide lock system facilitates quick mounting and removal directly on the machine's feeder bank.

Q: What is the process for maintaining the tape feeder?

A: Routine maintenance is straightforward thanks to its tool-free, user-serviceable design. The feeder is factory-sealed and maintenance-free regarding lubrication, requiring only regular cleaning and inspection to ensure optimal performance.

Q: How does the feeder benefit automated SMT assembly lines?

A: By offering rapid tape loading, reliable splice detection, and minimal maintenance, the feeder significantly reduces machine downtime, increases production efficiency, and enhances placement accuracy, leading to higher output and fewer production interruptions.
