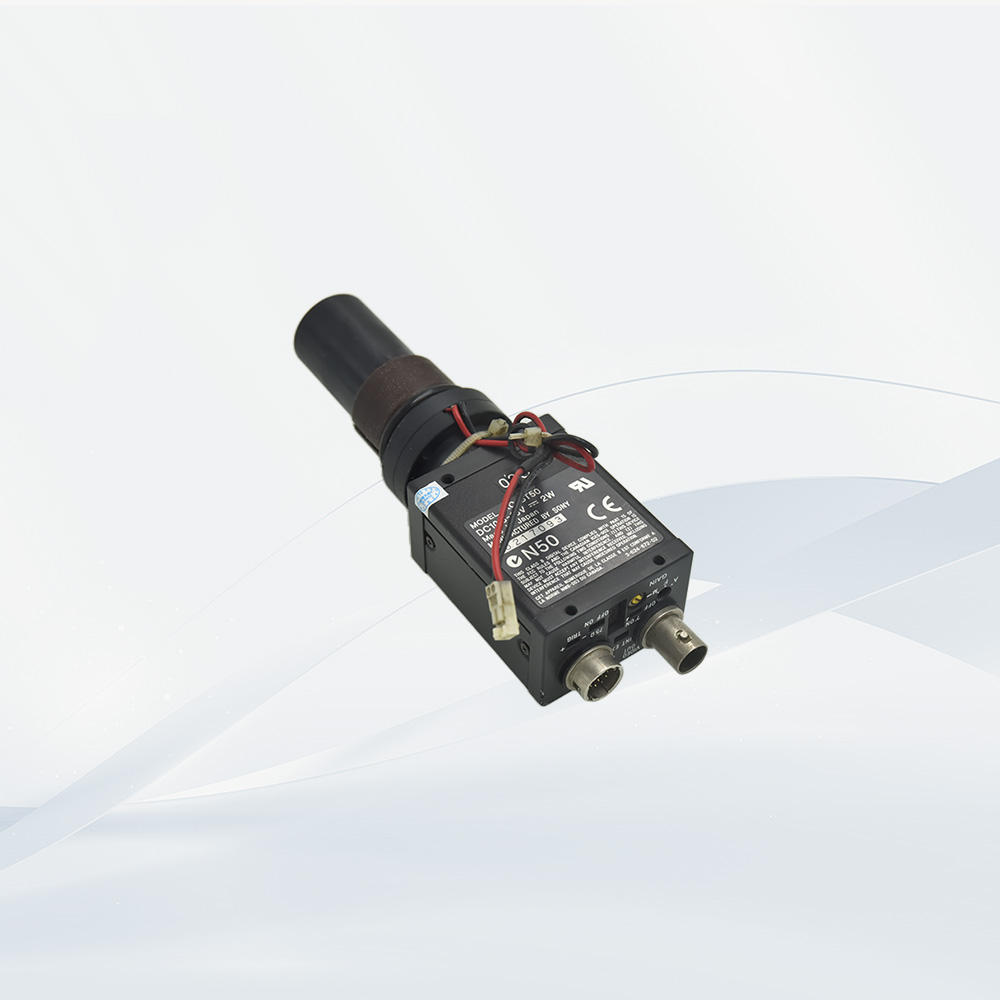

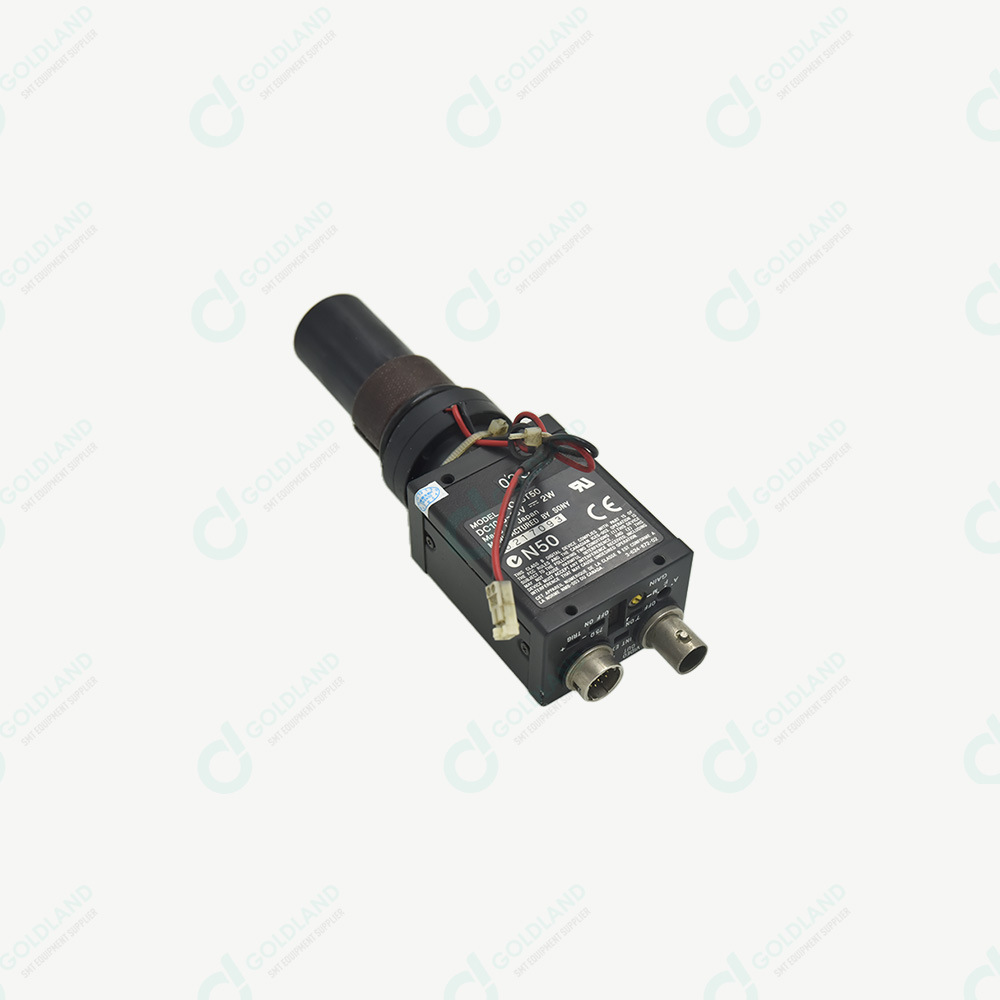

XC-ST50 SAMSUNG CP45 Fv Neo

XC-ST50 SAMSUNG CP45 Fv Neo Specification

Surface Finish
Matte

Size
Standard, Compact

Usage & Applications
Used in Samsung CP45 Fv Neo SMT Pick and Place Machines

Noise Level
< 50 dB (Operation)

Drive Type
Direct Electric

Shape
Rectangular

Features
High-Resolution CCD Sensor, Durable Construction, OEM Compatible

Capacity
High precision camera module

Product Type
Vision Camera for Pick and Place Machine

Material
Metal, Electronic Components

Technology
CCD (Charge Coupled Device)

Power Source
Electric

Power
DC 12V

Voltage
12V DC

Surface Treatment
Anodized / Painted

Dimension (L*W*H)
Approx. 30mm x 30mm x 60mm

Weight
Approx. 140 g

Color
Black / Silver

Image Sensor Type
1/2" CCD

Model Number
XC-ST50

Horizontal Resolution
High resolution (approx. 570 TVL)

Scanning System
Interlaced 2:1

Minimum Illumination
0.1 Lux (F1.2)

Mounting Type
Bolt-on Mount

Synchronization
Internal / External

Compatible Machine Model
Samsung CP45 Fv Neo

Video Output
1 Vp-p, 75 ohms BNC

Operating Temperature
-10C to +45C

Storage Temperature
-20C to +60C

XC-ST50 SAMSUNG CP45 Fv Neo Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Middle East, Africa, Australia, Central America, North America, South America, Eastern Europe, Western Europe

About XC-ST50 SAMSUNG CP45 Fv Neo

Prices are for show only, please contact us for exact price.

SMT Product List

AM03-003751A / AM03-001569A	ASSY,ETC,IMS-INDEX MOTOR ASSY VL
AM03-010389J / J91741316A	ASSY,BOARD-MF MAIN BOARD / SME08
AM03-025649A	D-GEARTRAIN M 08 ASSY
EP08-000052A	DRAIN MOTOR
FC29-000679A	HANDLE-HANDLE LEFT
FC29-000680B	HANDLE RIGHT
GD03-000037A	DRAIN GEAR-1
GD03-000046A	D-FOLLOWER SPRING
J70653565A	DRAIN GEAR FORK

High-Resolution CCD Imaging

Equipped with a 1/2" CCD sensor, the XC-ST50 delivers outstanding image clarity at around 570 TV lines of resolution. This ensures optimal performance in inspection and alignment tasks, contributing to consistently high production quality in SMT Pick and Place operations.

Rugged Design and Versatile Compatibility

Crafted from robust metal with a durable anodized or painted finish, the XC-ST50 is built to withstand rigorous use. Its bolt-on mount and standard compact size allow for straightforward integration into Samsung CP45 Fv Neo machines, enhancing system flexibility and reliability.

Adaptable Performance in Challenging Conditions

The XC-ST50 operates reliably within a wide temperature range, from -10C to +45C. Its low-light performance (0.1 Lux at F1.2) and flexible synchronization (internal/external) ensure dependable operation in diverse environments, providing consistent results under varying factory conditions.

FAQ's of XC-ST50 SAMSUNG CP45 Fv Neo:

Q: How is the XC-ST50 camera module installed on the Samsung CP45 Fv Neo machine?

A: The XC-ST50 is designed with a bolt-on mount, making it easy to attach directly to the designated slot in the Samsung CP45 Fv Neo Pick and Place Machine. Simply align the mount holes, secure the bolts, and connect the BNC video output and DC 12V power supply to complete the installation.

Q: What benefits does the high-resolution CCD sensor provide in SMT applications?

A: The 1/2" CCD sensor delivers approximately 570 TV lines, offering sharp and accurate imaging. This high resolution is essential for precise component placement and inspection, reducing defects and improving overall assembly quality in SMT operations.

Q: When should the XC-ST50 be used in a manufacturing environment?

A: The XC-ST50 is ideal for use during assembly and inspection stages in SMT Pick and Place processes, especially when high image clarity is required for precise placement of components onto PCBs. Its reliable imaging aids in quality control and alignment tasks.

Q: Where can the XC-ST50 camera module operate efficiently?

A: The camera module operates effectively in environments with temperatures ranging from -10C to +45C and can be stored safely between -20C to +60C. Its robust construction makes it suitable for diverse industrial settings in SMT manufacturing facilities.

Q: What is the process for connecting the XC-ST50 to a video monitoring system?

A: The XC-ST50 provides a 1 Vp-p, 75-ohm BNC video output. To connect, attach a BNC cable from the module's output port to your video monitoring or processing equipment. Set synchronization (internal/external) based on your setup, and ensure power is supplied via DC 12V input.

Q: How does the XC-ST50 benefit distributors and OEMs in India?

A: Being OEM compatible and engineered for durability, the XC-ST50 offers Indian distributors and OEMs a reliable, high-performance camera module. Its compatibility with widely used Samsung CP45 Fv Neo machines makes it a valuable addition to SMT lineups, enhancing equipment offerings to end users.
