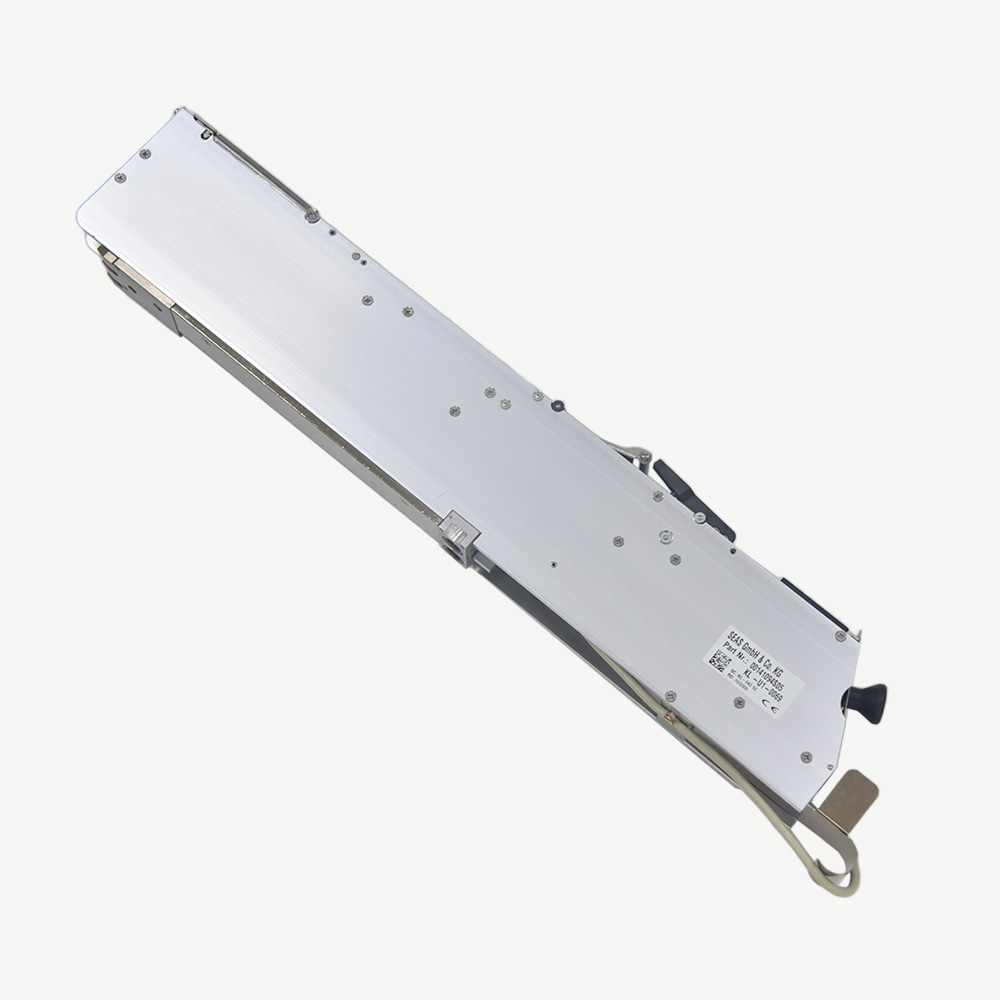

00141094 SIPLACE Tape Feeder Module 44mm S

00141094 SIPLACE Tape Feeder Module 44mm S Specification

Size
44 mm Tape Width

Noise Level
Low Noise Operation

Usage & Applications
For automatic component feeding in SMT pick-and-place machines

Surface Finish
Polished/Industrial Finish

Shape
Slim Modular

Features
Quick-load design, high placement accuracy, compatible with SIPLACE S-series

Lubricating System
Maintenance-free

Diameter
N/A (Tape width specified)

Motor Power
Stepper Motor (Integrated)

Drive Type
Motorized/Electronic

Capacity
Designed for continuous reel feed

Product Type
Tape Feeder Module

Material
Metal (Industrial Grade)

Technology
SIPLACE SMT Feeder Technology

Power Source
Electric

Power
N/A (Control/Electronic)

Voltage
Machine Dependent

Surface Treatment
Corrosion Resistant Coating

Dimension (L*W*H)
44mm width profile; other dimensions standard to SIPLACE S-series feeders

Weight
Approx. 1.5-2.0 kg

Color
Silver / Black

Feeder Width
44mm tape support

Construction
Robust industrial assembly

Tape Type Supported
Embossed and paper tape

Compatibility
SIPLACE S-series SMT placement machines

Operating Temperature
5C - 40C

Feeder Identification
Barcode/ID module for automatic recognition

Component Pitch
Standard 4mm, 8mm, 12mm, etc. depending on components

SMEMA Interface
Supported for integration

Mounting Method
Tool-free insertion

00141094 SIPLACE Tape Feeder Module 44mm S Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Australia, Central America, Asia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 00141094 SIPLACE Tape Feeder Module 44mm S

Prices are for show only, please contact us for exact price

SMT Product List

03020827-01	Schutz X-HS R links Hauben-S-Prof Bgr	PROTECTION X-HS LEFT SIDE COVER
03020840-04	Konsolenblech R links	PLATE R LEFT SIDE
03020841-02	Konsolenblech R rechts	CONSOLE PLATE RIGHT SIDE
03020860S01	Microtips Medium Pr?zisionsapplicator	MICROTIPS MEDIUM PRECISION APPLICATOR
03020955S01	Schlauch Khlung, Analog 2P G	Cooling Hose w. Mounting
03021017-05	Kabelbaum HF / BE-Wagen Einzug R2	Cable harness HF / CO trolley dock.unit R2
03021035S03	Abholfenster kompl. / X16	pickup window cpl. / X16
03021046S02	Abholfenster kompl. / X24	PICK-UP WINDOW COMPL. X 24
03021048S02	Abholfenster kompl. X32	pickup window / X32
03021059S02	Abholfenster kompl. X44	PICK-UP WINDOW COMPLETE X44

Reliable Feeding for 44mm Tape Components

This SIPLACE Tape Feeder Module is specifically designed to handle 44mm tape, making it perfect for larger SMT components. It offers versatility with support for a variety of pitch settings, ensuring optimal compatibility for different component types. Its robust build enables consistent operation in demanding industrial environments.

Seamless Integration with SIPLACE S-Series

The feeder module features tool-free insertion and a barcode/ID module, simplifying machine setup and enabling automatic recognition for quick changeovers. Its SMEMA interface guarantees trouble-free integration with SIPLACE S-series machines, helping users maintain high productivity and process control.

Durable Design, Low Maintenance

Built from corrosion-resistant industrial-grade metal, this feeder module is engineered to withstand ongoing production runs. The integrated stepper motor and maintenance-free lubrication system reduce downtime, while low-noise operation contributes to a more comfortable workplace.

FAQ's of 00141094 SIPLACE Tape Feeder Module 44mm S:

Q: How do I install the 00141094 SIPLACE Tape Feeder Module 44mm S into my SMT machine?

A: Installation is straightforward, as the feeder uses a tool-free insertion method. Simply align the feeder with the designated slot on your SIPLACE S-series machine and secure it by pressing into place. The automatic ID module enables your machine to recognize and configure the feeder instantly.

Q: What tape and component specifications are supported by this feeder module?

A: The SIPLACE Tape Feeder Module 44mm S is designed for 44mm wide tape and supports both embossed and paper tape types. It accommodates standard pitches such as 4mm, 8mm, and 12mm, depending on component requirements, making it suitable for a wide range of SMT applications.

Q: When should I use a 44mm tape feeder instead of narrower versions?

A: A 44mm tape feeder is preferred when handling larger or high-value components that are packaged in wider carrier tapes. It ensures secure feeding and precise placement, reducing the risk of misfeeds or component damage that might occur with undersized feeders.

Q: Where is the best environment to operate this SIPLACE Tape Feeder Module?

A: This feeder module is optimized to operate in standard SMT production settings with an ambient temperature range of 5C to 40C. Its robust, corrosion-resistant construction makes it suitable for continuous use in industrial environments, such as electronics assembly lines.

Q: What benefits does the barcode/ID module provide during the assembly process?

A: The integrated barcode/ID module enables automatic feeder identification, streamlining machine setup, feeder allocation, and changeover processes. This minimizes manual errors and ensures each feeder is correctly matched to its corresponding placement program for enhanced efficiency.

Q: How does the maintenance-free lubricating system benefit production?

A: The maintenance-free lubricating system reduces the need for regular service and minimizes downtime. Operators can trust the feeder to deliver consistent performance throughout extended production cycles, while the sealed system prevents contamination and prolongs component life.

Q: What are the main advantages of using this SIPLACE feeder module for SMT applications?

A: Key benefits include quick tape loading, high placement accuracy, compatibility with SIPLACE S-series machines, low noise operation, and reliable, continuous feed for efficient production runs. Its durable construction and automated features foster productivity and process stability.
