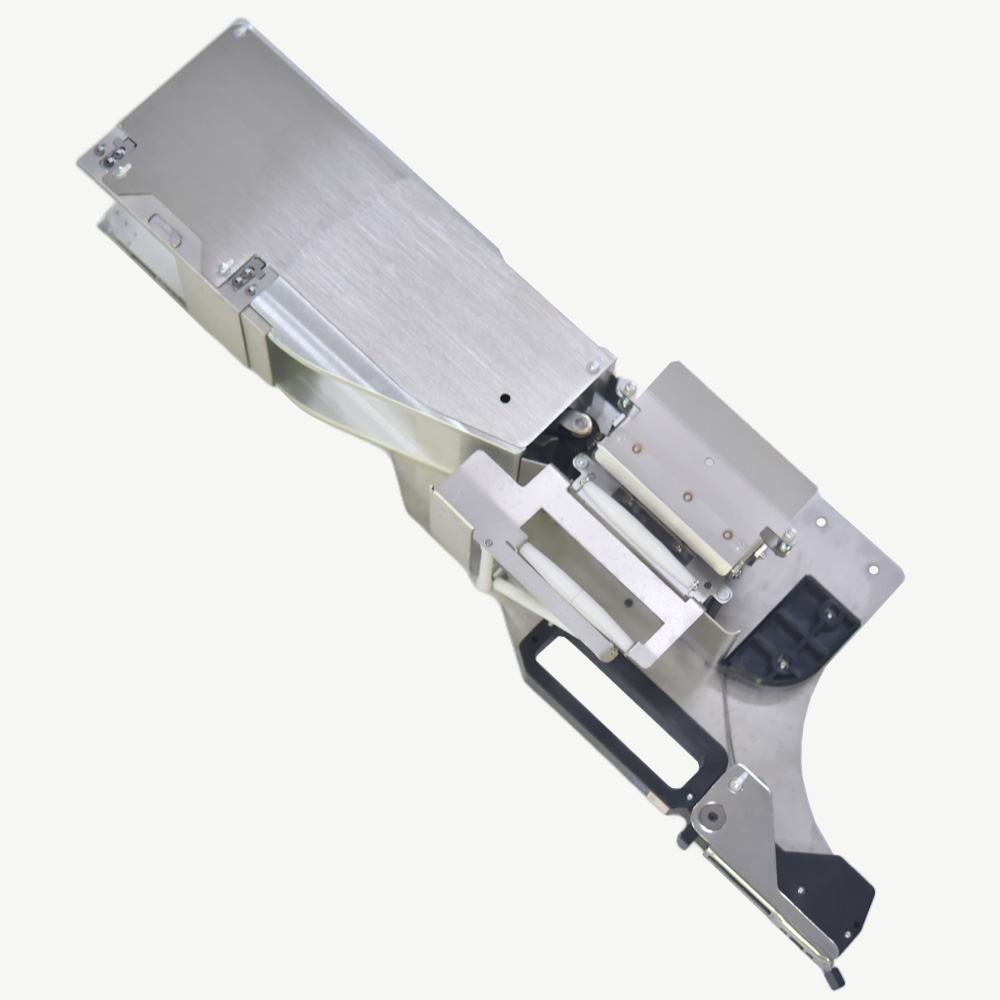

UF05200 W72 FUJI NXT Feeder, Bucket Type

UF05200 W72 FUJI NXT Feeder, Bucket Type Specification

Lubricating System
Self-lubricated moving parts

Capacity
Suitable for 72mm wide tape, high-volume throughput

Size
W72 (suitable for 72mm tape width)

Usage & Applications
Used for automatic component feeding in SMT production lines compatible with FUJI NXT pick & place machines

Surface Finish
Industrial grade anodized

Drive Type
Stepper motor drive

Shape
Rectangular/Bucket Type

Noise Level
Low-noise operation

Motor Power
Integrated step motor, optimized for feeder actuation

Features
High precision, reliable feeding, quick changeover, anti-jam design, durable construction

Product Type
FUJI NXT Feeder, Bucket Type

Material
High-strength industrial metal alloy

Technology
Advanced SMT (Surface Mount Technology)

Power Source
Electric

Power
Standard as per FUJI NXT feeder module design

Voltage
24V DC (typical for NXT feeders)

Surface Treatment
Corrosion-resistant coating

Dimension (L*W*H)
Approx. 380 x 75 x 150 mm

Weight
Approx. 2.3 kg

Color
Silver/Grey

Component Supported
Large IC, odd-form and special package components

ESD Protection
Yes, antistatic material incorporated

Tape Width Supported
72mm (W72 specification)

Lead Time
Ready stock or as per order

Compatible Models
FUJI NXT series SMT machines (NXT I, NXT II, NXT III)

Feeding Direction
Left or right selectable (as per setup)

Operating Temperature Range
5C to 40C

Mounting Method
Quick-mount, tool-free installation

Packing
Standard export carton with foam protection

Storage Temperature
-10C to 50C

Feeder Type
Bucket Type, suitable for special packaging

Serviceability
Easy maintenance, modular parts replaceable

UF05200 W72 FUJI NXT Feeder, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, South America, North America, Eastern Europe, Western Europe, Middle East, Africa

About UF05200 W72 FUJI NXT Feeder, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

PJ20960	PLATE
PJ20970 / 2MDLFA032200	PLATE
XK05541	BOARD, PRINTED CIRCUIT
PS04140 / PS04141	SHEET, SW
XK05471	BOARD, PRINTED CIRCUIT
PB03TS3	PLATE, SEAL
PP02666	COVER
K5254S	SCREW, C / R PAN
K5170C	SCREW, C / R COUNTERSUNK
PX10660	SEAL
PX09120	SEAL, BAR CODE
PX09210	SEAL
PZ45822	TAPE, SEAL
AA8GF00	SENSOR
AA8FR00	BKT, SENSOR

Designed for Wide Tape and Special Components

Optimized for 72mm tape widths, the UF05200 W72 FUJI NXT Feeder specializes in handling large integrated circuits, unique-formed parts, and components in special packaging. Its bucket-type feed design ensures smooth, accurate delivery, making it an essential addition for assembly lines that require the handling of unconventional or oversized components.

Seamless Integration and Quick Maintenance

Featuring a quick-mount mechanism, this feeder enables tool-free installation and removal, significantly reducing changeover times. Modular construction means that service and replacement of components are fast and straightforward, minimizing production downtime and supporting ongoing operational efficiency.

Reliable, Safe, and Efficient Operation

Incorporating advanced step motor technology and constructed with antistatic materials, the UF05200 W72 ensures both precise, reliable feeding and robust ESD (Electrostatic Discharge) protection. The feeder operates quietly and supports selectable feeding direction, adapting easily to diverse production setups while maintaining safety and efficiency.

FAQ's of UF05200 W72 FUJI NXT Feeder, Bucket Type:

Q: How does the UF05200 W72 FUJI NXT Feeder improve SMT line productivity?

A: The UF05200 W72 increases productivity by enabling rapid, tool-free installation and changeover via its quick-mount mechanism. Its robust, anti-jam bucket type design supports high-volume, precise feeding of large ICs and special components, reducing bottlenecks and facilitating continuous operation in SMT production lines.

Q: What types of tape and components are compatible with this feeder?

A: This feeder supports 72mm-wide tape (W72 specification) and is particularly suitable for large integrated circuits, odd-form, and other specialty package components commonly used in advanced electronic assemblies.

Q: When should I select the left or right feeding direction?

A: You can choose the feeding direction (left or right) during initial setup based on your specific machine configuration and line layout requirements, ensuring optimal workflow and integration with FUJI NXT pick & place systems.

Q: Where is the UF05200 W72 typically installed in an SMT line?

A: It is installed directly on compatible FUJI NXT series pick & place machines (NXT I, II, III), where it feeds components automatically for efficient PCB assembly. The quick-mount system lets operators attach or remove the feeder swiftly at any station requiring wide-tape component input.

Q: What maintenance process does the feeder require?

A: Thanks to its modular design and self-lubricated moving parts, the feeder demands minimal maintenance. When needed, parts can be easily replaced or serviced without the use of special tools, supporting uninterrupted production.

Q: What are the benefits of ESD protection and industrial-grade construction?

A: The integrated antistatic materials provide reliable ESD protection, safeguarding sensitive electronics during feeding. With its corrosion-resistant, high-strength metal alloy build, the feeder offers excellent durability and long service life, making it ideal for demanding industrial environments.
