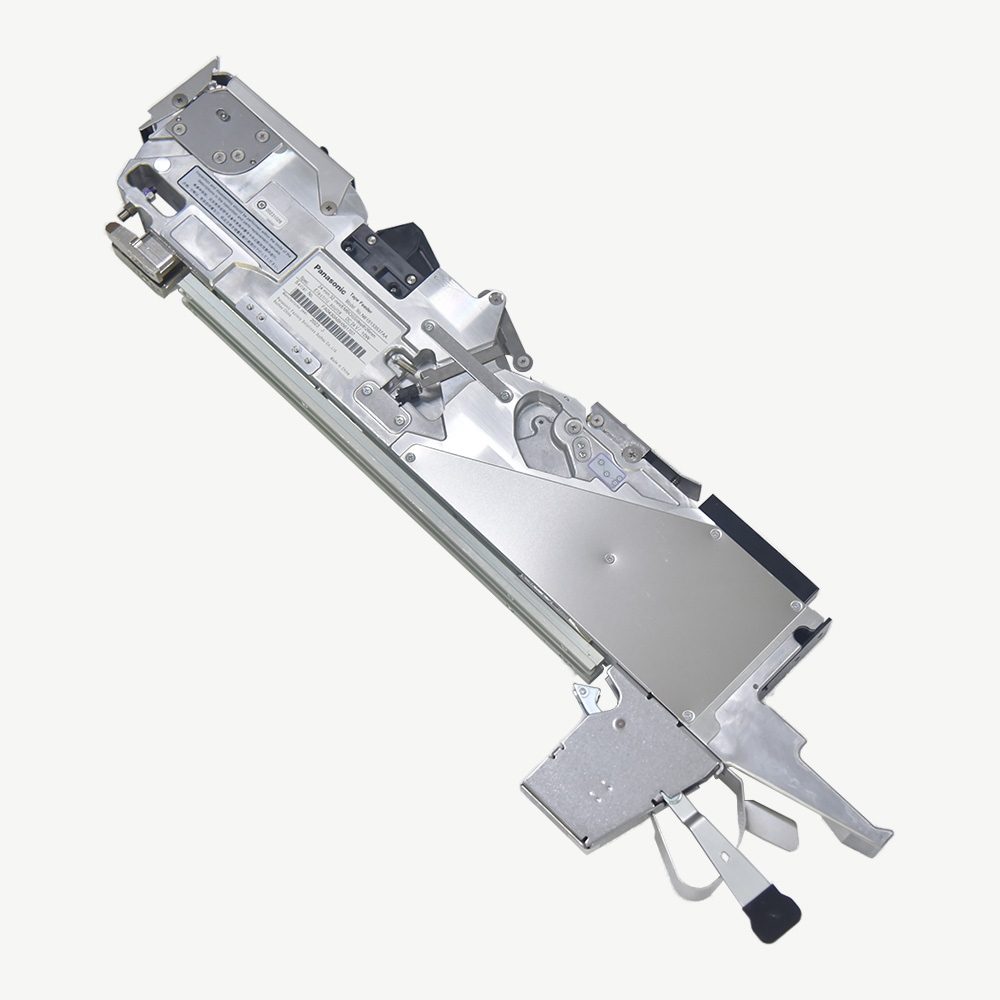

N610133537AA PANASOINC NPM Tape Feeder With Splicing Sensor, 24/32mm (26mm depth)

N610133537AA PANASOINC NPM Tape Feeder With Splicing Sensor, 24/32mm (26mm depth) Specification

Shape
Rectangular housing with integrated spool area

Size
24mm / 32mm Tape Width (26mm Depth)

Drive Type
Electric Drive

Noise Level
Low noise operation

Capacity
Supports continuous feeding with tape splicing

Motor Power
Integrated stepping motor (low power)

Lubricating System
Maintenance-free

Usage & Applications
Automated SMT Line, Panasonic NPM Machine

Features
Includes splice sensor, automatic tape alignment, quick-release mechanism, high precision feeding

Surface Finish
Smooth anodized

Product Type
NPM Tape Feeder with Splicing Sensor

Material
High-strength Alloy, Engineering Plastic

Technology
Surface Mount Technology (SMT)

Power Source
Electric

Voltage
24V DC (Feeder interface)

Surface Treatment
Anti-corrosive Finish

Dimension (L*W*H)
Approximately 55cm x 8cm x 8cm

Weight
Approx. 2.2kg

Color
Silver/Grey with Black Accents

Feeder Depth
26mm

Replacement Part Number
N610133537AA

Compatible Models
Panasonic NPM (Next Production Modular) Series

Splice Sensor Type
Photoelectric sensor for splice detection

Operating Temperature
5C to 40C

Storage Temperature
-20C to 55C

Tape Specification
24mm/32mm tape with splice joint capability

Sensor Output
Integrated to NPM system, immediate splice alert

Control Interface
SMT machine feeder interface

Mounting Type
Quick-lock attachment

N610133537AA PANASOINC NPM Tape Feeder With Splicing Sensor, 24/32mm (26mm depth) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About N610133537AA PANASOINC NPM Tape Feeder With Splicing Sensor, 24/32mm (26mm depth)

Prices are for show only, please contact us for exact price

SMT Product List

N510058080AA	Panasonic N510058080AA
N510040193AA	Panasonic N510040193AA
N510019399AA	BALL SCREW
N210198041AA	SHAFT
104131103607	PISTON (AVK)
2AGKPE000400 / XK05050	PC Board
X02G41101	RL131 Panasonic AI parts
N210081568AA	MOVNG CHUCK CUTTER(PANASONC)
N210192364AA /X02G52201	PANASONC parts
3083821003	CABLE W / CONNECTOR(PANASONC)
104132102103	LEVER(PANASONK AVK2B)-
N310EESP-051	SENSR (PANASONK AVK)

Enhanced Efficiency with Photoelectric Splice Detection

This tape feeder integrates a photoelectric splicing sensor that promptly detects splices in tape, sending immediate alerts to the Panasonic NPM system. The benefit is minimized downtime and seamless transition during reel changes, ensuring that your SMT line maintains peak operational efficiency with fewer manual interventions.

Designed for Compatibility and Durability

Tailored specifically for Panasonic NPM Series machines, the N610133537AA tape feeder supports both 24mm and 32mm tape widths at a 26mm depth. Featuring a high-strength alloy structure with anti-corrosive coating and a maintenance-free design, it delivers long-term reliable performance in demanding manufacturing environments.

User-Friendly, Rapid Installation and Operation

With its quick-lock attachment and integrated SMT machine interface, operators can easily install, operate, and maintain this tape feeder. The automatic tape alignment and low-noise electric drive facilitate smooth, continuous feeding, thus optimizing the workflow of automated SMT production lines.

FAQ's of N610133537AA PANASOINC NPM Tape Feeder With Splicing Sensor, 24/32mm (26mm depth):

Q: How does the splicing sensor function in the N610133537AA Panasonic NPM Tape Feeder?

A: The feeder uses a built-in photoelectric splicing sensor that detects the presence of splice joints in the tape. Once a splice is identified, the feeder immediately sends an alert to the NPM system, allowing automatic adjustment or intervention to maintain production quality and prevent errors.

Q: What models are compatible with the N610133537AA Tape Feeder?

A: This tape feeder is specifically designed for the Panasonic NPM (Next Production Modular) Series, ensuring seamless integration with these SMT platforms for optimized performance and reliability in automated assembly lines.

Q: When should the N610133537AA Tape Feeder be used in an SMT production line?

A: This feeder is best employed when continuous, error-free feeding of 24mm or 32mm tape is required, especially during reel changes involving splicing. It is ideal for environments demanding high-speed, uninterrupted SMT component placement.

Q: Where can the N610133537AA Tape Feeder be installed?

A: The N610133537AA feeder mounts directly to compatible Panasonic NPM Series machines, utilizing its quick-lock attachment mechanism for straightforward installation in automated SMT lines within manufacturing facilities.

Q: What is the process for replacing the feeder or performing maintenance?

A: Due to its quick-release and maintenance-free design, replacing the feeder is a simple process: disconnect from the SMT interface, disengage the quick-lock, and swap in the replacement unit. The feeder's construction eliminates the need for regular lubrication or complex maintenance routines.

Q: What benefits does the integrated electric drive and automatic alignment offer?

A: The integrated stepping motor provides precise, low-power operation for consistent tape advancement, while the self-aligning feature ensures accurate placement, reducing misfeeds and minimizing manual adjustments during feeding and splicing events.

Q: How does the feeder improve overall SMT line productivity?

A: By supporting continuous feeding with real-time splice detection and immediate system alerts, the N610133537AA feeder considerably reduces downtime, avoids feeding errors, and maintains high throughput, directly enhancing the productivity and efficiency of the SMT line.
