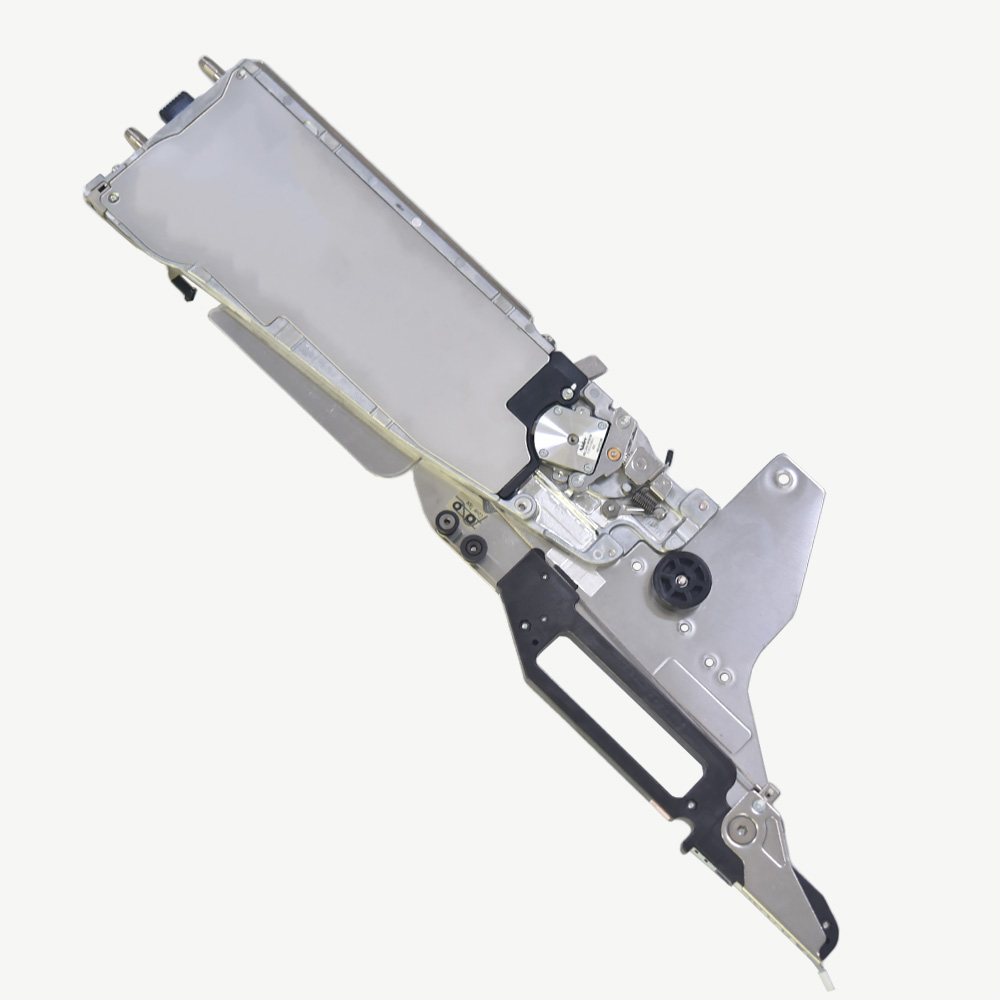

W04f FUJI NXTIII 4mm Intelligent Feeder, Bucket Type

W04f FUJI NXTIII 4mm Intelligent Feeder, Bucket Type Specification

Surface Finish
Smooth durable finish

Drive Type
Electronic drive

Lubricating System
Maintenance-free, pre-lubricated

Size
4mm tape width capacity

Shape
Rectangular, standard feeder form

Usage & Applications
For feeding 4mm component tapes in FUJI NXTIII SMT machines

Noise Level
<55 dB during operation

Motor Power
Integrated low-power stepper motor

Features
Auto tape sensing, data memory chip, anti-jam mechanism, quick-release design

Capacity
Single 4mm tape

Product Type
Intelligent Feeder, Bucket Type

Material
High-grade metal, engineering plastic

Technology
FUJI NXTIII platform compatible, smart feeding technology

Power Source
Electric

Power
Standard feeder power (as per FUJI NXTIII specs)

Voltage
24V DC

Surface Treatment
Anti-corrosive coating finish

Dimension (L*W*H)
Approx. 508 x 63 x 100 mm

Weight
Approx. 1.6 kg

Color
Black/Silver

Compatibility
Fully compatible with FUJI NXTIII machines and feeder carts

Anti-Static Properties
ESD safe construction

Maintenance
Tool-free replacement and cleaning

Feeding Speed
Optimized for high-speed pick and place operations

Tape Type
Paper, plastic, and embossed tape compatible

Tape Width Supported
4mm universal

Storage Conditions
-20C to 60C, avoid direct sunlight

Operating Environment
0-40C, humidity < 80% non-condensing

SKU/Model Number
W04F NXTIII Bucket Type

Interface
Smart feeder protocol with data communication chip

Placement Accuracy
High precision, matches NXTIII system standards

Manufactured By
FUJI Machine Mfg. Co., Ltd.

Component Detection
Integrated LED sensor for accurate tape indexing

Component Type
Suitable for SMD (Surface Mount Device) components

W04f FUJI NXTIII 4mm Intelligent Feeder, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About W04f FUJI NXTIII 4mm Intelligent Feeder, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

PM0FME1 / 2MDLFA013501 / 2MDLFA038301	BODY
AA6WC06 / AA6WC07	MOTOR, STEPPING
PZ39263	MOTOR, STEPPING
PM06LX2	GEAR
K5255T	SCREW, HEX SOCKET BUTTON
AA5SD07 / AA5SD08 / 2ADLFA006000	GEAR
PM046F5	GEAR
PM046E6 / PM046E7	GEAR
H44516	BEARING, MINIATURE
PM04EW3	PIN
PM0DDN0	PIN, ECCENTRIC
N10812	NUT, HEX
W1021A	WASHER, LOCK
AA6AR06	SPROCKET

Advanced Intelligent Feeding Technology

Featuring FUJI's smart feeding technology, the W04f NXTIII feeder integrates a communication chip, auto tape sensing, and an anti-jam mechanism. This ensures precise indexing and consistent, high-speed performance, crucial for demanding SMT production lines.

Effortless Maintenance and Versatility

Routine upkeep is simplified with tool-free replacement and cleaning. The pre-lubricated, maintenance-free system, robust anti-corrosive finish, and compatibility with various tape types enhance productivity and minimize downtime.

Precision Matched to FUJI NXTIII Standards

Engineered specifically for FUJI NXTIII machines and feeder carts, this feeder guarantees high placement accuracy. Its ESD-safe construction and smooth, durable finish support reliable operation under a range of industrial conditions.

FAQ's of W04f FUJI NXTIII 4mm Intelligent Feeder, Bucket Type:

Q: How does the W04f FUJI NXTIII feeder improve pick-and-place operations?

A: The W04f feeder utilizes smart feeding technology, including auto tape sensing and a high-precision stepper motor, to deliver components efficiently and accurately at high speeds, optimizing pick-and-place productivity and minimizing errors.

Q: What types of component tapes can this feeder handle?

A: It supports 4mm paper, plastic, and embossed tapes, making it suitable for a wide range of SMD components used in modern SMT assembly lines.

Q: When should I perform maintenance on the W04f feeder?

A: This feeder features a maintenance-free, pre-lubricated design, but periodic cleaning, which can be done without tools, is recommended to ensure smooth operation and prevent debris buildup.

Q: Where can the W04f NXTIII feeder be used?

A: It is fully compatible with FUJI NXTIII pick-and-place machines and feeder carts, making it ideal for deployment in professional SMT assembly and electronics manufacturing environments.

Q: What is the process for replacing or cleaning the feeder?

A: The feeder is designed for tool-free, quick-release replacement and straightforward cleaning, enabling users to minimize downtime and maintain consistent, efficient operation.

Q: What are the main benefits of using this intelligent feeder?

A: The feeder offers high-speed, accurate component feeding, robust anti-static protection, data memory features, and reduced noise levels, all contributing to reliable, efficient throughput in SMT production.
