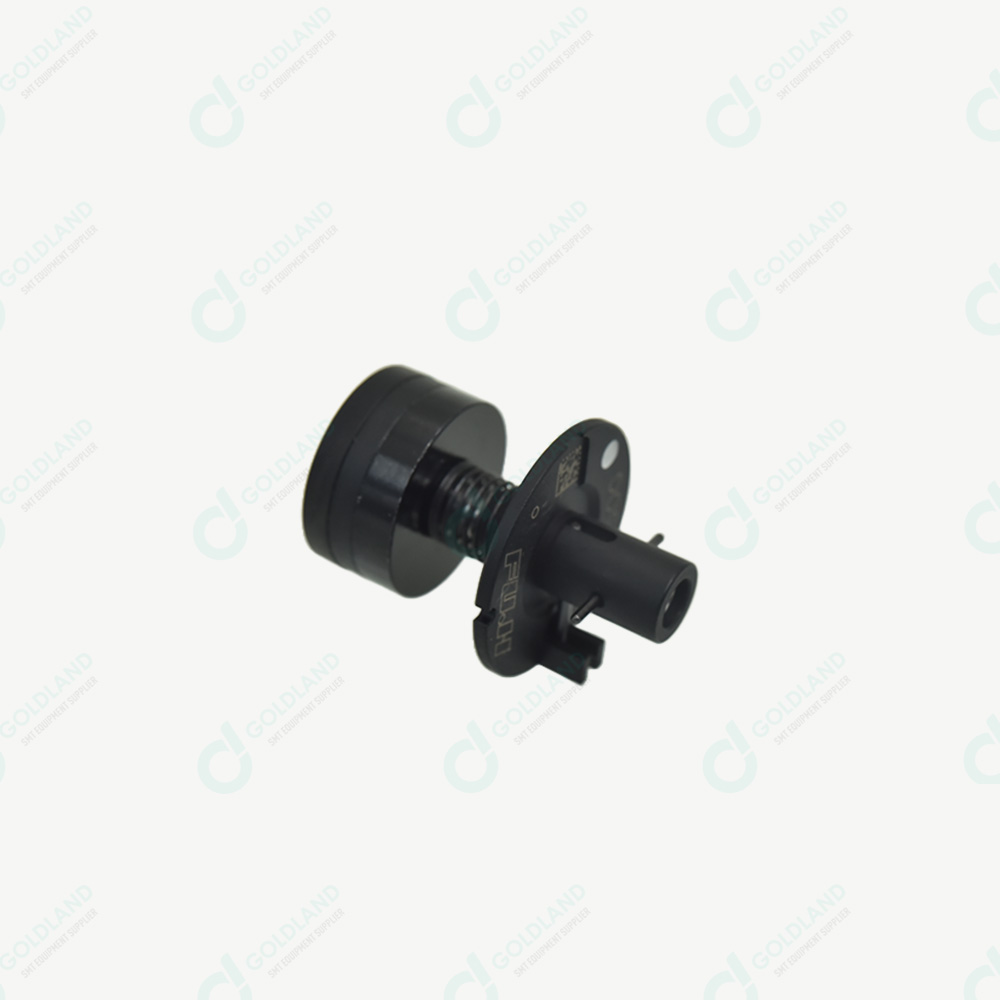

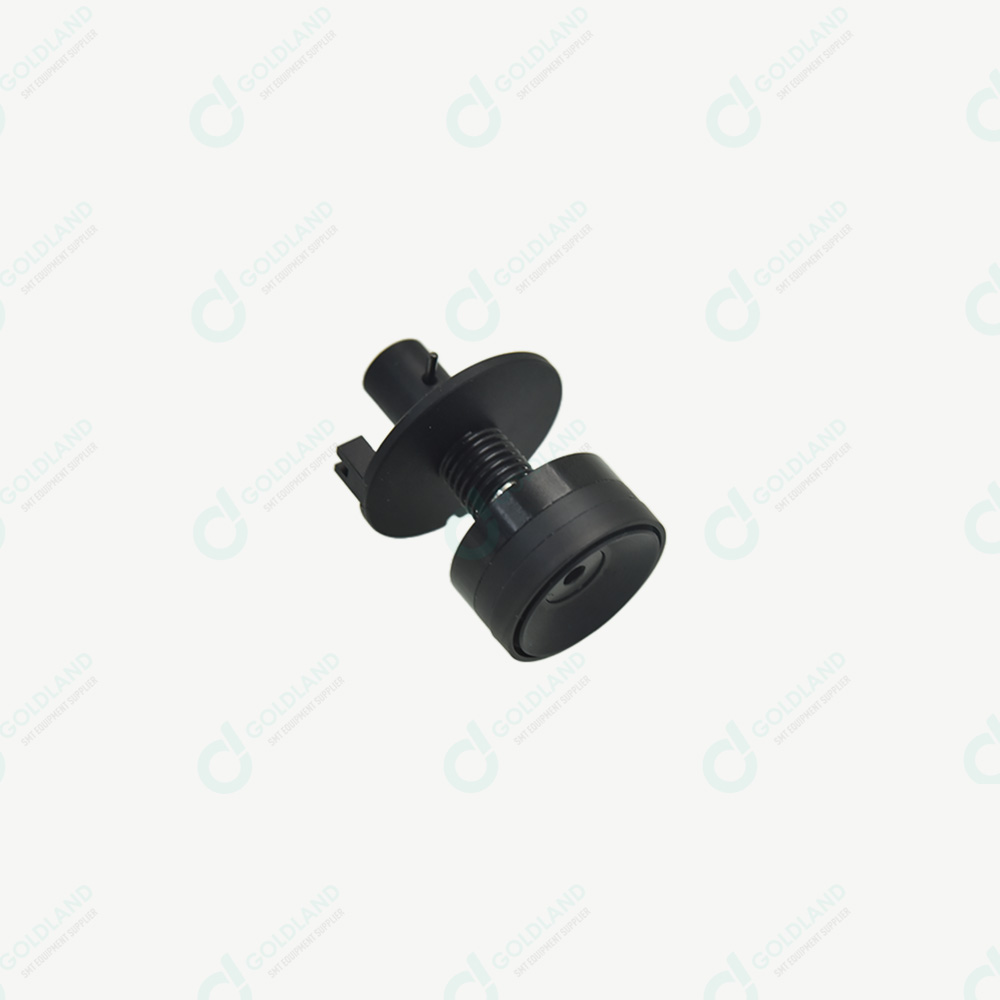

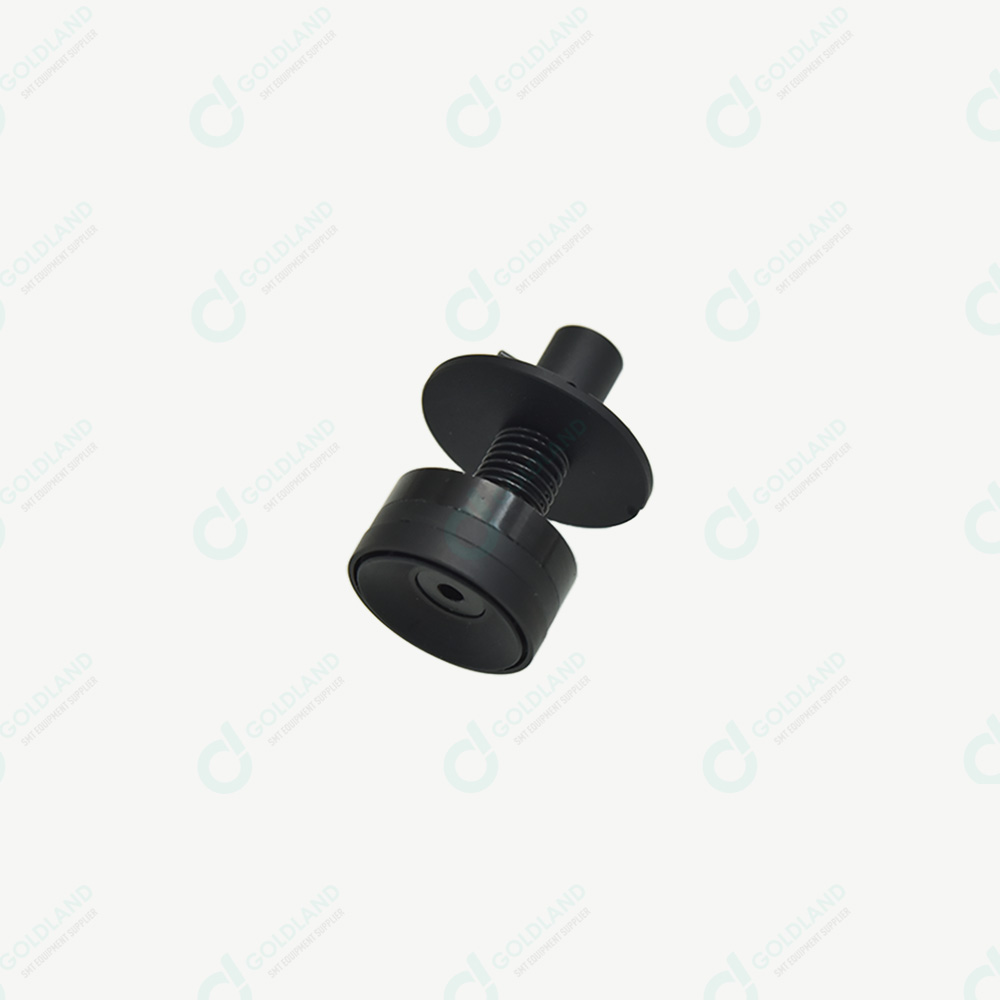

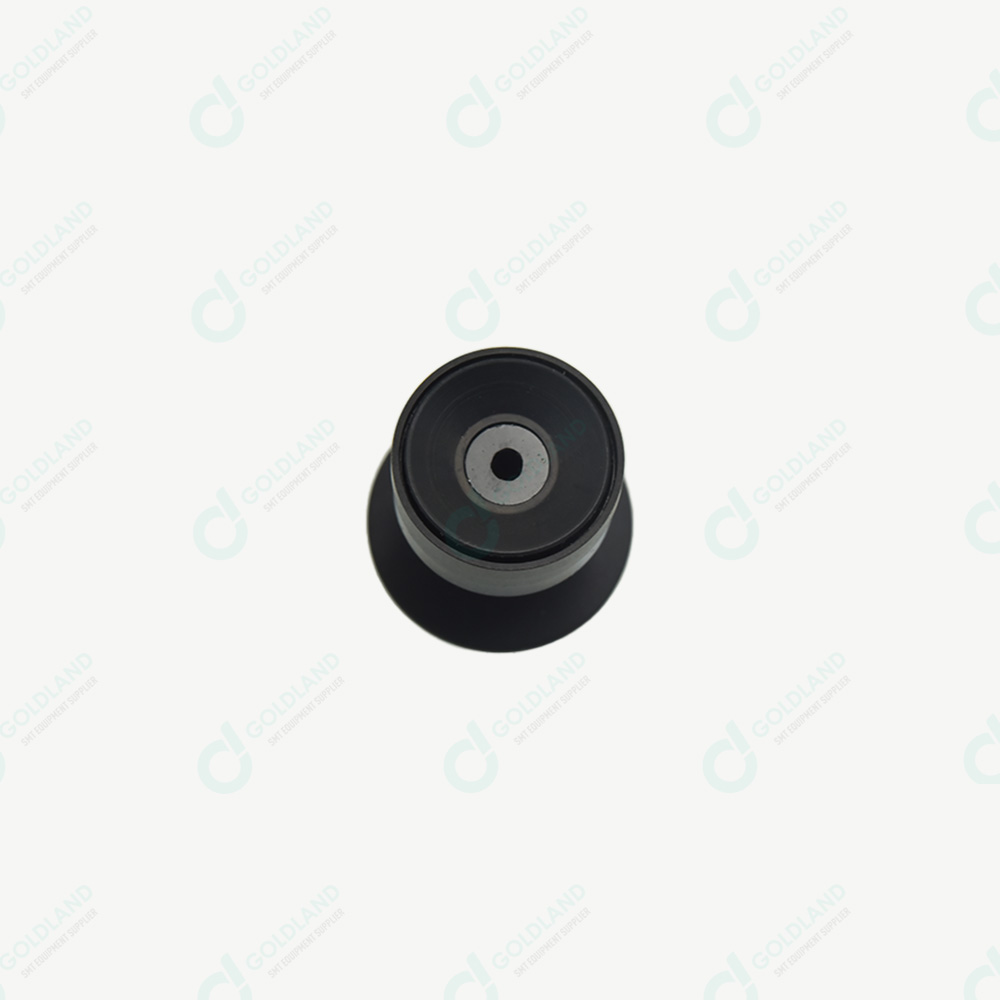

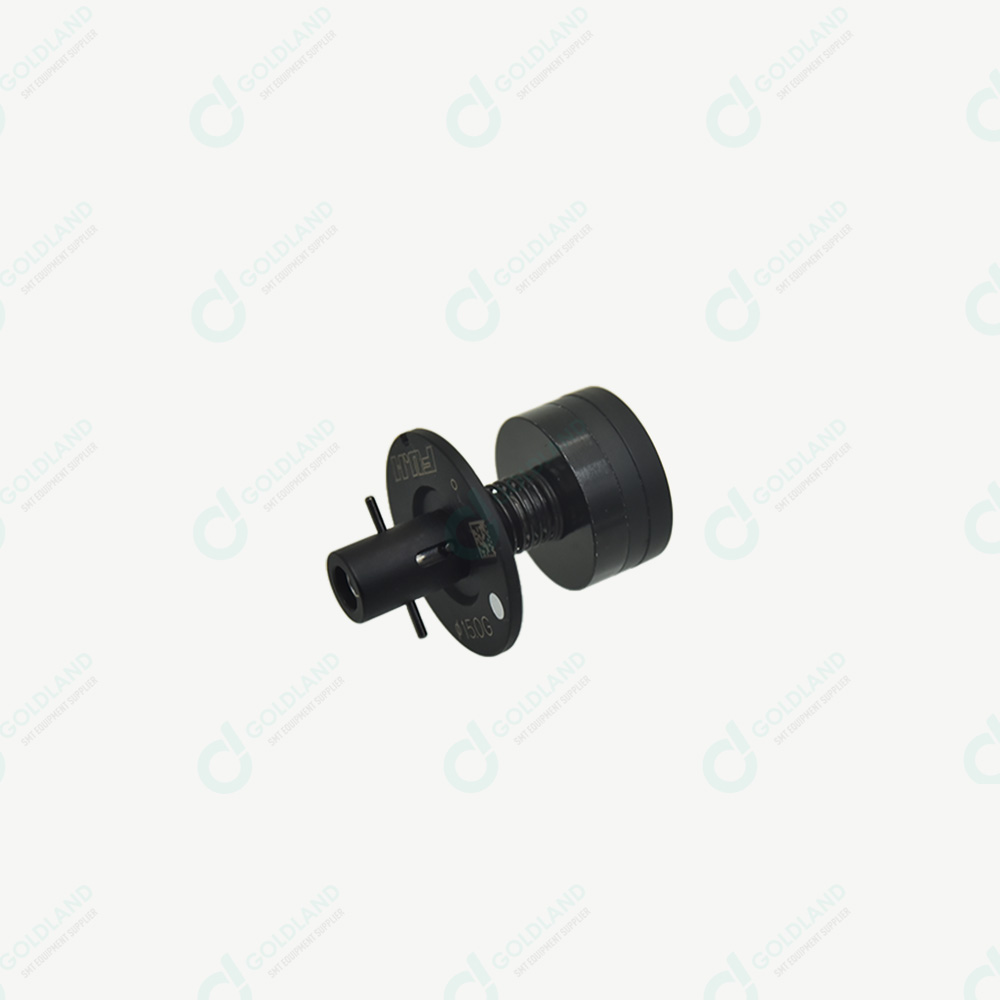

R19-150G-155-M AA8ML FUJI NXT HO8M Nozzle, Dia15.0G

R19-150G-155-M AA8ML FUJI NXT HO8M Nozzle, Dia15.0G Specification

Capacity
Designed for single-unit SMT use

Shape
Round with tapered tip

Diameter
15.0G

Noise Level
Silent (no moving parts)

Size
Standard for HO8M Series

Usage & Applications
SMT machine pick and place operations

Surface Finish
Smooth, wear-resistant

Features
High accuracy placement, durable, ESD safe

Product Type
FUJI NXT HO8M Nozzle

Material
High-grade steel alloy

Technology
Precision CNC Machining

Power Source
Manual

Surface Treatment
Anti-corrosion coated

Dimension (L*W*H)
Custom fit for NXT HO8M head

Weight
Approx. 8g

Color
Black

Replacement Code
R19-150G-155-M AA8ML

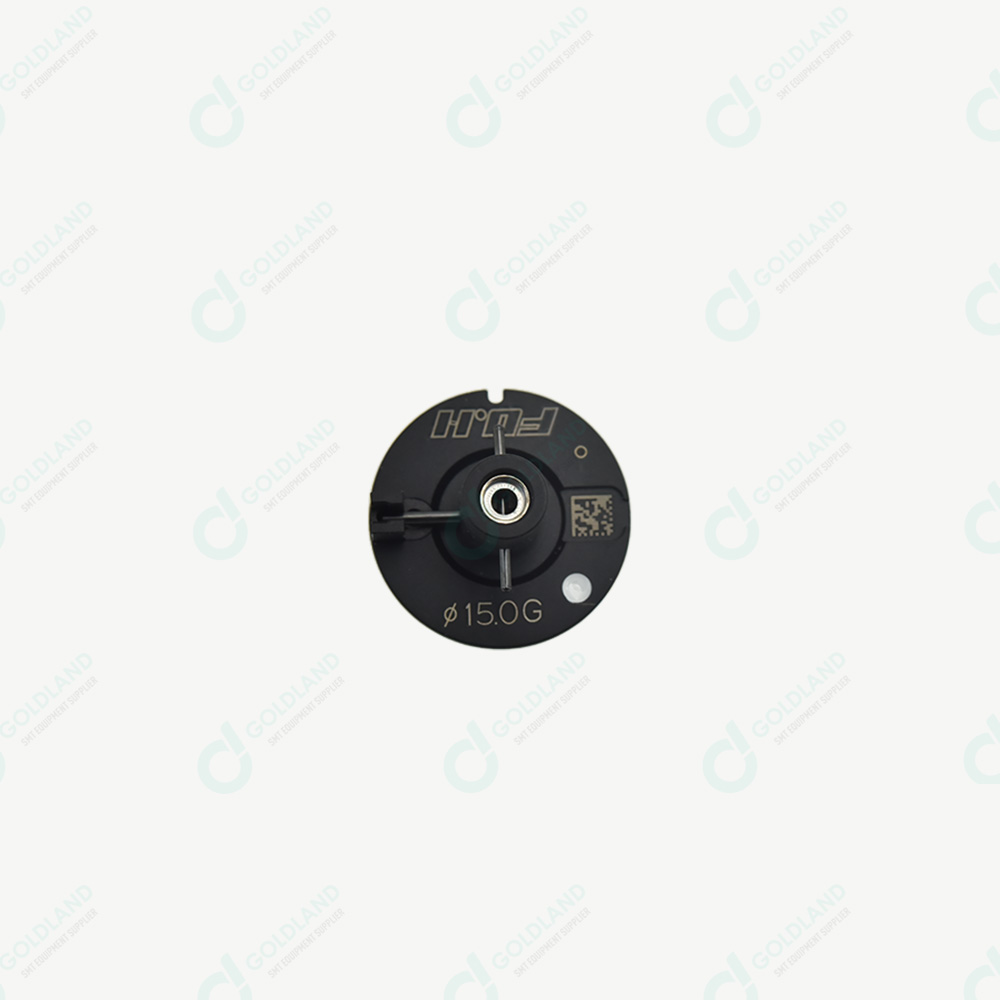

Markings
Laser-etched part number and size identification

Resilience
High impact and abrasion resistance

Cleaning Method
Ultrasonic or IPA-based cleaning recommended

Tip Design
Precision machined tapered end

Compatible Models
FUJI NXT H08M Placement Heads

Operating Temperature
0-60C

Part Number
R19-150G-155-M

Lifespan
Up to 1 million cycles under standard conditions

Mounting Type
Quick-swap for NXT heads

Packaging
Anti-static tray or tube

R19-150G-155-M AA8ML FUJI NXT HO8M Nozzle, Dia15.0G Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

About R19-150G-155-M AA8ML FUJI NXT HO8M Nozzle, Dia15.0G

Prices are for show only, please contact us for exact price.

SMT Nozzles

2AGKNG021700	H12HS / V12 Placing Head Wide Range Nozzle M (1005-1608)	FUJI H12HS V12 placement head nozzles
2AGKNG021800	H12HS / V12 Placing Head Wide Range Nozzle L (1608-2125)	FUJI H12HS V12 placement head nozzles
2AGKNL013900	Dyna Head (S1) Nozzle, dia. 1.3 (S1)	FUJI DX (S1) placement head nozzles
2AGKNL014000	Dyna Head (S1) Nozzle, dia. 2.5 (S1)	FUJI DX (S1) placement head nozzles
2AGKNL014100	Dyna Head (S1) Nozzle, dia. 5.0 (S1)	FUJI DX (S1) placement head nozzles
2AGKNL017400	Dyna Head (S1) Nozzle, dia. 1.8 (S1)	FUJI DX (S1) placement head nozzles
2AGKNL017500	Dyna Head (S1) Nozzle, dia. 3.7 (S1)	FUJI DX (S1) placement head nozzles

Durability You Can Trust

Designed for longevity, this nozzle can withstand up to 1 million cycles under standard SMT conditions. Its high-grade steel alloy construction and anti-corrosion coating deliver superior resistance to wear and impact, making it ideal for continuous manufacturing operations.

Engineered for Precision

The precision-machined, tapered end ensures high accuracy during pick-and-place tasks on FUJI NXT H08M heads. Its round, smooth, and wear-resistant surface finish contributes to consistent placement and minimal maintenance needs, enhancing workflow reliability.

Simple Integration and Maintenance

Featuring a quick-swap mounting type, the nozzle is easy to install or replace on NXT heads. Regular cleaning using ultrasonic or IPA-based methods keeps the nozzle performing optimally, while the anti-static packaging preserves product integrity during storage and transport.

FAQ's of R19-150G-155-M AA8ML FUJI NXT HO8M Nozzle, Dia15.0G:

Q: How is the R19-150G-155-M AA8ML FUJI NXT HO8M Nozzle installed?

A: This nozzle features a quick-swap design specifically made for FUJI NXT H08M Placement Heads, enabling straightforward manual installation and replacement during maintenance or changeovers.

Q: What are the recommended cleaning methods for this nozzle?

A: For optimal performance and longevity, ultrasonic cleaning or IPA-based wiping is advised. Regular cleaning prevents build-up and ensures accurate placement operations.

Q: When should I replace the R19-150G-155-M AA8ML nozzle?

A: It is recommended to replace the nozzle after approximately 1 million placement cycles or upon visible signs of wear to maintain placement accuracy and reliability in SMT operations.

Q: Where can this nozzle be used in an SMT production line?

A: This nozzle is designed for use with FUJI NXT H08M Placement Heads, making it suitable for pick-and-place stages in Surface Mount Technology (SMT) assembly lines.

Q: What benefits does the high-grade steel alloy construction provide?

A: The high-grade steel alloy material, combined with anti-corrosion coating, offers exceptional impact and abrasion resistance, extending operational lifespan even in demanding manufacturing settings.

Q: How can I identify the correct nozzle for my FUJI NXT head model?

A: Each nozzle is laser-etched with its part number and size for quick, reliable identification, helping ensure you select the exact part compatible with your FUJI NXT H08M Placement Head.
