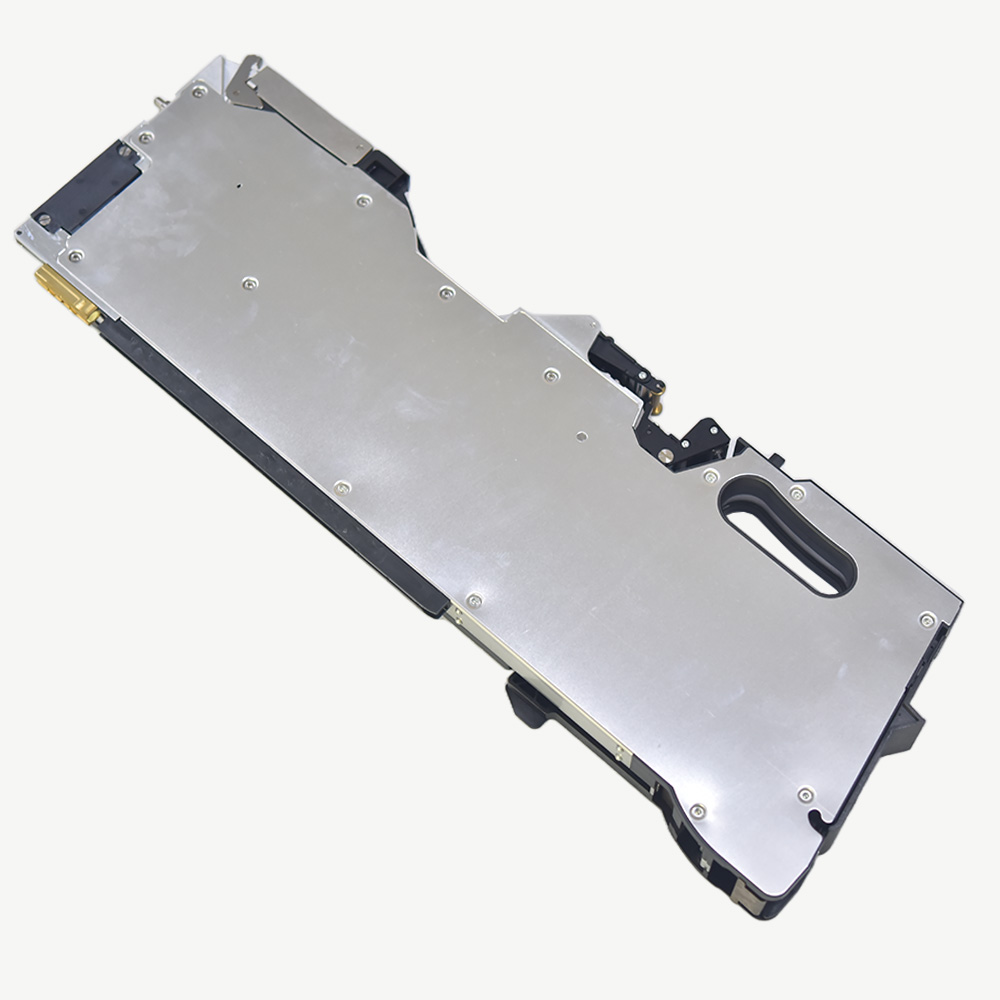

00141394 SIPLACE Tape Feeder Module 32mm X Smart with Splicing

00141394 SIPLACE Tape Feeder Module 32mm X Smart with Splicing Specification

Surface Finish
Smooth / Anti-corrosive

Noise Level
Low noise operation

Features
Smart feeder recognition, automatic splicing capability, quick-release, advanced sensor feedback

Size
32mm tape width

Usage & Applications
Surface Mount Technology (SMT) pick-and-place machinery, PCB assembly lines

Capacity
Suitable for 32mm wide tape spools

Motor Power
Precision motorized feed mechanism

Lubricating System
Maintenance-free

Shape
Rectangular Modular

Drive Type
Electronic, motor-driven

Product Type
Tape Feeder Module

Material
High-grade aluminum alloy, engineering plastic

Technology
SIPLACE X Smart Feeder Technology

Power Source
Electric

Power
24V DC

Voltage
24V

Pressure
No pneumatic requirement

Surface Treatment
Anodized / Powder-coated

Dimension (L*W*H)
Approx. 390mm x 60mm x 120mm

Weight
About 2.1 kg

Color
Black, Silver

Control Interface
Integrated with SIPLACE feeder control software

Compatible Models
SIPLACE X-series, SX, TX pick-and-place machines

Feeder Identification
Automatic electronic feeder identification

Tape Pitch Support
Supports standard and custom pitch feeds

Maintenance
Tool-less maintenance design

Feed Accuracy
High-precision optical sensing for component alignment

Splicing Capability
Supports on-the-fly tape splicing for minimal downtime

Operating Temperature
10C to 40C

Mounting
Quick locking mount, tool-free installation

00141394 SIPLACE Tape Feeder Module 32mm X Smart with Splicing Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 00141394 SIPLACE Tape Feeder Module 32mm X Smart with Splicing

Prices are for show only, please contact us for exact price

SMT Feeder Parts

03027905-01	Adapterkabel CAN-Bus MTC2	Adapter cable MTC2 CAN bus
03028249S02	Pneumatik, Grundeinheit / HS	Pneumatic System / HS6x
03028258-01	Filter, G1 / 2 Zoll, Modulair 112. 5m	Filter, G1 / 2 Zoll, Modulair 112, 5m
03028506-01	Ersatzmonitorhalter kpl.	Backup monitor support compl.
03028578-01	Abfallrutsche	WASTE SLIDE
03028986S03	Pick + Place-Modul / High-Force	Pick + Place-Modul / High-Force
03029073-02	MODUL / Kopfinterface gespiegelt Gesamt X	Modul Head Interface mirrored complete X
03029092-01	Abdeckblech	Cover sheet
03029113-01	Maschinenverkleidung Abdeckung kpl	machine facing cover sheet
03029123S03	CPU-Bg. SMP16-CPU086 1,6GHz 768MB	CPU-PCB. SMP16-CPU086 1,6GHz 768MB

Advanced Splicing for Maximum Efficiency

This SIPLACE Tape Feeder Module supports on-the-fly tape splicing, drastically minimizing production downtime. It seamlessly integrates with SIPLACE feeder control software, enabling real-time operation without interruption or manual interventions.

Precision and Smart Recognition Technology

Equipped with high-precision optical sensors and SIPLACE X Smart Feeder Technology, the module ensures accurate component alignment on 32mm tape widths. Automatic electronic feeder identification boosts operation speeds and tracking for optimal process management.

Tool-Free, User-Centric Design

The quick locking mechanism and tool-less maintenance design simplify both installation and upkeep. Constructed from high-grade materials, including anodized aluminum alloy, the feeder guarantees longevity under demanding assembly line conditions.

FAQ's of 00141394 SIPLACE Tape Feeder Module 32mm X Smart with Splicing:

Q: How is the SIPLACE Tape Feeder Module 32mm X Smart installed?

A: The module features a quick locking mount that allows for tool-free installation. Simply align the feeder with the mounting slot on your compatible SIPLACE X-series, SX, or TX pick-and-place machine and secure it in place for immediate operation.

Q: What is the main benefit of on-the-fly tape splicing capability?

A: On-the-fly tape splicing lets you join new tape reels seamlessly without pausing production, resulting in minimal downtime and improved efficiency on your PCB assembly line.

Q: Which SIPLACE machines are compatible with this 32mm smart feeder module?

A: This feeder module is compatible with SIPLACE X-series, SX, and TX models, ensuring versatility across various SMT production lines.

Q: Where can this tape feeder module be used?

A: It is designed for use in Surface Mount Technology (SMT) pick-and-place machinery, specifically on PCB assembly lines where rapid and precise component placement is crucial.

Q: What process ensures correct component feed alignment?

A: High-precision optical sensor technology embedded in the module provides accurate alignment and feed of components, reducing placement errors during pick-and-place operations.

Q: How is maintenance handled for this module?

A: Thanks to a tool-less maintenance design, users can quickly perform routine upkeep or part swaps without specialized equipment, maintaining optimal performance and minimal disruption.

Q: What unique feature enhances feeder identification and process control?

A: The feeder includes automatic electronic identification, allowing SIPLACE machines to recognize the feeder instantly and integrate vital configuration data, which streamlines feeder management during changeovers.
