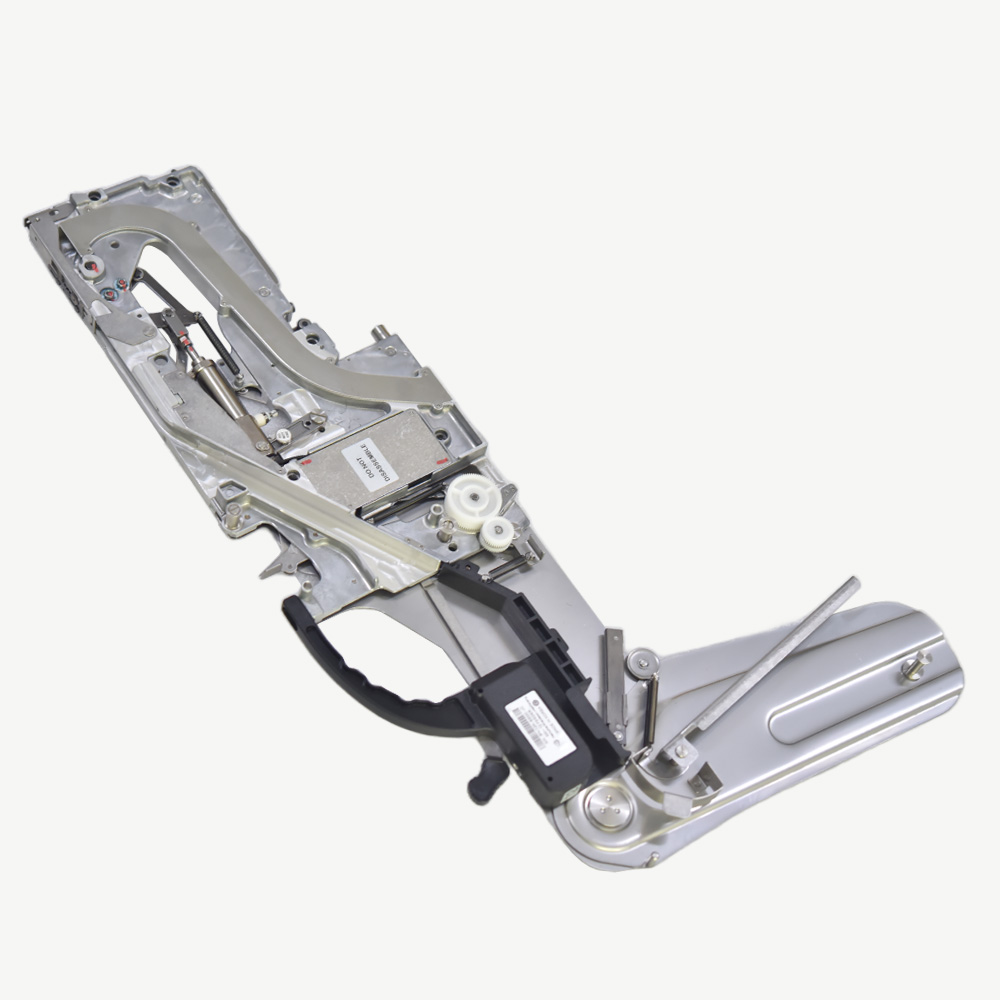

SMN-12mm-IT-NT SAMSUNG SMN 12mm IT Feeder, New Type

SMN-12mm-IT-NT SAMSUNG SMN 12mm IT Feeder, New Type Specification

Lubricating System
Maintenance-free, dry operation

Shape
Rectangular Feeder Body

Surface Finish
Smooth, corrosion-resistant finish

Usage & Applications
Compatible with Samsung SMN Series SMT Pick and Place Machines, for 12mm width component tapes

Size
12mm

Features
Quick mounting, high precision feeding, new-type mechanism, tool-less design, durable construction

Capacity
Supports 12mm width tape reels

Drive Type
Mechanical & Pneumatic

Noise Level
Low Noise Operation

Product Type
SMN 12mm IT Feeder, New Type

Material
High-quality Aluminum Alloy

Technology
SMT (Surface Mount Technology)

Power Source
Pneumatic

Power
N/A (Pneumatic Driven)

Voltage
N/A (Operates via SMT machine interface)

Pressure
0.5 MPa (Approximate typical requirement)

Surface Treatment
Anodized

Dimension (L*W*H)
Approx. 370mm x 70mm x 40mm

Weight
About 1.8 kg

Color
Silver/Grey

Replacement
Designed for quick replacement and minimal downtime

Component Compatibility
Supports common SMT component tapes

Storage Condition
Keep in dry, dust-free environment

Operating Temperature Range
10C to 40C

Spare Parts Availability
Spare parts available from authorized suppliers

Installation
Plug-and-play type for compatible machines

Maintenance
Easy disassembly for cleaning and maintenance

Safety Mechanism
Integrated locking/release mechanisms

Feeding Accuracy
0.1mm

Tape Width Supported
12mm (standard 8mm-56mm available in other models)

Model Compatibility
SMN Series, SEN Series (verify model for fitment)

SMN-12mm-IT-NT SAMSUNG SMN 12mm IT Feeder, New Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SMN-12mm-IT-NT SAMSUNG SMN 12mm IT Feeder, New Type

Prices are for show only, please contact us for exact price

SMT Product List

VYF44M-50M	sm482 filter
AM03-007078A	ASSY,Panasonic nozzle-Panasonic nozzle_VN065S_ASSY, Excen
AM03-000154B	ASSY,Panasonic nozzle-Panasonic nozzle_VN040N_ASSY, Excen
AM03-006325A	ASSY,Panasonic nozzle-Panasonic nozzle_VN080DB2_ASSY, Excen
AM03-012559A	ASSY,Panasonic nozzle-MTV1PA-NZ_VN140S_ASSY, Excen
AM03-000621A	DRAIN SENSOR HARNESS ASSY V8
AM03-000622A	CLAMP SWITCH HARNESS ASSY V8
AM03-001556B	TAPE GUIDE V08 ASSY
AM03-001558B	DRAIN HANDLE V08 ASSY
AM03-001567A	UI ASSY V8
AM03-003751A / AM03-001569A	ASSY,ETC,IMS-INDEX MOTOR ASSY VL
AM03-010389J / J91741316A	ASSY,BOARD-MF MAIN BOARD / SME08
AM03-025649A	D-GEARTRAIN M 08 ASSY
EP08-000052A	DRAIN MOTOR
FC29-000679A	HANDLE-HANDLE LEFT

Advanced SMT Feeder for Precision Assembly

Experience next-generation accuracy and reliability with the SMN-12mm-IT-NT SAMSUNG SMN 12mm IT Feeder. Designed for 12mm component tapes, this feeder integrates seamlessly into Samsung SMN and SEN series machines. Its high-precision feeding, quick mounting, and robust aluminum alloy build make it a top choice for manufacturers seeking efficiency and ease of use.

Effortless Installation and Maintenance

Benefit from a plug-and-play feeder that installs without tools and features easy disassembly for routine cleaning. The integrated locking and release mechanisms simplify the process, supporting rapid replacement and reduced production downtime. With maintenance-free operation, you get consistent performance and long-lasting durability.

Designed for Industrial Reliability

Constructed from quality anodized aluminum and configured for dry, dust-free environments, this feeder offers low noise and smooth, corrosion-resistant performance. Operating on a pneumatic drive at around 0.5 MPa, it's well-suited for high-speed SMT manufacturing in varied Indian climates, ensuring operational stability between 10C and 40C.

FAQ's of SMN-12mm-IT-NT SAMSUNG SMN 12mm IT Feeder, New Type:

Q: How do I install the SMN-12mm-IT-NT feeder onto my pick and place machine?

A: Installation is straightforward thanks to its plug-and-play design. Align the feeder with the compatible slot on your Samsung SMN or SEN series machine, engage the locking mechanism, and it's ready for use-no special tools required.

Q: What component tape sizes are supported by this feeder model?

A: The SMN-12mm-IT-NT feeder is specifically designed for 12mm wide SMT component tapes. For other tape sizes standard in the range of 8mm to 56mm, alternative models are available.

Q: Where can I source spare parts for this feeder?

A: Spare parts are available through authorized suppliers and distributors. It's recommended to obtain parts from official channels to ensure compatibility and maintain product warranties.

Q: What maintenance or cleaning does the feeder require?

A: Routine maintenance is simple due to its tool-less, easy-disassembly construction. The unit is designed for dry, dust-free operation and generally does not require lubrication, as its system is maintenance-free.

Q: When should I replace the feeder to minimize downtime?

A: The feeder is engineered for durability and quick replacement. If you notice feeding inaccuracies or mechanical wear, replace the unit promptly to keep your production line running efficiently.

Q: How does the integrated safety mechanism function during operation?

A: The feeder includes secure locking and release features to ensure safe handling. These mechanisms prevent accidental detachment and simplify feeder exchanges during operation or maintenance.
