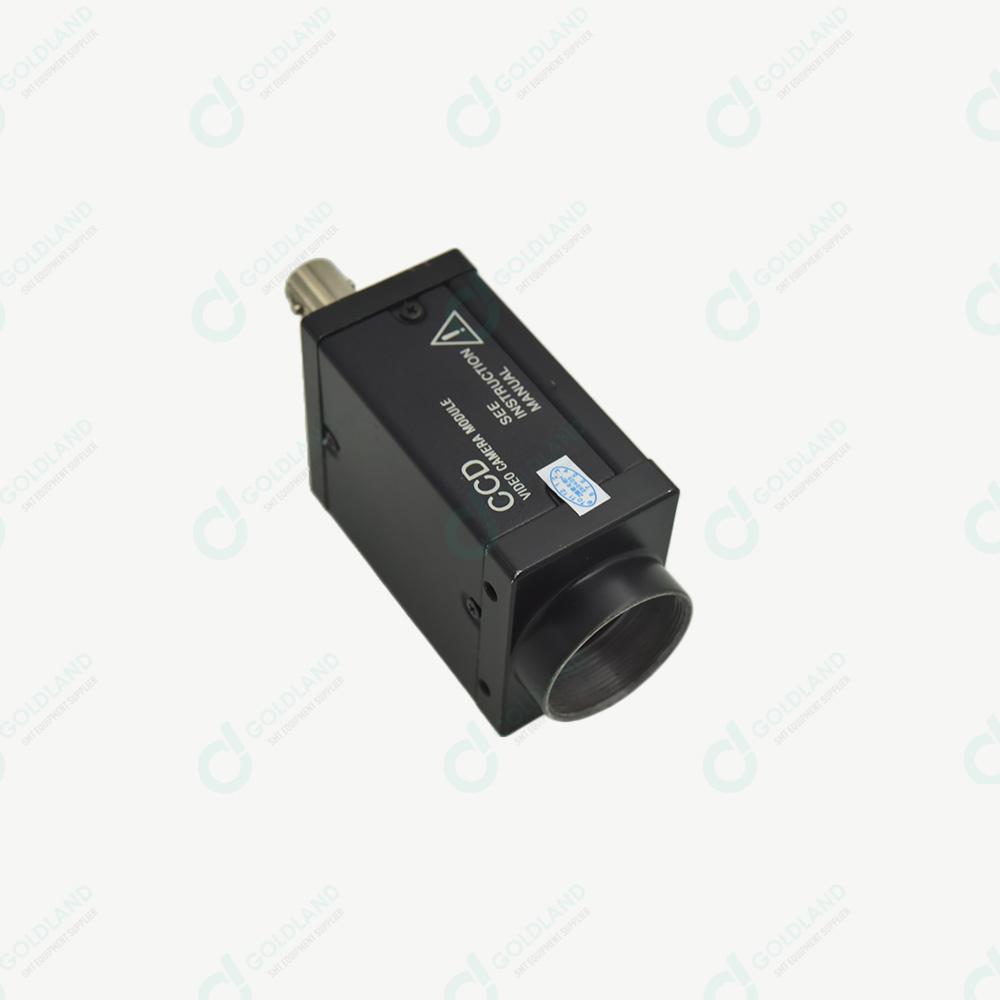

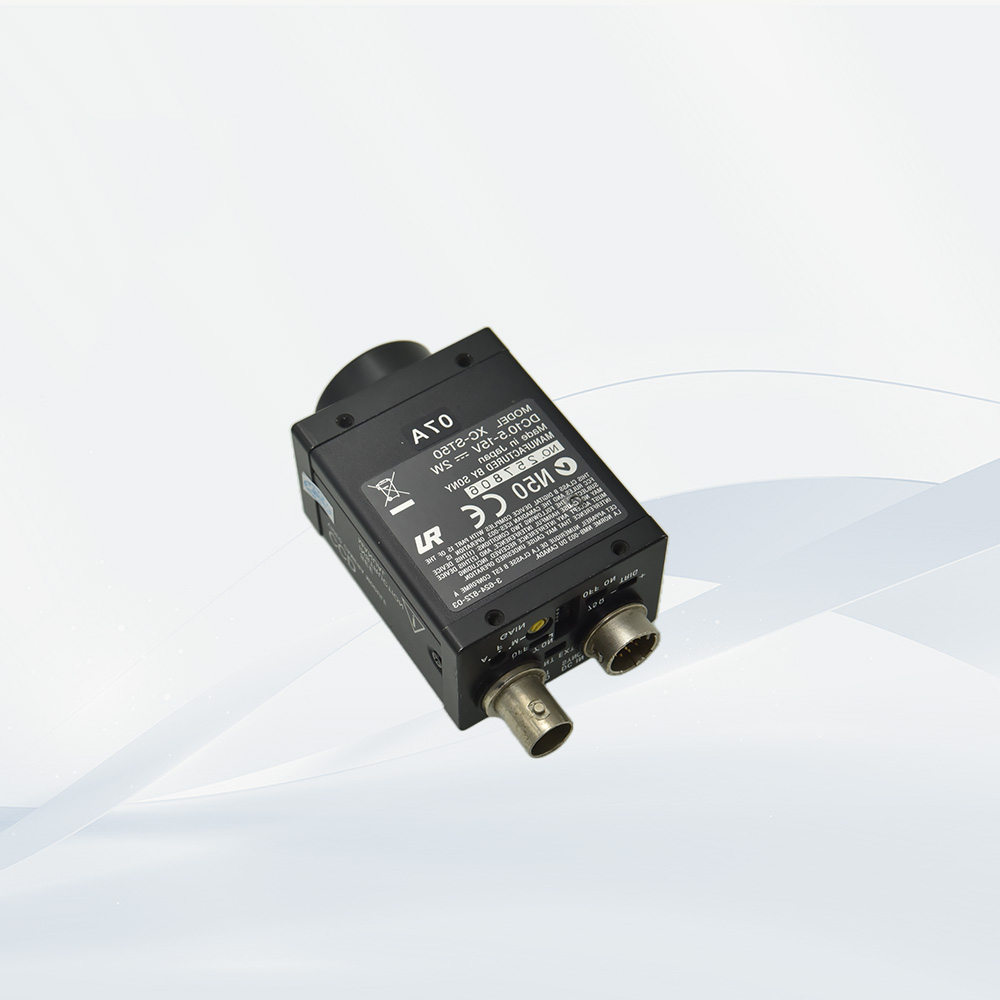

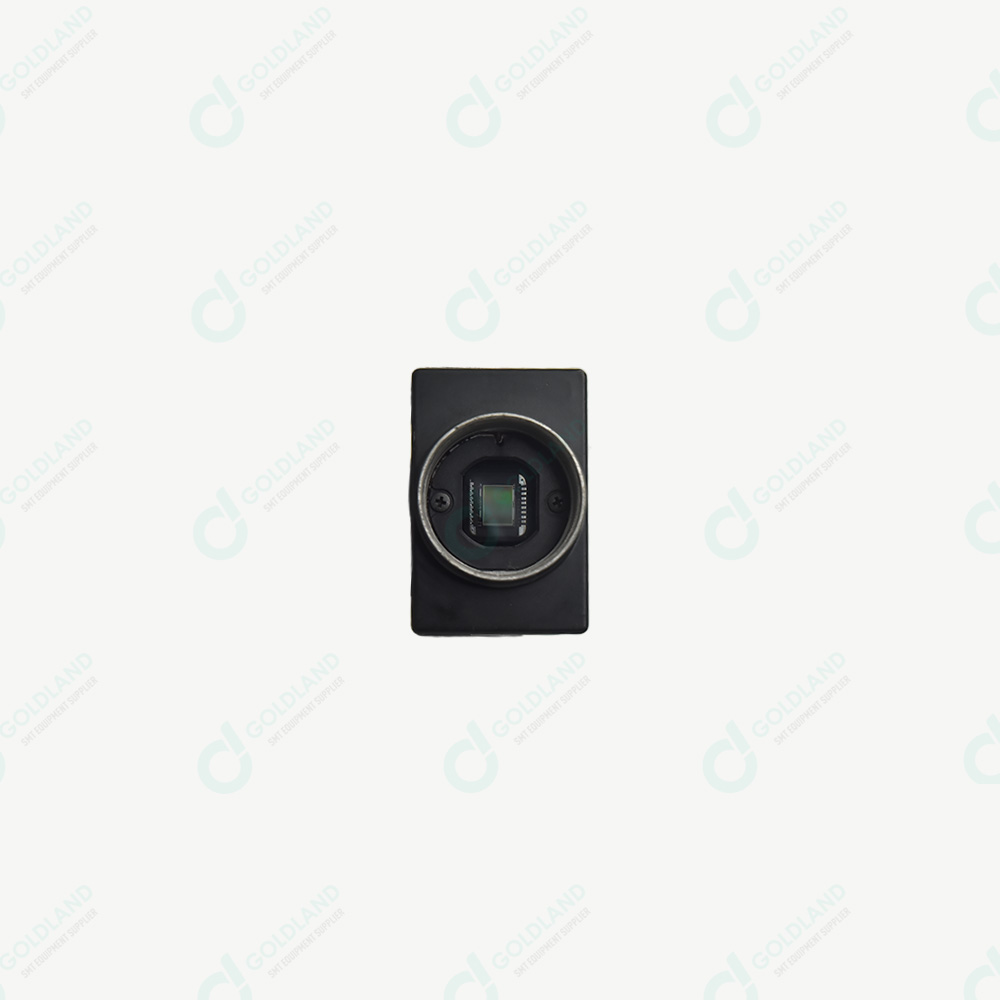

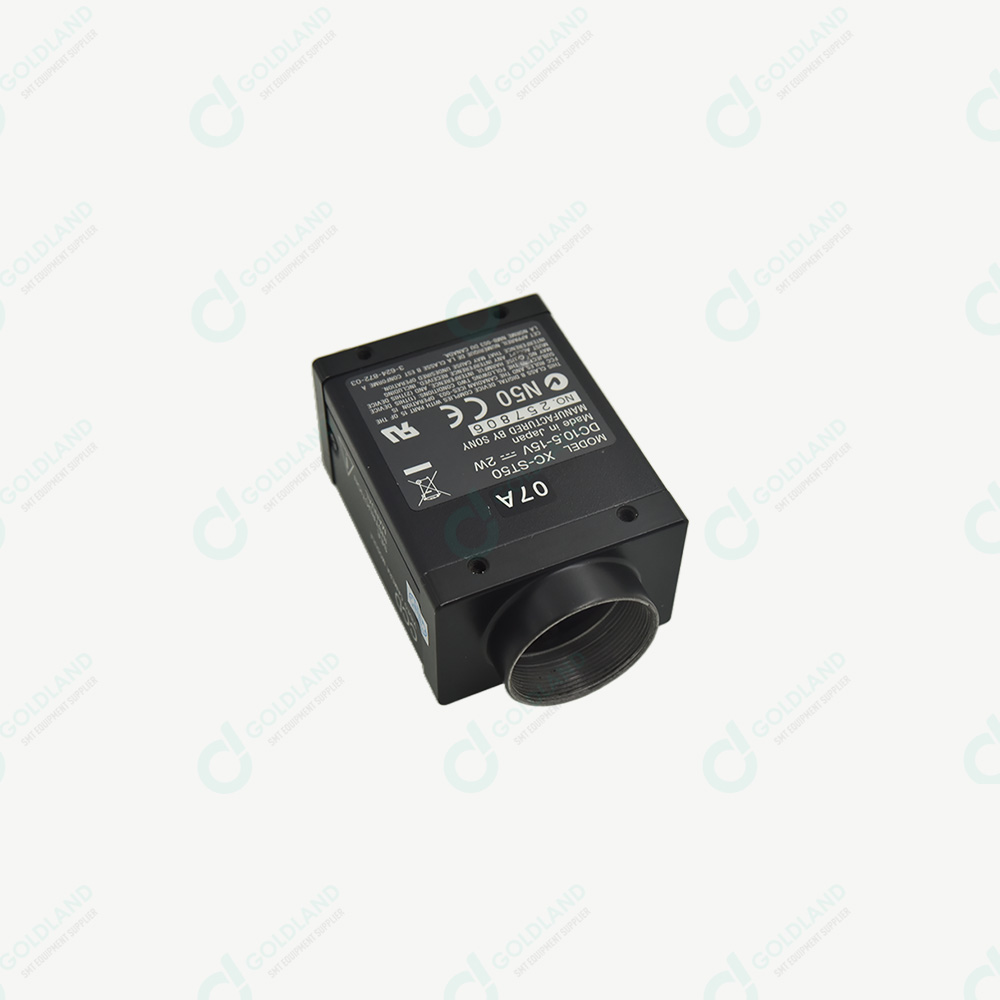

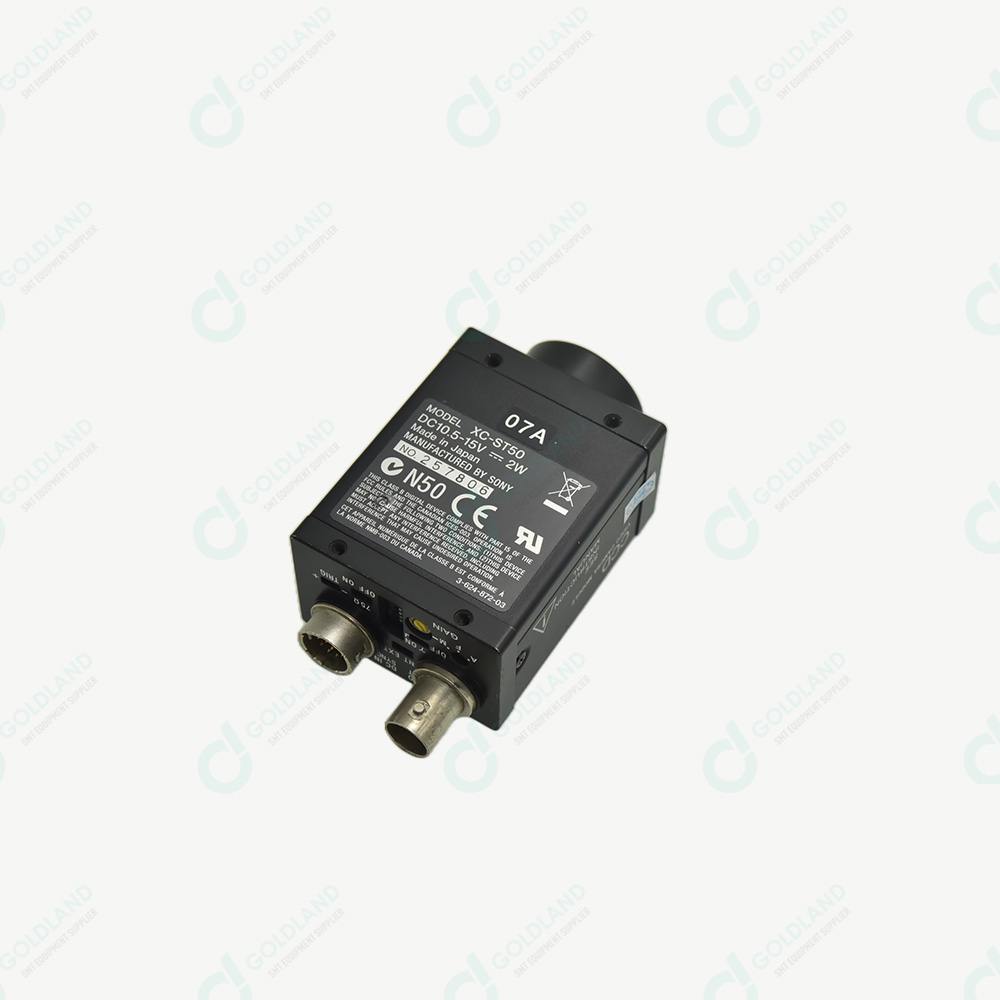

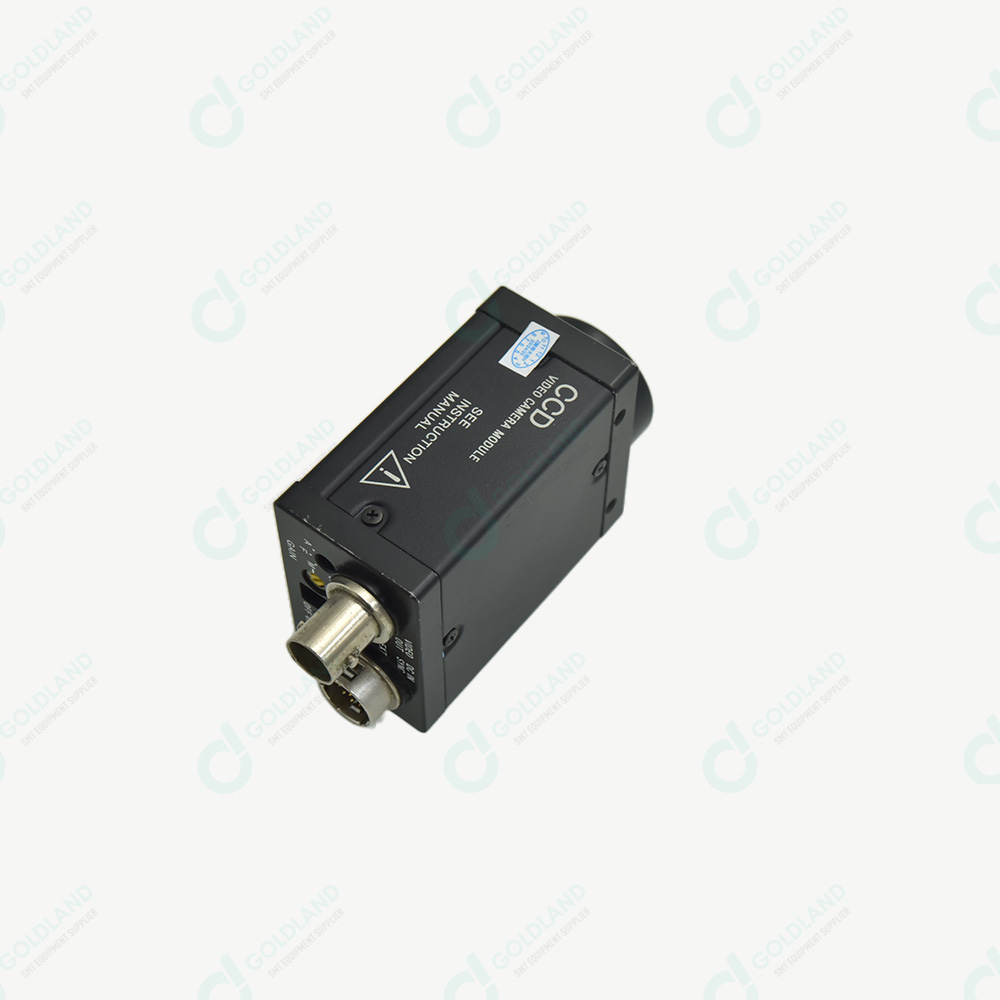

XC-ST50 SAMSUNG CP45 Fv Neo

XC-ST50 SAMSUNG CP45 Fv Neo Specification

Noise Level
Low (< 50dB)

Surface Finish
Matte and Gloss Combination

Drive Type
Direct Mount

Shape
Rectangular

Size
Standard for Samsung CP45 Fv Neo

Capacity
Supports up to 15,000 CPH (components per hour)

Usage & Applications
Used for PCB component placement accuracy in Samsung CP45 Fv Neo pick-and-place machines

Features
High precision, durable, easy integration with CP45 Fv Neo, robust image sensor

Product Type
Vision Camera Module for SMT (Surface Mount Technology) Placement Machine

Material
Industrial grade metal and optical glass

Technology
CCD (Charge Coupled Device)

Power Source
Electric

Power
DC 12V

Voltage
DC 12V

Surface Treatment
Anodized and painted

Dimension (L*W*H)
Approx. 45 mm x 37 mm x 35 mm

Weight
Approx. 180g

Color
Black and Gray

Operating Temperature
0C to +40C

Lens Mount
C-Mount

Frame Rate
30 fps

Output Signal
Analog composite video output

Compatibility
Samsung CP45, CP45F, CP45 Fv, Neo series

Connector Type
Standard multi-pin with secure latching

Sensor Type
Sony 1/3 inch Interline Transfer CCD

Resolution
768 (H) x 494 (V) pixels

Image Format
NTSC standard

XC-ST50 SAMSUNG CP45 Fv Neo Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About XC-ST50 SAMSUNG CP45 Fv Neo

Prices are for show only, please contact us for exact price.

SMT Product List

Part Number	Part Name
VYF44M-50M	sm482 filter
AM03-007078A	ASSY,Panasonic nozzle-Panasonic nozzle_VN065S_ASSY, Excen
AM03-000154B	ASSY,Panasonic nozzle-Panasonic nozzle_VN040N_ASSY, Excen
AM03-006325A	ASSY,Panasonic nozzle-Panasonic nozzle_VN080DB2_ASSY, Excen
AM03-012559A	ASSY,Panasonic nozzle-MTV1PA-NZ_VN140S_ASSY, Excen
AM03-000621A	DRAIN SENSOR HARNESS ASSY V8
AM03-000622A	CLAMP SWITCH HARNESS ASSY V8
AM03-001556B	TAPE GUIDE V08 ASSY
AM03-001558B	DRAIN HANDLE V08 ASSY
AM03-001567A	UI ASSY V8

Robust Imaging Technology

With its advanced Sony 1/3 inch Interline Transfer CCD sensor, the XC-ST50 ensures precise image capture for the highest accuracy in PCB placement. The analog composite video output and NTSC format allow it to integrate seamlessly with industrial vision systems, enhancing operational efficiency on the production line.

Designed for Seamless Integration

The XC-ST50 is engineered for compatibility with Samsung CP45, CP45F, CP45 Fv, and Neo series pick-and-place machines. Its C-Mount lens, standard multi-pin connector with secure latching, and direct mount drive guarantee quick, reliable installation. Supporting up to 15,000 components per hour, this camera streamlines the PCB assembly process.

FAQ's of XC-ST50 SAMSUNG CP45 Fv Neo:

Q: How does the XC-ST50 improve component placement accuracy in pick-and-place machines?

A: The XC-ST50 uses a Sony 1/3 inch Interline Transfer CCD sensor to capture high-resolution images, enabling precise identification and placement of PCB components. Its robust imaging ensures each component is placed accurately, minimizing errors and boosting production efficiency.

Q: What are the main benefits of using the XC-ST50 in Samsung CP45 Fv Neo machines?

A: The XC-ST50 offers high precision, low noise, and reliable operation. It is easy to integrate due to its C-Mount lens and secure multi-pin connector, and its durable industrial-grade construction ensures longevity in the demanding environments of pick-and-place production lines.

Q: When should I consider replacing the XC-ST50 camera module?

A: Replacement is recommended if consistent imaging issues arise, such as poor image quality, signal loss, or physical damage. Regular inspection and adherence to maintenance schedules help ensure continued reliable performance in your pick-and-place machine.

Q: Where is the XC-ST50 typically used in the production process?

A: This camera module is primarily installed on pick-and-place machines, such as the Samsung CP45 Fv Neo series, where it provides real-time optical feedback for PCB component alignment and placement, a critical stage in electronics manufacturing.

Q: What features make the XC-ST50 suitable for industrial environments?

A: The XC-ST50 is built with industrial-grade metal and optical glass, features an anodized and painted finish for durability, and has a low noise level under 50dB. Its robust design ensures consistent performance across operating temperatures from 0C to +40C.

Q: How does the installation process of the XC-ST50 work?

A: Installation is straightforward thanks to its standard size, direct mount drive, C-Mount lens, and secure multi-pin connector. It is specifically designed for seamless integration with Samsung CP45, CP45F, and Neo series machines, minimizing downtime.
