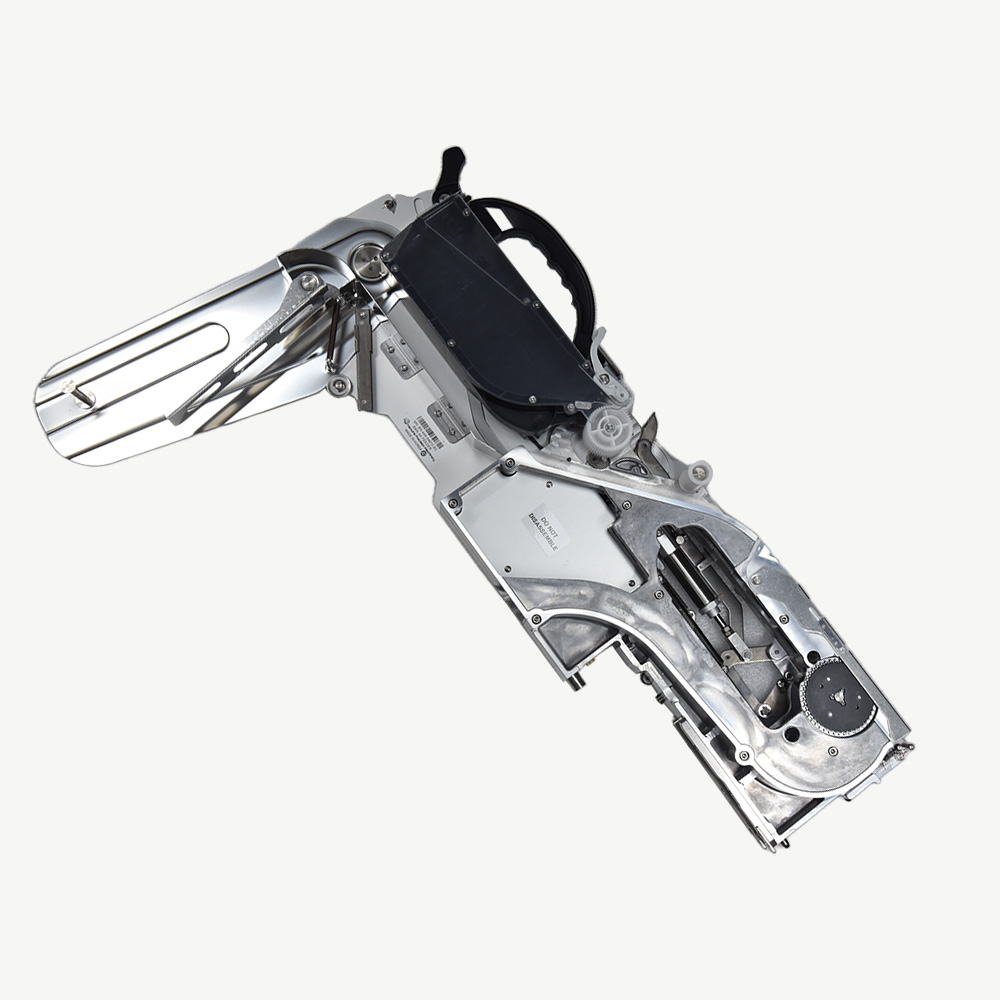

SMN-IT-NT 44mm SAMSUNG IT Pneumatic Feeder

SMN-IT-NT 44mm SAMSUNG IT Pneumatic Feeder Specification

Size
44mm (Tape Width)

Features
Precision Feeding, Fast Changeover, Sturdy Build, Low Maintenance, High Durability

Capacity
High Speed/High Capacity Feed (Varies as per machine and tape size)

Noise Level
< 70 dB (Low Noise Operation)

Drive Type
Pneumatic Drive Mechanism

Diameter
44mm Tape (Feeder Slot)

Shape
Rectangular Slot, Feeder Track

Lubricating System
Maintenance-Free, Lubrication Not Required

Surface Finish
Smooth, Anti-Corrosive

Usage & Applications
For Samsung SMT Machines, Suitable for IT/NT series, Placement of SMD components using Taped Reels

Product Type
Pneumatic Feeder

Material
High-Grade Alloy/Steel Body

Technology
SMT (Surface Mount Technology)

Power Source
Pneumatic (Air Operated)

Power
Not Applicable (Pneumatic)

Pressure
0.4-0.6 MPa (Recommended)

Surface Treatment
Anodized/Specialized Coating

Dimension (L*W*H)
Standard: Compatible with 44mm Tape, Precise Dimensions as per Samsung SMT Line Spec.

Weight
Approx. 1.6-1.8 kg

Color
Metallic Silver/Grey

Operating Temperature
5C to 40C

Brand Compatibility
Samsung SM/IT series, compatible with NT line SMT machines

Storage Condition
Dry Environment, Away From Direct Sunlight

Component Type
SMD (Surface-Mounted Device) Tape Components

Tape Width Supported
44mm

Control
Manual/Automatic Operation via SMT Equipment Software

Serviceability
Field Replaceable Wear Parts

Part Number
SMN-IT-NT-44mm

Mounting Type
Quick-Release, Tool-less Mounting

Packaging
Standard Export Packing

SMN-IT-NT 44mm SAMSUNG IT Pneumatic Feeder Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About SMN-IT-NT 44mm SAMSUNG IT Pneumatic Feeder

Prices are for show only, please contact us for exact price

SMT Product List

J70653697A	D-MOTOR COVER M08
FC15-002324A	RIGHT COVER M 08
FC15-002039A	DUMP BOX COVER M 08 W4P1
GD03-000043A	FEEDER PARTS-SME 8MM PCB COVER M 08 BAS
J6602037A	BELT 350-5GT-15
J3211044A	Belt Stick Feeder Part INFRARED SENSOR R SDP8611-001
J3211045A	Belt Stick Feeder Part INFRARED SENSOR R SDP8611-002
J7000845	BELT SW-0.7T-1145L
J7000846	BELT SW-0.7T-1170L
J7000874	BELT SW-0.7T-1240L
J7000875	BELT SW-0.7T-1335L
J7000844	BELT SW-0.7T-800L
J6602033A	BELT TIMING 192-2GT-09
J6602035A	BELT-CONVEYOR MAM-5E-3W-1460L
J6602018A	BELT-CONVEYOR MAM-5E-W3-1590L

Precision and Speed with Advanced Pneumatic Feeding

This feeder provides streamlining of SMD component placement thanks to its precise pneumatic drive. The sturdy build, fast changeover, and low-maintenance design ensure consistently accurate feeding and minimal downtime, making it integral to high-speed SMT lines.

User-Friendly Design and Broad Compatibility

With quick-release, tool-less mounting and compatibility with the Samsung SM/IT and NT series, the SMN-IT-NT 44mm feeder is effortless to install and integrate. Operators can easily switch between manual and automatic modes via SMT software, increasing versatility on the production floor.

Engineered for Durability and Minimal Maintenance

Built from high-grade alloy/steel with a specialized coating, this feeder resists corrosion and operates without the need for lubrication. Field-replaceable wear parts and low noise ensure a long service life, even in intensive production settings.

FAQ's of SMN-IT-NT 44mm SAMSUNG IT Pneumatic Feeder:

Q: How do I install the SMN-IT-NT 44mm SAMSUNG IT Pneumatic Feeder on my SMT machine?

A: The feeder uses quick-release, tool-less mounting, allowing for fast installation or removal. Simply align it with the feeder slot of Samsung SM/IT or NT series SMT machines, and secure using the integrated mounting mechanism. No special tools are required.

Q: What types of components and tape sizes is this feeder compatible with?

A: This feeder is designed for handling 44mm SMD tape components, supporting surface-mounted devices in reel format. It is engineered specifically for Samsung SM/IT series and NT SMT machines.

Q: When should I perform maintenance or replace parts on this feeder?

A: The feeder is virtually maintenance-free due to its specialized coating and lack of lubrication requirements. Wear parts can be field-replaced if necessary, usually after extended use or as part of routine equipment checks.

Q: Where should this feeder be stored when not in operation?

A: Store the feeder in a dry environment, away from direct sunlight, as recommended. Proper storage ensures longevity and prevents damage to components.

Q: What is the process for switching between manual and automatic operation?

A: Switching operation modes is managed via the SMT equipment software. The feeder can operate either manually or automatically, allowing it to adapt to your production line's requirements with ease.

Q: How does using this pneumatic feeder benefit SMT manufacturing?

A: The feeder delivers high-speed, precise component placement, fast changeover, and reduced downtime. Its robust, anti-corrosive build and low noise operation further enhance productivity and reliability in demanding automated assembly settings.
