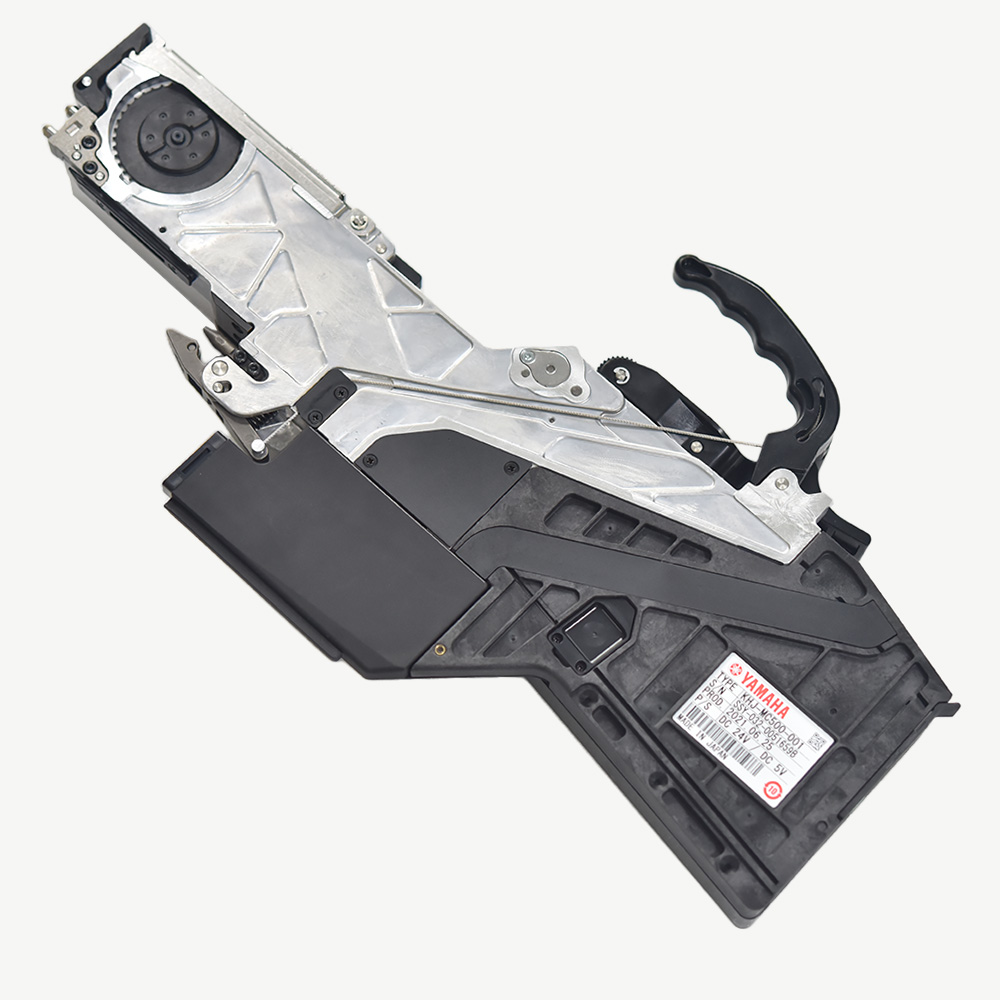

KHJ-MC500-001 YAMAHA-Electronic SS 32mm Feeder
KHJ-MC500-001 YAMAHA-Electronic SS 32mm Feeder Specification
- Shape
- Rectangular
- Noise Level
- Low Noise Operation
- Drive Type
- Electronic Drive
- Surface Finish
- Smooth/Matte
- Lubricating System
- Maintenance free
- Motor Power
- Integrated precision motor
- Size
- 32mm Tape Width
- Usage & Applications
- Used in YAMAHA SMT Machines for feeding components; suitable for electronics manufacturing
- Features
- Fast component loading/unloading, high accuracy feeding, easy to maintain
- Capacity
- For SMD Tape: 32mm width
- Product Type
- Electronic SS Feeder
- Material
- Aluminum Alloy, Stainless Steel
- Technology
- Surface Mount Technology (SMT)
- Power Source
- Electric
- Power
- Low Power Consumption
- Voltage
- 24V DC
- Surface Treatment
- Anodized/Coated
- Dimension (L*W*H)
- Approx. 560mm x 90mm x 130mm
- Weight
- Approx. 4.5 kg
- Color
- Silver/Grey
- Tape Type
- Embossed/Carrier Tape
- Component Pitch
- 8mm, 12mm, 16mm, 24mm, 32mm Supported
- Compatibility
- YAMAHA SS Series SMT Machines
- Automation Level
- Fully Automatic
- Storage Temperature
- -20C to +60C
- Life Span
- >3 million cycles (typical)
- Feeding Direction
- Left to Right
- Model Number
- KHJ-MC500-001
- Component Type
- SMD Parts/Chip Component Feeder
- Operating Temperature
- 0C to 50C
- Lead Time
- Immediate/Ready Stock (Subject to availability)
KHJ-MC500-001 YAMAHA-Electronic SS 32mm Feeder Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 5000 Pieces Per Month
- Delivery Time
- 7 Days
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
About KHJ-MC500-001 YAMAHA-Electronic SS 32mm Feeder
Prices are for show only, please contact us for exact price
SMT Feeder Parts
| YAMAHA SS 32mm feeder parts | |
| Part Number | Part Name |
| KHJ-MC502-00 | COVER,FEEDER |
| KHJ-MC106-00 | PLATE,UNDER |
| KHJ-MC206-00 | PLATE,UNDER |
| KHJ-MC50C-00 | SEAL,MAIN LABEL |
| KHJ-MC510-00 | MOTOR, FEED |
| KHJ-MC510-01 | MOTOR, FEED |
| KHJ-MC532-00 | SPROCKET |
| KHJ-MC534-00 | GEAR,IDLE F1 |
Precision Engineering for High-Speed SMT Lines
The KHJ-MC500-001 Feeder ensures impeccable, fully automatic feeding of SMD components. Engineered for YAMAHA SS Series machines, it incorporates a precision integrated motor and electronic drive. Its 32mm tape width capacity and superior accuracy make it a reliable asset for electronics production lines needing streamlined component loading and unloading.
Versatile Compatibility and Robust Construction
With support for component pitches of 8mm to 32mm and compatibility with embossed/carrier tapes, this feeder provides versatility in handling a range of SMD parts. Crafted from anodized aluminum alloy and stainless steel, it is designed to withstand demanding environments while remaining lightweight and durable, with a smooth, matte finish that ensures easy maintenance.
Quiet, Efficient, and Maintenance-Free Operation
The KHJ-MC500-001 feeder features low noise operation and is powered by a 24V DC low-consumption electric system. Its maintenance-free lubricating system further reduces downtime and increases lifespan, typically exceeding three million cycles. Its design addresses the needs of high-volume manufacturers seeking reliable and efficient SMT component feeding solutions.
FAQ's of KHJ-MC500-001 YAMAHA-Electronic SS 32mm Feeder:
Q: How is the KHJ-MC500-001 YAMAHA-Electronic SS 32mm Feeder installed on SMT machines?
A: This feeder is designed for direct integration with YAMAHA SS Series SMT machines. Its standardized mounting allows for quick attachment, letting users secure it firmly onto the machine's feeder slots, typically without requiring additional adapters or modifications.Q: What component tapes and pitches does this feeder support?
A: The KHJ-MC500-001 supports 32mm wide SMD embossed or carrier tape and can handle component pitches of 8mm, 12mm, 16mm, 24mm, and 32mm, providing flexibility for a variety of chip component types in electronics manufacturing.Q: When is it necessary to replace the KHJ-MC500-001 feeder?
A: Thanks to its high-quality materials and maintenance-free design, the feeder typically exceeds three million cycles before any replacement may be considered. Users should only replace it in rare cases of mechanical failure or after extensive use that approaches its specified lifespan.Q: Where can I use the KHJ-MC500-001 feeder?
A: This feeder is primarily used with YAMAHA SS Series SMT machines in electronics manufacturing facilities. It is suitable for assembly lines requiring reliable and automated SMD component feeding.Q: What benefits does this feeder offer for SMT production?
A: Its fully automatic, high-precision feeding reduces manual intervention, enhances production speed, and ensures consistent quality. Low noise, low power consumption, and maintenance-free operation also increase operational efficiency and lower overall production costs.Q: How does the maintenance-free lubricating system work?
A: The feeder utilizes advanced materials and integrated precision motor technology, eliminating the need for regular lubrication or manual upkeep. This ensures smooth, reliable performance throughout its service life.- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 5000 Pieces Per Month
- Delivery Time
- 7 Days
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
