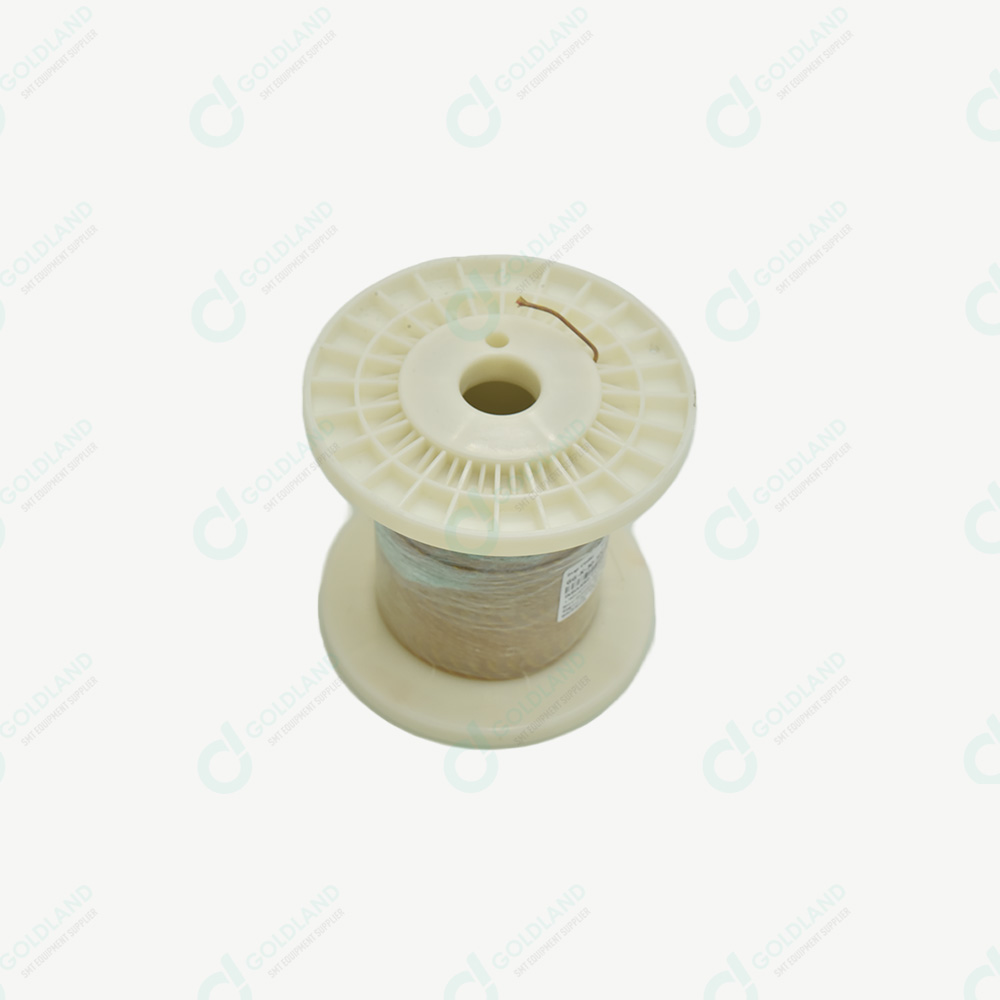

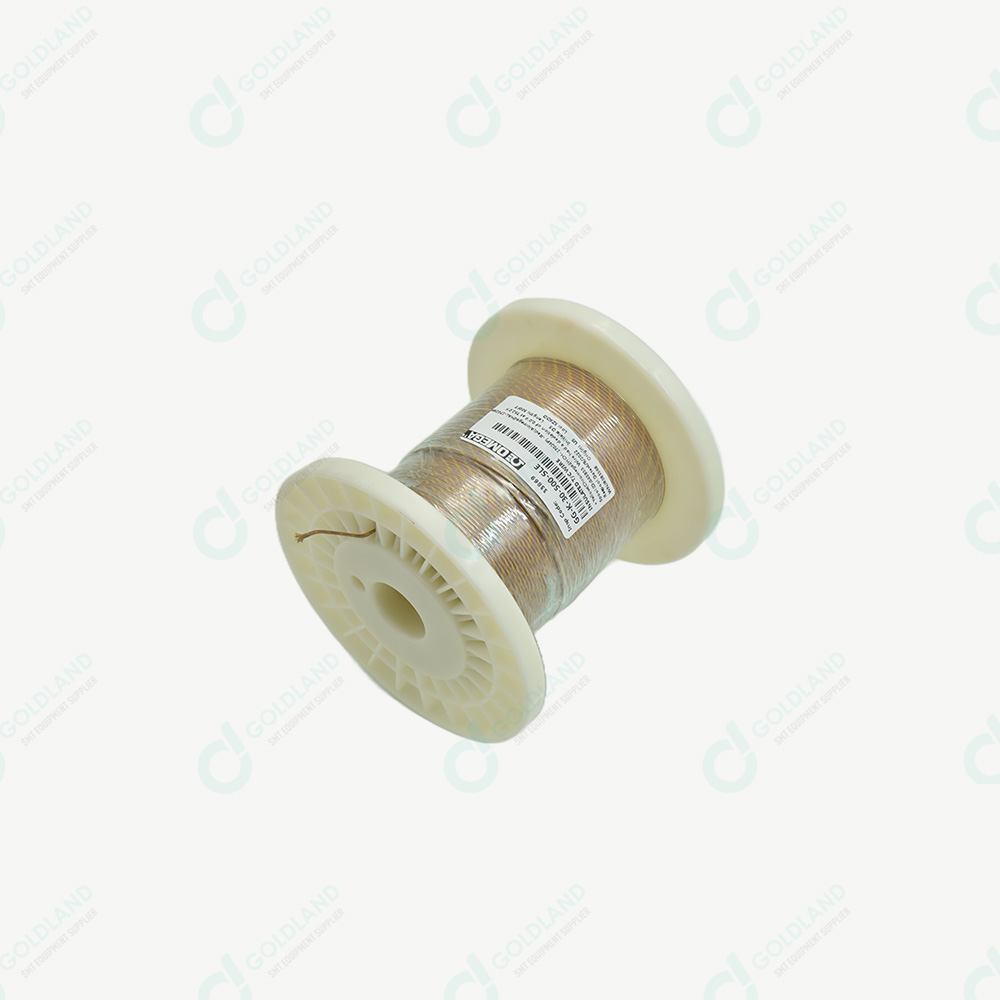

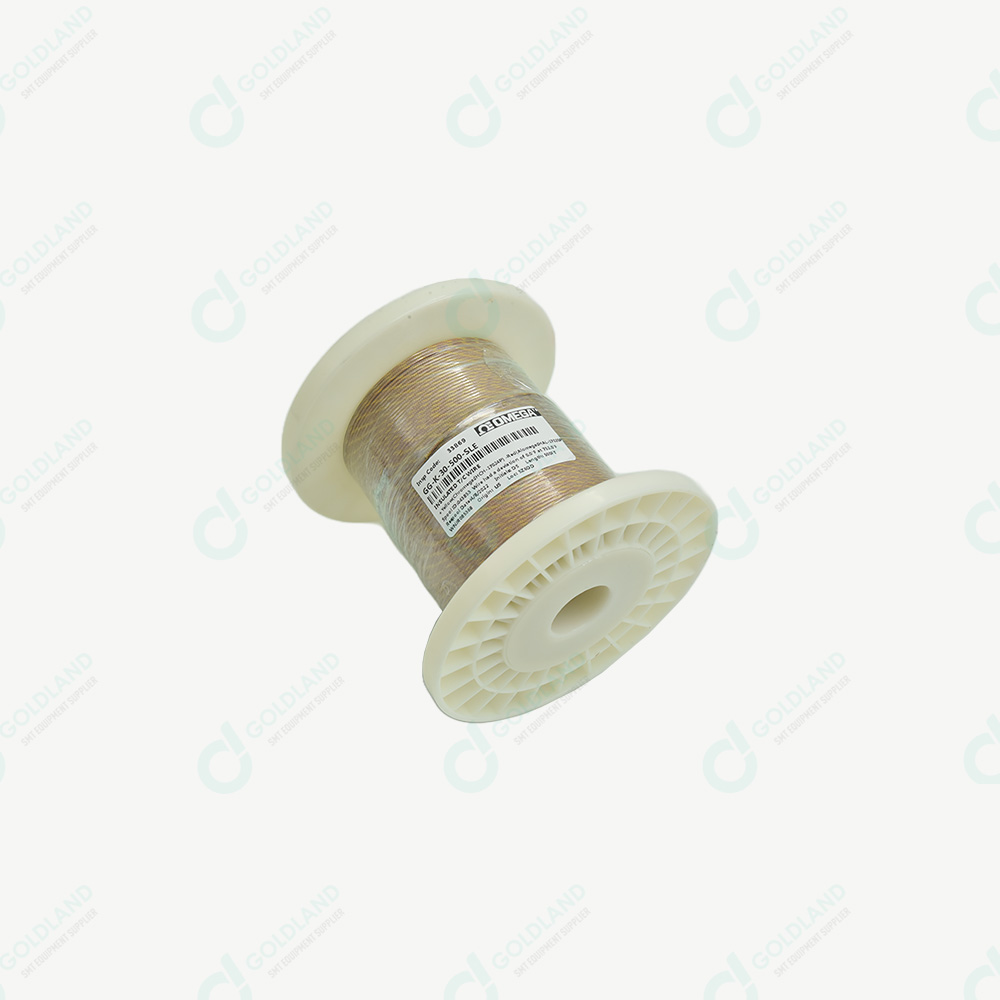

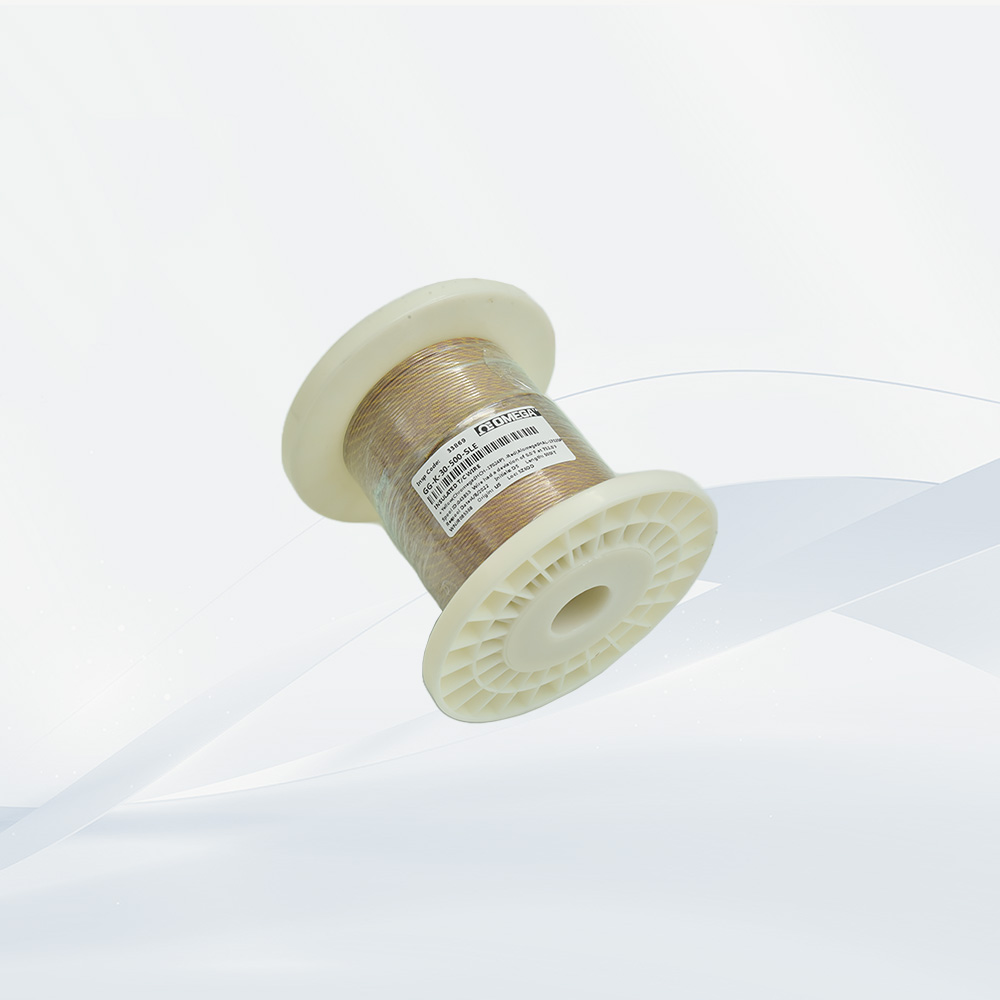

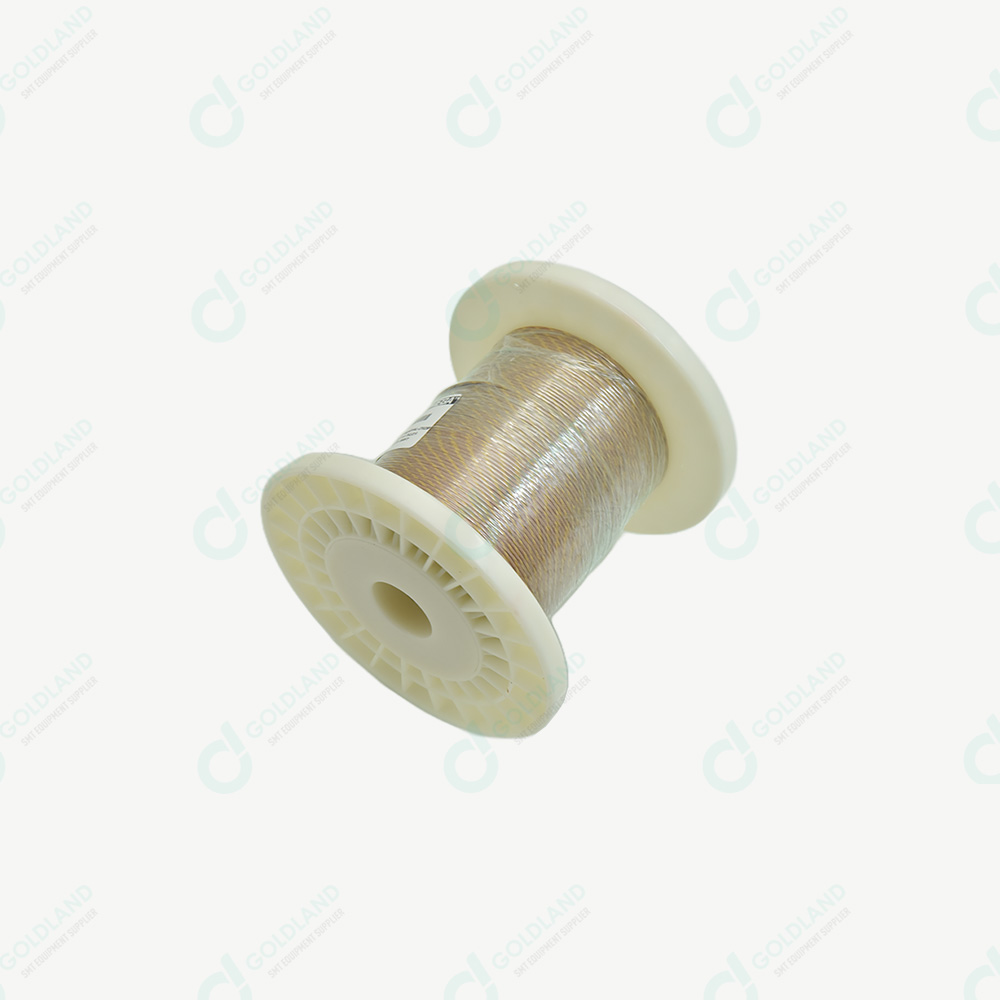

GG0-K-30-500-Sle Thermocouple Wire Insulated TC Wire.GG

GG0-K-30-500-Sle Thermocouple Wire Insulated TC Wire.GG Specification

Surface Finish
Smooth PVC Insulation

Usage & Applications
Temperature measurement, sensor extension, industrial applications

Size
30 AWG

Capacity
500 meters per roll

Features
High accuracy, flexible, corrosion resistant, color-coded insulation

Diameter
Approx. 0.25 mm (30 AWG)

Shape
Round Wire

Product Type
Thermocouple Wire

Material
Nickel-Chromium / Nickel-Aluminum (Type K)

Technology
SLE (Special Limits of Error)

Surface Treatment
Insulated

Dimension (L*W*H)
500 meters (Length)

Weight
As per length and gauge

Color
Green (Outer Insulation)

Conductor Color Code
Green (+), White (-)

Insulation Type
PVC insulation for each conductor

Temperature Range
-200C to +1260C

Wire Type
GG0-K-30-500-Sle

Tolerance
Special Limits of Error as per ANSI

Conductor Construction
Stranded or Solid

Packaging
Supplied in spools/rolls

Resistance per meter
According to 30 AWG specification

Number of Cores
2 (Duplex)

Jacket Material
PVC

RoHS Compliance
Yes

GG0-K-30-500-Sle Thermocouple Wire Insulated TC Wire.GG Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Australia, Central America, Eastern Europe, Asia, North America, South America, Western Europe, Middle East, Africa

About GG0-K-30-500-Sle Thermocouple Wire Insulated TC Wire.GG

Prices are for show only, please contact us for exact price

SMT Product List

WPA5091	BELT TIMING	WPA-5090	SET (2 bandas)
H10246	VALVE PRESSURE REDUCING		R002-01G
AWPL8010	JOINT ASSEMBLY		AWPL8010
WPA5160	ROD END		PBR8FN
H31811	ROD END		PBR8FN (P=1)
H3181M	ROD END		PBRL8FN

High-Performance Temperature Measurement

Engineered with Type K construction and Special Limits of Error calibration, the GG0-K-30-500-Sle thermocouple wire ensures precise temperature readings in demanding environments. The duplex design with individual PVC insulation supports reliable sensor connection and signal integrity, maximizing measurement accuracy.

Durable and Flexible for Industrial Demands

With a sturdy, flexible PVC jacket and corrosion-resistant conductors, this wire withstands harsh industrial settings. The stranded or solid options adapt to specific installation needs, while the color-coded insulation simplifies error-free hookup, ideal for fast-paced manufacturing, processing, or research labs.

Convenient Packaging and Compliance

Supplied in 500-meter rolls, the wire supports efficient inventory management and reduces installation time for large-scale projects. Being RoHS compliant guarantees its suitability for global markets, maintaining safety and environmental standards across all applications.

FAQ's of GG0-K-30-500-Sle Thermocouple Wire Insulated TC Wire.GG:

Q: How is the GG0-K-30-500-Sle Thermocouple Wire utilized in industrial applications?

A: This thermocouple wire is widely used to connect sensors for accurate temperature monitoring and control systems, including industrial ovens, process lines, and laboratory equipment, ensuring reliable data transmission over extended distances.

Q: What are the benefits of the special limits of error (SLE) technology in this wire?

A: Special Limits of Error (SLE) provide heightened measurement accuracy compared to standard grade thermocouple wires, resulting in reduced uncertainty and more trustworthy readings in critical temperature monitoring processes.

Q: Where should I install the GG0-K-30-500-Sle Thermocouple Wire for optimal performance?

A: Install the wire in environments requiring measurements from -200C to +1260C, such as manufacturing plants, chemical processing zones, or research labs, ensuring it is protected from mechanical damage and complies with safety codes.

Q: What is the process for connecting this thermocouple wire to sensors and instruments?

A: First, identify the green (positive) and white (negative) conductors, then connect them to corresponding terminals on both the thermocouple sensor and the measurement instrument, following ANSI color codes for Type K wires to prevent polarity errors.

Q: When should I use stranded versus solid conductor construction in this wire?

A: Choose stranded conductors for flexible installations or frequent movement, such as mobile equipment, and solid conductors for fixed wiring where minimal flexing occurs, as each offers different mechanical characteristics adapted to installation requirements.

Q: What makes the GG0-K-30-500-Sle wire suitable for high-temperature and corrosive settings?

A: Its Nickel-Chromium/Nickel-Aluminum core resists oxidation and corrosion, while the smooth PVC insulation and jacket provide electrical safety and physical durability, making it reliable for challenging thermal and chemical conditions.
