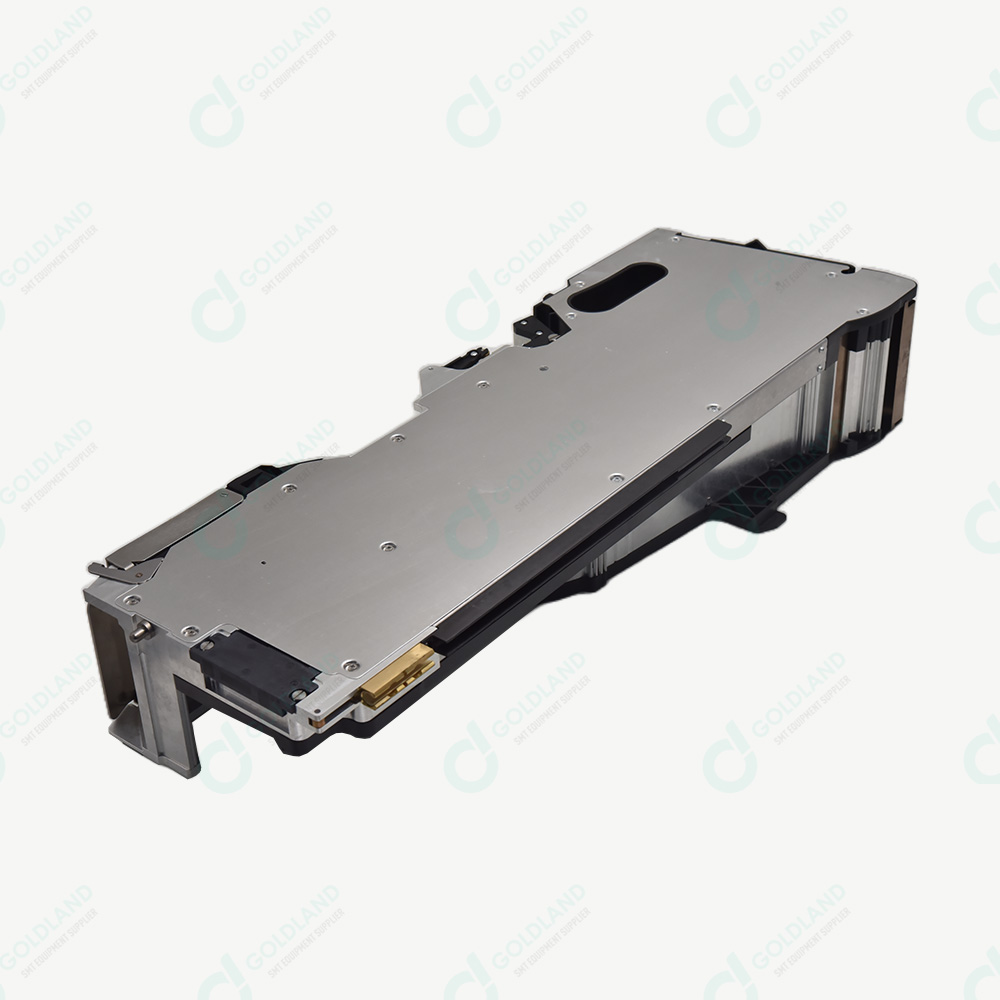

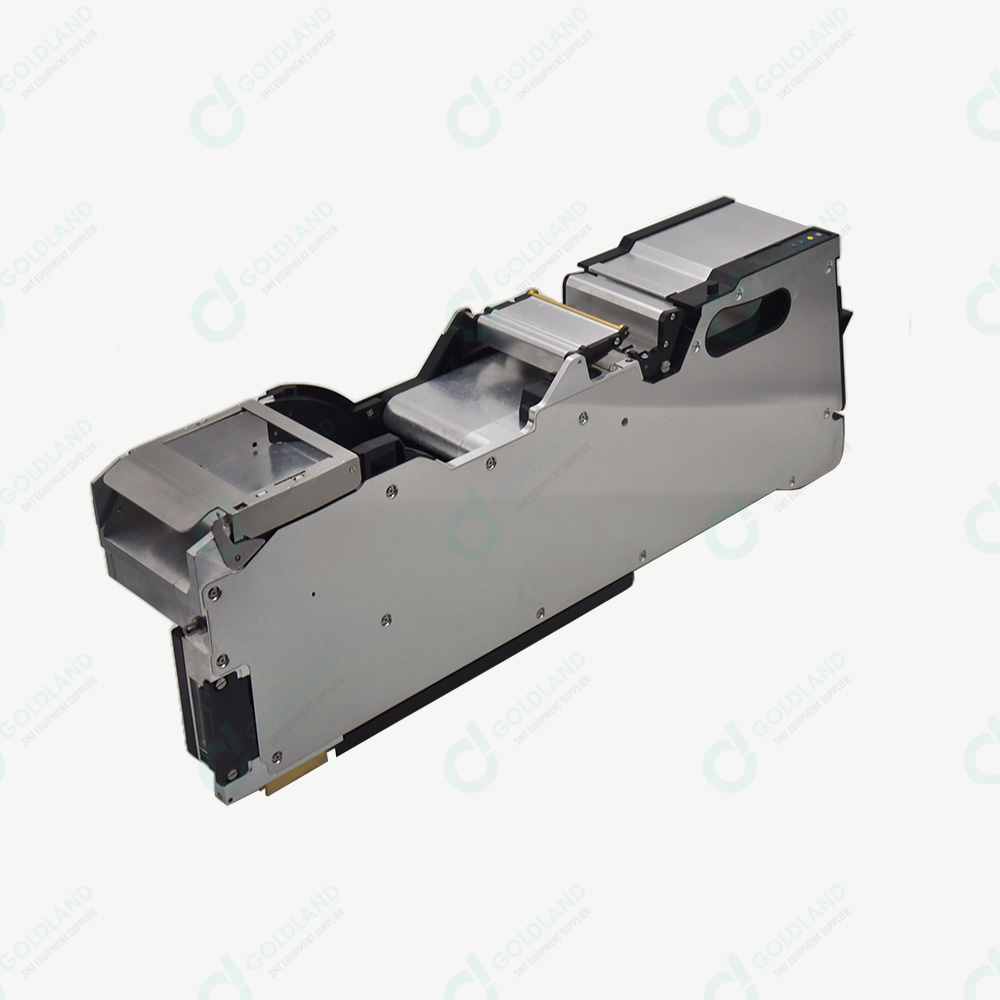

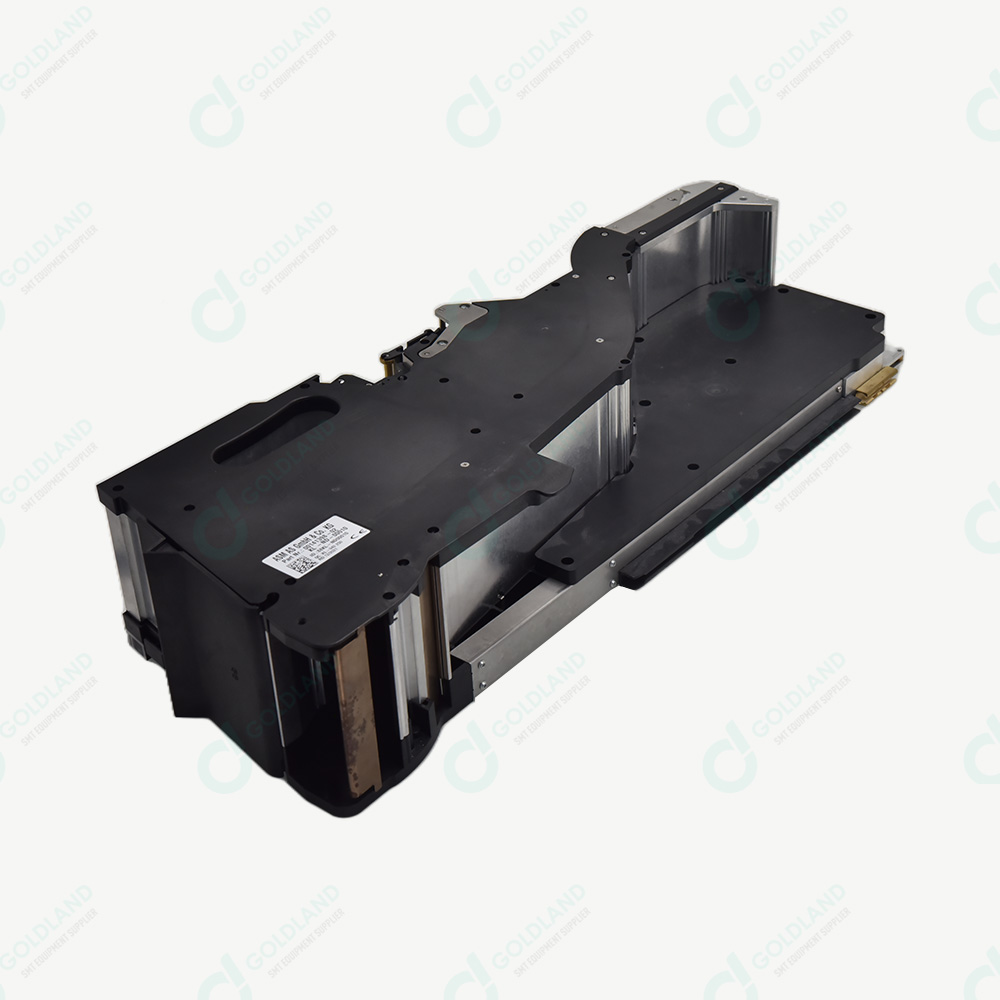

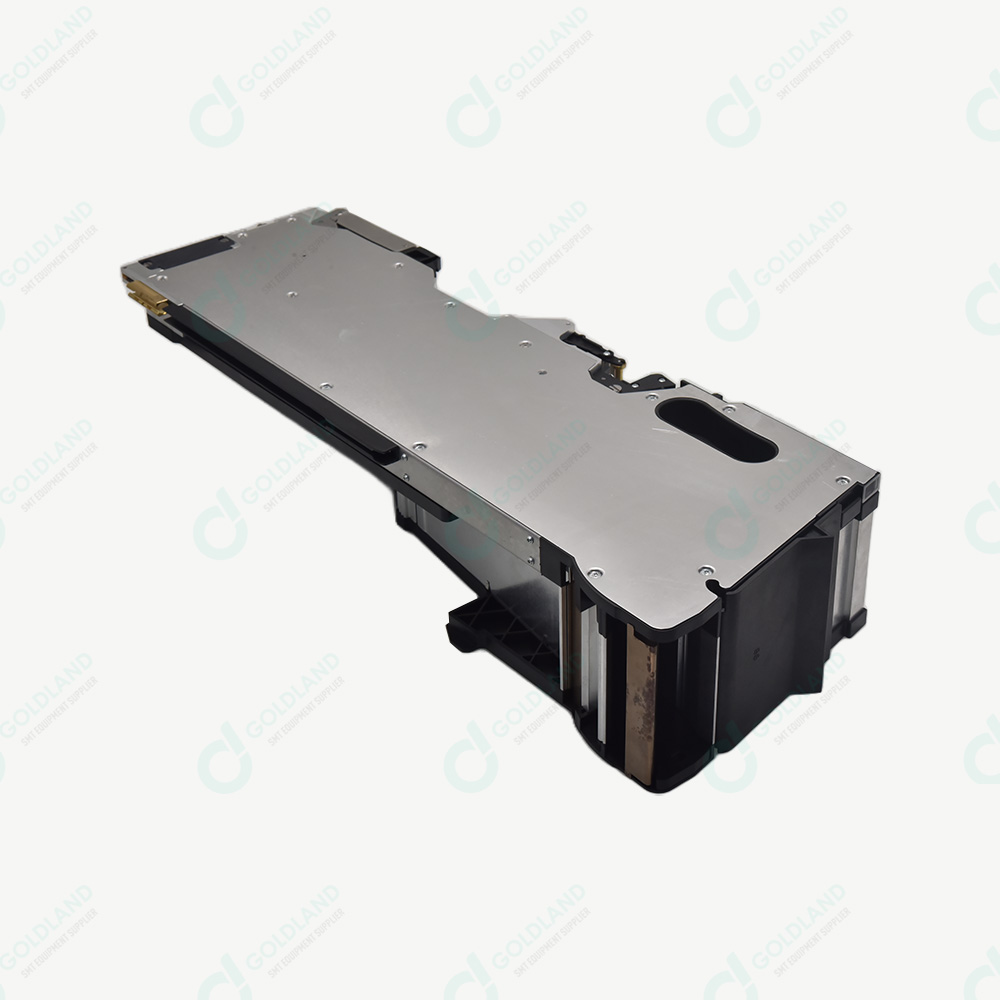

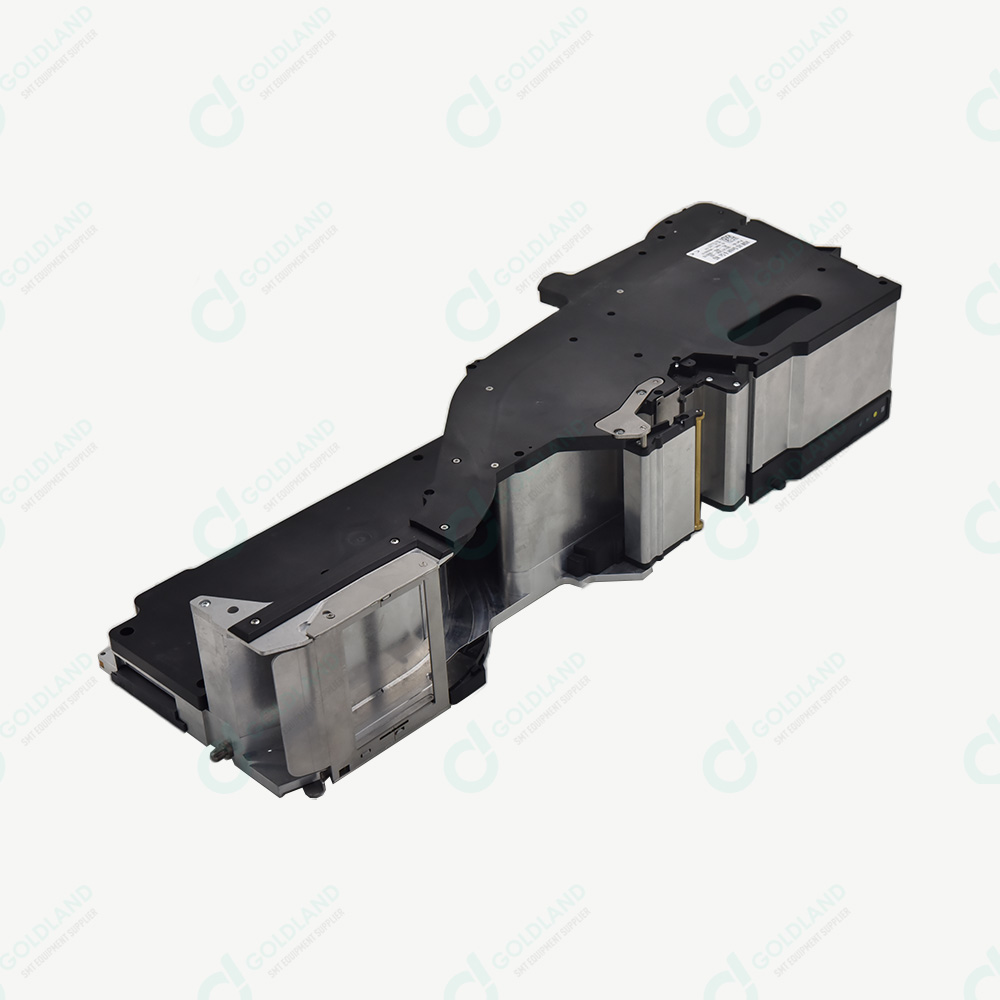

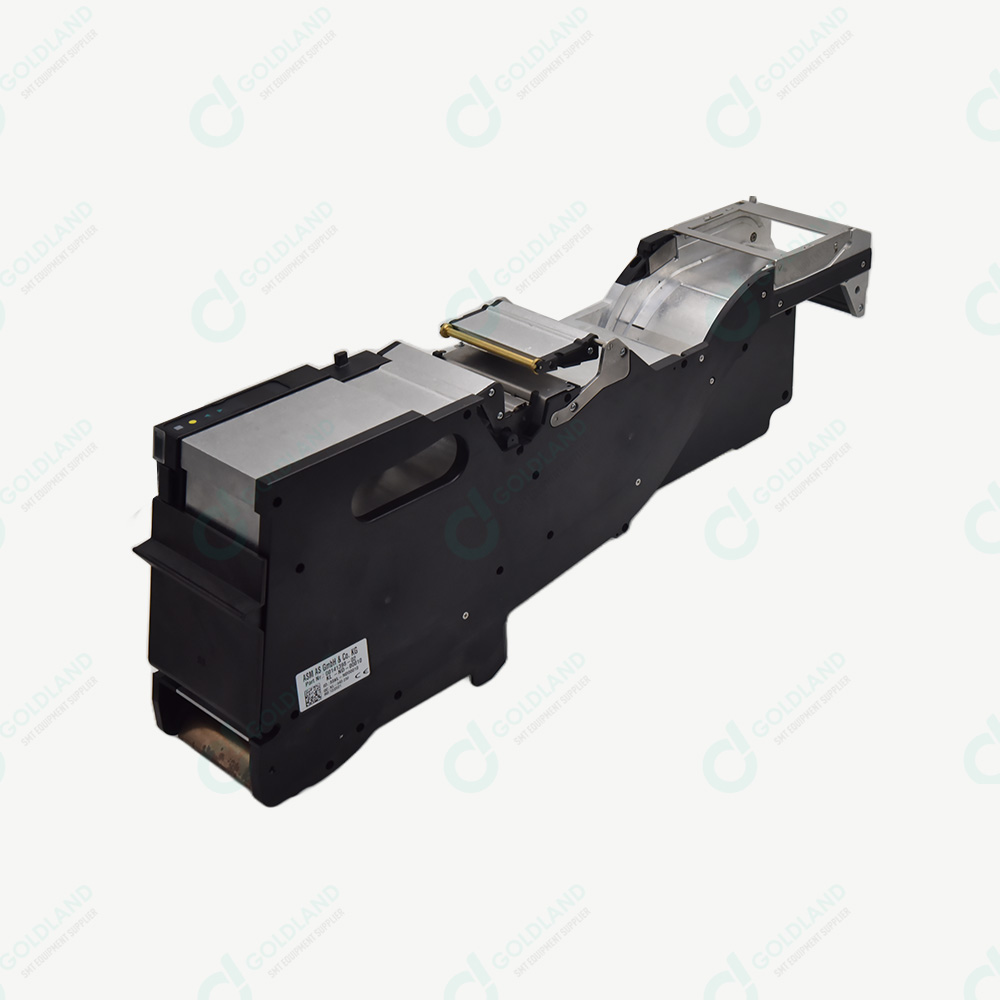

00141398-02 KL-ND-00010 SIPLACE Tape Feeder Module 88mm X Smart With Sensor

00141398-02 KL-ND-00010 SIPLACE Tape Feeder Module 88mm X Smart With Sensor Specification

Usage & Applications
Automated SMT component feeding for SMD placement machines

Surface Finish
Smooth, industrial

Capacity
Supports 88mm width SMD component tape reels

Motor Power
Integrated micro motor, 5-15W (typically)

Noise Level
<50 dB in typical operation

Size
88mm tape width

Drive Type
Servo-actuated electronic drive

Shape
Rectangular housing

Diameter
Compatible with standard tape reel diameters (up to 330mm)

Features
X Smart sensor system for tape presence/advance, quick setup, and automatic component detection

Lubricating System
Maintenance-free design (sealed bearings)

Product Type
Machine Parts

Material
metals

Technology
Smart Feeder Technology with sensor integration

Power Source
Electricity

Power
Low Power Consumption (operates via standard SMD placement machine interface)

Voltage
24V DC (machine supplied)

Surface Treatment
Other

Dimension (L*W*H)
Standard feeder slot size compatibility (approx. 88mm x 250mm x 120mm)

Weight
3.5 Kilograms (kg)

Color
silvery

Sensor Type
Tape presence and advance sensors (optical/electronic)

Compatibility
Compatible with ASM SIPLACE series pick-and-place machines

Product Code/Model Number
00141398-02 / KL-ND-00010

Positioning Accuracy
High-precision indexing for reliable part presentation

Insertion/Change Time
Quick-release mechanism, less than 10 seconds

Maintenance
Tool-free, modular components for easy cleaning and replacement

Feeder Type
Intelligent/Smart SMT Tape Feeder with sensor feedback

Connection Interface
Proprietary SIPLACE electrical interface

Operating Temperature
10C to 40C

Tape Pitch Support
Optimized for high-speed 88mm tapes (adjustable pitch)

Storage Temperature
-20C to 60C

00141398-02 KL-ND-00010 SIPLACE Tape Feeder Module 88mm X Smart With Sensor Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 00141398-02 KL-ND-00010 SIPLACE Tape Feeder Module 88mm X Smart With Sensor

Prices are for show only, please contact us for exact price.

SMT Product List

Part Number	Part Name	Part Name
00336080-02	Bero Hubtisch 4 unten	PROXIMITY SWITCH LIFTING TABLE 4 DOWN
00336084-02	Bero: Stopper Bestueckber. 4 eingefahren	PROXIMITY SWITCH:STOPPER AREA 4 CLOSED
00336086-02	Bero: Stopper Bestueckber. 3 eingefahren	PROXIMITY SWITCH:STOPPER AREA 3 CLOSED
00336093-02	Bero Position Breitenverstellung Transp2	PROX.SWITCH POSITION WIDTH ADJUST.CONV.2
00336117-03	Sonarbero Bestueckbereich 3	SONAR PROXIMITY SWITCH PLACEMENT AREA3
00336656-03	BE-Magazin lang B6,9H1,5LE10	Component mag., long, W6.9H1.5LE10
00336674S01	Verteiler / DLM1	Distributor, DLM1
00336781-01	HAN D Stecker Bu 12polig	HAN D plug fem. 12-pole

Advanced Smart Feeder Technology

The KL-ND-00010 SIPLACE Tape Feeder Module incorporates state-of-the-art X Smart sensor systems to monitor tape presence and advance status. These integrated sensors enable precise, real-time feedback, ensuring every component is presented correctly for pick-and-place operations, significantly reducing errors and downtime on SMT assembly lines.

Effortless Integration and Operation

Engineered for seamless attachment to ASM SIPLACE series machines, this feeder features a proprietary electrical interface and quick-release mechanism. The entire insertion and changeover process takes less than 10 seconds, allowing for rapid retooling and efficient workflows during high-mix SMT production runs.

Maintenance-Free and User-Friendly Design

Designed with tool-free, modular construction and sealed bearings, the feeder requires minimal upkeep. Operators can easily clean or replace components without specialized tools. This facilitates higher machine uptime and lower operational costs while maintaining peak feeder performance.

FAQ's of 00141398-02 KL-ND-00010 SIPLACE Tape Feeder Module 88mm X Smart With Sensor:

Q: How do you install and remove the SIPLACE Tape Feeder Module on an ASM SIPLACE machine?

A: Installation and removal are simple thanks to the feeder's quick-release mechanism. The module slots into the standard SIPLACE feeder slot, and with one motion, it is securely locked or released. The process typically takes less than 10 seconds, requiring no tools.

Q: What are the primary advantages of the integrated X Smart sensor system in this tape feeder?

A: The X Smart sensor system offers real-time detection of tape presence and advance, providing immediate feedback to the pick-and-place machine. This minimizes component misfeeds, reduces stoppages, and ensures accurate, automated component delivery for faster SMT assembly.

Q: When should the feeder module undergo maintenance, and what is involved in the process?

A: Thanks to its maintenance-free design with sealed bearings and modular components, regular maintenance is minimal. Periodic inspections and cleaning can be performed without tools, and any necessary part replacements are quick and straightforward, keeping downtime low.

Q: Where is this feeder module best utilized in SMT production?

A: The 88mm Tape Feeder Module is ideally suited for automated SMT assembly environments using ASM SIPLACE pick-and-place machines, especially where high-speed, accurate delivery of large-format SMD components is required.

Q: What types of tapes and reels are compatible with this tape feeder module?

A: The feeder supports 88mm wide SMD component tape reels and is compatible with standard tape reel diameters up to 330mm, making it suitable for a wide range of medium to large electronic component feeding applications.

Q: How does the servo-actuated electronic drive improve feeder performance?

A: The servo-actuated drive ensures extremely precise tape indexing and smooth movement, which is crucial for high-speed SMT assembly processes. This precision enhances pick-and-place accuracy, reduces errors, and supports faster production rates.
