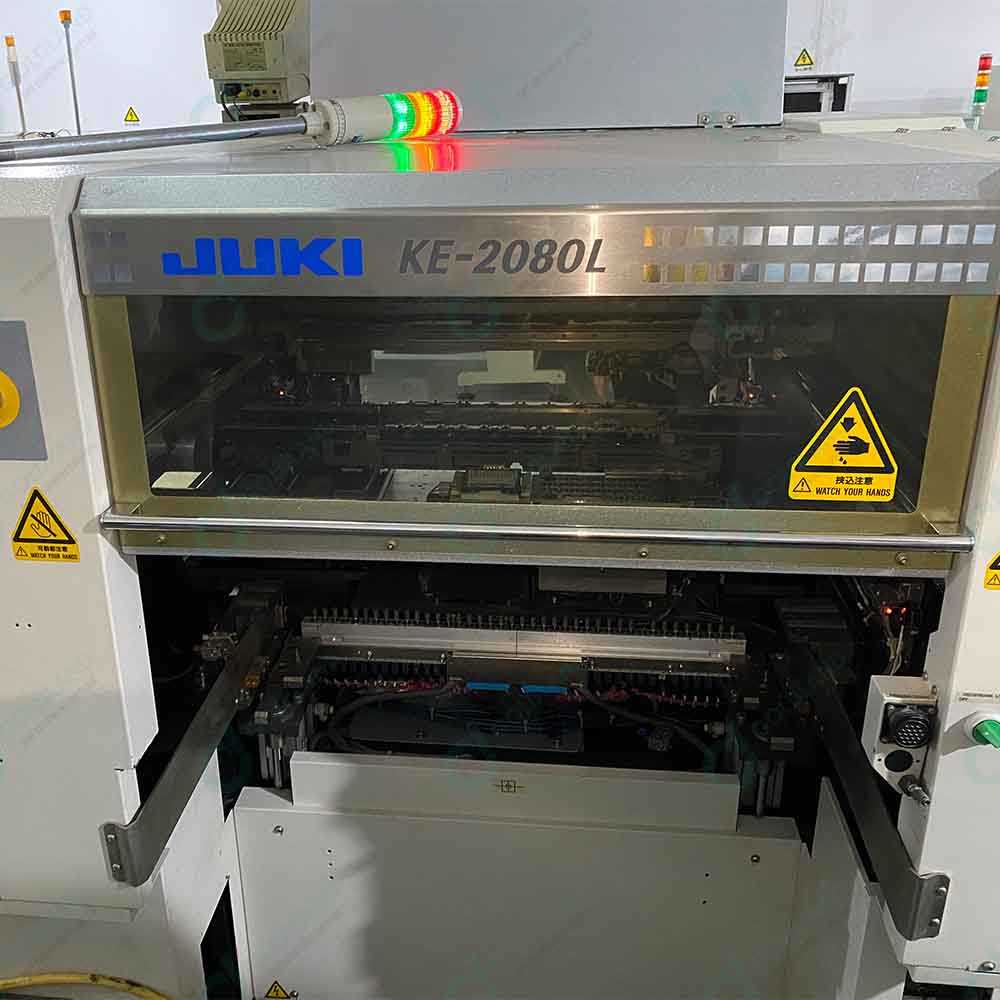

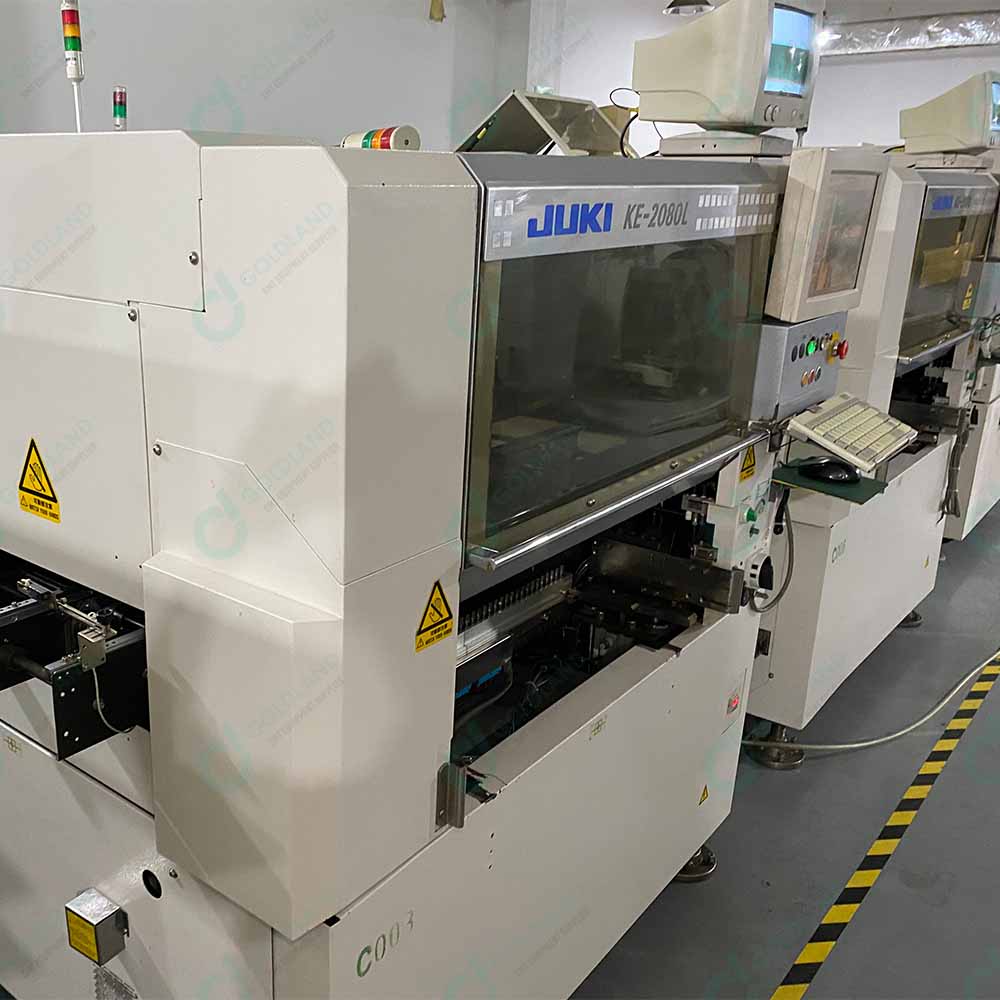

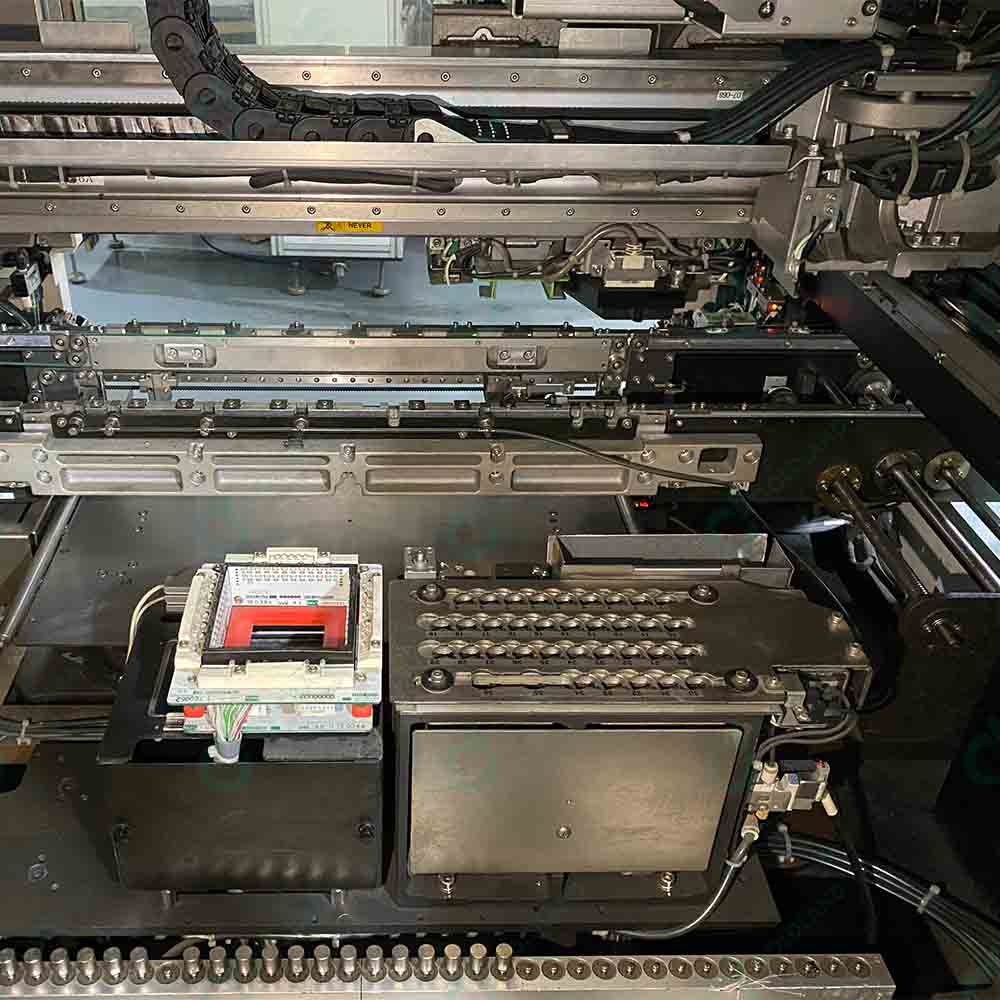

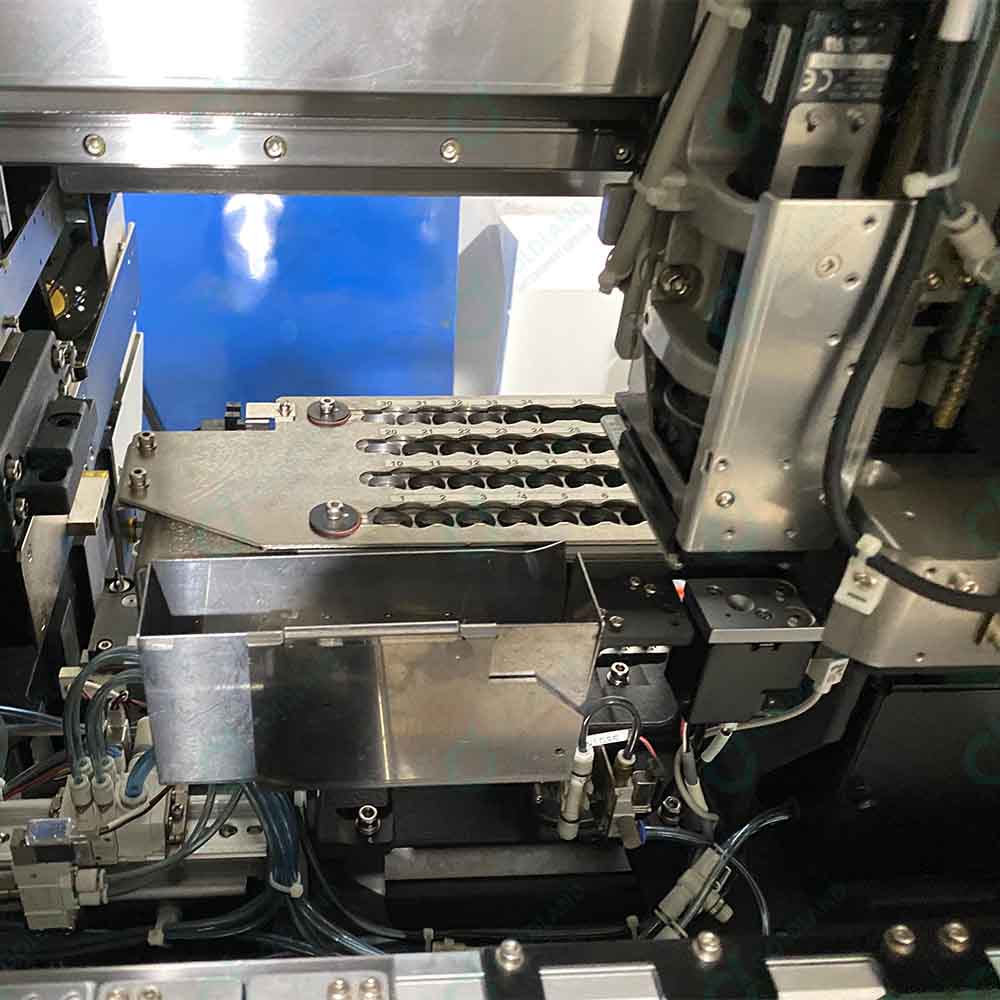

JUKI KE2080L SMT Mounter High Speed High Precision Component Placement for PCB Assembly

JUKI KE2080L SMT Mounter High Speed High Precision Component Placement for PCB Assembly Specification

Product Type
SMT Mounter - High Speed, High Precision Component Placement Machine

Material
Industrial Grade Metal and High Strength Components

Capacity
Max PCB Size: 800mm (L) x 370mm (W)

Computerized
Yes, Windows Based Operation Interface

Automatic Grade
Fully Automatic

Control System
Advanced Motion and Vision Control System

Processing Type
Component Placement for PCB Assembly

Voltage
3-Phase AC 200-415V, 50/60Hz

Power
Maximum 3.5 kVA

Dimension (L*W*H)
1,650mm x 2,380mm x 1,440mm

Weight
1,850 kg

Color
White/Blue (as per image)

Air Supply
0.5 MPa (minimum)

Noise Level
Less than 70 dB (A)

Number of Mounting Heads
8 Modular Placement Heads

Applicable PCB Thickness
0.4 mm to 6.0 mm

Software Support
Supports JUKI Intelligent Shop Floor System (IS) & remote diagnostics

Mountable Components
Chips, Small ICs, Large ICs, QFP, BGA, CSP, PLCC, SOT, MELF, connectors

PCB Transport Height
900mm 40mm

Placement Speed
Up to 60,000 CPH (chips per hour)

Feeder Capacity
Max. 160 8mm tape feeders (options available for tray & stick)

Conveyor System
Programmable dual-rail conveyor

Vision System
High Resolution Digital Vision Alignment (front and rear cameras)

Component Range
01005 to 33.5mm square (lead pitch 0.4mm and above), Max height 25mm

Operating Temperature
5C to 35C

Placement Accuracy
0.04mm (CPK 1.0)

JUKI KE2080L SMT Mounter High Speed High Precision Component Placement for PCB Assembly Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
30 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About JUKI KE2080L SMT Mounter High Speed High Precision Component Placement for PCB Assembly

Prices are for show only, please contact us for exact price.

Product Description

The JUKI KE2080L SMT mounter is a high-speed, high-precision machine designed for efficient and reliable surface mount technology (SMT) component placement in PCB assembly. Featuring advanced vision systems and flexible component handling capabilities, the KE2080L ensures accurate placement across a wide range of components, from fine-pitch chips to larger, complex devices. Its automated feeder systems and user-friendly interface streamline the setup process and increase throughput, making it ideal for both high-mix and high-volume production environments. The JUKI KE2080L is optimized for industries such as electronics manufacturing, telecommunications, and automotive, offering reliable performance and enhanced productivity. Whether you're aiming to improve cycle times or reduce defects, this SMT mounter delivers consistent, high-quality results with every placement, supporting seamless integration into your existing production line.

Product Specifications

Model	JUKI High-Speed Flexible Mounter KE2080
Board size	M size (330250mm)
	L size (410360mm)
	L-Wide size(510360mm) (option)
	E size (510460mm)*1
Component size	Laser recognition		0402 (01005)33.5mm
	Vision recognition	Standard camera	3mm74mm or 50150mm
		High-resolution camera (option)	1.00.5mm*348mm or 2472mm
Placement speed	Chip	Optimum	0.178Sec./chip(20,200CPH)
		IPC9850	16,700CPH
	IC*4		1,850CPH
			4,860CPH*5
Placement accuracy	Laser recognition		0.05mmCpk1
	Vision recognition		0.03mm (0.04mm when using MNVC)
Feeder inputs			Max. 80 on 8mm T/F*6

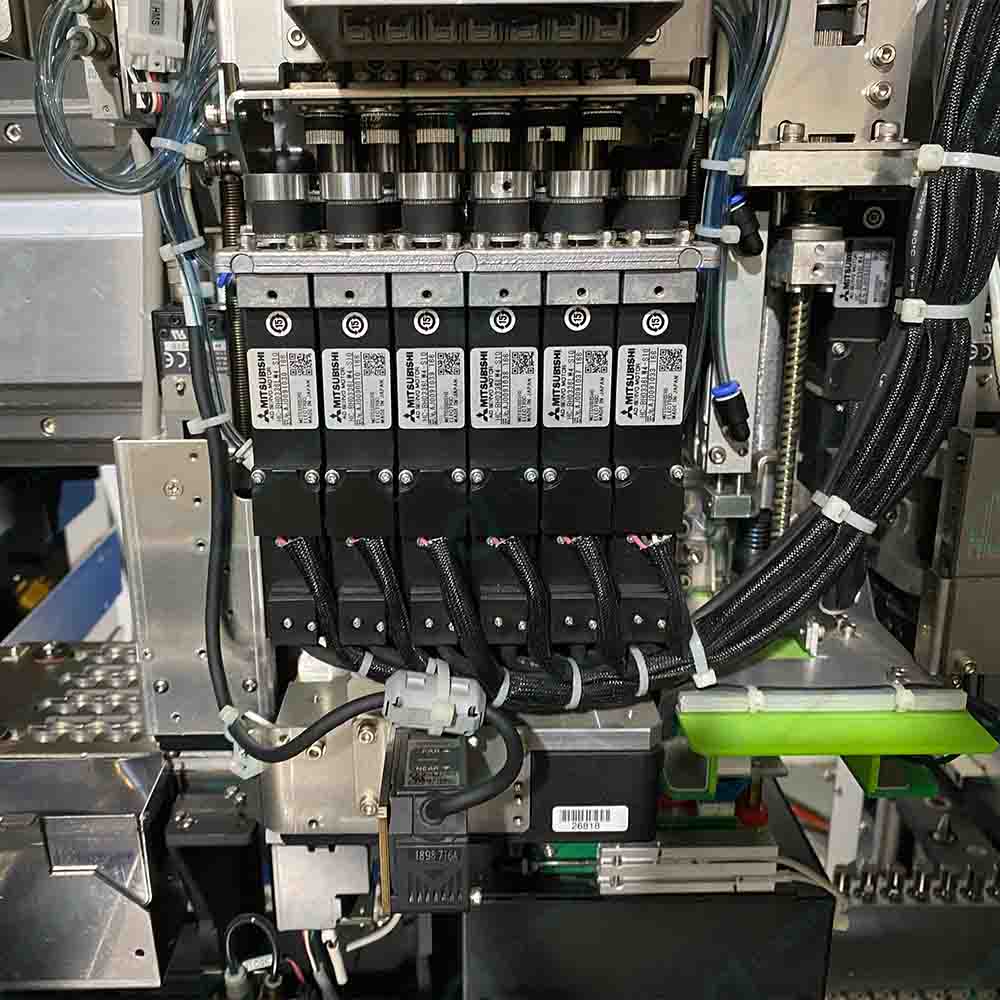

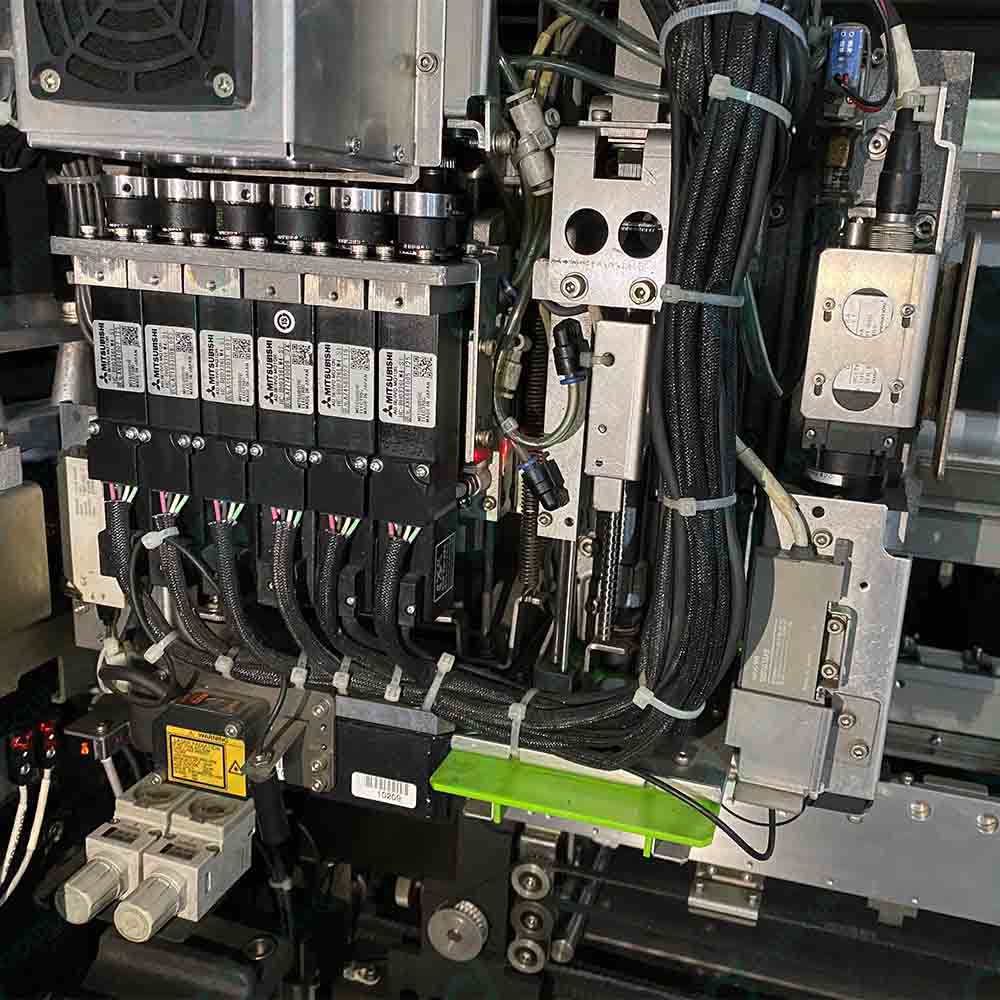

Exceptional Placement Speed and Precision

Engineered for productivity, the JUKI KE2080L can achieve up to 60,000 placements per hour while maintaining a high degree of precision at 0.04mm. Its advanced vision alignment system and modular placement heads make it ideal for high-mix, high-volume manufacturing, providing consistency in component accuracy for a wide range of PCB assemblies.

Versatile Component Handling

Supporting components from tiny 01005 chips to large 33.5mm QFPs or BGAs, the KE2080L adapts easily to varying assembly requirements. Its feeder setup accommodates up to 160 8mm tape feeders with options for tray and stick inputs, making it suitable for complex and diversified board designs.

Robust Software and Remote Support

Equipped with JUKI Intelligent Shop Floor System (IS) and remote diagnostics, the system streamlines process management, maintenance, and troubleshooting. The Windows-based interface simplifies operation and facilitates seamless integration into modern smart manufacturing environments.

FAQ's of JUKI KE2080L SMT Mounter High Speed High Precision Component Placement for PCB Assembly:

Q: How does the JUKI KE2080L ensure high-speed and accurate component placement?

A: The JUKI KE2080L combines eight modular placement heads with a high-resolution digital vision alignment system (front and rear cameras), enabling placement speeds up to 60,000 chips per hour while maintaining placement accuracy of 0.04mm (CPK 1.0).

Q: What types and sizes of components can be mounted using the KE2080L?

A: This model accommodates a component range from 01005 chips to 33.5mm square packages, with a maximum height of 25mm. It supports chips, small and large ICs (QFP, BGA, CSP, PLCC), discrete components (SOT, MELF), and connectors.

Q: When is the KE2080L recommended for use in PCB assembly processes?

A: The KE2080L is recommended for applications requiring high-volume, high-precision component placement, such as consumer electronics, automotive, telecommunications, and complex industrial PCB assemblies, especially where diverse component types are involved.

Q: Where can the KE2080L SMT Mounter be installed, and what are the environmental requirements?

A: Designed for industrial environments, the KE2080L is suitable for factories in India or globally, provided there is a stable 3-phase AC (200-415V, 50/60Hz), compressed air supply at 0.5 MPa or higher, ambient temperatures between 5C and 35C, and adequate floor space for its dimensions (1,650 x 2,380 x 1,440mm).

Q: What is the process for operating the KE2080L and setting up production jobs?

A: Production setup involves loading reels or trays in the feeders, configuring the programmable dual-rail conveyor for PCBs (thickness 0.4-6.0 mm), inputting job data via the Windows-based interface, and using JUKI's IS software for optimized placement paths. Remote diagnostics and software integration streamline setup and maintenance.

Q: What benefits does the KE2080L offer to PCB assembly manufacturers?

A: Manufacturers benefit from its high throughput, flexible component range, precise placement, and advanced vision-guided alignment. The robust control and software systems reduce downtime, support remote troubleshooting, and ensure consistent, high-quality production runs.
