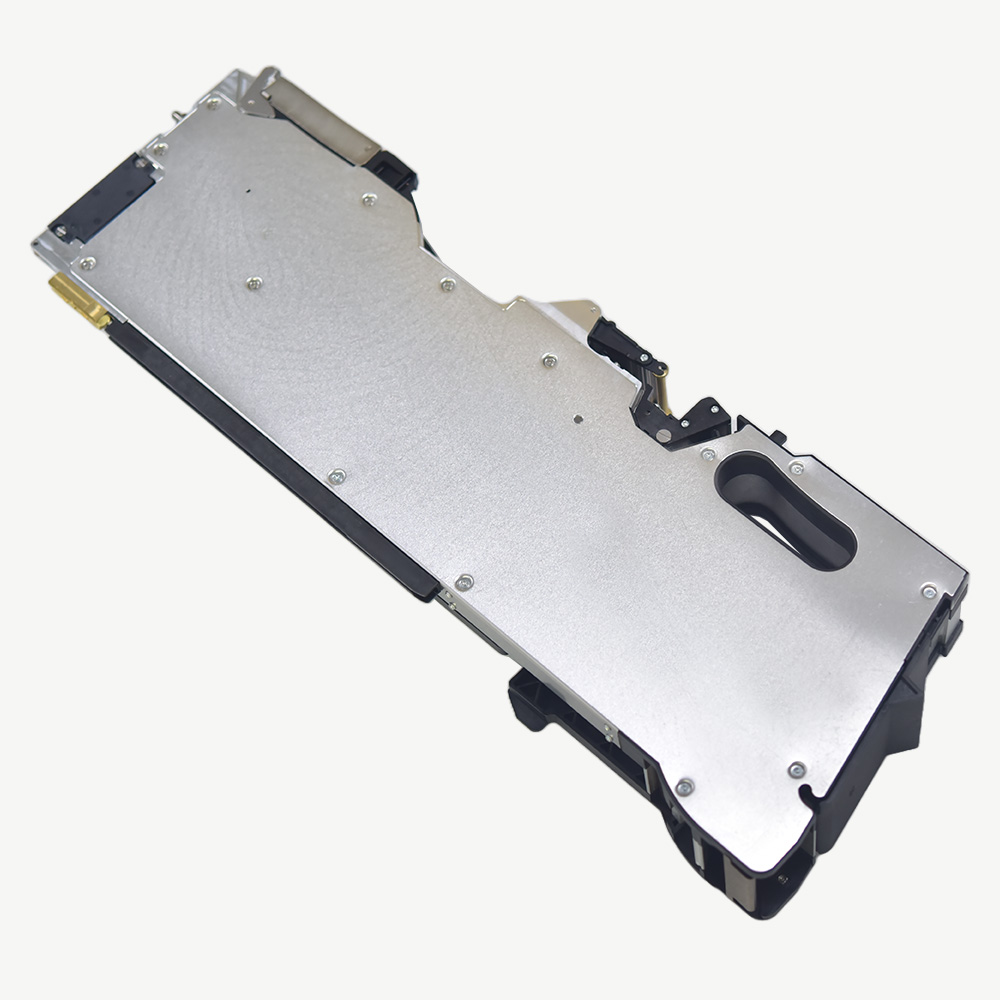

00141396 SIPLACE Tape Feeder Module 56mm X Smart with Splicing

00141396 SIPLACE Tape Feeder Module 56mm X Smart with Splicing Specification

Size
56 mm

Lubricating System
Maintenance-free

Noise Level
< 50 dB (operational)

Capacity
Supports 56 mm component tape width

Features
Splicing support, Intelligent tape tracking, X Smart Technology, Easy mounting and removal

Shape
Rectangular module

Drive Type
Electronic Motor Drive

Surface Finish
Smooth anodized

Usage & Applications
SMT Pick and Place Machines - Siemens SIPLACE compatible, electronic PCB production

Motor Power
Integrated low wattage servo

Product Type
SIPLACE Tape Feeder Module

Material
Aluminum Alloy, Industrial Composite

Technology
X Smart with Splicing

Power Source
Electric

Power
Low-power electronic drive

Voltage
24 V DC (standard for SIPLACE feeders)

Surface Treatment
Anodized/Coated

Dimension (L*W*H)
Approx. 310 mm x 70 mm x 100 mm

Weight
Approx. 1.9 kg

Color
Silver/Black

Component Type
Suitable for large/odd-shape and multi-pin components

Maintenance
Designed for low maintenance with tool-free access

Operational Status Feedback
LED indicator for feeder status

Feeder Width
56 mm tape width

Mounting
Quick-lock mounting mechanism

Firmware Upgradeability
Yes, via machine interface

Feeder Type
Smart Feeder with Splicing Function

Product Life Cycle
Extended, service parts available

Part Number
00141396

Tape Handling
Supports component tape with and without splicing

Control Interface
SIPLACE electronic communication interface

Compatibility
SIPLACE S X-series and later pick-and-place systems

Operating Temperature
10C to 40C

ESD Safe
Yes

00141396 SIPLACE Tape Feeder Module 56mm X Smart with Splicing Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About 00141396 SIPLACE Tape Feeder Module 56mm X Smart with Splicing

Prices are for show only, please contact us for exact price

SMT Feeder Parts

03026241-01	BE-Klappenschalter Nachrstung	flap switch retrofitting
03026242-01	BE-Klappenschalter X-Serie	flap switch x-series
03026287-01	Luftverteiler-Filtereinheit S25HM2 kplt.	AIR DISTRIBUTOR Unit S25HM2 cpl.
03026511-01	CAN-Bus: Verl?ngerung Schlepp Interface	CAN-BUS:EXTENSION INTERFACE
03027525-01	Schutzverkleidung	PROTECTIVE ENCLOSURE
03027548-01	Fhrung li.	Guide, left-hand side
03027563-01	Loctite 7063 Schnellreiniger	Loctite 7063 CLEANER
03027570-03	Hotlink Karte CPCI A14 K-01	HOTLINK CARD CPCI A14 K-01
03027644-01	Traeger fuer Schleppinterface	HOLDER FOR CABLE INTERFACE
03027646-02	Abschlusswiderstand 120 Ohm SUB-D Stift	JUMPER 120 Ohm SUD-D PIN

Advanced Splicing Functionality for Seamless SMT Production

Benefit from uninterrupted component feeding in high-mix SMT environments with the 00141396 SIPLACE Tape Feeder Module. The integrated splicing function allows smooth handling of both spliced and standard tapes, minimizing machine downtime and enabling efficient transitions during production changeovers.

Quick and Easy Installation with Smart Technology

Install or remove the feeder in seconds using the quick-lock mounting system. The intelligent interface and X Smart Technology ensure easy integration into SIPLACE S X-series and newer systems, while the LED indicator provides real-time operational status for enhanced workflow monitoring.

Durable, Low-Maintenance Construction and Upgradeable Firmware

Built from anodized aluminum alloy and industrial composites, this feeder is engineered for durability and ESD safety. Tool-free access simplifies maintenance, and periodic firmware upgrades via the machine interface keep the hardware performance up-to-date for sustained efficiency.

FAQ's of 00141396 SIPLACE Tape Feeder Module 56mm X Smart with Splicing:

Q: How is the 00141396 SIPLACE Tape Feeder installed and removed?

A: The tape feeder features a quick-lock mounting mechanism designed for easy installation and removal without the need for any tools. This allows operators to quickly swap feeders, reducing machine idle time and supporting rapid production shifts.

Q: What types of component tapes are supported by this feeder module?

A: It is compatible with 56 mm wide component tapes, including those with or without splicing. The splicing function ensures seamless feeding throughout tape transitions, particularly useful for large, odd-shaped, or multi-pin components.

Q: When should I perform maintenance on the SIPLACE feeder module?

A: This feeder is engineered for low maintenance and does not require routine lubrication. Tool-free access allows operators to occasionally inspect and clean the feeder as needed, or when alerted by the LED operational status indicator.

Q: Where can I use this SIPLACE tape feeder module?

A: The feeder module is specifically designed for use with Siemens SIPLACE S X-series and later SMT pick-and-place machines. It's ideal for electronic PCB production lines that require reliable, high-capacity tape feeding solutions.

Q: What benefits does the Smart with Splicing feature provide?

A: The Smart with Splicing feature enables continuous operation by supporting both standard and spliced tapes. This minimizes interruptions during tape changes, improves production efficiency, and accommodates a wider variety of component types including large and complex parts.

Q: How is firmware updated on the feeder module?

A: Firmware upgrades are performed easily through the SIPLACE machine interface, ensuring the feeder remains compatible with evolving system requirements and feature enhancements.
