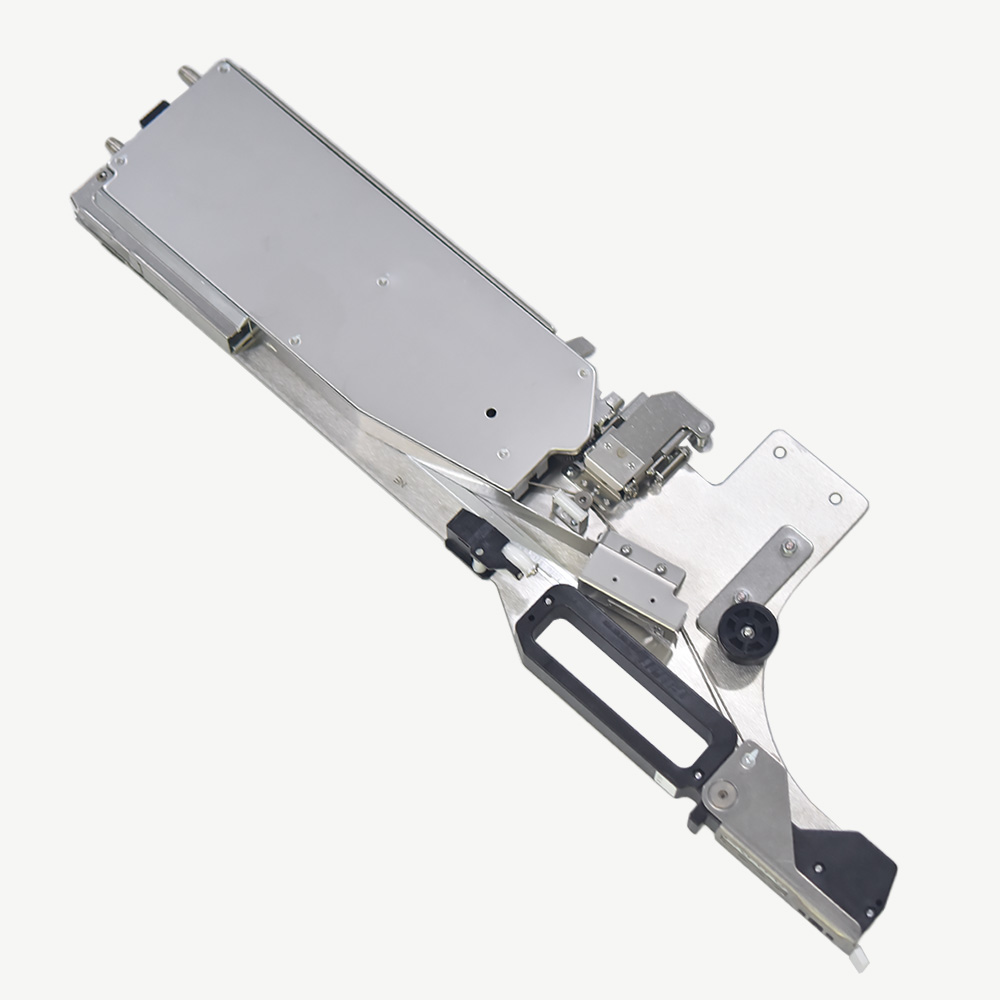

2UDLFB001300 W16f FUJI NXT Feeder, Bucket Type

2UDLFB001300 W16f FUJI NXT Feeder, Bucket Type Specification

Diameter
Tape Reel Supported up to Standard Industry Size

Surface Finish
Smooth Anodized Finish

Lubricating System
Maintenance-Free (Factory Lubricated)

Motor Power
Feeder Operates with External Machine Drive

Size
W16F Width (16mm Tape Compatible)

Usage & Applications
Used for feeding electronic components via tape in FUJI NXT SMT machine lines

Drive Type
Mechanical Drive by Placement Head

Features
High precision feeding, easy loading/unloading, anti-jam mechanism, compatible with FUJI NXT platform

Shape
Rectangular/Feeder Shape

Noise Level
Low Noise (below 55 dB)

Capacity
Suitable for 16mm component tape reels

Product Type
SMT Feeder (Bucket Type)

Material
High-grade Aluminum & Stainless Steel

Technology
FUJI NXT Series Feeder Mechanism

Power Source
Electric

Power
Not Applicable (Feeder Driven by Placement Machine)

Voltage
Not Applicable (Integrated Machine Supply)

Surface Treatment
Anodized & Anti-corrosion Coated

Dimension (L*W*H)
Standard W16F Bucket Feeder Size (Consult Manufacturer)

Weight
Approx. 1.2 kg

Color
Metallic Grey/Black

Tape Compatibility
Paper/Embossed Carrier Tape

Component Type Supported
Chip Components, SMD Resistors, Capacitors, and Small ICs

Feeder Type
Bucket Type

Part Number
2UDLFB001300

Mounting Compatibility
FUJI NXT and NXT II SMT Machine Series

Component Pitch Supported
Standard and Customizable Pitch Options

Feeding Method
Automatic Retrieval from Tape Reel

Maintenance
Easy Strip Down Design for Quick Cleaning

Operating Environment
15C-35C, Humidity: 30%-70% RH (Non-condensing)

2UDLFB001300 W16f FUJI NXT Feeder, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
North America, South America, Asia, Australia, Central America, Eastern Europe, Western Europe, Middle East, Africa

About 2UDLFB001300 W16f FUJI NXT Feeder, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

K51757	SCREW, C / R PAN
PS04021 / 2MDLFA021801 / 2MDLFA021802	SHEET
XK05358 / XK06252 / XK06254	BOARD, PRINTED CIRCUIT
K5365R	SCREW, C / R TRUSS
PZ02393 / PZ02394	SW, MICRO
K5256A / PZ39021	SCREW, HEX SOCKET BUTTON
H4569A / PM0K0Z2	BEARING, MINIATURE
S1020A / S1003D	CIR-CLIP
PT01862	GEAR
A5141S	O RING
W1121F	WASHER
PP02742	SCRAPER
K5255H	SCREW, HEX SOCKET BUTTON
W1021A	WASHER, LOCK
PB04FB3 / PP03400	RETAINER, BEARING

Precision Feeding for FUJI NXT Platforms

This W16f bucket-type feeder fits seamlessly onto FUJI NXT and NXT II SMT machines, enabling rapid and reliable delivery of electronic components. It features high precision mechanics to support standard and custom pitch settings, enhancing placement accuracy and reducing downtime due to feeding errors.

Durable and Maintenance-Free Design

Manufactured with high-grade anodized aluminum and stainless steel, the feeder offers excellent corrosion resistance and long-term durability. Its maintenance-free lubrication and easy strip-down build simplify cleaning and routine care, helping maintain peak operation without extended machine downtime.

Adaptable for Various Tape and Component Types

Supporting both paper and embossed carrier tapes, this feeder accommodates 16mm tape reels and is suitable for a wide range of SMD components. Whether handling resistors, capacitors, or small ICs, it offers flexible integration into diverse SMT production environments.

FAQ's of 2UDLFB001300 W16f FUJI NXT Feeder, Bucket Type:

Q: How does the 2UDLFB001300 W16f FUJI NXT Feeder operate within an SMT production line?

A: This feeder is mechanically driven by the placement head of FUJI NXT and NXT II machines. It automatically retrieves electronic components from 16mm tape, allowing for hands-free operation and precise placement during high-speed assembly.

Q: What types of components and tapes are compatible with this feeder?

A: The feeder supports chip components, SMD resistors, capacitors, and small ICs using either paper or embossed carrier tapes, offering flexibility for various assembly needs.

Q: Where can I install this feeder, and which machines is it compatible with?

A: It is specifically designed for FUJI NXT and NXT II SMT machine series. Its mounting interface ensures secure, straightforward attachment to these production lines.

Q: What are the benefits of the feeder's maintenance-free design?

A: The easy strip-down construction and factory-lubricated system make cleaning and routine maintenance quick and simple, minimizing production downtime and maximizing operational efficiency.

Q: What is the process for loading and unloading tape reels in this feeder?

A: Operators can easily load and unload 16mm tape reels via a straightforward mechanism, supported by the feeder's anti-jam design to ensure smooth handling and reduced risk of tape feed interruptions.

Q: When should this feeder be used within the SMT assembly process?

A: It is ideal whenever consistent and high-speed feeding of chip components, SMD resistors, capacitors, or small ICs is needed-especially within environments utilizing FUJI NXT platforms for scalable, automated assembly.

Q: What advantages does this bucket feeder offer over traditional models?

A: Key advantages include high precision feed, compatibility with standard and custom pitch tapes, a smooth anodized finish for corrosion resistance, low-noise function, and seamless integration with FUJI NXT automation systems.
