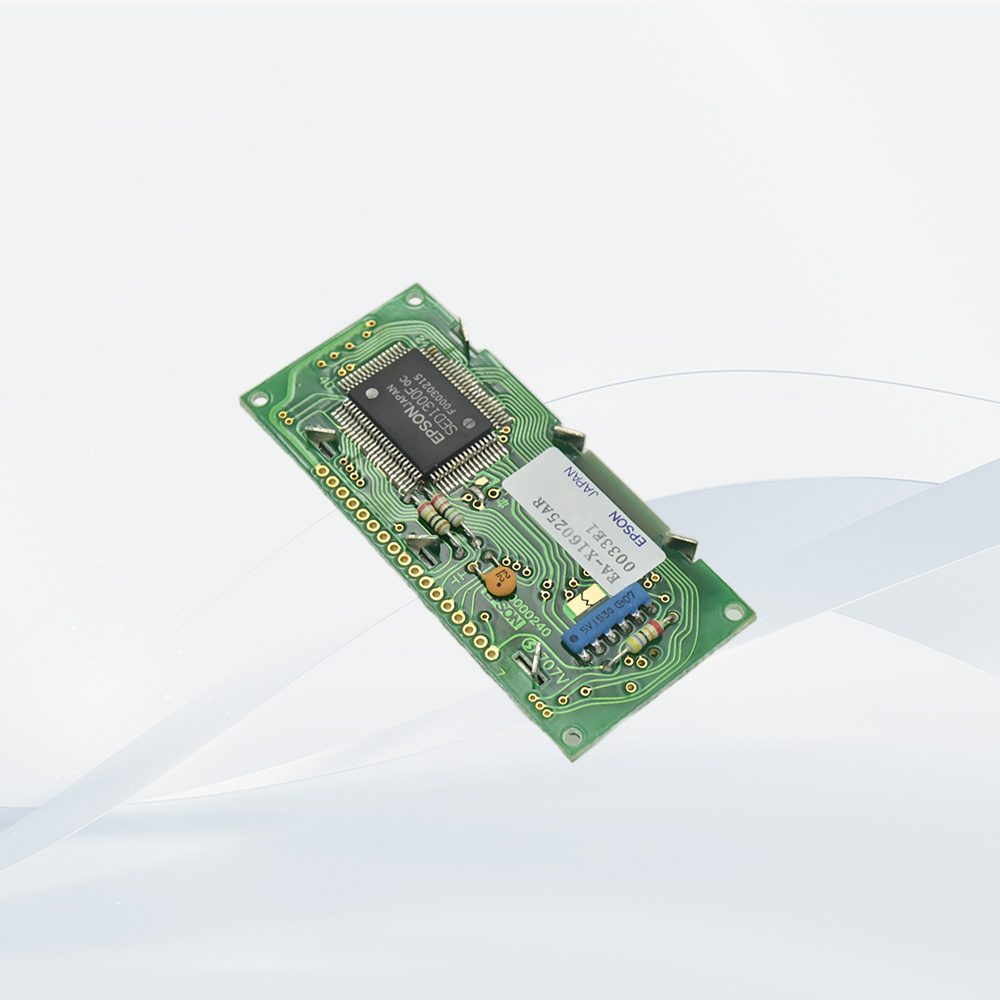

N243EAX16025(EA-X16025AR) LCD Display

N243EAX16025(EA-X16025AR) LCD Display Specification

Size
2.43 Inch (Diagonal)

Features
High Brightness, Low Power Consumption, Wide Viewing Angle

Shape
Rectangular

Usage & Applications
Industrial Equipment, Portable Instruments, Consumer Electronics

Surface Finish
Matte

Product Type
LCD Display

Material
Glass, Plastic Frame

Technology
Active Matrix TFT (Thin Film Transistor)

Power Source
Electric

Power
Typ. 2.0W

Voltage
3.3V DC (typ)

Surface Treatment
Anti-glare, Hard Coating (3H)

Dimension (L*W*H)
Approx. 56.2mm x 41.9mm x 3.1mm

Weight
Approx. 18g

Color
Full Color (RGB)

Contrast Ratio
Typ. 300:1

Display Resolution
240(RGB) x 320 pixels

Storage Temperature Range
-30C to +80C

Brightness
Typ. 260 cd/m2

Touch Panel
Optional, Resistive or Capacitive

Viewing Direction
12 o'clock

Interface Type
SPI/Parallel

Backlight Type
White LED (6-LEDs)

Display Mode
Transmissive, Normally White

Operating Temperature Range
-20C to +70C

N243EAX16025(EA-X16025AR) LCD Display Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About N243EAX16025(EA-X16025AR) LCD Display

Prices are for show only, please contact us for exact price.

SMT Product List

X02G41101	BODY(PANASONIK RL131)
1041321020	CUTTER (PANASONK AVK)
104131001801	PUSHER(PANASONK AVK)
N210044364AA	PUSHER R (PANASONK AVK)
1087110021	NSERTON GUDE (PANASONK AVK)
N510009595AA	BALLSCREW (PANASONK AVK)
104131003902	BENDNG DE (PANASONK AVK)
104131003802	BENDNG DE (PANASONK AVK)
108711101201	SLDER PANASONK AVK3)

Exceptional Display Performance

Experience crisp, vivid imagery with the N243EAX16025's high-brightness white LED backlight and anti-glare matte finish. The transmissive, normally white display boasts a 240x320 resolution and a full RGB color spectrum, making it ideal for applications demanding visual precision and durability.

Flexible and Robust Construction

This 2.43-inch display is built from rugged glass within a plastic frame and features a hard-coated surface for added durability. The panel allows for an optional resistive or capacitive touch interface, enhancing versatility across varying operational needs and environments.

Wide Application Compatibility

The display's SPI/Parallel interface ensures straightforward integration into industrial machinery, consumer devices, and portable instruments. Its energy efficiency and extended operating temperature (-20C to +70C) make it reliable even in challenging conditions.

FAQ's of N243EAX16025(EA-X16025AR) LCD Display:

Q: How is the N243EAX16025 LCD display typically used in industrial and consumer applications?

A: The display is commonly integrated into industrial equipment, consumer electronics, and portable instruments due to its high brightness, low power consumption, and wide operating temperature range, ensuring reliability for both harsh industrial use and everyday consumer applications.

Q: What interface options does the N243EAX16025 support, and how does this benefit integration?

A: This LCD supports both SPI and Parallel interfaces, offering flexible, straightforward connection with most microcontrollers and embedded systems. This facilitates seamless integration into a variety of devices and control units.

Q: When should I choose the optional touch panel, and what types are available?

A: You should opt for the touch panel if your application requires user interaction directly on the display. The N243EAX16025 offers both resistive and capacitive touch options, suitable for different operational environments and user experience preferences.

Q: Where can the N243EAX16025 be deployed considering its temperature and construction?

A: This display is engineered for environments ranging from -20C to +70C, making it viable for both indoor and outdoor installations, including industrial machinery panels, handheld instruments, and other settings requiring durable and reliable displays.

Q: What are the main benefits of the anti-glare and hard coating features on the display surface?

A: The anti-glare matte surface and hard coating (3H hardness) enhance screen readability in bright lighting and protect the display from scratches and surface damage, thereby extending the product's usable lifespan.

Q: How does the N243EAX16025 achieve low power consumption, and what is its typical power requirement?

A: Utilizing efficient LED backlighting and advanced TFT technology, the display operates at a typical power consumption of 2.0W, with a standard voltage requirement of 3.3V DC, optimizing energy use for battery-powered or portable devices.

Q: What is the process for acquiring the N243EAX16025 display in India?

A: As the display is distributed, exported, and supplied by manufacturers and traders in India, inquiries can be made directly with authorized dealers or through online supplier platforms to obtain detailed quotations and procurement support.
