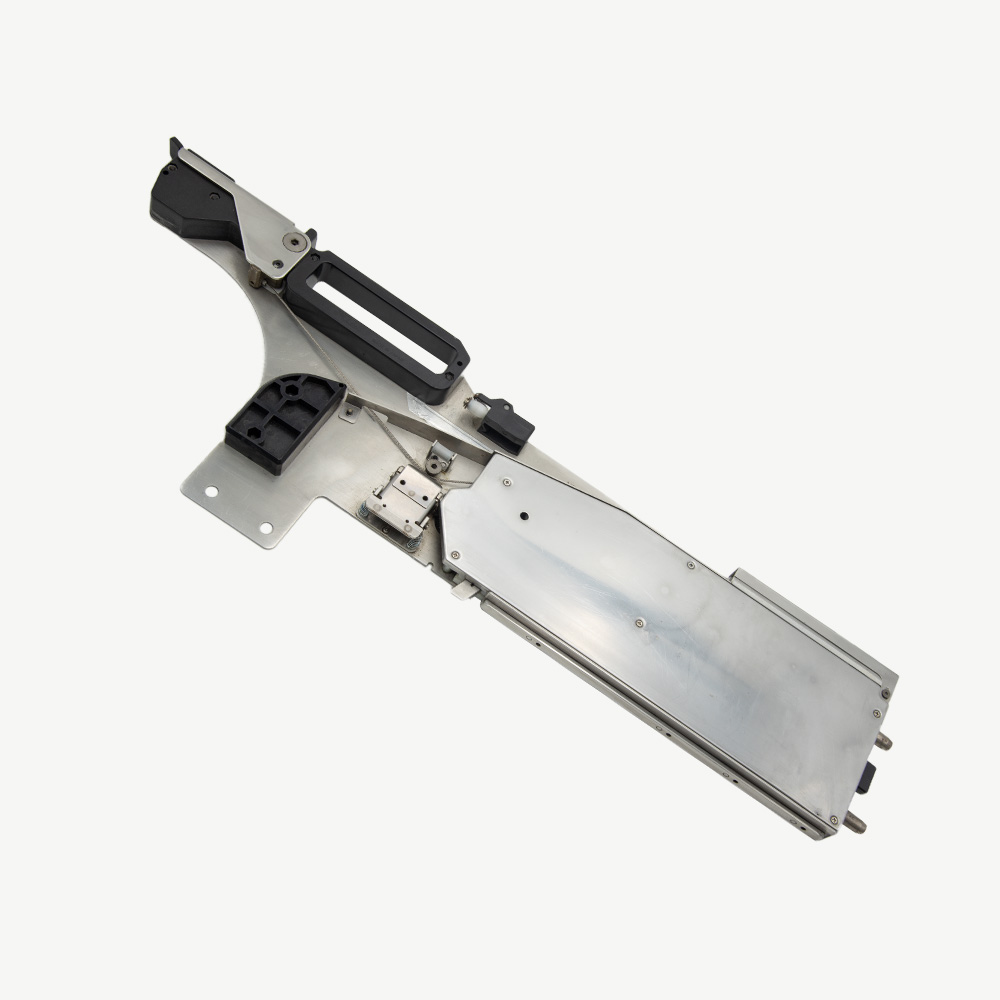

UF01400 FUJI NXTI 12mm Feeder W12, Bucket Type

UF01400 FUJI NXTI 12mm Feeder W12, Bucket Type Specification

Surface Finish
Glossy/Matte blended industrial finish

Motor Power
Micro-step motor integrated

Lubricating System
Sealed maintenance-free

Features
High feeding accuracy, quick-release latch, anti-jam mechanism, LED status indicator

Size
12mm tape width (W12)

Drive Type
Automatic driven (Stepper Motor)

Capacity
Supports 8-16mm tape conversion with adapters

Usage & Applications
For FUJI NXT Series Surface Mount Technology (SMT) machines, SMD component feeding

Noise Level
Low (Below 60 dB)

Shape
Rectangular elongated cassette

Product Type
Feeder (Bucket Type)

Material
High-grade metal, Industrial plastics

Technology
FUJI NXT Intelligent Feeder Technology

Power Source
Electric

Voltage
24V DC (Standard for FUJI feeders)

Surface Treatment
Anti-corrosive coating

Dimension (L*W*H)
Approx. 325mm x 80mm x 100mm

Weight
Approx. 1.8 kg

Color
Metallic Silver/Black

Setup Changeover Time
Less than 1 minute

Interface
Smart feeder recognition chip

Component Types Supported
SMD chips, resistors, capacitors, ICs (suitable for 12mm tape)

Humidity Tolerance
20% to 80% RH non-condensing

Compatible Machine Models
FUJI NXT I, NXT II, NXT III

Operating Temperature Range
10C to 40C

Pick Position Repeatability
0.05 mm

Storage Temperature Range
-20C to 60C

Feeding Method
Bucket/compartment feed type

ESD Protection
Yes, ESD safe design

Product Code
UF01400

Tape Format
Embossed and paper tape compatible

UF01400 FUJI NXTI 12mm Feeder W12, Bucket Type Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
5001 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
North America, Eastern Europe, South America, Western Europe, Asia, Australia, Central America, Africa, Middle East

About UF01400 FUJI NXTI 12mm Feeder W12, Bucket Type

Prices are for show only, please contact us for exact price.

SMT Feeder Parts

PB04BL0	GUIDE, TAPE
PM0D1L0	PIN
PB040F1	PLATE
PM0D1F0	BKT, SENSOR
PZ48470	SENSOR
K5175N	SCREW, C / R PAN
K5357M	SCREW, HEX SOCKET COUNTERSUNK
PH01422	BKT, SLIDE
PZ31461	BOLT
N10796	NUT, HEX
PM048F1	SLIDER
PT01740	STOPPER
PH01434	SLIDER
PX01801	SEAL, BAR CODE
PP02252	PLATE, RETAINING

High Precision and Quick Changeover

The UF01400 FUJI NXTI 12mm Feeder ensures remarkable pick position repeatability at 0.05mm and supports rapid setup changes in under one minute. Its anti-jam mechanism, micro-step motor, and high-grad materials contribute to consistent feeding performance, reducing downtime and boosting SMT line productivity.

Robust and ESD Safe Construction

Featuring a blend of high-grade metal and industrial plastics with an anti-corrosive glossy/matte finish, this feeder guarantees durability and protection against static discharge. The ESD-safe design and sealed maintenance-free lubrication further safeguard sensitive components and extend the service life of the feeder.

FAQ's of UF01400 FUJI NXTI 12mm Feeder W12, Bucket Type:

Q: How does the UF01400 FUJI NXTI 12mm Feeder benefit SMT production lines?

A: This feeder delivers high feeding accuracy (0.05mm repeatability), rapid changeover times of under one minute, and supports both embossed and paper 12mm tape, minimizing downtime and optimizing the efficiency and reliability of your FUJI NXT I, II, or III SMT production lines.

Q: What component types and tape formats are supported by this feeder?

A: The UF01400 feeder is compatible with SMD chips, resistors, capacitors, and integrated circuits that utilize 12mm tape. It handles both embossed and paper tape formats, offering versatility for various SMT assembly requirements.

Q: When should I use the bucket/compartment feed type?

A: The bucket or compartment feed type is ideal when you require smooth, jam-free delivery of components onto the placement head, especially in high-speed automated lines. Its anti-jam mechanism aids consistent operation, suitable for demanding production schedules.

Q: Where can the UF01400 feeder be integrated and used most effectively?

A: This feeder is specifically designed for FUJI NXT I, NXT II, and NXT III machines and is most effective in automated SMT lines in electronics manufacturing, where high precision and fast component changeovers are essential.

Q: What process features make setup and operation user-friendly?

A: The UF01400 incorporates a quick-release latch for rapid tape replacement, maintenance-free sealed lubrication, automatic smart feeder recognition, and easy-to-read LED status indicators, streamlining the setup and daily operational process.

Q: Is the UF01400 feeder adaptable for other tape sizes?

A: Yes, with the use of appropriate adapters, this feeder supports conversion for tape widths between 8mm and 16mm, enhancing its flexibility across different components and production demands.
